Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

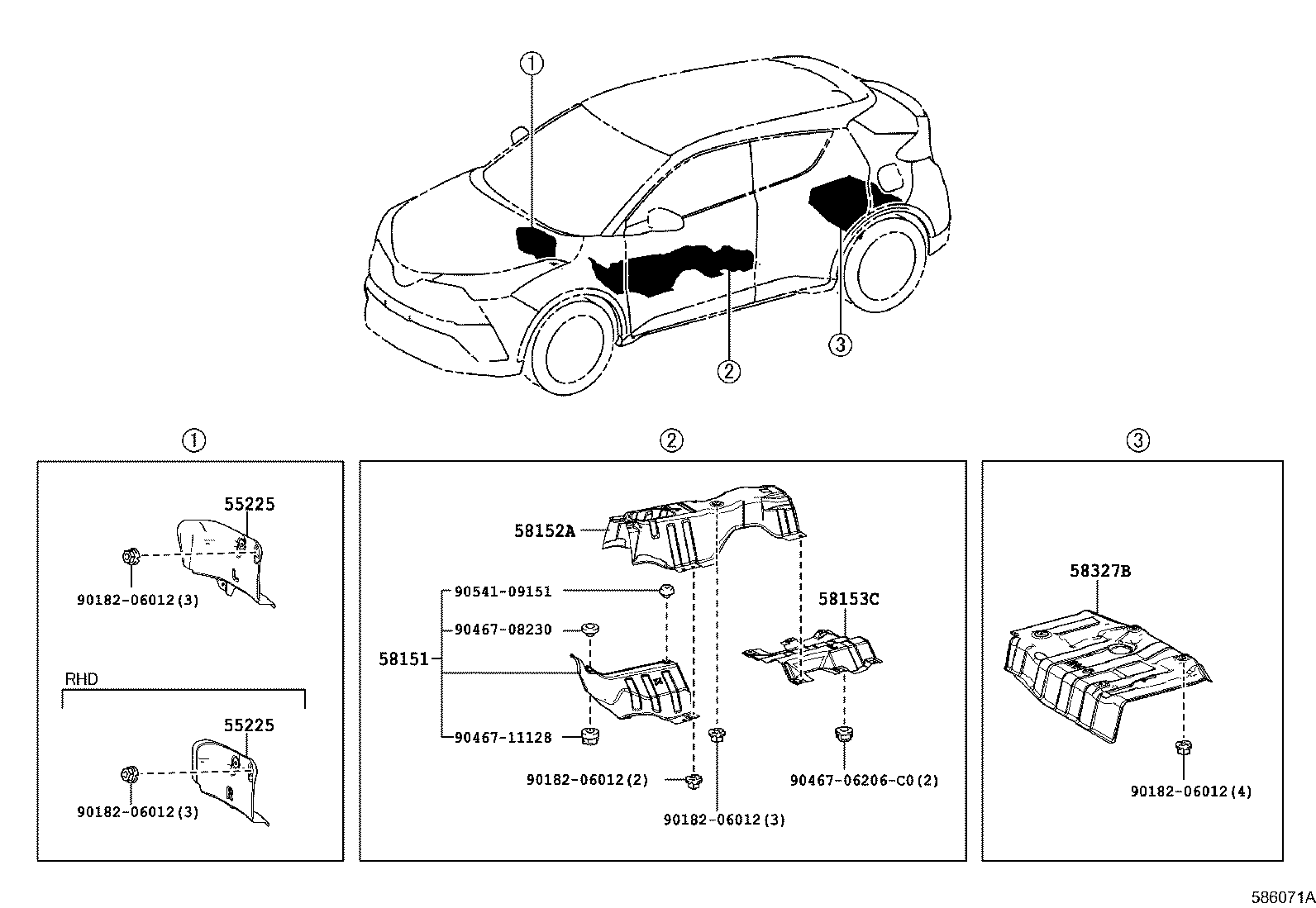

Exploded illustration 586071A 55225 — INSULATOR, DASH PANEL HEAT (4 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (7 parts) 58152A — INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER (2 parts) 58153C — INSULATOR, FLOOR HEAT, NO.3 (2 parts) 58327B — INSULATOR, MAIN MUFFLER HEAT (3 parts) 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9046706206C0 — not listed in this catalogue 9054109151 — not listed in this catalogue 9046708230 — not listed in this catalogue 9046711128 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 55225 — INSULATOR, DASH PANEL HEAT (4 parts)
586071A · 6 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
55225 — Insulator, Dash Panel Heat
55225-F4010 Insulator, Dash Panel Heat
2016-10 → 2019-09 ended
NGX10,50 LHD —
55225-F4020 Insulator, Dash Panel Heat
2016-10 → 2019-09 ended
NGX10,50 RHD —
55225-F4010 Insulator, Dash Panel Heat
2019-09 → —
NGX10,50 LHD —
55225-F4020 Insulator, Dash Panel Heat
2019-09 → —
NGX10 RHD —
58151 — Insulator, Front Floor Heat, NO.1
58151-02580 Insulator, Front Floor Heat, NO.1
2018-05 → 2019-09 ended
NGX10 —
58151-F4010 Insulator, Front Floor Heat, NO.1
2016-10 → 2018-04 ended
NGX10 —
58151-F4030 Insulator, Front Floor Heat, NO.1
2016-10 → 2019-09 ended
NGX50 —
58151-02580 Insulator, Front Floor Heat, NO.1
2019-09 → —
NGX10 —
58151-F4020 Insulator, Front Floor Heat, NO.1
2019-09 → 2020-10 ended
ZYX10 —
58151-F4030 Insulator, Front Floor Heat, NO.1
2019-09 → —
NGX50 —
58151-F4090 Insulator, Front Floor Heat, NO.1
2020-10 → —
ZYX10 —
58152A — Insulator, Front Floor Heat, NO.1 Lower
58152-F4010 Insulator, Front Floor Heat, NO.1 Lower
2016-10 → 2019-09 ended
NGX50 —
58152-F4010 Insulator, Front Floor Heat, NO.1 Lower
2019-09 → —
NGX50 —
58153C — Insulator, Floor Heat, NO.3
58153-F4020 Insulator, Floor Heat, NO.3
2016-10 → 2019-09 ended
NGX50 —
58153-F4020 Insulator, Floor Heat, NO.3
2019-09 → —
NGX50 —
58327B — Insulator, Main Muffler Heat
58327-F4010 Insulator, Main Muffler Heat
2016-10 → 2019-03 ended
NGX10,50 —
58327-F4011 Insulator, Main Muffler Heat
2019-04 → 2019-09 ended
NGX10,50 —
58327-F4011 Insulator, Main Muffler Heat
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
