Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

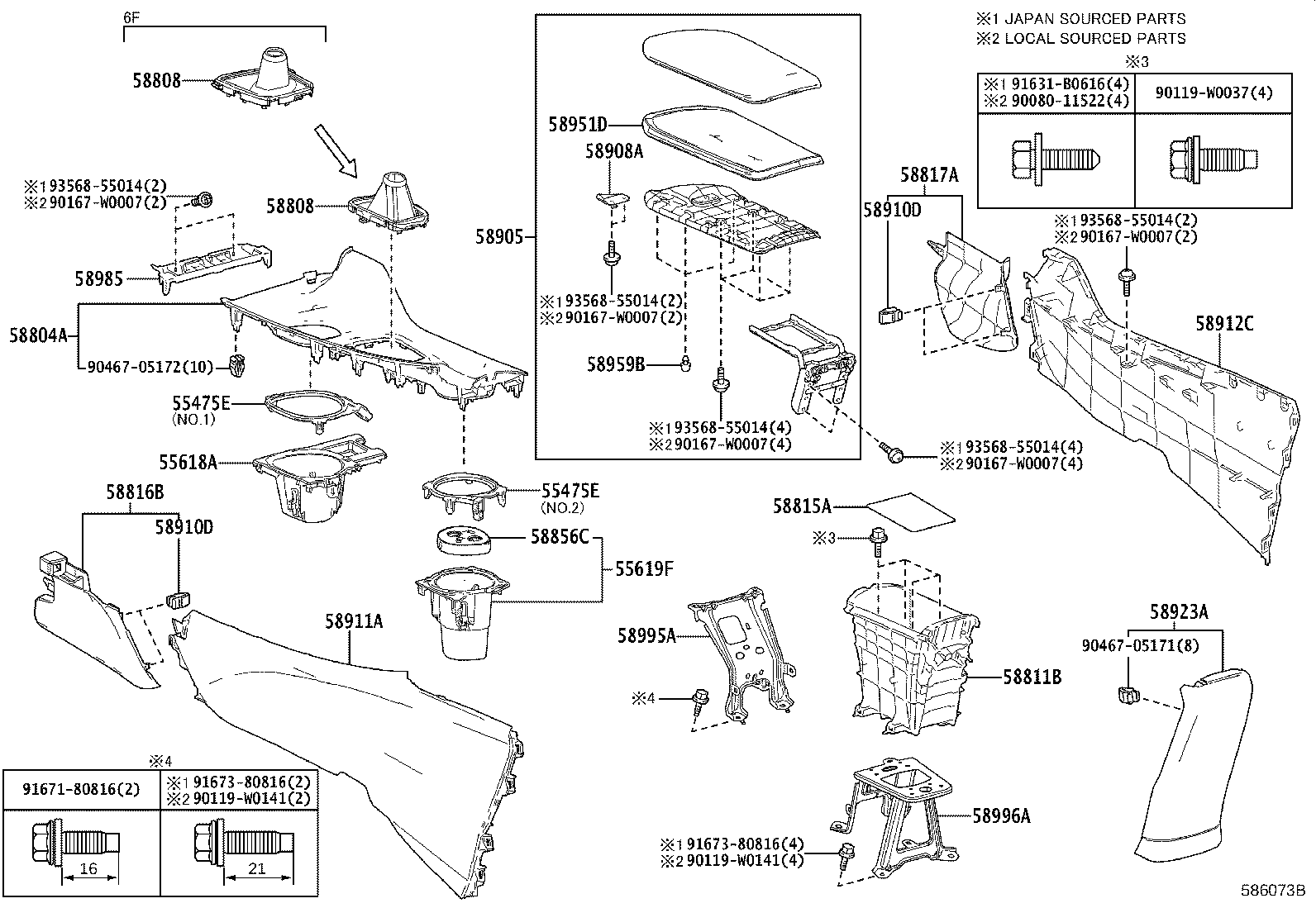

Exploded illustration 586073B 55475E — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER (14 parts) 55475E — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER (14 parts) 55618A — HOLDER, CONSOLE BOX CUP (6 parts) 55619F — HOLDER, CONSOLE BOX CUP, NO.2 (8 parts) 58856C — HOLDER, CONSOLE (2 parts) 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (22 parts) 58808 — COVER SUB-ASSY, SHIFTING HOLE (20 parts) 58808 — COVER SUB-ASSY, SHIFTING HOLE (20 parts) 58811B — BOX, CONSOLE (2 parts) 58815A — CARPET, CONSOLE BOX (2 parts) 58816B — INSERT, CONSOLE BOX (9 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (9 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (19 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (4 parts) 58910D — CLIP(FOR CONSOLE BOX) (2 parts) 58910D — CLIP(FOR CONSOLE BOX) (2 parts) 58911A — PANEL, BOX SIDE, NO.1 (15 parts) 58912C — PANEL, BOX SIDE, NO.2 (15 parts) 58923A — PANEL, CONSOLE REAR END (9 parts) 58951D — DOOR, CONSOLE COMPARTMENT, OUTER (4 parts) 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (2 parts) 58985 — RETAINER, CONSOLE BOX (2 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (2 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (4 parts) 9008011522 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0141 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705172 — not listed in this catalogue 91631B0616 — not listed in this catalogue 9167380816 — not listed in this catalogue 90119W0141 — not listed in this catalogue 9167380816 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 9167180816 — not listed in this catalogue
586073B · 24 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
172 parts on this figure
Part number Description Fitment Price
55475E — Garnish, Instrument Cluster Finish Panel, Center
55474-10100 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55474-10110 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55474-10120 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-04 ended
NGX10,50 LHD (D,N) —
55474-10130 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55475-10130 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 LHD E —
55475-10140 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55475-10150 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-04 ended
NGX10,50 LHD (D,N) —
55475-10160 note Garnish, Instrument Cluster Finish Panel, Center
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55474-10100 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10,50,ZYX10 LHD E —
55474-10110 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10 RHD E —
55474-10130 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10 RHD (D,N) —
55475-10130 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10,50,ZYX10 LHD E —
55475-10140 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10 RHD E —
55475-10160 note Garnish, Instrument Cluster Finish Panel, Center
2019-09 → —
NGX10 RHD (D,N) —
55618A — Holder, Console Box Cup
55618-F4010 Holder, Console Box Cup
2016-10 → 2019-09 ended
NGX10,50 LHD —
55618-F4020 Holder, Console Box Cup
2016-10 → 2019-09 ended
NGX10,50 RHD —
55618-F4010 Holder, Console Box Cup
2019-09 → 2020-01 ended
NGX10,50,ZYX10 LHD N —
55618-F4010 Holder, Console Box Cup
2019-09 → —
NGX10,50,ZYX10 LHD E —
55618-F4020 Holder, Console Box Cup
2019-09 → —
NGX10 RHD —
55618-F4070 Holder, Console Box Cup
2020-01 → —
NGX10,50,ZYX10 LHD N —
55619F — Holder, Console Box Cup, NO.2
55619-F4010 Holder, Console Box Cup, NO.2
2016-10 → 2018-04 ended
NGX10,50 LHD —
55619-F4020 Holder, Console Box Cup, NO.2
2016-10 → 2018-04 ended
NGX10,50 RHD —
55619-F4090 Holder, Console Box Cup, NO.2
2018-05 → 2019-09 ended
NGX10,50 LHD —
55619-F4100 Holder, Console Box Cup, NO.2
2018-05 → 2019-09 ended
NGX10,50 RHD —
55619-F4090 Holder, Console Box Cup, NO.2
2019-09 → 2020-01 ended
NGX10,50,ZYX10 LHD N —
55619-F4090 Holder, Console Box Cup, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD E —
55619-F4100 Holder, Console Box Cup, NO.2
2019-09 → —
NGX10 RHD —
55619-F4110 Holder, Console Box Cup, NO.2
2020-01 → —
NGX10,50,ZYX10 LHD N —
58804A — Panel Sub-assy, Console, Upper
58804-F4010 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10,50 LHD CVT N —
58804-F4011 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10,50 LHD CVT N —
58804-F4020 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10,50 RHD CVT N —
58804-F4021 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10,50 RHD CVT N —
58804-F4030 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10,50 LHD CVT E —
58804-F4031 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10,50 LHD CVT E —
58804-F4040 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10,50 RHD CVT E —
58804-F4041 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10,50 RHD CVT E —
58804-F4050 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10 LHD 6F (D,N) —
58804-F4051 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10 LHD 6F (D,N) —
58804-F4060 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10 RHD 6F (D,N) —
58804-F4061 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10 RHD 6F (D,N) —
58804-F4070 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10 LHD 6F E —
58804-F4071 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10 LHD 6F E —
58804-F4080 Panel Sub-assy, Console, Upper
2016-10 → 2017-05 ended
NGX10 RHD 6F E —
58804-F4081 Panel Sub-assy, Console, Upper
2017-06 → 2019-09 ended
NGX10 RHD 6F E —
58804-F4011 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10,50,ZYX10 LHD CVT N —
58804-F4021 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10 RHD CVT N —
58804-F4051 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10 LHD 6F —
58804-F4061 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10 RHD 6F —
58804-F4150 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10,50,ZYX10 LHD E —
58804-F4160 Panel Sub-assy, Console, Upper
2019-09 → —
NGX10 RHD E —
58808 — Cover Sub-assy, Shifting Hole
58808-F4010-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2019-09 ended
NGX10 LHD 6F (D,N) —
58808-F4010-C1 note Cover Sub-assy, Shifting Hole
2018-05 → 2019-09 ended
NGX10 LHD 6F E —
58808-F4020-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2019-09 ended
NGX10 RHD 6F (D,N) —
58808-F4020-C1 note Cover Sub-assy, Shifting Hole
2018-05 → 2019-09 ended
NGX10 RHD 6F E —
58808-F4030-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2018-06 ended
NGX10,50 LHD CVT —
58808-F4040-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2018-06 ended
NGX10,50 RHD CVT —
58808-F4050-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2018-05 ended
NGX10 LHD 6F E —
58808-F4060-C1 note Cover Sub-assy, Shifting Hole
2016-10 → 2018-05 ended
NGX10 RHD 6F E —
58808-F4090-C0 note Cover Sub-assy, Shifting Hole
2018-07 → 2019-09 ended
NGX10,50 LHD CVT —
58808-F4100-C0 note Cover Sub-assy, Shifting Hole
2018-07 → 2019-09 ended
NGX10,50 RHD CVT —
58808-F4010-C1 note Cover Sub-assy, Shifting Hole
2019-09 → 2020-12 ended
NGX10 LHD 6F —
58808-F4010-C2 note Cover Sub-assy, Shifting Hole
2020-12 → —
NGX10 LHD 6F —
58808-F4020-C1 note Cover Sub-assy, Shifting Hole
2019-09 → 2022-01 ended
NGX10 RHD 6F —
58808-F4020-C2 note Cover Sub-assy, Shifting Hole
2022-01 → —
NGX10 RHD 6F —
58808-F4090-C0 note Cover Sub-assy, Shifting Hole
2019-09 → 2020-12 ended
NGX10,50,ZYX10 LHD E —
58808-F4090-C0 note Cover Sub-assy, Shifting Hole
2019-09 → 2020-12 ended
NGX10,50,ZYX10 LHD CVT N —
58808-F4090-C1 note Cover Sub-assy, Shifting Hole
2020-12 → —
NGX10,50,ZYX10 LHD CVT N —
58808-F4090-C1 note Cover Sub-assy, Shifting Hole
2020-12 → —
NGX10,50,ZYX10 LHD E —
58808-F4100-C0 note Cover Sub-assy, Shifting Hole
2019-09 → 2020-12 ended
NGX10 RHD CVT —
58808-F4100-C1 note Cover Sub-assy, Shifting Hole
2020-12 → —
NGX10 RHD CVT —
58811B — Box, Console
58812-F4010 Box, Console
2016-10 → 2019-09 ended
NGX10,50 —
58812-F4010 Box, Console
2019-09 → —
NGX10,50,ZYX10 —
58815A — Carpet, Console Box
58815-F4010 Carpet, Console Box
2016-10 → 2019-09 ended
NGX10,50 —
58815-F4010 Carpet, Console Box
2019-09 → —
NGX10,50,ZYX10 —
58816B — Insert, Console Box
58816-F4010-C0 note Insert, Console Box
2016-10 → 2018-05 ended
NGX10,50 LHD —
58816-F4010-C1 note Insert, Console Box
2018-05 → 2019-09 ended
NGX10,50 LHD —
58816-F4020-C0 note Insert, Console Box
2016-10 → 2018-05 ended
NGX10,50 RHD —
58816-F4020-C1 note Insert, Console Box
2018-05 → 2019-09 ended
NGX10,50 RHD —
58816-F4010-C1 note Insert, Console Box
2019-09 → —
NGX10,50 LHD E —
58816-F4010-C1 note Insert, Console Box
2019-09 → —
ZYX10 E —
58816-F4010-C1 note Insert, Console Box
2019-09 → —
NGX10,50,ZYX10 LHD N —
58816-F4020-C1 note Insert, Console Box
2019-09 → —
NGX10 RHD (D,N) —
58816-F4020-C1 note Insert, Console Box
2019-09 → —
NGX10 RHD E —
58817A — Insert, Console Box, Front NO.2
58817-F4010-C0 note Insert, Console Box, Front NO.2
2016-10 → 2018-05 ended
NGX10,50 LHD —
58817-F4010-C1 note Insert, Console Box, Front NO.2
2018-05 → 2019-09 ended
NGX10,50 LHD —
58817-F4020-C0 note Insert, Console Box, Front NO.2
2016-10 → 2018-05 ended
NGX10,50 RHD —
58817-F4020-C1 note Insert, Console Box, Front NO.2
2018-05 → 2019-09 ended
NGX10,50 RHD —
58817-F4010-C1 note Insert, Console Box, Front NO.2
2019-09 → —
ZYX10 E —
58817-F4010-C1 note Insert, Console Box, Front NO.2
2019-09 → —
NGX10,50 LHD E —
58817-F4010-C1 note Insert, Console Box, Front NO.2
2019-09 → —
NGX10,50,ZYX10 LHD N —
58817-F4020-C1 note Insert, Console Box, Front NO.2
2019-09 → —
NGX10 RHD (D,N) —
58817-F4020-C1 note Insert, Console Box, Front NO.2
2019-09 → —
NGX10 RHD E —
58856C — Holder, Console
58856-F4050 Holder, Console
2018-05 → 2019-09 ended
NGX10,50 —
58856-F4050 Holder, Console
2019-09 → —
NGX10,50,ZYX10 —
58905 — Door Sub-assy, Console Compartment
58905-F4010-C1 note Door Sub-assy, Console Compartment
2016-10 → 2018-05 ended
NGX10,50 LHD N —
58905-F4010-C1 note Door Sub-assy, Console Compartment
2016-10 → 2019-09 ended
NGX10 LHD D —
58905-F4010-C1 note Door Sub-assy, Console Compartment
2018-05 → 2019-09 ended
NGX10,50 LHD N —
58905-F4010-E1 note Door Sub-assy, Console Compartment
2016-10 → 2019-09 ended
NGX10,50 LHD E —
58905-F4020-C1 note Door Sub-assy, Console Compartment
2016-10 → 2019-09 ended
NGX10 RHD D —
58905-F4020-C1 note Door Sub-assy, Console Compartment
2018-05 → 2019-09 ended
NGX10,50 RHD N —
58905-F4020-C1 note Door Sub-assy, Console Compartment
2016-10 → 2018-05 ended
NGX10,50 RHD N —
58905-F4020-E1 note Door Sub-assy, Console Compartment
2016-10 → 2019-09 ended
NGX10,50 RHD E —
58905-F4010-C1 note Door Sub-assy, Console Compartment
2019-11 → —
NGX10,50,ZYX10 LHD N —
58905-F4010-C2 note Door Sub-assy, Console Compartment
2019-09 → 2019-11 ended
NGX10,50,ZYX10 LHD E —
58905-F4010-C2 note Door Sub-assy, Console Compartment
2019-09 → 2019-11 ended
NGX10,50,ZYX10 LHD N —
58905-F4010-E2 note Door Sub-assy, Console Compartment
2019-09 → —
NGX10,50,ZYX10 LHD E —
58905-F4010-J1 note Door Sub-assy, Console Compartment
2019-09 → —
ZYX10 E —
58905-F4010-J1 note Door Sub-assy, Console Compartment
2019-09 → —
NGX10,50 LHD E —
58905-F4020-C1 note Door Sub-assy, Console Compartment
2019-11 → —
NGX10 RHD (D,N) —
58905-F4020-C2 note Door Sub-assy, Console Compartment
2019-09 → 2019-11 ended
NGX10 RHD E —
58905-F4020-C2 note Door Sub-assy, Console Compartment
2019-09 → 2019-11 ended
NGX10 RHD (D,N) —
58905-F4020-E2 note Door Sub-assy, Console Compartment
2019-09 → —
NGX10 RHD E —
58905-F4020-J1 note Door Sub-assy, Console Compartment
2019-09 → —
NGX10 RHD E —
58908A — Lock Sub-assy, Console Compartment Door
58908-F4010 Lock Sub-assy, Console Compartment Door
2016-10 → 2019-09 ended
NGX10,50 LHD —
58908-F4020 Lock Sub-assy, Console Compartment Door
2016-10 → 2019-09 ended
NGX10,50 RHD —
58908-F4010 Lock Sub-assy, Console Compartment Door
2019-09 → —
NGX10,50,ZYX10 LHD —
58908-F4020 Lock Sub-assy, Console Compartment Door
2019-09 → —
NGX10 RHD —
58910D — Clip(FOR CONSOLE BOX)
90467-05172 Clip(FOR CONSOLE BOX)
2016-10 → 2019-09 ended
NGX10,50 —
90467-05172 Clip(FOR CONSOLE BOX)
2019-09 → —
NGX10,50,ZYX10 —
58911A — Panel, Box Side, NO.1
58911-F4010-C0 note Panel, Box Side, NO.1
2016-10 → 2018-05 ended
NGX10 LHD —
58911-F4010-C1 note Panel, Box Side, NO.1
2018-05 → 2019-09 ended
NGX10 LHD —
58911-F4020-C0 note Panel, Box Side, NO.1
2016-10 → 2018-05 ended
NGX50 LHD —
58911-F4020-C1 note Panel, Box Side, NO.1
2018-05 → 2019-09 ended
NGX50 LHD —
58911-F4030-C0 note Panel, Box Side, NO.1
2016-10 → 2018-05 ended
NGX10 RHD —
58911-F4030-C1 note Panel, Box Side, NO.1
2018-05 → 2019-09 ended
NGX10 RHD —
58911-F4040-C0 note Panel, Box Side, NO.1
2016-10 → 2018-05 ended
NGX50 RHD —
58911-F4040-C1 note Panel, Box Side, NO.1
2018-05 → 2019-09 ended
NGX50 RHD —
58911-F4010-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX10,ZYX10 LHD N —
58911-F4010-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX10 LHD E —
58911-F4010-C1 note Panel, Box Side, NO.1
2019-09 → —
ZYX10 E —
58911-F4020-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX50 N —
58911-F4020-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX50 E —
58911-F4030-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX10 RHD (D,N) —
58911-F4030-C1 note Panel, Box Side, NO.1
2019-09 → —
NGX10 RHD E —
58912C — Panel, Box Side, NO.2
58912-F4010-C0 note Panel, Box Side, NO.2
2016-10 → 2018-05 ended
NGX10 LHD —
58912-F4010-C1 note Panel, Box Side, NO.2
2018-05 → 2019-09 ended
NGX10 LHD —
58912-F4020-C0 note Panel, Box Side, NO.2
2016-10 → 2018-05 ended
NGX50 LHD —
58912-F4020-C1 note Panel, Box Side, NO.2
2018-05 → 2019-09 ended
NGX50 LHD —
58912-F4030-C0 note Panel, Box Side, NO.2
2016-10 → 2018-05 ended
NGX10 RHD —
58912-F4030-C1 note Panel, Box Side, NO.2
2018-05 → 2019-09 ended
NGX10 RHD —
58912-F4040-C0 note Panel, Box Side, NO.2
2016-10 → 2018-05 ended
NGX50 RHD —
58912-F4040-C1 note Panel, Box Side, NO.2
2018-05 → 2019-09 ended
NGX50 RHD —
58912-F4010-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX10 LHD E —
58912-F4010-C1 note Panel, Box Side, NO.2
2019-09 → —
ZYX10 E —
58912-F4010-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX10,ZYX10 LHD N —
58912-F4020-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX50 N —
58912-F4020-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX50 E —
58912-F4030-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX10 RHD (D,N) —
58912-F4030-C1 note Panel, Box Side, NO.2
2019-09 → —
NGX10 RHD E —
58923A — Panel, Console Rear End
58923-F4020-C0 note Panel, Console Rear End
2016-10 → 2018-05 ended
NGX10 —
58923-F4020-C1 note Panel, Console Rear End
2018-05 → 2019-09 ended
NGX10 —
58923-F4030-C0 note Panel, Console Rear End
2016-10 → 2018-05 ended
NGX50 —
58923-F4030-C1 note Panel, Console Rear End
2018-05 → 2019-09 ended
NGX50 —
58923-F4020-C1 note Panel, Console Rear End
2019-09 → —
ZYX10 E —
58923-F4020-C1 note Panel, Console Rear End
2019-09 → —
NGX10,ZYX10 D,N —
58923-F4020-C1 note Panel, Console Rear End
2019-09 → —
NGX10 E —
58923-F4030-C1 note Panel, Console Rear End
2019-09 → —
NGX50 N —
58923-F4030-C1 note Panel, Console Rear End
2019-09 → —
NGX50 E —
58951D — Door, Console Compartment, Outer
58951-F4010 Door, Console Compartment, Outer
2016-10 → 2019-09 ended
NGX10,50 LHD —
58951-F4020 Door, Console Compartment, Outer
2016-10 → 2019-09 ended
NGX10,50 RHD —
58951-F4010 Door, Console Compartment, Outer
2019-09 → —
NGX10,50,ZYX10 LHD —
58951-F4020 Door, Console Compartment, Outer
2019-09 → —
NGX10 RHD —
58959B — Cushion, Console Compartment Door
58959-60060 Cushion, Console Compartment Door
2016-10 → 2019-09 ended
NGX10,50 —
58959-60060 Cushion, Console Compartment Door
2019-09 → —
NGX10,50,ZYX10 —
58985 — Retainer, Console Box
58985-F4010 Retainer, Console Box
2016-10 → 2019-09 ended
NGX10,50 —
58985-F4010 Retainer, Console Box
2019-09 → —
NGX10,50,ZYX10 —
58995A — Bracket, Console Box Mounting, NO.1
58995-F4010 Bracket, Console Box Mounting, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
58995-F4010 Bracket, Console Box Mounting, NO.1
2019-09 → —
NGX10,50,ZYX10 —
58996A — Bracket, Console Box Mounting, NO.2
58996-F4010 Bracket, Console Box Mounting, NO.2
2016-10 → 2019-09 ended
NGX10 —
58996-F4020 Bracket, Console Box Mounting, NO.2
2016-10 → 2019-09 ended
NGX50 —
58996-F4010 Bracket, Console Box Mounting, NO.2
2019-09 → —
NGX10,ZYX10 —
58996-F4020 Bracket, Console Box Mounting, NO.2
2019-09 → —
NGX50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
