Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 586083 52161P — PIECE, REAR BUMPER (2 parts) 57627A — COVER, REAR FLOOR SIDE MEMBER, RH (4 parts) 57628C — COVER, REAR FLOOR SIDE MEMBER, LH (3 parts) 58165B — COVER, FRONT FLOOR, RH (3 parts) 58166 — COVER, FRONT FLOOR, LH (3 parts) 58398H — COVER, FLOOR UNDER, NO.1 (2 parts) 58399B — COVER, FLOOR UNDER, NO.2 (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts) 9010906388 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9010906388 — not listed in this catalogue 9010906388 — not listed in this catalogue 9010906388 — not listed in this catalogue 52161P — PIECE, REAR BUMPER (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts) 58399K — CLIP, NO.1(FOR FLOOR UNDER COVER) (2 parts) 58399L — CLIP, NO.2(FOR FLOOR UNDER COVER) (2 parts)

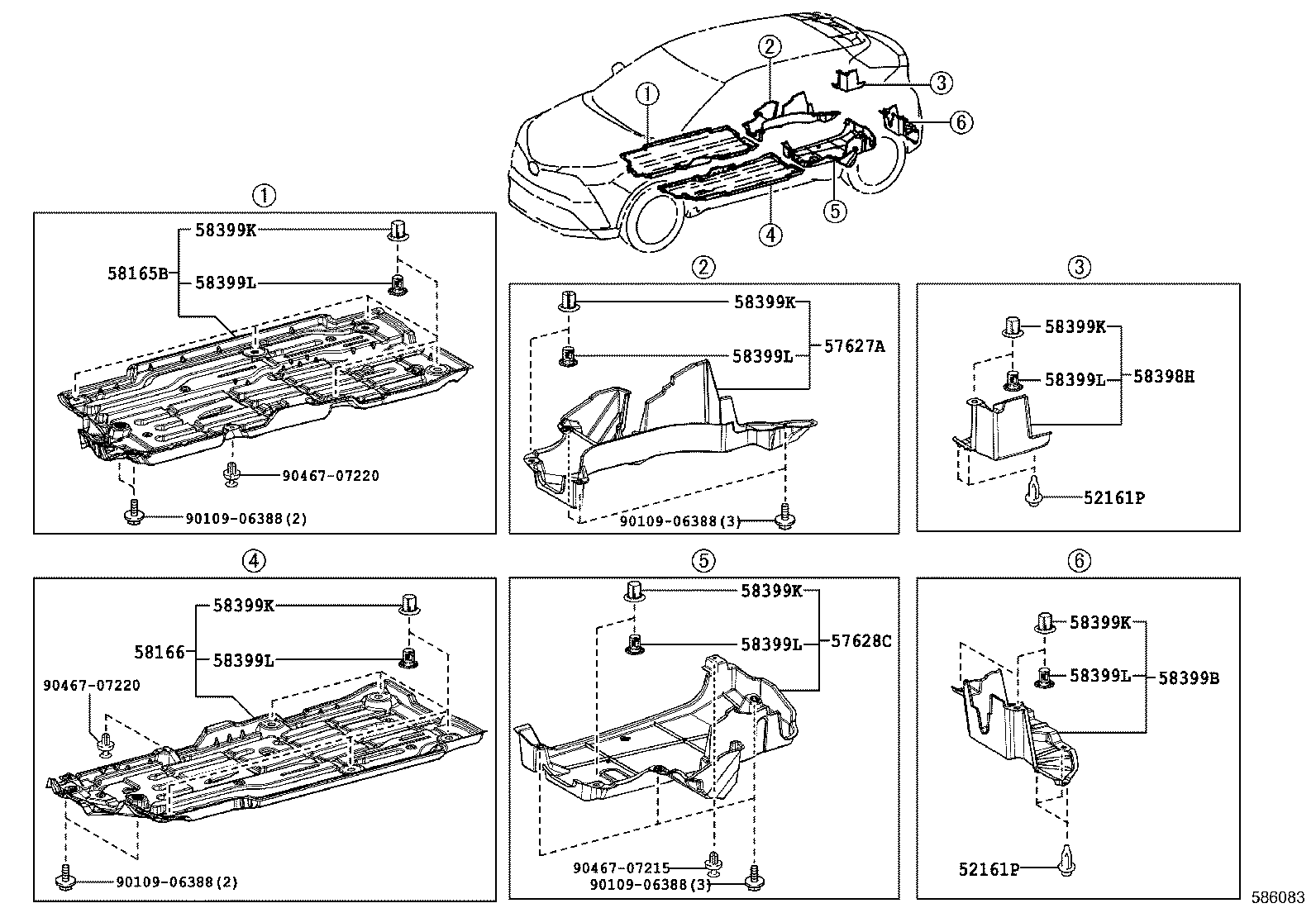

586083 · 20 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
52161P — Piece, Rear Bumper
52161-02030 Piece, Rear Bumper
2016-10 → 2019-09 ended
NGX50 —
52161-02030 Piece, Rear Bumper
2019-09 → —
NGX50,ZYX10 —
57627A — Cover, Rear Floor Side Member, RH
57627-F4020 Cover, Rear Floor Side Member, RH
2016-10 → 2019-09 ended
NGX50 —
57627-F4010 Cover, Rear Floor Side Member, RH
2019-09 → 2022-08 ended
ZYX10 —
57627-F4011 Cover, Rear Floor Side Member, RH
2022-09 → —
ZYX10 —
57627-F4020 Cover, Rear Floor Side Member, RH
2019-09 → —
NGX50 —
57628C — Cover, Rear Floor Side Member, LH
57628-F4020 Cover, Rear Floor Side Member, LH
2016-10 → 2019-09 ended
NGX50 —
57628-F4010 Cover, Rear Floor Side Member, LH
2019-09 → —
ZYX10 —
57628-F4020 Cover, Rear Floor Side Member, LH
2019-09 → —
NGX50 —
58165B — Cover, Front Floor, RH
58165-F4010 Cover, Front Floor, RH
2016-10 → 2019-09 ended
NGX50 —
58165-F4010 Cover, Front Floor, RH
2019-09 → —
NGX50 —
58165-F4021 Cover, Front Floor, RH
2019-09 → —
ZYX10 —
58166 — Cover, Front Floor, LH
58166-F4020 Cover, Front Floor, LH
2016-10 → 2019-09 ended
NGX50 —
58166-F4010 Cover, Front Floor, LH
2019-09 → —
ZYX10 —
58166-F4020 Cover, Front Floor, LH
2019-09 → —
NGX50 —
58398H — Cover, Floor Under, NO.1
58398-F4010 Cover, Floor Under, NO.1
2016-10 → 2019-09 ended
NGX50 —
58398-F4010 Cover, Floor Under, NO.1
2019-09 → —
NGX50,ZYX10 —
58399B — Cover, Floor Under, NO.2
58399-F4010 Cover, Floor Under, NO.2
2016-10 → 2019-09 ended
NGX50 —
58399-F4010 Cover, Floor Under, NO.2
2019-09 → —
NGX50,ZYX10 —
58399K — Clip, NO.1(FOR FLOOR UNDER COVER)
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2016-10 → 2019-09 ended
NGX50 —
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2019-09 → —
NGX50,ZYX10 —
58399L — Clip, NO.2(FOR FLOOR UNDER COVER)
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2016-10 → 2019-09 ended
NGX50 —
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2019-09 → —
NGX50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
