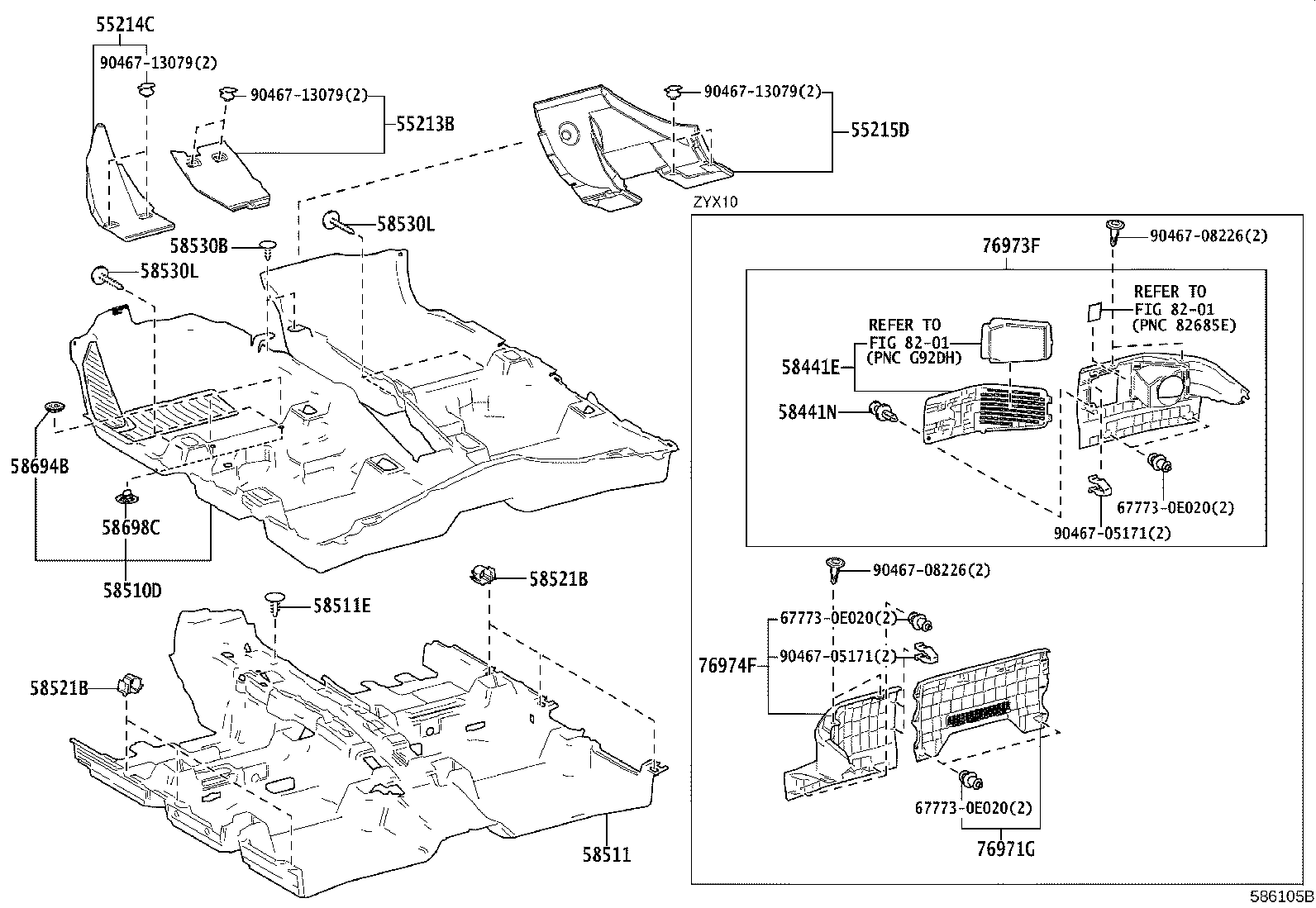

Exploded illustration 586105B 55213B — PAD, DASH PANEL INSULATOR, NO.1 (4 parts) 58530L — CLIP, FLOOR CARPET, CENTER (4 parts) 58530L — CLIP, FLOOR CARPET, CENTER (4 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (5 parts) 58510D — CARPET ASSY, FLOOR, FRONT (16 parts) 58511 — MAT, FLOOR, FRONT (4 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (4 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (3 parts) 58694B — PLATE, MAT SET, UPPER (2 parts) 58698C — PLATE, MAT SET, LOWER (2 parts) 9046713079 — not listed in this catalogue 9046713079 — not listed in this catalogue 55214C — PAD, DASH PANEL INSULATOR, NO.2 (4 parts) 9046713079 — not listed in this catalogue 8201 — not listed in this catalogue 8201 — not listed in this catalogue 58441E — COVER, BATTERY SERVICE HOLE (2 parts) 76973F — COVER, REAR UNDER SIDE, RH (2 parts) 76974F — COVER, REAR UNDER SIDE, LH (2 parts) 76971G — COVER, REAR UNDER (2 parts) 58441N — CLIP(FOR BATTERY SERVICE HOLE COVER) (2 parts) 9046708226 — not listed in this catalogue 9046708226 — not listed in this catalogue 677730E020 — not listed in this catalogue 677730E020 — not listed in this catalogue 677730E020 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue
586105B · 18 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-F4010 Pad, Dash Panel Insulator, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55213-F4020 Pad, Dash Panel Insulator, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
55213-F4010 Pad, Dash Panel Insulator, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55213-F4020 Pad, Dash Panel Insulator, NO.1
2019-09 → —
NGX10 RHD —
55214C — Pad, Dash Panel Insulator, NO.2
55214-F4010 Pad, Dash Panel Insulator, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
55214-F4020 Pad, Dash Panel Insulator, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
55214-F4010 Pad, Dash Panel Insulator, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD —
55214-F4020 Pad, Dash Panel Insulator, NO.2
2019-09 → —
NGX10 RHD —
55215D — Pad, Dash Panel Insulator, NO.3
55215-F4010 Pad, Dash Panel Insulator, NO.3
2016-10 → 2019-09 ended
NGX10,50 LHD —
55215-F4020 Pad, Dash Panel Insulator, NO.3
2016-10 → 2019-09 ended
NGX10,50 RHD —
55215-F4010 Pad, Dash Panel Insulator, NO.3
2019-09 → —
NGX10,50,ZYX10 LHD —
55215-F4020 Pad, Dash Panel Insulator, NO.3
2019-09 → —
NGX10 RHD —
58441E — Cover, Battery Service Hole
58441-F4010-C1 note Cover, Battery Service Hole
2019-09 → —
ZYX10 E —
58441-F4010-C1 note Cover, Battery Service Hole
2019-09 → —
ZYX10 N —
58441N — Clip(FOR BATTERY SERVICE HOLE COVER)
90467-06165-C3 note Clip(FOR BATTERY SERVICE HOLE COVER)
2019-09 → —
ZYX10 E —
90467-06165-C3 note Clip(FOR BATTERY SERVICE HOLE COVER)
2019-09 → —
ZYX10 N —
58510D — Carpet Assy, Floor, Front
58510-F4010-C1 note Carpet Assy, Floor, Front
2016-10 → 2018-05 ended
NGX10 LHD —
58510-F4010-C2 note Carpet Assy, Floor, Front
2018-05 → 2019-09 ended
NGX10 LHD —
58510-F4020-C1 note Carpet Assy, Floor, Front
2016-10 → 2018-05 ended
NGX10 RHD —
58510-F4020-C2 note Carpet Assy, Floor, Front
2018-05 → 2019-09 ended
NGX10 RHD —
58510-F4030-C1 note Carpet Assy, Floor, Front
2016-10 → 2018-05 ended
NGX50 LHD —
58510-F4030-C2 note Carpet Assy, Floor, Front
2018-05 → 2019-09 ended
NGX50 LHD —
58510-F4040-C1 note Carpet Assy, Floor, Front
2016-10 → 2018-05 ended
NGX50 RHD —
58510-F4040-C2 note Carpet Assy, Floor, Front
2018-05 → 2019-09 ended
NGX50 RHD —
58510-F4010-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX10 LHD N —
58510-F4010-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX10 LHD E —
58510-F4020-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX10 RHD (D,N) —
58510-F4020-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX10 RHD E —
58510-F4030-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX50 N —
58510-F4030-C3 note Carpet Assy, Floor, Front
2019-09 → —
NGX50 E —
58510-F4050-C3 note Carpet Assy, Floor, Front
2019-09 → —
ZYX10 E —
58510-F4050-C3 note Carpet Assy, Floor, Front
2019-09 → —
ZYX10 N —
58511 — Mat, Floor, Front
58511-F4020 Mat, Floor, Front
2016-10 → 2019-09 ended
NGX10 —
58511-F4040 Mat, Floor, Front
2016-10 → 2019-09 ended
NGX50 —
58511-F4020 Mat, Floor, Front
2019-09 → —
NGX10,ZYX10 —
58511-F4040 Mat, Floor, Front
2019-09 → —
NGX50 —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-07042-C0 note Clip(FOR FRONT FLOOR MAT)
2016-10 → 2017-02 ended
NGX10,50 —
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2017-02 → 2019-09 ended
NGX10,50 —
90467-07042-C4 note Clip(FOR FRONT FLOOR MAT)
2019-09 → —
NGX10,50,ZYX10 —
58521B — Hook, Floor Carpet
58521-47030 Hook, Floor Carpet
2016-10 → 2019-09 ended
NGX10,50 —
58521-47030 Hook, Floor Carpet
2019-09 → —
NGX10,50,ZYX10 —
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-W0006-C2 note Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2018-05 ended
NGX10,50 —
90467-W0006-C4 note Clip(FOR FRONT FLOOR CARPET)
2018-05 → 2019-09 ended
NGX10,50 —
90467-W0006-C4 note Clip(FOR FRONT FLOOR CARPET)
2019-09 → —
NGX10,50 E —
90467-W0006-C4 note Clip(FOR FRONT FLOOR CARPET)
2019-09 → —
ZYX10 E —
90467-W0006-C4 note Clip(FOR FRONT FLOOR CARPET)
2019-09 → —
NGX10,50,ZYX10 D,N —
58530L — Clip, Floor Carpet, Center
64726-10020-C2 note Clip, Floor Carpet, Center
2016-10 → 2019-09 ended
NGX10,50 —
64726-10020-C2 note Clip, Floor Carpet, Center
2019-09 → —
NGX10,50,ZYX10 D,N —
64726-10020-C2 note Clip, Floor Carpet, Center
2019-09 → —
ZYX10 E —
64726-10020-C2 note Clip, Floor Carpet, Center
2019-09 → —
NGX10,50 E —
58694B — Plate, Mat Set, Upper
58694-78010 Plate, Mat Set, Upper
2016-10 → 2019-09 ended
NGX10,50 —
58694-78010 Plate, Mat Set, Upper
2019-09 → —
NGX10,50,ZYX10 —
58698C — Plate, Mat Set, Lower
58698-78010 Plate, Mat Set, Lower
2016-10 → 2019-09 ended
NGX10,50 —
58698-78010 Plate, Mat Set, Lower
2019-09 → —
NGX10,50,ZYX10 —
76971G — Cover, Rear Under
76971-F4010-C1 note Cover, Rear Under
2019-09 → —
ZYX10 E —
76971-F4010-C1 note Cover, Rear Under
2019-09 → —
ZYX10 N —
76973F — Cover, Rear Under Side, RH
76973-F4011-C1 note Cover, Rear Under Side, RH
2019-09 → —
ZYX10 E —
76973-F4011-C1 note Cover, Rear Under Side, RH
2019-09 → —
ZYX10 N —
76974F — Cover, Rear Under Side, LH
76974-F4010-C1 note Cover, Rear Under Side, LH
2019-09 → —
ZYX10 E —
76974-F4010-C1 note Cover, Rear Under Side, LH
2019-09 → —
ZYX10 N —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
