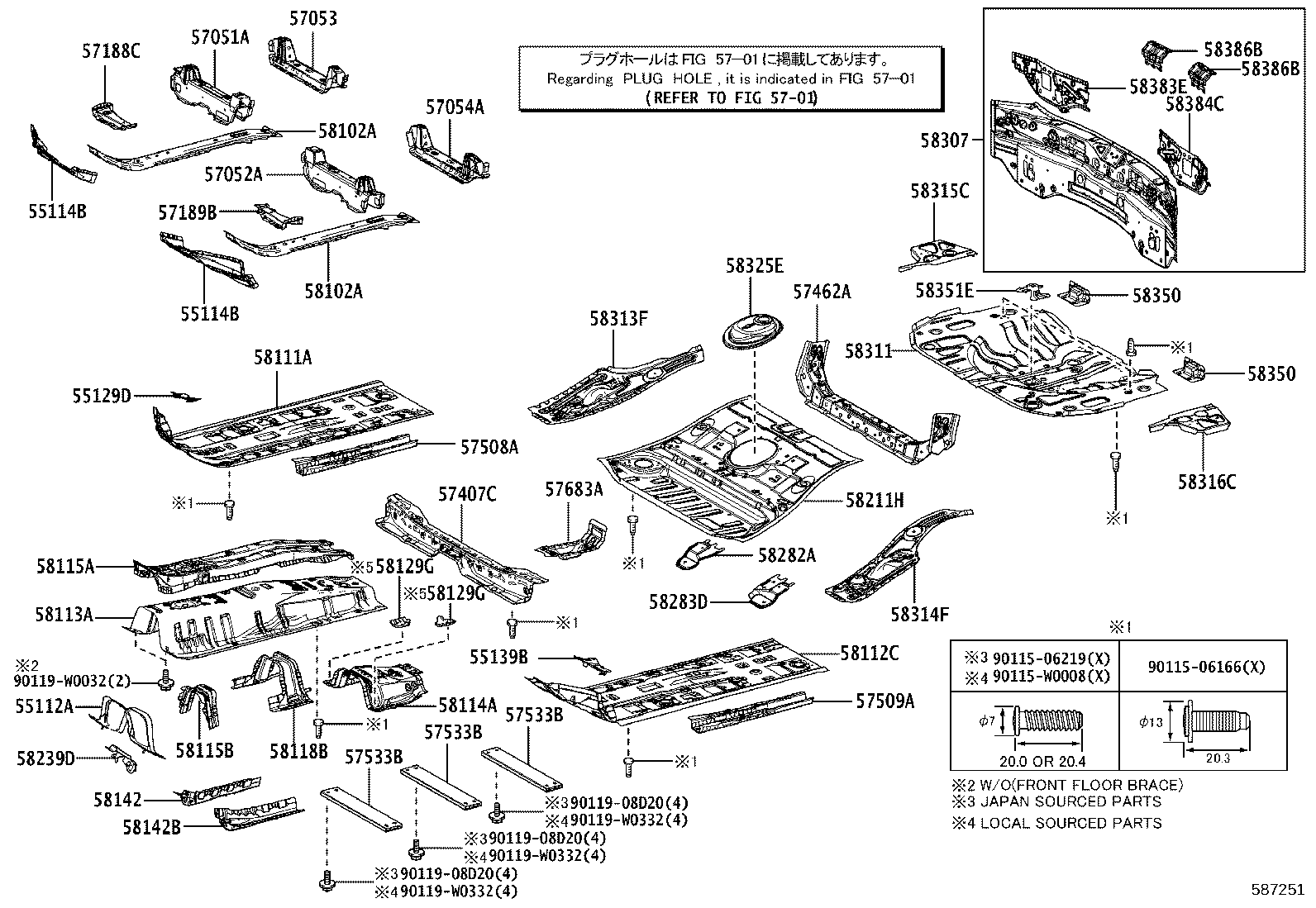

Exploded illustration 587251 55112A — PANEL, DASH, NO.2 (2 parts) 55114B — PANEL, DASH, LOWER (6 parts) 55129D — COVER, DASH PANEL HOLE, RH (2 parts) 55139B — COVER, DASH PANEL HOLE, LH (2 parts) 57051A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH (3 parts) 57052A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH (3 parts) 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (3 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (3 parts) 57188C — REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH (2 parts) 57189B — REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH (2 parts) 57407C — MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 (7 parts) 57462A — MEMBER, CENTER FLOOR CROSS, NO.2 (2 parts) 57508A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH (2 parts) 57509A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH (2 parts) 57533B — BRACE, FRONT FLOOR, CENTER (4 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (3 parts) 58111A — PAN, FRONT FLOOR, RH (4 parts) 58112C — PAN, FRONT FLOOR, LH (4 parts) 58113A — PANEL, FRONT FLOOR, CENTER (4 parts) 58114A — REINFORCEMENT, FRONT FLOOR PANEL (5 parts) 58115A — REINFORCEMENT, FRONT FLOOR PANEL (4 parts) 58115B — PANEL, FRONT FLOOR, REAR (2 parts) 58118B — REINFORCEMENT, FRONT FLOOR PANEL, NO.2 (2 parts) 58142 — REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN (4 parts) 58142B — REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH (4 parts) 58211H — PAN, CENTER FLOOR (5 parts) 58239D — BRACKET, CABLE CLAMP (5 parts) 58282A — BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH (2 parts) 58283D — BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH (2 parts) 58311 — PAN, REAR FLOOR (2 parts) 58313F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (6 parts) 58314F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (6 parts) 58315C — EXTENSION, REAR FLOOR SIDE PANEL, RH (2 parts) 58316C — EXTENSION, REAR FLOOR SIDE PANEL, LH (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (7 parts) 58350 — REINFORCEMENT ASSY, REAR FLOOR PANEL, RH (2 parts) 58350 — REINFORCEMENT ASSY, REAR FLOOR PANEL, RH (2 parts) 57533B — BRACE, FRONT FLOOR, CENTER (4 parts) 55114B — PANEL, DASH, LOWER (6 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (3 parts) 5701 — not listed in this catalogue 58351E — BRACKET, SPARE WHEEL CLAMP (2 parts) 57683A — BRACKET, FUEL TANK MOUNTING, NO.1 (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (3 parts) 58383E — REINFORCEMENT, BODY LOWER BACK, NO.2 RH (2 parts) 58384C — REINFORCEMENT, BODY LOWER BACK, NO.2 LH (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 9011908D20 — not listed in this catalogue 90119W0332 — not listed in this catalogue 9011908D20 — not listed in this catalogue 90119W0332 — not listed in this catalogue 9011908D20 — not listed in this catalogue 90119W0332 — not listed in this catalogue 57533B — BRACE, FRONT FLOOR, CENTER (4 parts) 58129G — BRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE (2 parts) 58129G — BRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE (2 parts) 9011506219 — not listed in this catalogue 9011506166 — not listed in this catalogue 90115W0008 — not listed in this catalogue 90119W0032 — not listed in this catalogue
587251 · 50 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
136 parts on this figure
Part number Description Fitment Price
55112A — Panel, Dash, NO.2
55112-F4010 Panel, Dash, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
55112-F4010 Panel, Dash, NO.2
2019-09 → —
NGX10,50,ZYX10 —
55114B — Panel, Dash, Lower
55113-02040 note Panel, Dash, Lower
2018-06 → 2019-09 ended
NGX10,50 —
55113-F4010 note Panel, Dash, Lower
2016-10 → 2018-05 ended
NGX10,50 —
55114-02080 note Panel, Dash, Lower
2018-06 → 2019-09 ended
NGX10,50 —
55114-F4010 note Panel, Dash, Lower
2016-10 → 2018-05 ended
NGX10,50 —
55113-02040 note Panel, Dash, Lower
2019-09 → —
NGX10,50,ZYX10 —
55114-02080 note Panel, Dash, Lower
2019-09 → —
NGX10,50,ZYX10 —
55129D — Cover, Dash Panel Hole, RH
55129-F4010 Cover, Dash Panel Hole, RH
2016-10 → 2019-09 ended
NGX10,50 —
55129-F4010 Cover, Dash Panel Hole, RH
2019-09 → —
NGX10,50,ZYX10 —
55139B — Cover, Dash Panel Hole, LH
55139-F4010 Cover, Dash Panel Hole, LH
2016-10 → 2019-09 ended
NGX10,50 —
55139-F4010 Cover, Dash Panel Hole, LH
2019-09 → —
NGX10,50,ZYX10 —
57051A — Member Sub-assy, Front Floor Cross, RH
57051-F4010 Member Sub-assy, Front Floor Cross, RH
2016-10 → 2018-05 ended
NGX10,50 —
57051-F4011 Member Sub-assy, Front Floor Cross, RH
2018-05 → 2019-09 ended
NGX10,50 —
57051-F4011 Member Sub-assy, Front Floor Cross, RH
2019-09 → —
NGX10,50,ZYX10 —
57052A — Member Sub-assy, Front Floor Cross, LH
57052-F4010 Member Sub-assy, Front Floor Cross, LH
2016-10 → 2018-05 ended
NGX10,50 —
57052-F4011 Member Sub-assy, Front Floor Cross, LH
2018-05 → 2019-09 ended
NGX10,50 —
57052-F4011 Member Sub-assy, Front Floor Cross, LH
2019-09 → —
NGX10,50,ZYX10 —
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-F4010 Reinforcement Sub-assy, Front Floor Crossmember, RH
2016-10 → 2018-05 ended
NGX10,50 —
57053-F4011 Reinforcement Sub-assy, Front Floor Crossmember, RH
2018-05 → 2019-09 ended
NGX10,50 —
57053-F4011 Reinforcement Sub-assy, Front Floor Crossmember, RH
2019-09 → —
NGX10,50,ZYX10 —
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-F4010 Reinforcement Sub-assy, Front Floor Crossmember, LH
2016-10 → 2018-05 ended
NGX10,50 —
57054-F4011 Reinforcement Sub-assy, Front Floor Crossmember, LH
2018-05 → 2019-09 ended
NGX10,50 —
57054-F4011 Reinforcement Sub-assy, Front Floor Crossmember, LH
2019-09 → —
NGX10,50,ZYX10 —
57188C — Reinforcement, Front Side Member Extension, RH
57188-F4010 Reinforcement, Front Side Member Extension, RH
2016-10 → 2019-09 ended
NGX10,50 —
57188-F4010 Reinforcement, Front Side Member Extension, RH
2019-09 → —
NGX10,50,ZYX10 —
57189B — Reinforcement, Front Side Member Extension, LH
57189-F4010 Reinforcement, Front Side Member Extension, LH
2016-10 → 2019-09 ended
NGX10,50 —
57189-F4010 Reinforcement, Front Side Member Extension, LH
2019-09 → —
NGX10,50,ZYX10 —
57407C — Member Sub-assy, Center Floor Cross, NO.1
57407-F4020 Member Sub-assy, Center Floor Cross, NO.1
2016-10 → 2019-09 ended
NGX10 —
57407-F4030 Member Sub-assy, Center Floor Cross, NO.1
2016-10 → 2019-09 ended
NGX50 —
57407-F4010 Member Sub-assy, Center Floor Cross, NO.1
2019-09 → —
ZYX10 —
57407-F4020 Member Sub-assy, Center Floor Cross, NO.1
2019-09 → 2022-11 ended
NGX10 —
57407-F4021 Member Sub-assy, Center Floor Cross, NO.1
2022-11 → —
NGX10 —
57407-F4030 Member Sub-assy, Center Floor Cross, NO.1
2019-09 → 2022-11 ended
NGX50 —
57407-F4031 Member Sub-assy, Center Floor Cross, NO.1
2022-11 → —
NGX50 —
57462A — Member, Center Floor Cross, NO.2
57405-F4010 Member, Center Floor Cross, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
57405-F4010 Member, Center Floor Cross, NO.2
2019-09 → —
NGX10,50,ZYX10 —
57508A — Reinforcement Sub-assy, Front Floor, RH
57508-F4010 Reinforcement Sub-assy, Front Floor, RH
2016-10 → 2019-09 ended
NGX10,50 —
57508-F4010 Reinforcement Sub-assy, Front Floor, RH
2019-09 → —
NGX10,50,ZYX10 —
57509A — Reinforcement Sub-assy, Front Floor, LH
57508-F4010 Reinforcement Sub-assy, Front Floor, LH
2016-10 → 2019-09 ended
NGX10,50 —
57508-F4010 Reinforcement Sub-assy, Front Floor, LH
2019-09 → —
NGX10,50,ZYX10 —
57533B — Brace, Front Floor, Center
57533-F4010 Brace, Front Floor, Center
2016-10 → 2019-09 ended
NGX10 —
57533-F4020 Brace, Front Floor, Center
2016-10 → 2019-09 ended
NGX50 —
57533-F4010 Brace, Front Floor, Center
2019-09 → —
NGX10,ZYX10 —
57533-F4020 Brace, Front Floor, Center
2019-09 → —
NGX50 —
57683A — Bracket, Fuel Tank Mounting, NO.1
57683-F4020 Bracket, Fuel Tank Mounting, NO.1
2019-09 → —
ZYX10 —
58102A — Reinforcement Sub-assy, Front Floor
58102-02190 Reinforcement Sub-assy, Front Floor
2018-06 → 2019-09 ended
NGX10,50 —
58102-F4010 Reinforcement Sub-assy, Front Floor
2016-10 → 2018-05 ended
NGX10,50 —
58102-02190 Reinforcement Sub-assy, Front Floor
2019-09 → —
NGX10,50,ZYX10 —
58111A — Pan, Front Floor, RH
58111-F4010 Pan, Front Floor, RH
2016-10 → 2019-09 ended
NGX10,50 —
58111-F4010 Pan, Front Floor, RH
2019-09 → 2019-10 ended
NGX10,50,ZYX10 —
58111-F4011 Pan, Front Floor, RH
2019-11 → 2021-02 ended
NGX10,50,ZYX10 —
58111-F4012 Pan, Front Floor, RH
2021-03 → —
NGX10,50,ZYX10 —
58112C — Pan, Front Floor, LH
58112-F4010 Pan, Front Floor, LH
2016-10 → 2019-09 ended
NGX10,50 —
58112-F4010 Pan, Front Floor, LH
2019-09 → 2019-10 ended
NGX10,50,ZYX10 —
58112-F4011 Pan, Front Floor, LH
2019-11 → 2021-02 ended
NGX10,50,ZYX10 —
58112-F4012 Pan, Front Floor, LH
2021-03 → —
NGX10,50,ZYX10 —
58113A — Panel, Front Floor, Center
58113-10090 Panel, Front Floor, Center
2016-10 → 2019-09 ended
NGX50 —
58113-F4010 Panel, Front Floor, Center
2016-10 → 2019-09 ended
NGX10 —
58113-10090 Panel, Front Floor, Center
2019-09 → —
NGX50 —
58113-F4010 Panel, Front Floor, Center
2019-09 → —
NGX10,ZYX10 —
58114A — Reinforcement, Front Floor Panel
58114-F4010 Reinforcement, Front Floor Panel
2016-10 → 2018-10 ended
NGX10 —
58114-F4011 Reinforcement, Front Floor Panel
2018-10 → 2019-09 ended
NGX10 —
58114-F4020 Reinforcement, Front Floor Panel
2016-10 → 2019-09 ended
NGX50 —
58114-F4011 Reinforcement, Front Floor Panel
2019-09 → —
NGX10,ZYX10 —
58114-F4020 Reinforcement, Front Floor Panel
2019-09 → —
NGX50 —
58115A — Reinforcement, Front Floor Panel
58115-F4010 Reinforcement, Front Floor Panel
2016-10 → 2019-09 ended
NGX10 —
58115-F4020 Reinforcement, Front Floor Panel
2016-10 → 2019-09 ended
NGX50 —
58115-F4010 Reinforcement, Front Floor Panel
2019-09 → —
NGX10,ZYX10 —
58115-F4020 Reinforcement, Front Floor Panel
2019-09 → —
NGX50 —
58115B — Panel, Front Floor, Rear
58117-F4010 Panel, Front Floor, Rear
2016-10 → 2019-09 ended
NGX10,50 —
58117-F4010 Panel, Front Floor, Rear
2019-09 → —
NGX10,50,ZYX10 —
58118B — Reinforcement, Front Floor Panel, NO.2
58118-F4010 Reinforcement, Front Floor Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
58118-F4010 Reinforcement, Front Floor Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 —
58129G — Bracket, Front Cross TO Front Panel Member Reinforce
58129-02020 Bracket, Front Cross TO Front Panel Member Reinforce
2018-10 → 2019-09 ended
NGX10 —
58129-02020 Bracket, Front Cross TO Front Panel Member Reinforce
2019-09 → —
NGX10,ZYX10 —
58142 — Reinforcement, Floor Side Member TO Floor Pan
58141-F4010 Reinforcement, Floor Side Member TO Floor Pan
2016-10 → 2018-05 ended
NGX50 —
58141-F4010 Reinforcement, Floor Side Member TO Floor Pan
2016-10 → 2018-06 ended
NGX10 —
58141-F4011 Reinforcement, Floor Side Member TO Floor Pan
2018-06 → 2019-09 ended
NGX10,50 —
58141-F4011 Reinforcement, Floor Side Member TO Floor Pan
2019-09 → —
NGX10,50,ZYX10 —
58142B — Reinforcemnet, Front Side Member TO Floor Pan, LH
58142-F4010 Reinforcemnet, Front Side Member TO Floor Pan, LH
2016-10 → 2018-05 ended
NGX50 —
58142-F4010 Reinforcemnet, Front Side Member TO Floor Pan, LH
2016-10 → 2018-06 ended
NGX10 —
58142-F4011 Reinforcemnet, Front Side Member TO Floor Pan, LH
2018-06 → 2019-09 ended
NGX10,50 —
58142-F4011 Reinforcemnet, Front Side Member TO Floor Pan, LH
2019-09 → —
NGX10,50,ZYX10 —
58211H — Pan, Center Floor
58211-10180 Pan, Center Floor
2016-10 → 2019-09 ended
NGX50 —
58211-F4020 Pan, Center Floor
2016-10 → 2019-09 ended
NGX10 —
58211-10180 Pan, Center Floor
2019-09 → —
NGX50 —
58211-F4010 Pan, Center Floor
2019-09 → —
ZYX10 —
58211-F4020 Pan, Center Floor
2019-09 → —
NGX10 —
58239D — Bracket, Cable Clamp
58239-02040 Bracket, Cable Clamp
2018-05 → 2019-09 ended
NGX10 —
58239-F4010 Bracket, Cable Clamp
2016-10 → 2018-05 ended
NGX10 —
58239-F4010 Bracket, Cable Clamp
2016-10 → 2019-09 ended
NGX50 —
58239-02040 Bracket, Cable Clamp
2019-09 → —
NGX10,ZYX10 —
58239-F4010 Bracket, Cable Clamp
2019-09 → —
NGX50 —
58282A — Base, Belt Anchor TO Floor Pan, NO.3 RH
58282-F4010 Base, Belt Anchor TO Floor Pan, NO.3 RH
2016-10 → 2019-09 ended
NGX10,50 —
58282-F4010 Base, Belt Anchor TO Floor Pan, NO.3 RH
2019-09 → —
NGX10,50,ZYX10 —
58283D — Base, Belt Anchor TO Floor Pan, NO.3 LH
58283-F4010 Base, Belt Anchor TO Floor Pan, NO.3 LH
2016-10 → 2019-09 ended
NGX10,50 —
58283-F4010 Base, Belt Anchor TO Floor Pan, NO.3 LH
2019-09 → —
NGX10,50,ZYX10 —
58307 — Panel Sub-assy, Body Lower Back
58307-F4010 Panel Sub-assy, Body Lower Back
2016-10 → 2019-09 ended
NGX10,50 —
58307-F4011 Panel Sub-assy, Body Lower Back
2019-09 → —
NGX10,50,ZYX10 —
58307-F4021 note Panel Sub-assy, Body Lower Back
2019-09 → —
NGX10 RHD E —
58311 — Pan, Rear Floor
58311-F4010 Pan, Rear Floor
2016-10 → 2019-09 ended
NGX10,50 —
58311-F4010 Pan, Rear Floor
2019-09 → —
NGX10,50,ZYX10 —
58313F — Extension, Rear Floor Pan TO Quarter Panel, RH
58305-02210 Extension, Rear Floor Pan TO Quarter Panel, RH
2019-01 → 2019-09 ended
NGX10,50 —
58305-F4020 Extension, Rear Floor Pan TO Quarter Panel, RH
2016-10 → 2017-08 ended
NGX10,50 —
58305-F4021 Extension, Rear Floor Pan TO Quarter Panel, RH
2017-09 → 2018-12 ended
NGX50 —
58305-F4021 Extension, Rear Floor Pan TO Quarter Panel, RH
2017-09 → 2019-01 ended
NGX10 —
58305-02210 Extension, Rear Floor Pan TO Quarter Panel, RH
2019-09 → —
NGX10,50 —
58305-F4011 Extension, Rear Floor Pan TO Quarter Panel, RH
2019-09 → —
ZYX10 —
58314F — Extension, Rear Floor Pan TO Quarter Panel, LH
58306-02220 Extension, Rear Floor Pan TO Quarter Panel, LH
2019-01 → 2019-09 ended
NGX10,50 —
58306-F4020 Extension, Rear Floor Pan TO Quarter Panel, LH
2016-10 → 2017-08 ended
NGX10,50 —
58306-F4021 Extension, Rear Floor Pan TO Quarter Panel, LH
2017-09 → 2018-12 ended
NGX50 —
58306-F4021 Extension, Rear Floor Pan TO Quarter Panel, LH
2017-09 → 2019-01 ended
NGX10 —
58306-02220 Extension, Rear Floor Pan TO Quarter Panel, LH
2019-09 → —
NGX10,50 —
58306-F4012 Extension, Rear Floor Pan TO Quarter Panel, LH
2019-09 → —
ZYX10 —
58315C — Extension, Rear Floor Side Panel, RH
58315-F4010 Extension, Rear Floor Side Panel, RH
2016-10 → 2019-09 ended
NGX10,50 —
58315-F4010 Extension, Rear Floor Side Panel, RH
2019-09 → —
NGX10,50,ZYX10 —
58316C — Extension, Rear Floor Side Panel, LH
58316-F4010 Extension, Rear Floor Side Panel, LH
2016-10 → 2019-09 ended
NGX10,50 —
58316-F4010 Extension, Rear Floor Side Panel, LH
2019-09 → —
NGX10,50,ZYX10 —
58325E — Cover, Rear Floor Service Hole
58325-F4020 Cover, Rear Floor Service Hole
2016-10 → 2018-05 ended
NGX10 —
58325-F4021 Cover, Rear Floor Service Hole
2018-06 → 2019-09 ended
NGX10 —
58325-F4030 Cover, Rear Floor Service Hole
2016-10 → 2018-05 ended
NGX50 —
58325-F4031 Cover, Rear Floor Service Hole
2018-06 → 2019-09 ended
NGX50 —
58325-F4011 Cover, Rear Floor Service Hole
2019-09 → —
ZYX10 —
58325-F4021 Cover, Rear Floor Service Hole
2019-09 → —
NGX10 —
58325-F4031 Cover, Rear Floor Service Hole
2019-09 → —
NGX50 —
58350 — Reinforcement Assy, Rear Floor Panel, RH
58350-F4010 Reinforcement Assy, Rear Floor Panel, RH
2016-10 → 2019-09 ended
NGX10,50 —
58350-F4010 Reinforcement Assy, Rear Floor Panel, RH
2019-09 → —
NGX10,50,ZYX10 —
58351E — Bracket, Spare Wheel Clamp
58351-02020 Bracket, Spare Wheel Clamp
2016-10 → 2019-09 ended
NGX10,50 —
58351-02020 Bracket, Spare Wheel Clamp
2019-09 → —
NGX10,50,ZYX10 —
58383E — Reinforcement, Body Lower Back, NO.2 RH
58383-F4010 Reinforcement, Body Lower Back, NO.2 RH
2016-10 → 2019-09 ended
NGX10,50 —
58383-F4010 Reinforcement, Body Lower Back, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
58384C — Reinforcement, Body Lower Back, NO.2 LH
58384-F4010 Reinforcement, Body Lower Back, NO.2 LH
2016-10 → 2019-09 ended
NGX10,50 —
58384-F4010 Reinforcement, Body Lower Back, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
58386B — Bracket, Rear Bumper Cover, NO.2
58386-F4010 Bracket, Rear Bumper Cover, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
58386-F4010 Bracket, Rear Bumper Cover, NO.2
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
