Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

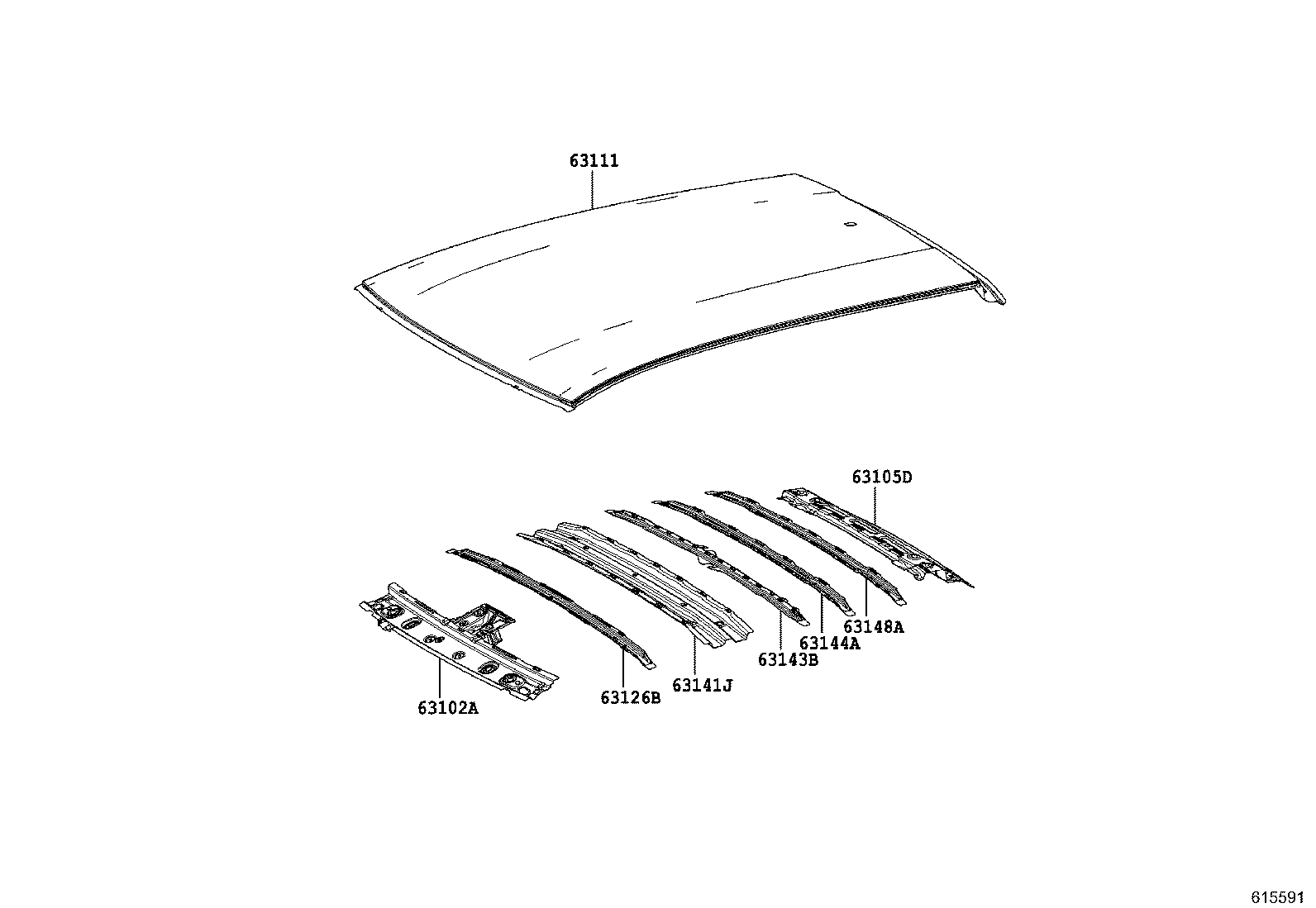

Exploded illustration 615591 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (3 parts) 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (2 parts) 63111 — PANEL, ROOF (2 parts) 63126B — REINFORCEMENT, ROOF PANEL, REAR NO.2 (2 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (2 parts) 63141J — REINFORCEMENT, ROOF PANEL (2 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (2 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (2 parts)
615591 · 8 callouts Full size ↗
17 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-F4010 Panel Sub-assy, Windshield Header
2016-10 → 2019-09 ended
NGX10,50 —
63102-F4010 Panel Sub-assy, Windshield Header
2019-09 → 2020-05 ended
NGX10,50,ZYX10 —
63102-F4011 Panel Sub-assy, Windshield Header
2020-05 → —
NGX10,50,ZYX10 —
63105D — Frame Sub-assy, Back Window, Upper
63105-F4010 Frame Sub-assy, Back Window, Upper
2016-10 → 2019-09 ended
NGX10,50 —
63105-F4010 Frame Sub-assy, Back Window, Upper
2019-09 → —
NGX10,50,ZYX10 —
63111 — Panel, Roof
63111-F4010 Panel, Roof
2016-10 → 2019-09 ended
NGX10,50 —
63111-F4010 Panel, Roof
2019-09 → —
NGX10,50,ZYX10 —
63126B — Reinforcement, Roof Panel, Rear NO.2
63126-F4010 Reinforcement, Roof Panel, Rear NO.2
2016-10 → 2019-09 ended
NGX10,50 —
63126-F4010 Reinforcement, Roof Panel, Rear NO.2
2019-09 → —
NGX10,50,ZYX10 —
63141J — Reinforcement, Roof Panel
63141-F4010 Reinforcement, Roof Panel
2016-10 → 2019-09 ended
NGX10,50 —
63141-F4010 Reinforcement, Roof Panel
2019-09 → —
NGX10,50,ZYX10 —
63143B — Reinforcement, Roof Panel, NO.3
63143-F4010 Reinforcement, Roof Panel, NO.3
2016-10 → 2019-09 ended
NGX10,50 —
63143-F4010 Reinforcement, Roof Panel, NO.3
2019-09 → —
NGX10,50,ZYX10 —
63144A — Reinforcement, Roof Panel, NO.4
63144-F4010 Reinforcement, Roof Panel, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
63144-F4010 Reinforcement, Roof Panel, NO.4
2019-09 → —
NGX10,50,ZYX10 —
63148A — Reinforcement, Roof Panel, NO.7
63148-F4010 Reinforcement, Roof Panel, NO.7
2016-10 → 2019-09 ended
NGX10,50 —
63148-F4010 Reinforcement, Roof Panel, NO.7
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
