Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 615607B 55748B — BRACE, COWL TOP INNER TO PILLAR, RH (2 parts) 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (2 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (2 parts) 61103A — REINFORCEMENT SUB-ASSY, COWL SIDE, RH (2 parts) 61106A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH (2 parts) 61108D — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH (2 parts) 61141B — GUSSET, FRONT BODY PILLAR, UPPER RH (2 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (2 parts) 61211C — RAIL, ROOF SIDE, RH (2 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (2 parts) 61401C — PANEL SUB-ASSY, ROCKER, OUTER RH (2 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (2 parts) 61605E — PANEL, QUARTER, RH (4 parts) 61607H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH (4 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (2 parts) 61673B — REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH (2 parts) 61703G — PANEL SUB-ASSY, QUARTER, INNER RH (2 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61713B — REINFORCE, ROOF SIDE, OUTER RH (2 parts) 61715B — EXTENSION, ROOF SIDE, INNER FRONT RH (2 parts) 61717A — REINFORCEMENT, QUARTER PANEL EXTENSION, RH (2 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 61737D — REINFORCEMENT, ROOF SIDE, INNER RH (2 parts) 61773B — FRAME, BACK DOOR OPENING SIDE, UPPER RH (2 parts) 61777D — RETAINER, BACK DOOR SIDE STOPPER, RH (2 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (2 parts) 61827A — PLATE, NOISE CONTROL, NO.4 (2 parts) 62554B — PAD, PILLAR, NO.4 (2 parts) 63175C — REINFORCEMENT, BACK DOOR HINGE FEMALE, RH (2 parts) 68981A — RETAINER, BACK DOOR STAY, RH (2 parts) 90119W0061 — not listed in this catalogue 90119W0061 — not listed in this catalogue 90119W0132 — not listed in this catalogue 90119W0132 — not listed in this catalogue 90119W0132 — not listed in this catalogue 90178W0031 — not listed in this catalogue 9017906308 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046706208 — not listed in this catalogue 5701 — not listed in this catalogue 65637 — LINER, REAR WHEEL HOUSE, RH (2 parts)

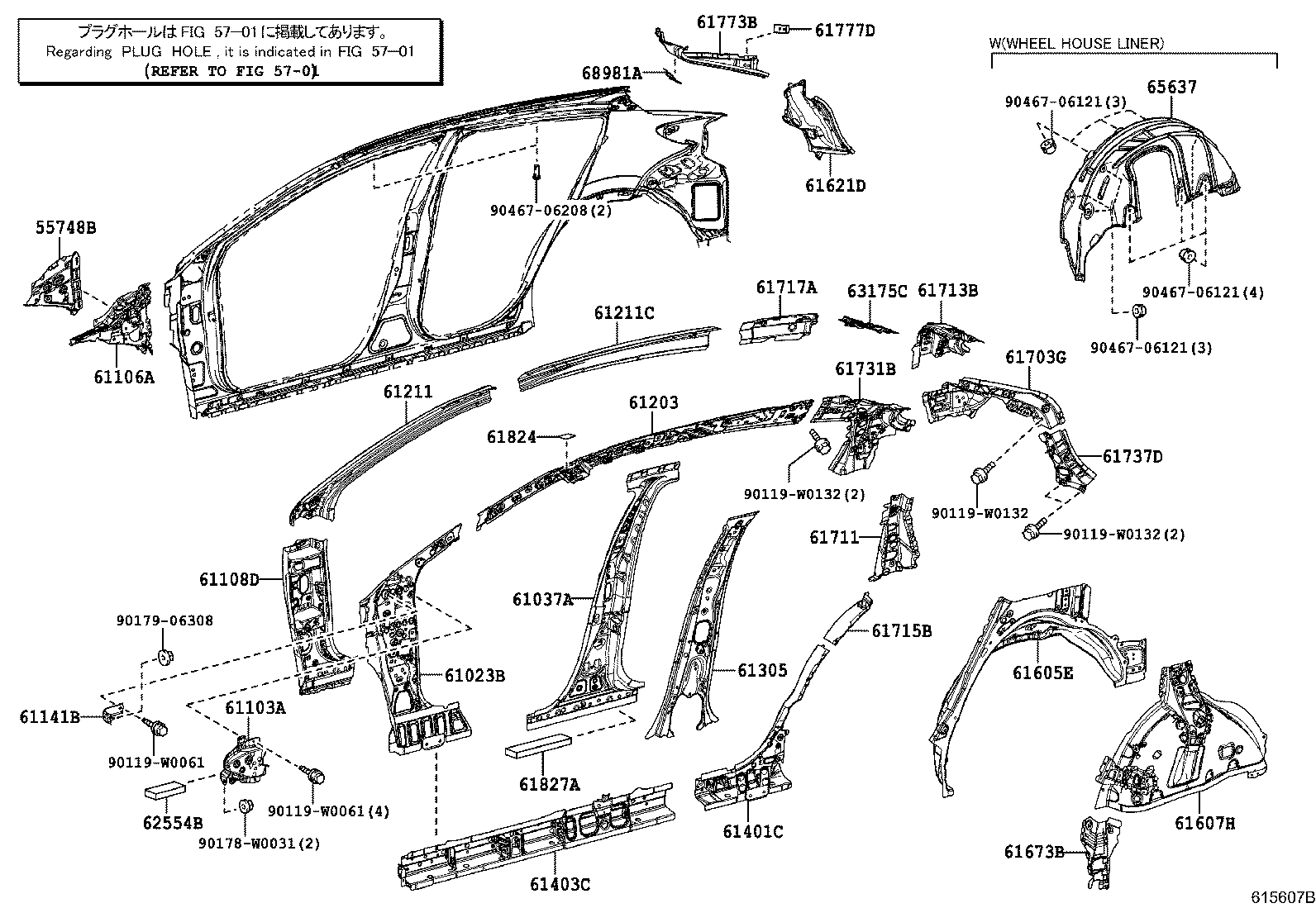

615607B · 32 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
55748B — Brace, Cowl Top Inner TO Pillar, RH
55748-F4010 Brace, Cowl Top Inner TO Pillar, RH
2016-10 → 2019-09 ended
NGX10,50 —
55748-F4010 Brace, Cowl Top Inner TO Pillar, RH
2019-09 → —
NGX10,50,ZYX10 —
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-F4010 Pillar Sub-assy, Front Body, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61023-F4010 Pillar Sub-assy, Front Body, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-F4010 Reinforcement Sub-assy, Center Body Pillar, RH
2016-10 → 2019-09 ended
NGX10,50 —
61037-F4010 Reinforcement Sub-assy, Center Body Pillar, RH
2019-09 → —
NGX10,50,ZYX10 —
61103A — Reinforcement Sub-assy, Cowl Side, RH
61103-F4010 Reinforcement Sub-assy, Cowl Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
61103-F4010 Reinforcement Sub-assy, Cowl Side, RH
2019-09 → —
NGX10,50,ZYX10 —
61106A — Reinforce Sub-assy, Front Body Pillar, Upper RH
61106-F4010 Reinforce Sub-assy, Front Body Pillar, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
61106-F4010 Reinforce Sub-assy, Front Body Pillar, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
61108D — Reinforcement Sub-assy, Front Pillar, Lower RH
61108-F4010 Reinforcement Sub-assy, Front Pillar, Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
61108-F4010 Reinforcement Sub-assy, Front Pillar, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
61141B — Gusset, Front Body Pillar, Upper RH
61141-F4010 Gusset, Front Body Pillar, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
61141-F4010 Gusset, Front Body Pillar, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-F4010 Rail Sub-assy, Roof Side, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61203-F4010 Rail Sub-assy, Roof Side, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61211 — Rail, Roof Side, Outer RH
61201-F4900 Rail, Roof Side, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
61201-F4900 Rail, Roof Side, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
61211C — Rail, Roof Side, RH
61211-F4010 Rail, Roof Side, RH
2016-10 → 2019-09 ended
NGX10,50 —
61211-F4010 Rail, Roof Side, RH
2019-09 → —
NGX10,50,ZYX10 —
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-F4010 Reinforce Sub-assy, Center Body Pillar, Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
61305-F4010 Reinforce Sub-assy, Center Body Pillar, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
61401C — Panel Sub-assy, Rocker, Outer RH
61401-F4010 Panel Sub-assy, Rocker, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
61401-F4010 Panel Sub-assy, Rocker, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-F4900 Reinforce Sub-assy, Rocker, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
61403-F4900 Reinforce Sub-assy, Rocker, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
61605E — Panel, Quarter, RH
61605-F4900 Panel, Quarter, RH
2016-10 → 2019-09 ended
NGX10,50 E —
61605-F4901 Panel, Quarter, RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
61605-F4900 Panel, Quarter, RH
2019-09 → —
NGX10,50,ZYX10 E —
61605-F4901 Panel, Quarter, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
61607H — Panel Sub-assy, Quarter Wheel House, Inner RH
61607-F4900 Panel Sub-assy, Quarter Wheel House, Inner RH
2016-10 → 2019-09 ended
NGX10,50 E —
61607-F4901 Panel Sub-assy, Quarter Wheel House, Inner RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
61607-F4900 Panel Sub-assy, Quarter Wheel House, Inner RH
2019-09 → —
NGX10,50,ZYX10 E —
61607-F4901 Panel Sub-assy, Quarter Wheel House, Inner RH
2019-09 → —
NGX10,50,ZYX10 D,N —
61621D — Trough, Back Door Opening, RH
61621-F4010 Trough, Back Door Opening, RH
2016-10 → 2019-09 ended
NGX10,50 —
61621-F4010 Trough, Back Door Opening, RH
2019-09 → —
NGX10,50,ZYX10 —
61673B — Reinforcement, Quarter Wheel House, Inner RH
61673-F4010 Reinforcement, Quarter Wheel House, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61673-F4010 Reinforcement, Quarter Wheel House, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61703G — Panel Sub-assy, Quarter, Inner RH
61703-F4010 Panel Sub-assy, Quarter, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61703-F4010 Panel Sub-assy, Quarter, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61711 — Panel, Roof Side, Outer RH
61711-F4010 Panel, Roof Side, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
61711-F4010 Panel, Roof Side, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
61713B — Reinforce, Roof Side, Outer RH
61713-F4010 Reinforce, Roof Side, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
61713-F4010 Reinforce, Roof Side, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
61715B — Extension, Roof Side, Inner Front RH
61715-F4010 Extension, Roof Side, Inner Front RH
2016-10 → 2019-09 ended
NGX10,50 —
61715-F4010 Extension, Roof Side, Inner Front RH
2019-09 → —
NGX10,50,ZYX10 —
61717A — Reinforcement, Quarter Panel Extension, RH
61717-F4010 Reinforcement, Quarter Panel Extension, RH
2016-10 → 2019-09 ended
NGX10,50 —
61717-F4010 Reinforcement, Quarter Panel Extension, RH
2019-09 → —
NGX10,50,ZYX10 —
61731B — Panel, Roof Side, Inner RH
61731-F4010 Panel, Roof Side, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61731-F4010 Panel, Roof Side, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61737D — Reinforcement, Roof Side, Inner RH
61737-F4010 Reinforcement, Roof Side, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
61737-F4010 Reinforcement, Roof Side, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
61773B — Frame, Back Door Opening Side, Upper RH
61773-F4010 Frame, Back Door Opening Side, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
61773-F4010 Frame, Back Door Opening Side, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
61777D — Retainer, Back Door Side Stopper, RH
61777-F4010 Retainer, Back Door Side Stopper, RH
2016-10 → 2019-09 ended
NGX10,50 —
61777-F4010 Retainer, Back Door Side Stopper, RH
2019-09 → —
NGX10,50,ZYX10 —
61824 — Plate, Noise Control, NO.1
61824-12070 Plate, Noise Control, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
61824-12070 Plate, Noise Control, NO.1
2019-09 → —
NGX10,50,ZYX10 —
61827A — Plate, Noise Control, NO.4
61827-02030 Plate, Noise Control, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
61827-02030 Plate, Noise Control, NO.4
2019-09 → —
NGX10,50,ZYX10 —
62554B — Pad, Pillar, NO.4
62554-02190 Pad, Pillar, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
62554-02190 Pad, Pillar, NO.4
2019-09 → —
NGX10,50,ZYX10 —
63175C — Reinforcement, Back Door Hinge Female, RH
63175-F4010 Reinforcement, Back Door Hinge Female, RH
2016-10 → 2019-09 ended
NGX10,50 —
63175-F4010 Reinforcement, Back Door Hinge Female, RH
2019-09 → —
NGX10,50,ZYX10 —
65637 — Liner, Rear Wheel House, RH
65637-F4010 Liner, Rear Wheel House, RH
2016-10 → 2019-09 ended
NGX10,50 E —
65637-F4010 Liner, Rear Wheel House, RH
2019-09 → —
NGX10,50,ZYX10 E —
68981A — Retainer, Back Door Stay, RH
68981-F4010 Retainer, Back Door Stay, RH
2016-10 → 2019-09 ended
NGX10,50 —
68981-F4010 Retainer, Back Door Stay, RH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
