Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

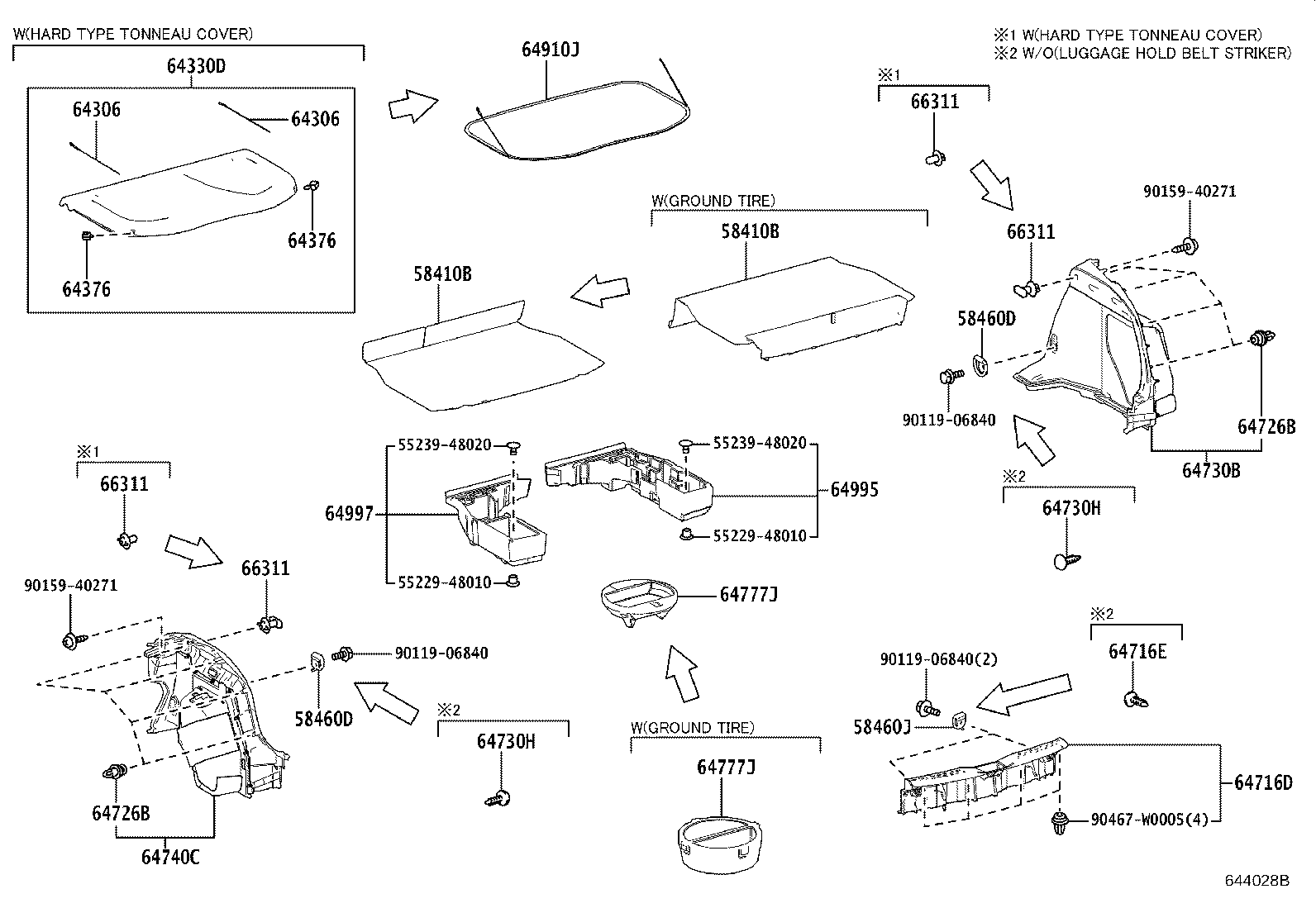

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58410B — Board Assy, Deck | ||||
| 58410-F4020-C1 note |
Board Assy, Deck
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 58410-F4020-C1 note |
Board Assy, Deck
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 58410-F4020-C1 note |
Board Assy, Deck
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 58410-F4030-C1 note |
Board Assy, Deck
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 58410-F4020-C1 note |
Board Assy, Deck
2019-09 → —
|
NGX10,50 D,N | — | |
| 58410-F4020-C1 note |
Board Assy, Deck
2019-09 → —
|
NGX10,50 E | — | |
| 58410-F4030-C1 note |
Board Assy, Deck
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 58410-F4030-C1 note |
Board Assy, Deck
2019-09 → —
|
ZYX10 E | — | |
| 58410-F4030-C1 note |
Board Assy, Deck
2019-09 → —
|
NGX10,50 E | — | |
| 58460D — Striker Assy, Luggage Hold Belt | ||||
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2019-09 → —
|
NGX10,50 | — | |
| 58460J — Striker Assy, Luggage Hold Belt | ||||
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 58460-33020 note |
Striker Assy, Luggage Hold Belt
2019-09 → —
|
NGX10,50 | — | |
| 64306 — Suspender Sub-assy, Package Tray Trim | ||||
| 64306-F4010 note |
Suspender Sub-assy, Package Tray Trim
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64306-F4010 note |
Suspender Sub-assy, Package Tray Trim
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64330D — Panel Assy, Package Tray Trim | ||||
| 64330-F4010-C1 note |
Panel Assy, Package Tray Trim
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 64330-F4010-C2 note |
Panel Assy, Package Tray Trim
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 64330-F4010-C3 note |
Panel Assy, Package Tray Trim
2019-09 → —
|
NGX10,50 E | — | |
| 64330-F4010-C3 note |
Panel Assy, Package Tray Trim
2019-09 → —
|
ZYX10 E | — | |
| 64330-F4010-C3 note |
Panel Assy, Package Tray Trim
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 64376 — Spacer, Package Tray Trim, NO.2 | ||||
| 64376-12020 note |
Spacer, Package Tray Trim, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64376-12020 note |
Spacer, Package Tray Trim, NO.2
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64716D — Cover, Deck Trim, Rear | ||||
| 64716-F4010-C0 note |
Cover, Deck Trim, Rear
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 64716-F4010-C1 note |
Cover, Deck Trim, Rear
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 64716-F4010-C1 note |
Cover, Deck Trim, Rear
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 64716-F4060-C0 note |
Cover, Deck Trim, Rear
2019-09 → —
|
ZYX10 E | — | |
| 64716-F4060-C0 note |
Cover, Deck Trim, Rear
2019-09 → —
|
NGX10,50 E | — | |
| 64716E — Clip(FOR DECK TRIM REAR COVER) | ||||
| 90467-W0006-C2 note |
Clip(FOR DECK TRIM REAR COVER)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM REAR COVER)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM REAR COVER)
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM REAR COVER)
2019-09 → —
|
ZYX10 E | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM REAR COVER)
2019-09 → —
|
NGX10,50 E | — | |
| 64726B — Clip, Deck Rear Trim | ||||
| 90467-W0005 |
Clip, Deck Rear Trim
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-W0005 |
Clip, Deck Rear Trim
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64730B — Panel Assy, Deck Trim Side, RH | ||||
| 64730-F4030-C1 note |
Panel Assy, Deck Trim Side, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 64730-F4030-C2 note |
Panel Assy, Deck Trim Side, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 64730-F4130-C0 note |
Panel Assy, Deck Trim Side, RH
2019-09 → —
|
NGX10,50 E | — | |
| 64730-F4130-C0 note |
Panel Assy, Deck Trim Side, RH
2019-09 → —
|
ZYX10 E | — | |
| 64730-F4130-C0 note |
Panel Assy, Deck Trim Side, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 64730H — Clip(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-W0006-C2 note |
Clip(FOR DECK TRIM SIDE PANEL)
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM SIDE PANEL)
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM SIDE PANEL)
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM SIDE PANEL)
2019-09 → —
|
ZYX10 E | — | |
| 90467-W0006-C4 note |
Clip(FOR DECK TRIM SIDE PANEL)
2019-09 → —
|
NGX10,50 E | — | |
| 64740C — Panel Assy, Deck Trim Side, LH | ||||
| 64740-F4020-C1 note |
Panel Assy, Deck Trim Side, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 64740-F4020-C2 note |
Panel Assy, Deck Trim Side, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 64740-F4130-C0 note |
Panel Assy, Deck Trim Side, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 64740-F4130-C0 note |
Panel Assy, Deck Trim Side, LH
2019-09 → —
|
ZYX10 E | — | |
| 64740-F4130-C0 note |
Panel Assy, Deck Trim Side, LH
2019-09 → —
|
NGX10,50 E | — | |
| 64777J — Cushion, Spare Wheel | ||||
| 64777-F4030 note |
Cushion, Spare Wheel
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 64777-F4030 note |
Cushion, Spare Wheel
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64777-F4030 note |
Cushion, Spare Wheel
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 64777-F4040 |
Cushion, Spare Wheel
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64777-F4030 note |
Cushion, Spare Wheel
2019-09 → —
|
NGX10,50 | — | |
| 64777-F4040 |
Cushion, Spare Wheel
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64910J — Cover Assy, Tonneau | ||||
| 64910-F4010 |
Cover Assy, Tonneau
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64910-F4010 |
Cover Assy, Tonneau
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64995 — Box, Deck Floor, RH | ||||
| 64995-F4010 note |
Box, Deck Floor, RH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64995-F4010 note |
Box, Deck Floor, RH
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 64995-F4010 note |
Box, Deck Floor, RH
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 64995-F4020 |
Box, Deck Floor, RH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64995-F4010 note |
Box, Deck Floor, RH
2019-09 → —
|
NGX10,50 | — | |
| 64995-F4020 |
Box, Deck Floor, RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 64997 — Box, Deck Floor, LH | ||||
| 64997-F4010 note |
Box, Deck Floor, LH
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 64997-F4010 note |
Box, Deck Floor, LH
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 64997-F4010 note |
Box, Deck Floor, LH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64997-F4020 |
Box, Deck Floor, LH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 64997-F4010 note |
Box, Deck Floor, LH
2019-09 → —
|
NGX10,50 | — | |
| 64997-F4020 |
Box, Deck Floor, LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 66311 — Hook, Rope | ||||
| 66311-F4010-C0 note |
Hook, Rope
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 66311-F4010-C1 note |
Hook, Rope
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 66311-F4020-C0 note |
Hook, Rope
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 66311-F4020-C1 note |
Hook, Rope
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 66311-F4010-C1 note |
Hook, Rope
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 66311-F4010-C1 note |
Hook, Rope
2019-09 → —
|
ZYX10 E | — | |
| 66311-F4010-C1 note |
Hook, Rope
2019-09 → —
|
NGX10,50 E | — | |
| 66311-F4020-C1 note |
Hook, Rope
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 66311-F4020-C1 note |
Hook, Rope
2019-09 → —
|
ZYX10 E | — | |
| 66311-F4020-C1 note |
Hook, Rope
2019-09 → —
|
NGX10,50 E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
