Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

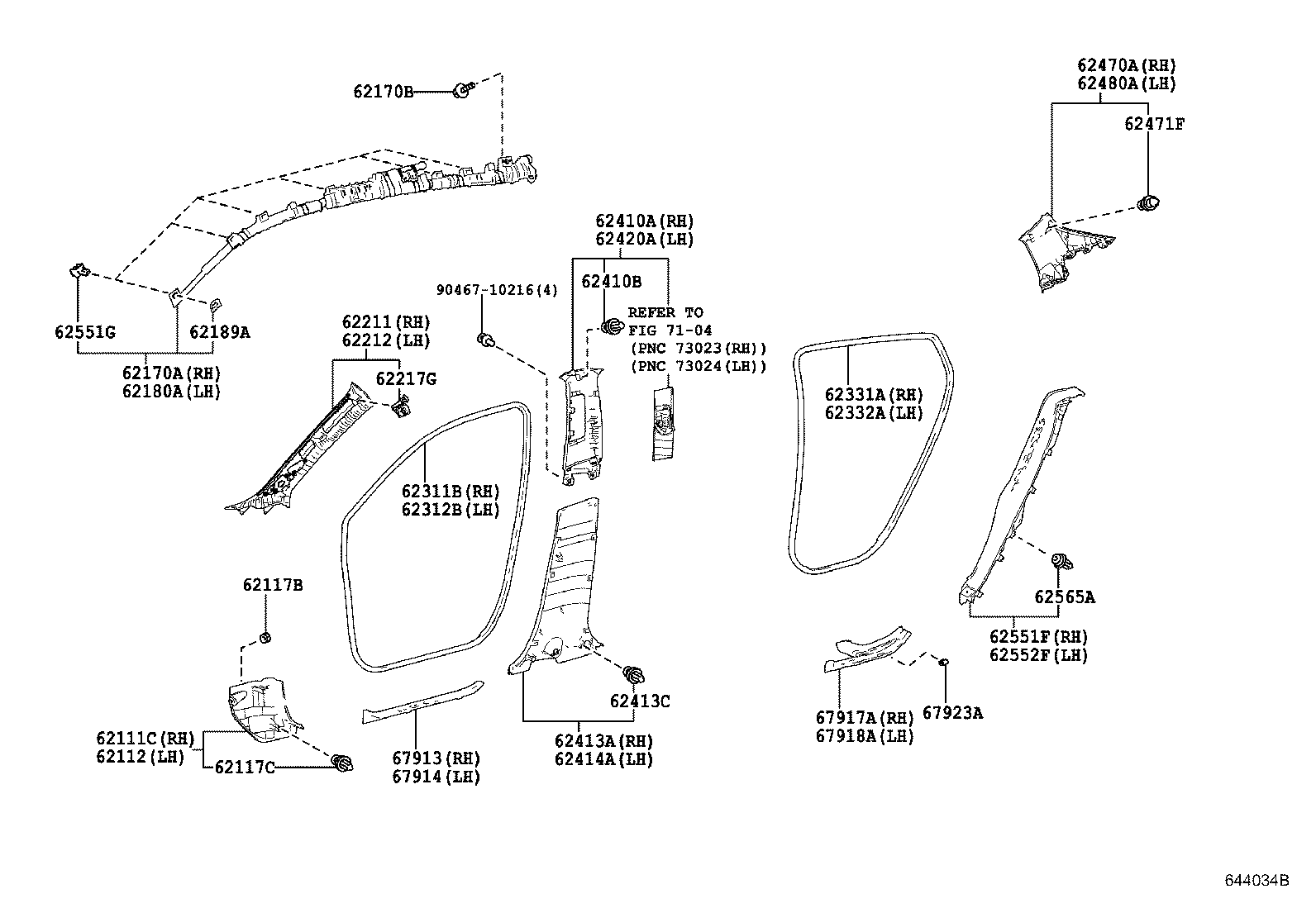

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62111C — Board, Cowl Side Trim, RH | ||||
| 62111-F4010-C0 note |
Board, Cowl Side Trim, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62111-F4010-C1 note |
Board, Cowl Side Trim, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62111-F4010-C1 note |
Board, Cowl Side Trim, RH
2019-09 → —
|
ZYX10 E | — | |
| 62111-F4010-C1 note |
Board, Cowl Side Trim, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62111-F4010-C1 note |
Board, Cowl Side Trim, RH
2019-09 → —
|
NGX10,50 E | — | |
| 62112 — Board, Cowl Side Trim, LH | ||||
| 62112-F4010-C0 note |
Board, Cowl Side Trim, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62112-F4010-C1 note |
Board, Cowl Side Trim, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62112-F4010-C1 note |
Board, Cowl Side Trim, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62112-F4010-C1 note |
Board, Cowl Side Trim, LH
2019-09 → —
|
ZYX10 E | — | |
| 62112-F4010-C1 note |
Board, Cowl Side Trim, LH
2019-09 → —
|
NGX10,50 E | — | |
| 62117B — Clip, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-06147 |
Clip, NO.1(FOR COWL SIDE TRIM)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62117C — Clip, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-W0005 |
Clip, NO.2(FOR COWL SIDE TRIM)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-W0005 |
Clip, NO.2(FOR COWL SIDE TRIM)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 62170-F4010 |
Airbag Assy, Curtain Shield, RH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62170-F4010 |
Airbag Assy, Curtain Shield, RH
2019-09 → 2022-07
ended
|
NGX10,50,ZYX10 | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2019-09 → 2022-07
ended
|
NGX10 LHD 6F | — | |
| 62170-F4010 note |
Airbag Assy, Curtain Shield, RH
2019-09 → 2022-07
ended
|
NGX10 LHD CVT N | — | |
| 62170-F4011 note |
Airbag Assy, Curtain Shield, RH
2022-08 → 2023-10
ended
|
NGX10 LHD 6F | — | |
| 62170-F4011 note |
Airbag Assy, Curtain Shield, RH
2022-08 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 62170-F4011 |
Airbag Assy, Curtain Shield, RH
2022-08 → —
|
NGX10,50,ZYX10 | — | |
| 62170B — Bolt, W/Washer | ||||
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90119-W0037 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 91673-80616 note |
Bolt, W/Washer
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90119-W0037 note |
Bolt, W/Washer
2019-09 → 2023-10
ended
|
NGX10 LHD 6F | — | |
| 90119-W0037 note |
Bolt, W/Washer
2019-09 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 90119-W0037 note |
Bolt, W/Washer
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 91673-80616 note |
Bolt, W/Washer
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 62180-F4010 |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62180-F4010 |
Airbag Assy, Curtain Shield, LH
2019-09 → 2022-07
ended
|
NGX10,50,ZYX10 | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2019-09 → 2022-07
ended
|
NGX10 LHD 6F | — | |
| 62180-F4010 note |
Airbag Assy, Curtain Shield, LH
2019-09 → 2022-07
ended
|
NGX10 LHD CVT N | — | |
| 62180-F4011 |
Airbag Assy, Curtain Shield, LH
2022-08 → —
|
NGX10,50,ZYX10 | — | |
| 62180-F4011 note |
Airbag Assy, Curtain Shield, LH
2022-08 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 62180-F4011 note |
Airbag Assy, Curtain Shield, LH
2022-08 → 2023-10
ended
|
NGX10 LHD 6F | — | |
| 62189A — Spacer, Curtain Shield Airbag Clip | ||||
| 62189-42010 |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62189-42010 |
Spacer, Curtain Shield Airbag Clip
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2019-09 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 62189-42010 note |
Spacer, Curtain Shield Airbag Clip
2019-09 → 2023-10
ended
|
NGX10 LHD 6F | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62210-F4010-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62210-F4010-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 RHD D | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 RHD N | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 RHD N | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C0 note |
Garnish, Front Pillar, RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 RHD N | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 RHD D | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 RHD N | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62210-F4010-B0 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62210-F4010-B0 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10,50,ZYX10 E | — | |
| 62210-F4010-C1 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62210-F4010-C1 note |
Garnish, Front Pillar, RH
2019-09 → —
|
ZYX10 E | — | |
| 62210-F4010-C1 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10,50 E | — | |
| 62210-F4030-B0 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62210-F4030-B0 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62210-F4030-C1 note |
Garnish, Front Pillar, RH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62220-F4010-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62220-F4010-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 RHD N | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 RHD N | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 RHD D | — | |
| 62220-F4030-C0 note |
Garnish, Front Pillar, LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 RHD D | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 RHD N | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 RHD N | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62220-F4010-B0 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10,50,ZYX10 E | — | |
| 62220-F4010-B0 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62220-F4010-C1 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62220-F4010-C1 note |
Garnish, Front Pillar, LH
2019-09 → —
|
ZYX10 E | — | |
| 62220-F4010-C1 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10,50 E | — | |
| 62220-F4030-B0 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62220-F4030-B0 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62220-F4030-C1 note |
Garnish, Front Pillar, LH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-24020 |
Clip, Front Pillar Garnish
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62217-24020 |
Clip, Front Pillar Garnish
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62311B — Weatherstrip, Front Door Opening Trim, RH | ||||
| 62311-F4010 |
Weatherstrip, Front Door Opening Trim, RH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62311-F4010 |
Weatherstrip, Front Door Opening Trim, RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62312B — Weatherstrip, Front Door Opening Trim, LH | ||||
| 62312-F4010 |
Weatherstrip, Front Door Opening Trim, LH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62312-F4010 |
Weatherstrip, Front Door Opening Trim, LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62331A — Weatherstrip, Rear Door Opening Trim, RH | ||||
| 62331-F4010 |
Weatherstrip, Rear Door Opening Trim, RH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62331-F4010 |
Weatherstrip, Rear Door Opening Trim, RH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62332A — Weatherstrip, Rear Door Opening Trim, LH | ||||
| 62332-F4010 |
Weatherstrip, Rear Door Opening Trim, LH
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 62332-F4010 |
Weatherstrip, Rear Door Opening Trim, LH
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62410A — Garnish Assy, Center Pillar, RH | ||||
| 62410-F4020-C0 note |
Garnish Assy, Center Pillar, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62410-F4020-C1 note |
Garnish Assy, Center Pillar, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62410-F4020-C1 note |
Garnish Assy, Center Pillar, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62410-F4020-C1 note |
Garnish Assy, Center Pillar, RH
2019-09 → —
|
ZYX10 E | — | |
| 62410-F4020-C1 note |
Garnish Assy, Center Pillar, RH
2019-09 → —
|
NGX10,50 E | — | |
| 62410B — Clip | ||||
| 90467-10167 |
Clip
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-10167 |
Clip
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-F4010-C0 note |
Garnish, Center Pillar, Lower RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62413-F4010-C1 note |
Garnish, Center Pillar, Lower RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62413-F4010-C1 note |
Garnish, Center Pillar, Lower RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62413-F4010-C1 note |
Garnish, Center Pillar, Lower RH
2019-09 → —
|
ZYX10 E | — | |
| 62413-F4010-C1 note |
Garnish, Center Pillar, Lower RH
2019-09 → —
|
NGX10,50 E | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-W0005 |
Clip (FOR CENTER LOWER GARNISH)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-W0005 |
Clip (FOR CENTER LOWER GARNISH)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-F4010-C0 note |
Garnish, Center Pillar, Lower LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62414-F4010-C1 note |
Garnish, Center Pillar, Lower LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62414-F4010-C1 note |
Garnish, Center Pillar, Lower LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62414-F4010-C1 note |
Garnish, Center Pillar, Lower LH
2019-09 → —
|
ZYX10 E | — | |
| 62414-F4010-C1 note |
Garnish, Center Pillar, Lower LH
2019-09 → —
|
NGX10,50 E | — | |
| 62420A — Garnish Assy, Center Piller, LH | ||||
| 62420-F4020-C0 note |
Garnish Assy, Center Piller, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62420-F4020-C1 note |
Garnish Assy, Center Piller, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62420-F4020-C1 note |
Garnish Assy, Center Piller, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62420-F4020-C1 note |
Garnish Assy, Center Piller, LH
2019-09 → —
|
ZYX10 E | — | |
| 62420-F4020-C1 note |
Garnish Assy, Center Piller, LH
2019-09 → —
|
NGX10,50 E | — | |
| 62470A — Garnish Assy, Roof Side, Inner RH | ||||
| 62470-F4030-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62470-F4030-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 RHD (D,N) | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C0 note |
Garnish Assy, Roof Side, Inner RH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62470-F4030-C1 note |
Garnish Assy, Roof Side, Inner RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62470-F4030-C1 note |
Garnish Assy, Roof Side, Inner RH
2019-09 → —
|
ZYX10 E | — | |
| 62470-F4030-C1 note |
Garnish Assy, Roof Side, Inner RH
2019-09 → —
|
NGX10,50 E | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62470-F4040-C1 note |
Garnish Assy, Roof Side, Inner RH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62471F — Clip (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-A0033 |
Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-A0033 |
Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62480A — Garnish Assy, Roof Side, Inner LH | ||||
| 62480-F4030-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62480-F4030-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 RHD (D,N) | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C0 note |
Garnish Assy, Roof Side, Inner LH
2016-10 → 2018-05
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2018-05 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 62480-F4030-C1 note |
Garnish Assy, Roof Side, Inner LH
2019-09 → —
|
ZYX10 E | — | |
| 62480-F4030-C1 note |
Garnish Assy, Roof Side, Inner LH
2019-09 → —
|
NGX10,50 E | — | |
| 62480-F4030-C1 note |
Garnish Assy, Roof Side, Inner LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2019-09 → —
|
NGX10 LHD 6F | — | |
| 62480-F4040-C1 note |
Garnish Assy, Roof Side, Inner LH
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-F4010-C0 note |
Garnish, Rear Seat Side, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62551-F4010-C1 note |
Garnish, Rear Seat Side, RH
2018-05 → 2018-09
ended
|
NGX10,50 | — | |
| 62551-F4160-C0 note |
Garnish, Rear Seat Side, RH
2018-09 → 2019-09
ended
|
NGX10,50 | — | |
| 62551-F4120-C0 note |
Garnish, Rear Seat Side, RH
2019-09 → —
|
ZYX10 E | — | |
| 62551-F4120-C0 note |
Garnish, Rear Seat Side, RH
2019-09 → —
|
ZYX10 N | — | |
| 62551-F4160-C0 note |
Garnish, Rear Seat Side, RH
2019-09 → —
|
NGX10,50 LHD E | — | |
| 62551-F4160-C0 note |
Garnish, Rear Seat Side, RH
2019-09 → —
|
NGX10 RHD;NGX10,50 LHD N | — | |
| 62551G — Clip | ||||
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 RHD (D,N) | — | |
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90467-18017 note |
Clip
2016-10 → 2019-09
ended
|
NGX10 LHD (D,N) | — | |
| 90467-18017 |
Clip
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90467-18017 note |
Clip
2019-09 → 2023-10
ended
|
NGX10 LHD 6F | — | |
| 90467-18017 note |
Clip
2019-09 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 90467-18017 |
Clip
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-F4010-C0 note |
Garnish, Rear Seat Side, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 62552-F4010-C1 note |
Garnish, Rear Seat Side, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 62552-F4010-C1 note |
Garnish, Rear Seat Side, LH
2019-09 → —
|
NGX10,50 LHD E | — | |
| 62552-F4010-C1 note |
Garnish, Rear Seat Side, LH
2019-09 → —
|
NGX10 RHD;NGX10,50 LHD N | — | |
| 62552-F4030-C1 note |
Garnish, Rear Seat Side, LH
2019-09 → —
|
ZYX10 E | — | |
| 62552-F4030-C1 note |
Garnish, Rear Seat Side, LH
2019-09 → —
|
ZYX10 N | — | |
| 62565A — Clip (FOR REAR SEAT SIDE GARNISH) | ||||
| 62217-13010 |
Clip (FOR REAR SEAT SIDE GARNISH)
2016-10 → 2018-09
ended
|
NGX10,50 | — | |
| 62217-13010 |
Clip (FOR REAR SEAT SIDE GARNISH)
2018-09 → 2019-09
ended
|
NGX10,50 | — | |
| 62217-13010 |
Clip (FOR REAR SEAT SIDE GARNISH)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 67913 — Plate, Front Door Scuff, RH | ||||
| 67913-F4010-C0 note |
Plate, Front Door Scuff, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 67913-F4010-C1 note |
Plate, Front Door Scuff, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 67913-F4010-C1 note |
Plate, Front Door Scuff, RH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 67913-F4010-C1 note |
Plate, Front Door Scuff, RH
2019-09 → —
|
ZYX10 E | — | |
| 67913-F4010-C1 note |
Plate, Front Door Scuff, RH
2019-09 → —
|
NGX10,50 E | — | |
| 67914 — Plate, Front Door Scuff, LH | ||||
| 67914-F4010-C0 note |
Plate, Front Door Scuff, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 67914-F4010-C1 note |
Plate, Front Door Scuff, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 67914-F4010-C1 note |
Plate, Front Door Scuff, LH
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 67914-F4010-C1 note |
Plate, Front Door Scuff, LH
2019-09 → —
|
ZYX10 E | — | |
| 67914-F4010-C1 note |
Plate, Front Door Scuff, LH
2019-09 → —
|
NGX10,50 E | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-F4010-C0 note |
Plate, Rear Door Scuff, RH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 67917-F4010-C1 note |
Plate, Rear Door Scuff, RH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 67917-F4010-C1 note |
Plate, Rear Door Scuff, RH
2019-09 → —
|
NGX10,50 E | — | |
| 67917-F4010-C1 note |
Plate, Rear Door Scuff, RH
2019-09 → —
|
NGX10,50 D,N | — | |
| 67917-F4020-C1 note |
Plate, Rear Door Scuff, RH
2019-09 → —
|
ZYX10 E | — | |
| 67917-F4020-C1 note |
Plate, Rear Door Scuff, RH
2019-09 → —
|
ZYX10 N | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-F4010-C0 note |
Plate, Rear Door Scuff, LH
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 67918-F4010-C1 note |
Plate, Rear Door Scuff, LH
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 67918-F4010-C1 note |
Plate, Rear Door Scuff, LH
2019-09 → —
|
NGX10,50 E | — | |
| 67918-F4010-C1 note |
Plate, Rear Door Scuff, LH
2019-09 → —
|
NGX10,50 D,N | — | |
| 67918-F4020-C1 note |
Plate, Rear Door Scuff, LH
2019-09 → —
|
ZYX10 E | — | |
| 67918-F4020-C1 note |
Plate, Rear Door Scuff, LH
2019-09 → —
|
ZYX10 N | — | |
| 67923A — Clamp, Door Scuff Plate, NO.1 | ||||
| 67923-30030 |
Clamp, Door Scuff Plate, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 67923-30030 |
Clamp, Door Scuff Plate, NO.1
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
