Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

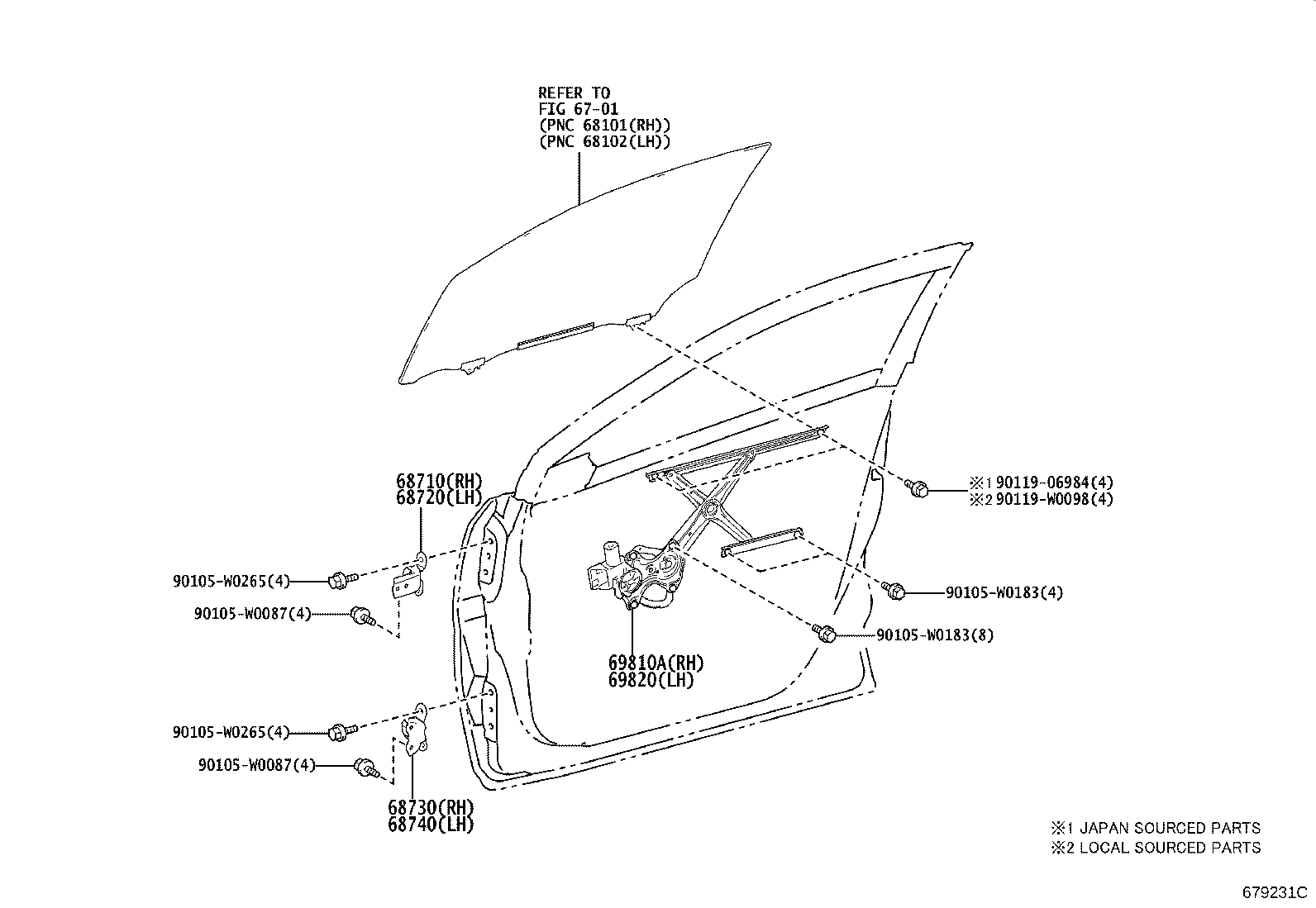

Exploded illustration 679231C 6701 — not listed in this catalogue 68710 — HINGE ASSY, FRONT DOOR, UPPER RH (3 parts) 68720 — HINGE ASSY, FRONT DOOR, UPPER LH (3 parts) 68730 — HINGE ASSY, FRONT DOOR, LOWER RH (3 parts) 68740 — HINGE ASSY, FRONT DOOR, LOWER LH (3 parts) 69810A — REGULATOR ASSY, FRONT DOOR WINDOW, RH (2 parts) 69820 — REGULATOR ASSY, FRONT DOOR WINDOW, LH (2 parts) 90105W0087 — not listed in this catalogue 90105W0087 — not listed in this catalogue 90105W0265 — not listed in this catalogue 90105W0265 — not listed in this catalogue 90105W0183 — not listed in this catalogue 90105W0183 — not listed in this catalogue 9011906984 — not listed in this catalogue 90119W0098 — not listed in this catalogue
679231C · 6 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
68710 — Hinge Assy, Front Door, Upper RH
68710-02060 Hinge Assy, Front Door, Upper RH
2018-10 → 2019-09 ended
NGX10,50 —
68710-0D091 Hinge Assy, Front Door, Upper RH
2016-10 → 2018-09 ended
NGX10,50 —
68710-02060 Hinge Assy, Front Door, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
68720 — Hinge Assy, Front Door, Upper LH
68720-02060 Hinge Assy, Front Door, Upper LH
2018-10 → 2019-09 ended
NGX10,50 —
68720-0D091 Hinge Assy, Front Door, Upper LH
2016-10 → 2018-09 ended
NGX10,50 —
68720-02060 Hinge Assy, Front Door, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
68730 — Hinge Assy, Front Door, Lower RH
68730-02050 Hinge Assy, Front Door, Lower RH
2018-10 → 2019-09 ended
NGX10,50 —
68730-0D071 Hinge Assy, Front Door, Lower RH
2016-10 → 2018-09 ended
NGX10,50 —
68730-02050 Hinge Assy, Front Door, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
68740 — Hinge Assy, Front Door, Lower LH
68740-02050 Hinge Assy, Front Door, Lower LH
2018-10 → 2019-09 ended
NGX10,50 —
68740-0D071 Hinge Assy, Front Door, Lower LH
2016-10 → 2018-09 ended
NGX10,50 —
68740-02050 Hinge Assy, Front Door, Lower LH
2019-09 → —
NGX10,50,ZYX10 —
69810A — Regulator Assy, Front Door Window, RH
69810-F4010 Regulator Assy, Front Door Window, RH
2016-10 → 2019-09 ended
NGX10,50 —
69810-F4010 Regulator Assy, Front Door Window, RH
2019-09 → —
NGX10,50,ZYX10 —
69820 — Regulator Assy, Front Door Window, LH
69820-F4010 Regulator Assy, Front Door Window, LH
2016-10 → 2019-09 ended
NGX10,50 —
69820-F4010 Regulator Assy, Front Door Window, LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
