Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

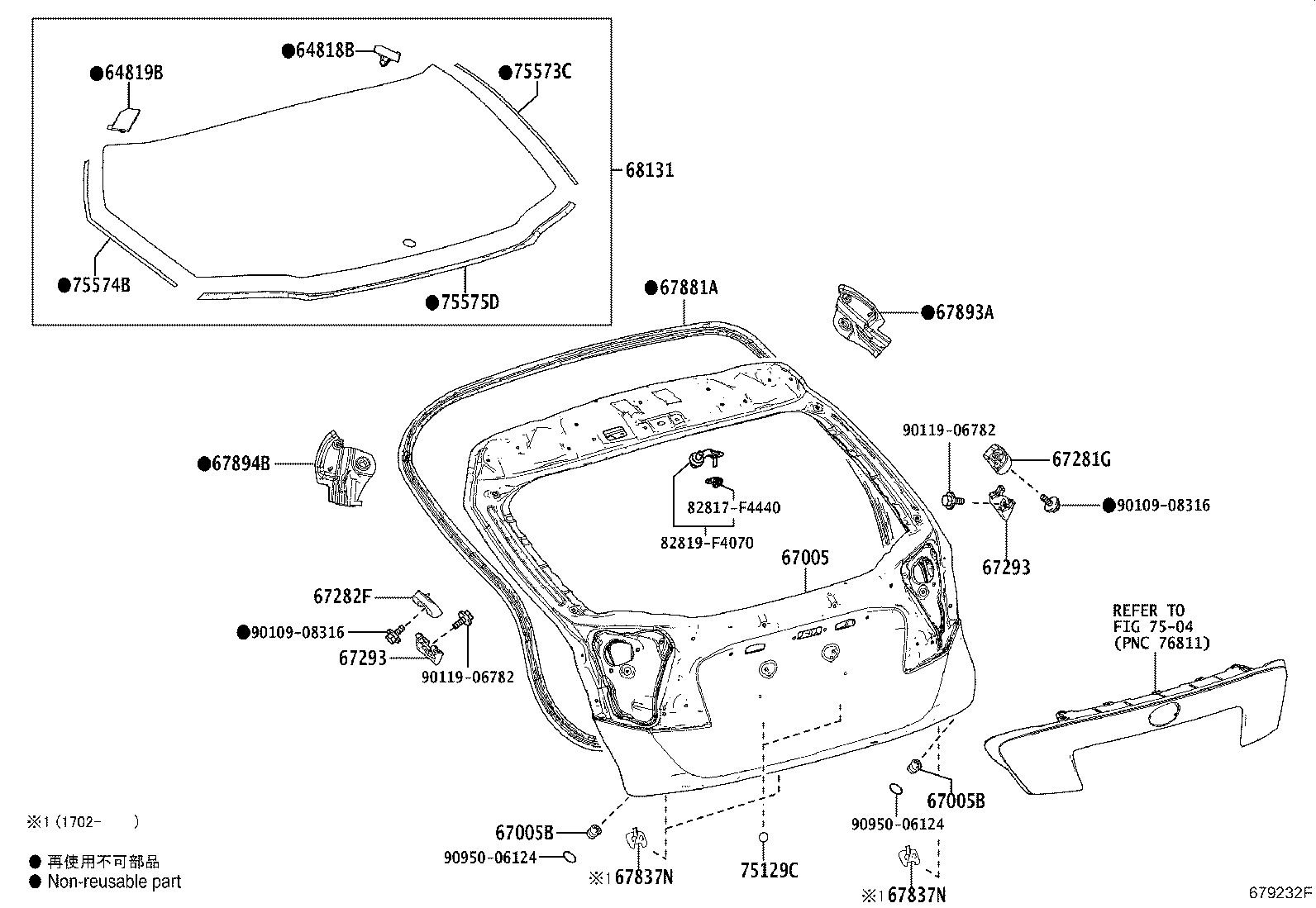

Exploded illustration 679232F 67005 — PANEL SUB-ASSY, BACK DOOR (6 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67281G — STOPPER, BACK DOOR, LOWER RH (2 parts) 67282F — STOPPER, BACK DOOR, LWR LH (2 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (4 parts) 67881A — WEATHERSTRIP, BACK DOOR (3 parts) 67893A — PROTECTOR, BACK DOOR PANEL, NO.1 (2 parts) 67894B — PROTECTOR, BACK DOOR PANEL, NO.2 (2 parts) 68131 — GLASS, BACK DOOR (13 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (2 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (2 parts) 75129C — CUSHION, REAR LICENCE PLATE (2 parts) 67837N — SEAL, BACK DOOR DUST PROOF (2 parts) 75575D — MOULDING, BACK WINDOW, LOWER (4 parts) 9010908316 — not listed in this catalogue 9011906782 — not listed in this catalogue 7504 — not listed in this catalogue 67293 — CUSHION, BACK DOOR LOWER STOPPER (4 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 9011906782 — not listed in this catalogue 9095006124 — not listed in this catalogue 9095006124 — not listed in this catalogue 9010908316 — not listed in this catalogue 82819F4070 — not listed in this catalogue 82817F4440 — not listed in this catalogue 67837N — SEAL, BACK DOOR DUST PROOF (2 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (2 parts) 64819B — SPACER, BACK WINDOW GLASS, NO.2 (2 parts)
679232F · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
64818B — Spacer, Back Door Glass, NO.1
64818-F4010 Spacer, Back Door Glass, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
64818-F4010 Spacer, Back Door Glass, NO.1
2019-09 → —
NGX10,50,ZYX10 —
64819B — Spacer, Back Window Glass, NO.2
64819-F4010 Spacer, Back Window Glass, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
64819-F4010 Spacer, Back Window Glass, NO.2
2019-09 → —
NGX10,50,ZYX10 —
67005 — Panel Sub-assy, Back Door
67005-F4010 Panel Sub-assy, Back Door
2016-10 → 2019-09 ended
NGX10,50 —
67005-F4010 Panel Sub-assy, Back Door
2019-09 → —
ZYX10 —
67005-F4010 note Panel Sub-assy, Back Door
2019-09 → —
NGX10 LHD CVT N —
67005-F4010 note Panel Sub-assy, Back Door
2019-09 → —
NGX10,50 LHD —
67005-F4020 Panel Sub-assy, Back Door
2019-09 → —
NGX10,50 —
67005-F4020 note Panel Sub-assy, Back Door
2019-09 → —
ZYX10 —
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09142 Cushion(FOR BACK DOOR PANEL)
2016-10 → 2019-09 ended
NGX10,50 —
90541-09142 Cushion(FOR BACK DOOR PANEL)
2019-09 → —
NGX10,50,ZYX10 —
67281G — Stopper, Back Door, Lower RH
67281-F4010 Stopper, Back Door, Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
67281-F4010 Stopper, Back Door, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
67282F — Stopper, Back Door, Lwr LH
67281-F4010 Stopper, Back Door, Lwr LH
2016-10 → 2019-09 ended
NGX10,50 —
67281-F4010 Stopper, Back Door, Lwr LH
2019-09 → —
NGX10,50,ZYX10 —
67293 — Cushion, Back Door Lower Stopper
67293-F4010 note Cushion, Back Door Lower Stopper
2016-10 → 2019-09 ended
NGX10,50 —
67294-F4010 note Cushion, Back Door Lower Stopper
2016-10 → 2019-09 ended
NGX10,50 —
67293-F4010 note Cushion, Back Door Lower Stopper
2019-09 → —
NGX10,50,ZYX10 —
67294-F4010 note Cushion, Back Door Lower Stopper
2019-09 → —
NGX10,50,ZYX10 —
67837N — Seal, Back Door Dust Proof
67837-F4070 Seal, Back Door Dust Proof
2017-02 → 2019-09 ended
NGX10,50 —
67837-F4070 Seal, Back Door Dust Proof
2019-09 → —
NGX10,50,ZYX10 —
67881A — Weatherstrip, Back Door
67881-F4010 Weatherstrip, Back Door
2016-10 → 2017-02 ended
NGX10,50 —
67881-F4011 Weatherstrip, Back Door
2017-03 → 2019-09 ended
NGX10,50 —
67881-F4011 Weatherstrip, Back Door
2019-09 → —
NGX10,50,ZYX10 —
67893A — Protector, Back Door Panel, NO.1
67893-F4010 Protector, Back Door Panel, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
67893-F4010 Protector, Back Door Panel, NO.1
2019-09 → —
NGX10,50,ZYX10 —
67894B — Protector, Back Door Panel, NO.2
67894-F4010 Protector, Back Door Panel, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
67894-F4010 Protector, Back Door Panel, NO.2
2019-09 → —
NGX10,50,ZYX10 —
68131 — Glass, Back Door
68105-F4011 Glass, Back Door
2016-10 → 2019-09 ended
NGX10,50 D,N —
68105-F4011 note Glass, Back Door
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68105-F4011 note Glass, Back Door
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68105-F4021 Glass, Back Door
2016-10 → 2019-09 ended
NGX10,50 E —
68105-F4021 note Glass, Back Door
2016-10 → 2019-09 ended
NGX10,50 N —
68105-F4011 Glass, Back Door
2019-09 → —
ZYX10;NGX10,50 D,N —
68105-F4011 note Glass, Back Door
2019-09 → —
NGX10 RHD E —
68105-F4021 Glass, Back Door
2019-09 → —
NGX10,50 E —
68105-F4021 note Glass, Back Door
2019-09 → —
NGX10,50 N —
68105-F4190 note Glass, Back Door
2019-09 → —
NGX10 RHD E —
68105-F4210 note Glass, Back Door
2019-09 → —
NGX10,50 E —
68105-F4260 note Glass, Back Door
2019-09 → —
ZYX10 —
68105-F4260 note Glass, Back Door
2020-10 → —
ZYX10 —
75129C — Cushion, Rear Licence Plate
75129-40010 Cushion, Rear Licence Plate
2016-10 → 2019-09 ended
NGX10,50 —
75129-40010 Cushion, Rear Licence Plate
2019-09 → —
NGX10,50,ZYX10 —
75573C — Moulding, Back Window, Outside
75573-F4010 Moulding, Back Window, Outside
2016-10 → 2019-09 ended
NGX10,50 —
75573-F4010 Moulding, Back Window, Outside
2019-09 → —
NGX10,50,ZYX10 —
75574B — Moulding, Back Window, Outside LH
75574-F4010 Moulding, Back Window, Outside LH
2016-10 → 2019-09 ended
NGX10,50 —
75574-F4010 Moulding, Back Window, Outside LH
2019-09 → —
NGX10,50,ZYX10 —
75575D — Moulding, Back Window, Lower
75575-F4010 Moulding, Back Window, Lower
2016-10 → 2019-09 ended
NGX10,50 —
75575-F4010 Moulding, Back Window, Lower
2019-09 → —
NGX10,50,ZYX10 —
75575-F4060 note Moulding, Back Window, Lower
2019-09 → —
NGX10 RHD E —
75575-F4060 note Moulding, Back Window, Lower
2019-09 → —
NGX10,50 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
