Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

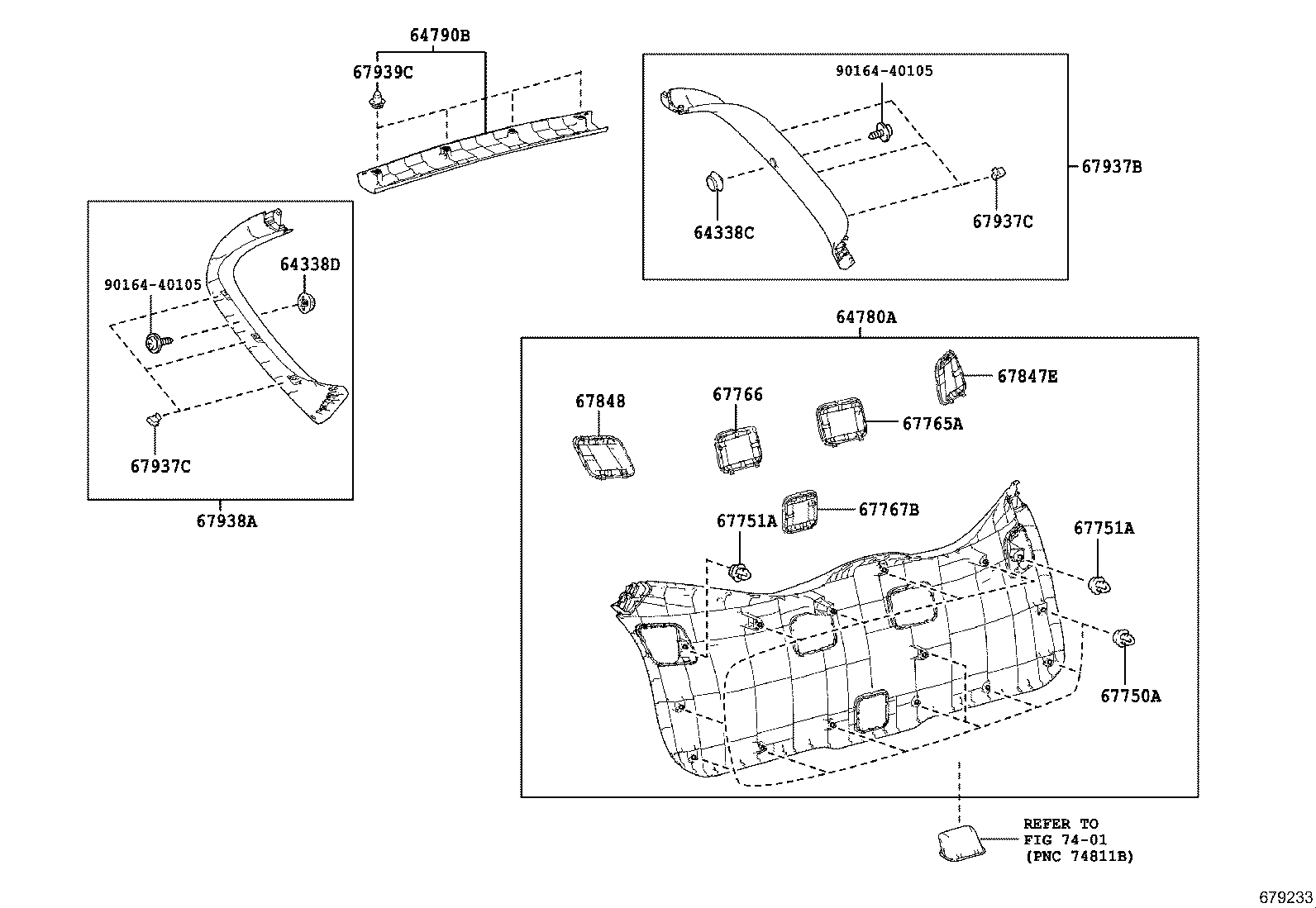

Exploded illustration 679233 64338C — HOOK, PACKAGE TRAY TRIM GARNISH, RH (5 parts) 64338D — HOOK, PACKAGE TRAY TRIM GARNISH, LH (5 parts) 64780A — PANEL ASSY, BACK DOOR TRIM (5 parts) 64790B — PANEL ASSY, BACK DOOR TRIM, UPPER (5 parts) 67750A — CLIP(FOR BACK DOOR TRIM) (2 parts) 67751A — CLIP(FOR BACK DOOR TRIM BOARD) (2 parts) 67765A — COVER, BACK DOOR SERVICE HOLE, NO.1 (5 parts) 67766 — COVER, BACK DOOR SERVICE HOLE, NO.2 (5 parts) 67767B — COVER, BACK DOOR SERVICE HOLE, NO.3 (5 parts) 67847E — COVER, BACK DOOR SERVICE HOLE, RH (5 parts) 67848 — COVER, BACK DOOR SERVICE HOLE, LH (5 parts) 67937B — GARNISH, BACK DOOR SIDE, RH (5 parts) 67937C — CLIP(FOR BACK DOOR SIDE GARNISH) (2 parts) 67938A — GARNISH, BACK DOOR SIDE, LH (5 parts) 67939C — CLIP(FOR BACK DOOR CENTER GARNISH) (2 parts) 9016440105 — not listed in this catalogue 7401 — not listed in this catalogue 9016440105 — not listed in this catalogue 67937C — CLIP(FOR BACK DOOR SIDE GARNISH) (2 parts) 67751A — CLIP(FOR BACK DOOR TRIM BOARD) (2 parts)
679233 · 17 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
64338C — Hook, Package Tray Trim Garnish, RH
64338-F4010-C0 note Hook, Package Tray Trim Garnish, RH
2016-10 → 2018-05 ended
NGX10,50 —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, RH
2018-05 → 2019-09 ended
NGX10,50 —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, RH
2019-09 → —
ZYX10 E —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, RH
2019-09 → —
NGX10,50 E —
64338D — Hook, Package Tray Trim Garnish, LH
64338-F4010-C0 note Hook, Package Tray Trim Garnish, LH
2016-10 → 2018-05 ended
NGX10,50 —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, LH
2018-05 → 2019-09 ended
NGX10,50 —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, LH
2019-09 → —
ZYX10 E —
64338-F4010-C1 note Hook, Package Tray Trim Garnish, LH
2019-09 → —
NGX10,50 E —
64780A — Panel Assy, Back Door Trim
64780-F4010-C0 note Panel Assy, Back Door Trim
2016-10 → 2018-05 ended
NGX10,50 —
64780-F4010-C1 note Panel Assy, Back Door Trim
2018-05 → 2019-09 ended
NGX10,50 —
64780-F4010-C1 note Panel Assy, Back Door Trim
2019-09 → —
NGX10,50,ZYX10 D,N —
64780-F4010-C1 note Panel Assy, Back Door Trim
2019-09 → —
ZYX10 E —
64780-F4010-C1 note Panel Assy, Back Door Trim
2019-09 → —
NGX10,50 E —
64790B — Panel Assy, Back Door Trim, Upper
64790-F4010-C0 note Panel Assy, Back Door Trim, Upper
2016-10 → 2018-05 ended
NGX10,50 —
64790-F4010-C1 note Panel Assy, Back Door Trim, Upper
2018-05 → 2019-09 ended
NGX10,50 —
64790-F4010-C1 note Panel Assy, Back Door Trim, Upper
2019-09 → —
NGX10,50,ZYX10 D,N —
64790-F4010-C1 note Panel Assy, Back Door Trim, Upper
2019-09 → —
ZYX10 E —
64790-F4010-C1 note Panel Assy, Back Door Trim, Upper
2019-09 → —
NGX10,50 E —
67750A — Clip(FOR BACK DOOR TRIM)
90467-W0005 Clip(FOR BACK DOOR TRIM)
2016-10 → 2019-09 ended
NGX10,50 —
90467-W0005 Clip(FOR BACK DOOR TRIM)
2019-09 → —
NGX10,50,ZYX10 —
67751A — Clip(FOR BACK DOOR TRIM BOARD)
90467-10167 Clip(FOR BACK DOOR TRIM BOARD)
2016-10 → 2019-09 ended
NGX10,50 —
90467-10167 Clip(FOR BACK DOOR TRIM BOARD)
2019-09 → —
NGX10,50,ZYX10 —
67765A — Cover, Back Door Service Hole, NO.1
67765-F4010-C0 note Cover, Back Door Service Hole, NO.1
2016-10 → 2018-05 ended
NGX10,50 —
67765-F4010-C1 note Cover, Back Door Service Hole, NO.1
2018-05 → 2019-09 ended
NGX10,50 —
67765-F4010-C1 note Cover, Back Door Service Hole, NO.1
2019-09 → —
NGX10,50,ZYX10 D,N —
67765-F4010-C1 note Cover, Back Door Service Hole, NO.1
2019-09 → —
ZYX10 E —
67765-F4010-C1 note Cover, Back Door Service Hole, NO.1
2019-09 → —
NGX10,50 E —
67766 — Cover, Back Door Service Hole, NO.2
67766-F4010-C0 note Cover, Back Door Service Hole, NO.2
2016-10 → 2018-05 ended
NGX10,50 —
67766-F4010-C1 note Cover, Back Door Service Hole, NO.2
2018-05 → 2019-09 ended
NGX10,50 —
67766-F4010-C1 note Cover, Back Door Service Hole, NO.2
2019-09 → —
NGX10,50,ZYX10 D,N —
67766-F4010-C1 note Cover, Back Door Service Hole, NO.2
2019-09 → —
NGX10,50 E —
67766-F4010-C1 note Cover, Back Door Service Hole, NO.2
2019-09 → —
ZYX10 E —
67767B — Cover, Back Door Service Hole, NO.3
67767-F4010-C0 note Cover, Back Door Service Hole, NO.3
2016-10 → 2018-05 ended
NGX10,50 —
67767-F4010-C1 note Cover, Back Door Service Hole, NO.3
2018-05 → 2019-09 ended
NGX10,50 —
67767-F4010-C1 note Cover, Back Door Service Hole, NO.3
2019-09 → —
NGX10,50,ZYX10 D,N —
67767-F4010-C1 note Cover, Back Door Service Hole, NO.3
2019-09 → —
ZYX10 E —
67767-F4010-C1 note Cover, Back Door Service Hole, NO.3
2019-09 → —
NGX10,50 E —
67847E — Cover, Back Door Service Hole, RH
67847-F4010-C0 note Cover, Back Door Service Hole, RH
2016-10 → 2018-05 ended
NGX10,50 —
67847-F4010-C1 note Cover, Back Door Service Hole, RH
2018-05 → 2019-09 ended
NGX10,50 —
67847-F4010-C1 note Cover, Back Door Service Hole, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
67847-F4010-C1 note Cover, Back Door Service Hole, RH
2019-09 → —
ZYX10 E —
67847-F4010-C1 note Cover, Back Door Service Hole, RH
2019-09 → —
NGX10,50 E —
67848 — Cover, Back Door Service Hole, LH
67848-F4010-C0 note Cover, Back Door Service Hole, LH
2016-10 → 2018-05 ended
NGX10,50 —
67848-F4010-C1 note Cover, Back Door Service Hole, LH
2018-05 → 2019-09 ended
NGX10,50 —
67848-F4010-C1 note Cover, Back Door Service Hole, LH
2019-09 → —
NGX10,50 E —
67848-F4010-C1 note Cover, Back Door Service Hole, LH
2019-09 → —
ZYX10 E —
67848-F4010-C1 note Cover, Back Door Service Hole, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
67937B — Garnish, Back Door Side, RH
67937-F4010-C0 note Garnish, Back Door Side, RH
2016-10 → 2018-05 ended
NGX10,50 —
67937-F4010-C1 note Garnish, Back Door Side, RH
2018-05 → 2019-09 ended
NGX10,50 —
67937-F4010-C1 note Garnish, Back Door Side, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
67937-F4010-C1 note Garnish, Back Door Side, RH
2019-09 → —
ZYX10 E —
67937-F4010-C1 note Garnish, Back Door Side, RH
2019-09 → —
NGX10,50 E —
67937C — Clip(FOR BACK DOOR SIDE GARNISH)
67771-58010 Clip(FOR BACK DOOR SIDE GARNISH)
2016-10 → 2019-09 ended
NGX10,50 —
67771-58010 Clip(FOR BACK DOOR SIDE GARNISH)
2019-09 → —
NGX10,50,ZYX10 —
67938A — Garnish, Back Door Side, LH
67938-F4010-C0 note Garnish, Back Door Side, LH
2016-10 → 2018-05 ended
NGX10,50 —
67938-F4010-C1 note Garnish, Back Door Side, LH
2018-05 → 2019-09 ended
NGX10,50 —
67938-F4010-C1 note Garnish, Back Door Side, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
67938-F4010-C1 note Garnish, Back Door Side, LH
2019-09 → —
ZYX10 E —
67938-F4010-C1 note Garnish, Back Door Side, LH
2019-09 → —
NGX10,50 E —
67939C — Clip(FOR BACK DOOR CENTER GARNISH)
90467-W0005 Clip(FOR BACK DOOR CENTER GARNISH)
2016-10 → 2019-09 ended
NGX10,50 —
90467-W0005 Clip(FOR BACK DOOR CENTER GARNISH)
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
