Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

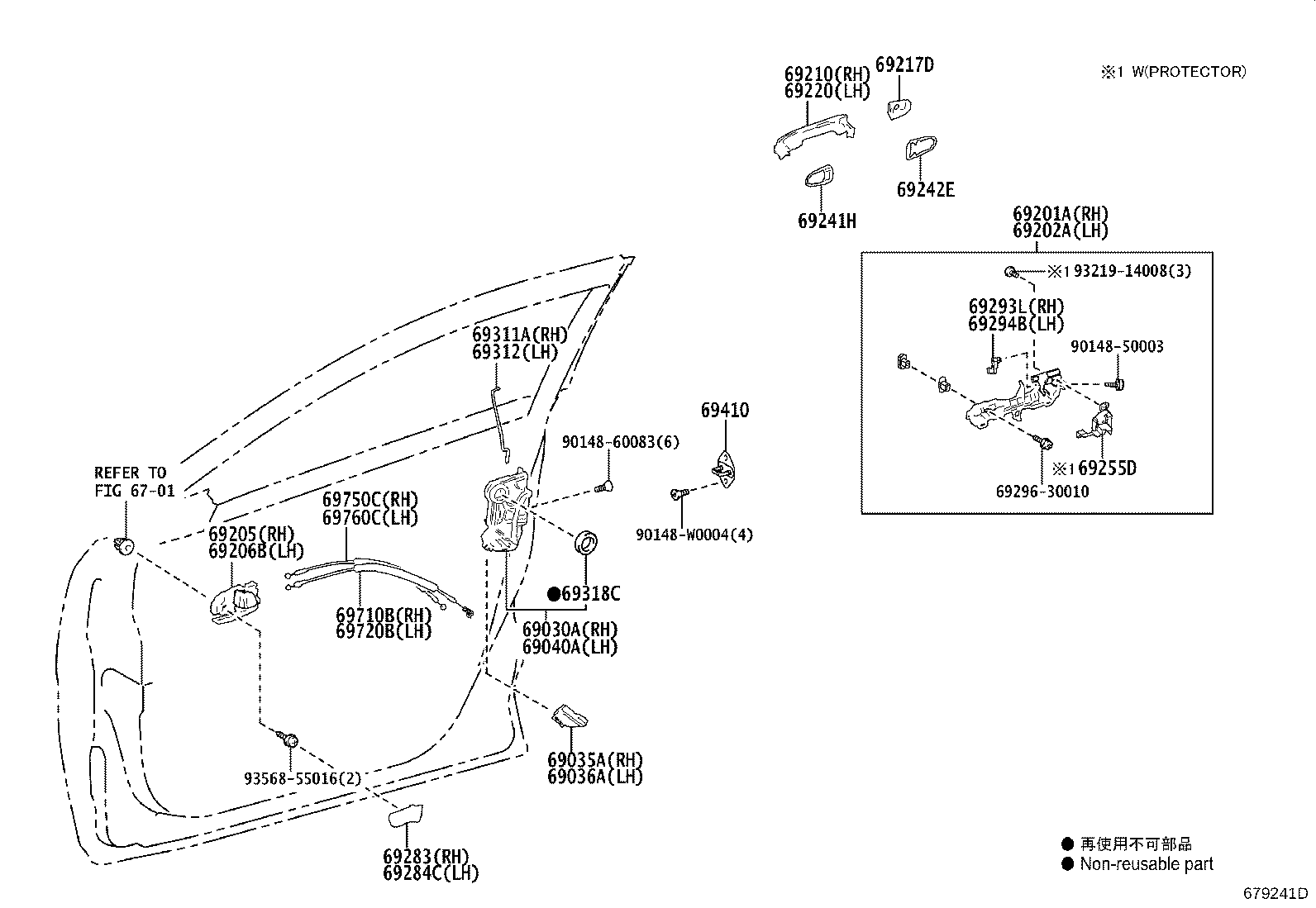

Exploded illustration 679241D 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (4 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 69293L — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (2 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 69255D — PROTECTOR, DOOR OUTSIDE HANDLE (2 parts) 6929630010 — not listed in this catalogue 9014850003 — not listed in this catalogue 9321914008 — not listed in this catalogue 69030A — LOCK ASSY, FRONT DOOR W/MOTOR, RH (8 parts) 69035A — COVER SUB-ASSY, FRONT DOOR LOCK, RH (2 parts) 69036A — COVER SUB-ASSY, FRONT DOOR LOCK, LH (2 parts) 69040A — LOCK ASSY, FRONT DOOR W/MOTOR, LH (4 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (5 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (5 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (29 parts) 69217D — COVER, FRONT DOOR OUTSIDE HANDLE (58 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (29 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (2 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (2 parts) 69283 — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (5 parts) 69284C — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (5 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (2 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (2 parts) 69318C — SEAL, DOOR LOCK WIRING HARNESS (2 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (2 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (2 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (2 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (2 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (2 parts) 9014860083 — not listed in this catalogue 90148W0004 — not listed in this catalogue 9356855016 — not listed in this catalogue 6701 — not listed in this catalogue
679241D · 26 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
184 parts on this figure
Part number Description Fitment Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-02501 Lock Assy, Front Door W/Motor, RH
2016-10 → 2019-09 ended
NGX10,50 RHD —
69030-02560 Lock Assy, Front Door W/Motor, RH
2016-10 → 2019-09 ended
NGX10,50 LHD E —
69030-02570 Lock Assy, Front Door W/Motor, RH
2016-10 → 2019-09 ended
NGX10,50 LHD (D,N) —
69030-02501 Lock Assy, Front Door W/Motor, RH
2019-09 → —
NGX10 RHD —
69030-02511 Lock Assy, Front Door W/Motor, RH
2019-09 → —
ZYX10 E —
69030-02521 Lock Assy, Front Door W/Motor, RH
2019-09 → —
ZYX10 N —
69030-02560 Lock Assy, Front Door W/Motor, RH
2019-09 → —
NGX10,50 LHD E —
69030-02570 Lock Assy, Front Door W/Motor, RH
2019-09 → —
NGX10,50 LHD N —
69035A — Cover Sub-assy, Front Door Lock, RH
69035-02020 Cover Sub-assy, Front Door Lock, RH
2016-10 → 2019-09 ended
NGX10,50 —
69035-02020 Cover Sub-assy, Front Door Lock, RH
2019-09 → —
NGX10,50,ZYX10 —
69036A — Cover Sub-assy, Front Door Lock, LH
69036-02020 Cover Sub-assy, Front Door Lock, LH
2016-10 → 2019-09 ended
NGX10,50 —
69036-02020 Cover Sub-assy, Front Door Lock, LH
2019-09 → —
NGX10,50,ZYX10 —
69040A — Lock Assy, Front Door W/Motor, LH
69040-02491 Lock Assy, Front Door W/Motor, LH
2016-10 → 2019-09 ended
NGX10,50 LHD —
69040-02530 Lock Assy, Front Door W/Motor, LH
2016-10 → 2019-09 ended
NGX10,50 RHD —
69040-02491 Lock Assy, Front Door W/Motor, LH
2019-09 → —
NGX10,50,ZYX10 LHD —
69040-02530 Lock Assy, Front Door W/Motor, LH
2019-09 → —
NGX10 RHD —
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-F4010 Frame Sub-assy, Front Door Outside Handle, RH
2016-10 → 2019-09 ended
NGX10,50 —
69201-F4020 note Frame Sub-assy, Front Door Outside Handle, RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
69201-F4010 Frame Sub-assy, Front Door Outside Handle, RH
2019-09 → —
NGX10,50,ZYX10 —
69201-F4020 note Frame Sub-assy, Front Door Outside Handle, RH
2019-09 → —
NGX10 RHD —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-F4010 Frame Sub-assy, Front Door Outside Handle, LH
2016-10 → 2019-09 ended
NGX10,50 —
69202-F4010 Frame Sub-assy, Front Door Outside Handle, LH
2019-09 → —
NGX10,50,ZYX10 —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-F4010-C0 note Handle Sub-assy, Front Door Inside, RH
2016-10 → 2018-05 ended
NGX10,50 —
69205-F4010-C1 note Handle Sub-assy, Front Door Inside, RH
2018-05 → 2019-09 ended
NGX10,50 —
69205-F4010-C1 note Handle Sub-assy, Front Door Inside, RH
2019-09 → —
ZYX10 E —
69205-F4010-C1 note Handle Sub-assy, Front Door Inside, RH
2019-09 → —
NGX10,50 E —
69205-F4010-C1 note Handle Sub-assy, Front Door Inside, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-F4010-C0 note Handle Sub-assy, Front Door Inside, LH
2016-10 → 2018-05 ended
NGX10,50 —
69206-F4010-C1 note Handle Sub-assy, Front Door Inside, LH
2018-05 → 2019-09 ended
NGX10,50 —
69206-F4010-C1 note Handle Sub-assy, Front Door Inside, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
69206-F4010-C1 note Handle Sub-assy, Front Door Inside, LH
2019-09 → —
ZYX10 E —
69206-F4010-C1 note Handle Sub-assy, Front Door Inside, LH
2019-09 → —
NGX10,50 E —
69210 — Handle Assy, Front Door, Outside RH
69210-F4010-A0 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-A2 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B0 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B1 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B2 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-C1 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-D0 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-E0 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-01 ended
NGX10,50 E —
69210-F4010-E1 note Handle Assy, Front Door, Outside RH
2019-01 → 2019-09 ended
NGX10,50 E —
69210-F4010-F0 note Handle Assy, Front Door, Outside RH
2019-03 → 2019-09 ended
NGX10,50 E —
69210-F4010-G0 note Handle Assy, Front Door, Outside RH
2016-10 → 2018-05 ended
NGX10,50 E —
69210-F4010-J0 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-J1 note Handle Assy, Front Door, Outside RH
2018-05 → 2019-09 ended
NGX10,50 E —
69211-02924 note Handle Assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
69210-F4010-A0 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-A2 note Handle Assy, Front Door, Outside RH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-A3 note Handle Assy, Front Door, Outside RH
2021-12 → —
NGX10,50,ZYX10 E —
69210-F4010-B1 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-B2 note Handle Assy, Front Door, Outside RH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-B3 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-B5 note Handle Assy, Front Door, Outside RH
2022-01 → —
NGX10,50,ZYX10 E —
69210-F4010-C1 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-D1 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-E2 note Handle Assy, Front Door, Outside RH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-G1 note Handle Assy, Front Door, Outside RH
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69210-F4010-H0 note Handle Assy, Front Door, Outside RH
2022-11 → —
NGX10,50,ZYX10 E —
69210-F4010-J0 note Handle Assy, Front Door, Outside RH
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69210-F4010-K0 note Handle Assy, Front Door, Outside RH
2022-01 → —
NGX10,50,ZYX10 E —
69211-02924 note Handle Assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 D,N —
69217D — Cover, Front Door Outside Handle
69217-02220-A0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-A1 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-B0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-B3 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-B4 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-C0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-D3 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-E1 note Cover, Front Door Outside Handle
2016-10 → 2019-01 ended
NGX10,50 E —
69217-02220-E2 note Cover, Front Door Outside Handle
2019-01 → 2019-09 ended
NGX10,50 E —
69217-02220-F0 note Cover, Front Door Outside Handle
2019-03 → 2019-09 ended
NGX10,50 E —
69217-02220-G0 note Cover, Front Door Outside Handle
2016-10 → 2018-05 ended
NGX10,50 E —
69217-02220-J8 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02220-J9 note Cover, Front Door Outside Handle
2018-05 → 2019-09 ended
NGX10,50 E —
69217-02250-A0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-A1 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-B0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-B3 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-B4 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-C0 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-D3 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-E1 note Cover, Front Door Outside Handle
2016-10 → 2019-01 ended
NGX10,50 E —
69217-02250-E2 note Cover, Front Door Outside Handle
2019-01 → 2019-09 ended
NGX10,50 E —
69217-02250-F0 note Cover, Front Door Outside Handle
2019-03 → 2019-09 ended
NGX10,50 E —
69217-02250-G0 note Cover, Front Door Outside Handle
2016-10 → 2018-05 ended
NGX10,50 E —
69217-02250-J8 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 E —
69217-02250-J9 note Cover, Front Door Outside Handle
2018-05 → 2019-09 ended
NGX10,50 E —
69217-02940 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 D,N —
69217-02941 note Cover, Front Door Outside Handle
2016-10 → 2019-09 ended
NGX10,50 D,N —
69217-02220-A0 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02220-A1 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02220-A5 note Cover, Front Door Outside Handle
2021-12 → —
NGX10,50,ZYX10 E —
69217-02220-B3 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02220-B4 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02220-B7 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02220-B9 note Cover, Front Door Outside Handle
2022-01 → —
NGX10,50,ZYX10 E —
69217-02220-C0 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02220-D4 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02220-E3 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02220-G1 note Cover, Front Door Outside Handle
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69217-02220-H1 note Cover, Front Door Outside Handle
2022-11 → —
NGX10,50,ZYX10 E —
69217-02220-J8 note Cover, Front Door Outside Handle
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69217-02220-K0 note Cover, Front Door Outside Handle
2022-01 → —
NGX10,50,ZYX10 E —
69217-02250-A0 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02250-A1 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02250-A5 note Cover, Front Door Outside Handle
2021-12 → —
NGX10,50,ZYX10 E —
69217-02250-B3 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02250-B4 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02250-B7 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02250-B9 note Cover, Front Door Outside Handle
2022-01 → —
NGX10,50,ZYX10 E —
69217-02250-C0 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02250-D4 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 E —
69217-02250-E3 note Cover, Front Door Outside Handle
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69217-02250-G1 note Cover, Front Door Outside Handle
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69217-02250-H1 note Cover, Front Door Outside Handle
2022-11 → —
NGX10,50,ZYX10 E —
69217-02250-J8 note Cover, Front Door Outside Handle
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69217-02250-K0 note Cover, Front Door Outside Handle
2022-01 → —
NGX10,50,ZYX10 E —
69217-02940 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 D,N —
69217-02941 note Cover, Front Door Outside Handle
2019-09 → —
NGX10,50,ZYX10 D,N —
69220 — Handle Assy, Front Door Outside, LH
69210-F4010-A0 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-A2 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B0 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B1 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-B2 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-C1 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-D0 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-E0 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-01 ended
NGX10,50 E —
69210-F4010-E1 note Handle Assy, Front Door Outside, LH
2019-01 → 2019-09 ended
NGX10,50 E —
69210-F4010-F0 note Handle Assy, Front Door Outside, LH
2019-03 → 2019-09 ended
NGX10,50 E —
69210-F4010-G0 note Handle Assy, Front Door Outside, LH
2016-10 → 2018-05 ended
NGX10,50 E —
69210-F4010-J0 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 E —
69210-F4010-J1 note Handle Assy, Front Door Outside, LH
2018-05 → 2019-09 ended
NGX10,50 E —
69211-02924 note Handle Assy, Front Door Outside, LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
69210-F4010-A0 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-A2 note Handle Assy, Front Door Outside, LH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-A3 note Handle Assy, Front Door Outside, LH
2021-12 → —
NGX10,50,ZYX10 E —
69210-F4010-B1 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-B2 note Handle Assy, Front Door Outside, LH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-B3 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-B5 note Handle Assy, Front Door Outside, LH
2022-01 → —
NGX10,50,ZYX10 E —
69210-F4010-C1 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-D1 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 E —
69210-F4010-E2 note Handle Assy, Front Door Outside, LH
2019-09 → 2022-01 ended
NGX10,50,ZYX10 E —
69210-F4010-G1 note Handle Assy, Front Door Outside, LH
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69210-F4010-H0 note Handle Assy, Front Door Outside, LH
2022-11 → —
NGX10,50,ZYX10 E —
69210-F4010-J0 note Handle Assy, Front Door Outside, LH
2019-09 → 2022-11 ended
NGX10,50,ZYX10 E —
69210-F4010-K0 note Handle Assy, Front Door Outside, LH
2022-01 → —
NGX10,50,ZYX10 E —
69211-02924 note Handle Assy, Front Door Outside, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
69241H — Pad, Front Door Outside Handle, Front
69241-F4010 Pad, Front Door Outside Handle, Front
2016-10 → 2019-09 ended
NGX10,50 —
69241-F4010 Pad, Front Door Outside Handle, Front
2019-09 → —
NGX10,50,ZYX10 —
69242E — Pad, Front Door Outside Handle, Rear
69242-02080 Pad, Front Door Outside Handle, Rear
2016-10 → 2019-09 ended
NGX10,50 —
69242-02080 Pad, Front Door Outside Handle, Rear
2019-09 → —
NGX10,50,ZYX10 —
69255D — Protector, Door Outside Handle
69255-F4010 note Protector, Door Outside Handle
2018-05 → 2019-09 ended
NGX10,50 RHD —
69255-F4010 note Protector, Door Outside Handle
2019-09 → —
NGX10 RHD —
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-F4010-C0 note Plug, Front Door Inside Handle Bezel, RH
2016-10 → 2018-05 ended
NGX10,50 —
69283-F4010-C1 note Plug, Front Door Inside Handle Bezel, RH
2018-05 → 2019-09 ended
NGX10,50 —
69283-F4010-C1 note Plug, Front Door Inside Handle Bezel, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
69283-F4010-C1 note Plug, Front Door Inside Handle Bezel, RH
2019-09 → —
ZYX10 E —
69283-F4010-C1 note Plug, Front Door Inside Handle Bezel, RH
2019-09 → —
NGX10,50 E —
69284C — Plug, Front Door Inside Handle Bezel, LH
69284-F4010-C0 note Plug, Front Door Inside Handle Bezel, LH
2016-10 → 2018-05 ended
NGX10,50 —
69284-F4010-C1 note Plug, Front Door Inside Handle Bezel, LH
2018-05 → 2019-09 ended
NGX10,50 —
69284-F4010-C1 note Plug, Front Door Inside Handle Bezel, LH
2019-09 → —
ZYX10 E —
69284-F4010-C1 note Plug, Front Door Inside Handle Bezel, LH
2019-09 → —
NGX10,50 E —
69284-F4010-C1 note Plug, Front Door Inside Handle Bezel, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
69293L — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2016-10 → 2019-09 ended
NGX10,50 —
69293-12030 Snap, Front Door Outside Handle, RH
2019-09 → —
NGX10,50,ZYX10 —
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2016-10 → 2019-09 ended
NGX10,50 —
69293-12040 Snap, Front Door Outside Handle, LH
2019-09 → —
NGX10,50,ZYX10 —
69311A — Rod, Front Door Lock Open, RH
69311-F4010 Rod, Front Door Lock Open, RH
2016-10 → 2019-09 ended
NGX10,50 —
69311-F4010 Rod, Front Door Lock Open, RH
2019-09 → —
NGX10,50,ZYX10 —
69312 — Rod, Front Door Lock Open, LH
69312-F4010 Rod, Front Door Lock Open, LH
2016-10 → 2019-09 ended
NGX10,50 —
69312-F4010 Rod, Front Door Lock Open, LH
2019-09 → —
NGX10,50,ZYX10 —
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2016-10 → 2019-09 ended
NGX10,50 —
69318-51010 Seal, Door Lock Wiring Harness
2019-09 → —
NGX10,50,ZYX10 —
69410 — Plate Assy, Front Door Lock Striker
69410-20110 Plate Assy, Front Door Lock Striker
2016-10 → 2019-09 ended
NGX10,50 —
69410-20110 Plate Assy, Front Door Lock Striker
2019-09 → —
NGX10,50,ZYX10 —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-F4010 Cable Assy, Front Door Lock Remote Control, RH
2016-10 → 2019-09 ended
NGX10,50 —
69710-F4010 Cable Assy, Front Door Lock Remote Control, RH
2019-09 → —
NGX10,50,ZYX10 —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-F4010 Cable Assy, Front Door Lock Remote Control, LH
2016-10 → 2019-09 ended
NGX10,50 —
69710-F4010 Cable Assy, Front Door Lock Remote Control, LH
2019-09 → —
NGX10,50,ZYX10 —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-F4010 Cable Assy, Front Door Inside Locking, RH
2016-10 → 2019-09 ended
NGX10,50 —
69750-F4010 Cable Assy, Front Door Inside Locking, RH
2019-09 → —
NGX10,50,ZYX10 —
69760C — Cable Assy, Front Door Inside Locking LH
69750-F4010 Cable Assy, Front Door Inside Locking LH
2016-10 → 2019-09 ended
NGX10,50 —
69750-F4010 Cable Assy, Front Door Inside Locking LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
