Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

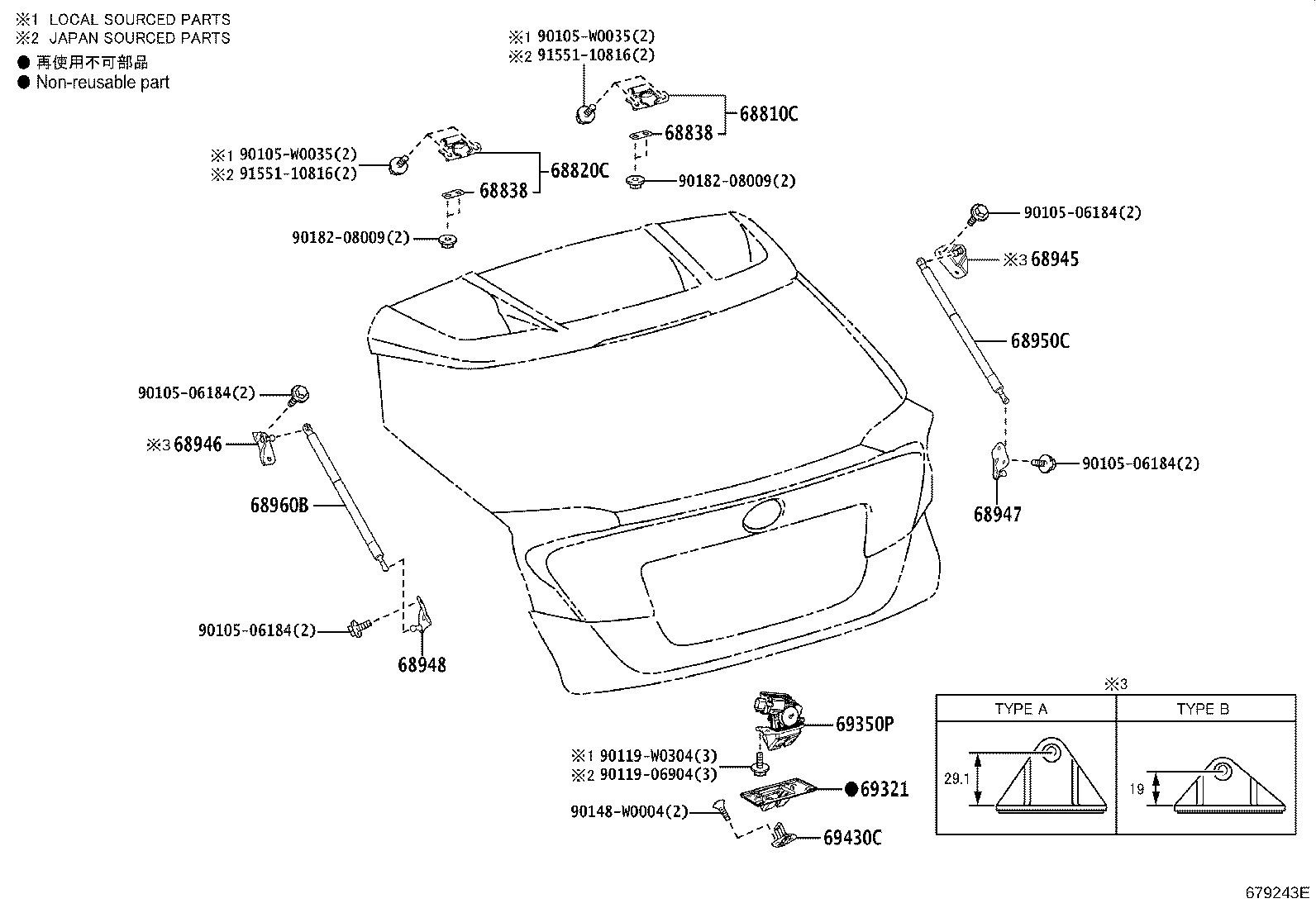

Exploded illustration 679243E 68838 — PAD, BACK DOOR HINGE, NO.1 (6 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (6 parts) 68810C — HINGE ASSY, BACK DOOR, RH (2 parts) 68820C — HINGE ASSY, BACK DOOR, LH (2 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (3 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (3 parts) 68947 — BRACKET, BACK DOOR DAMPER STAY, LOWER RH (3 parts) 68948 — BRACKET, BACK DOOR DAMPER STAY, LOWER LH (3 parts) 68950C — STAY ASSY, BACK DOOR, RH (10 parts) 68960B — STAY ASSY, BACK DOOR, LH (10 parts) 69321 — COVER, BACK DOOR LOCK (2 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (2 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 90105W0035 — not listed in this catalogue 9011906904 — not listed in this catalogue 90119W0304 — not listed in this catalogue 90148W0004 — not listed in this catalogue 9018208009 — not listed in this catalogue 9155110816 — not listed in this catalogue 9018208009 — not listed in this catalogue 90105W0035 — not listed in this catalogue 9155110816 — not listed in this catalogue
679243E · 13 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
68810C — Hinge Assy, Back Door, RH
68810-F4010 Hinge Assy, Back Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
68810-F4010 Hinge Assy, Back Door, RH
2019-09 → —
NGX10,50,ZYX10 —
68820C — Hinge Assy, Back Door, LH
68810-F4010 Hinge Assy, Back Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
68810-F4010 Hinge Assy, Back Door, LH
2019-09 → —
NGX10,50,ZYX10 —
68838 — Pad, Back Door Hinge, NO.1
68838-F4010 note Pad, Back Door Hinge, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
68838-F4020 note Pad, Back Door Hinge, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
68838-F4030 note Pad, Back Door Hinge, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
68838-F4010 note Pad, Back Door Hinge, NO.1
2019-09 → —
NGX10,50,ZYX10 —
68838-F4020 note Pad, Back Door Hinge, NO.1
2019-09 → —
NGX10,50,ZYX10 —
68838-F4030 note Pad, Back Door Hinge, NO.1
2019-09 → —
NGX10,50,ZYX10 —
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-F4010 note Bracket, Back Door Damper Stay, Upper RH
2016-10 → 2019-02 ended
NGX10,50 —
68945-F4050 note Bracket, Back Door Damper Stay, Upper RH
2019-02 → 2019-09 ended
NGX10,50 —
68945-F4050 Bracket, Back Door Damper Stay, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
68946 — Bracket, Back Door Damper Stay, Upper LH
68945-F4010 note Bracket, Back Door Damper Stay, Upper LH
2016-10 → 2019-02 ended
NGX10,50 —
68946-F4050 note Bracket, Back Door Damper Stay, Upper LH
2019-02 → 2019-09 ended
NGX10,50 —
68946-F4050 Bracket, Back Door Damper Stay, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
68947 — Bracket, Back Door Damper Stay, Lower RH
68947-F4010 Bracket, Back Door Damper Stay, Lower RH
2016-10 → 2018-01 ended
NGX10,50 —
68947-F4011 Bracket, Back Door Damper Stay, Lower RH
2018-01 → 2019-09 ended
NGX10,50 —
68947-F4011 Bracket, Back Door Damper Stay, Lower RH
2019-09 → —
NGX10,50,ZYX10 —
68948 — Bracket, Back Door Damper Stay, Lower LH
68948-F4010 Bracket, Back Door Damper Stay, Lower LH
2016-10 → 2018-01 ended
NGX10,50 —
68948-F4011 Bracket, Back Door Damper Stay, Lower LH
2018-01 → 2019-09 ended
NGX10,50 —
68948-F4011 Bracket, Back Door Damper Stay, Lower LH
2019-09 → —
NGX10,50,ZYX10 —
68950C — Stay Assy, Back Door, RH
68950-F4050 note Stay Assy, Back Door, RH
2016-10 → 2018-04 ended
NGX10,50 —
68950-F4051 note Stay Assy, Back Door, RH
2018-04 → 2019-04 ended
NGX10,50 —
68950-F4052 Stay Assy, Back Door, RH
2019-04 → 2019-09 ended
NGX10,50 —
68950-F4060 note Stay Assy, Back Door, RH
2016-10 → 2018-04 ended
NGX10,50 E —
68950-F4061 note Stay Assy, Back Door, RH
2018-04 → 2018-05 ended
NGX10,50 E —
68950-F4061 note Stay Assy, Back Door, RH
2018-05 → 2019-04 ended
NGX10,50 E —
68950-F4062 note Stay Assy, Back Door, RH
2019-04 → 2019-09 ended
NGX10,50 E —
68950-F4052 Stay Assy, Back Door, RH
2019-09 → —
NGX10,50,ZYX10 —
68950-F4062 note Stay Assy, Back Door, RH
2019-09 → —
NGX10 RHD E —
68950-F4062 note Stay Assy, Back Door, RH
2019-09 → —
NGX10,50 E —
68960B — Stay Assy, Back Door, LH
68960-F4050 note Stay Assy, Back Door, LH
2016-10 → 2018-04 ended
NGX10,50 —
68960-F4051 note Stay Assy, Back Door, LH
2018-04 → 2019-04 ended
NGX10,50 —
68960-F4052 Stay Assy, Back Door, LH
2019-04 → 2019-09 ended
NGX10,50 —
68960-F4060 note Stay Assy, Back Door, LH
2016-10 → 2018-04 ended
NGX10,50 E —
68960-F4061 note Stay Assy, Back Door, LH
2018-04 → 2018-05 ended
NGX10,50 E —
68960-F4061 note Stay Assy, Back Door, LH
2018-05 → 2019-04 ended
NGX10,50 E —
68960-F4062 note Stay Assy, Back Door, LH
2019-04 → 2019-09 ended
NGX10,50 E —
68960-F4052 Stay Assy, Back Door, LH
2019-09 → —
NGX10,50,ZYX10 —
68960-F4062 note Stay Assy, Back Door, LH
2019-09 → —
NGX10 RHD E —
68960-F4062 note Stay Assy, Back Door, LH
2019-09 → —
NGX10,50 E —
69321 — Cover, Back Door Lock
69321-F4010 Cover, Back Door Lock
2016-10 → 2019-09 ended
NGX10,50 —
69321-F4010 Cover, Back Door Lock
2019-09 → —
NGX10,50,ZYX10 —
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-F4010 Lock Assy, Back Door, W/Courtesy Lamp Switch
2016-10 → 2019-09 ended
NGX10,50 —
69350-F4010 Lock Assy, Back Door, W/Courtesy Lamp Switch
2019-09 → —
NGX10,50,ZYX10 —
69430C — Striker Assy, Back Door Lock
69430-F4010 Striker Assy, Back Door Lock
2016-10 → 2019-09 ended
NGX10,50 —
69430-F4010 Striker Assy, Back Door Lock
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
