Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 679265H 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (2 parts) 67001A — CUSHION, FRONT DOOR PANEL (2 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (2 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (2 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (2 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (2 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (2 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (2 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (2 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (2 parts) 67831C — COVER, FRONT DOOR SERVICE HOLE (2 parts) 67831D — CLIP(FOR FRONT DOOR SERVICE HOLE COVER) (2 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (2 parts) 67837B — SEAL, FRONT DOOR DUST PROOF (3 parts) 67837B — SEAL, FRONT DOOR DUST PROOF (3 parts) 67851D — SEAL, FRONT DOOR REAR OUTSIDE, RH (2 parts) 67852D — SEAL, FRONT DOOR REAR OUTSIDE, LH (2 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (2 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (2 parts) 67867 — CLIP, DOOR WEATHERSTRIP (2 parts) 67867A — CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) (2 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (2 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (2 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (2 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (2 parts) 68125 — GLASS, FRONT DOOR FIX WINDOW, RH (2 parts) 68126 — GLASS, FRONT DOOR FIX WINDOW, LH (2 parts) 68141C — RUN, FRONT DOOR GLASS, RH (2 parts) 68151C — RUN, FRONT DOOR GLASS, LH (2 parts) 68215 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH (3 parts) 68216 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH (3 parts) 68610 — CHECK ASSY, FRONT DOOR (2 parts) 75965B — STRIPE, FRONT DOOR NO.4 RH (3 parts) 75966B — STRIPE, FRONT DOOR NO.4 LH (3 parts) 75975G — STRIPE, FRONT DOOR, NO.2 RH (3 parts) 75976G — STRIPE, FRONT DOOR, NO.2 LH (3 parts) 75985B — STRIPE, FRONT DOOR, NO.3 RH (3 parts) 75986B — STRIPE, FRONT DOOR, NO.3 LH (3 parts) 87912A — PROTECTOR, OUTER MIRROR (4 parts) 90109W0017 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0143 — not listed in this catalogue 90119W0143 — not listed in this catalogue 9015150026 — not listed in this catalogue 9095001604 — not listed in this catalogue 9095001620 — not listed in this catalogue 9095001956 — not listed in this catalogue 9095001A02 — not listed in this catalogue 9095006105 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue

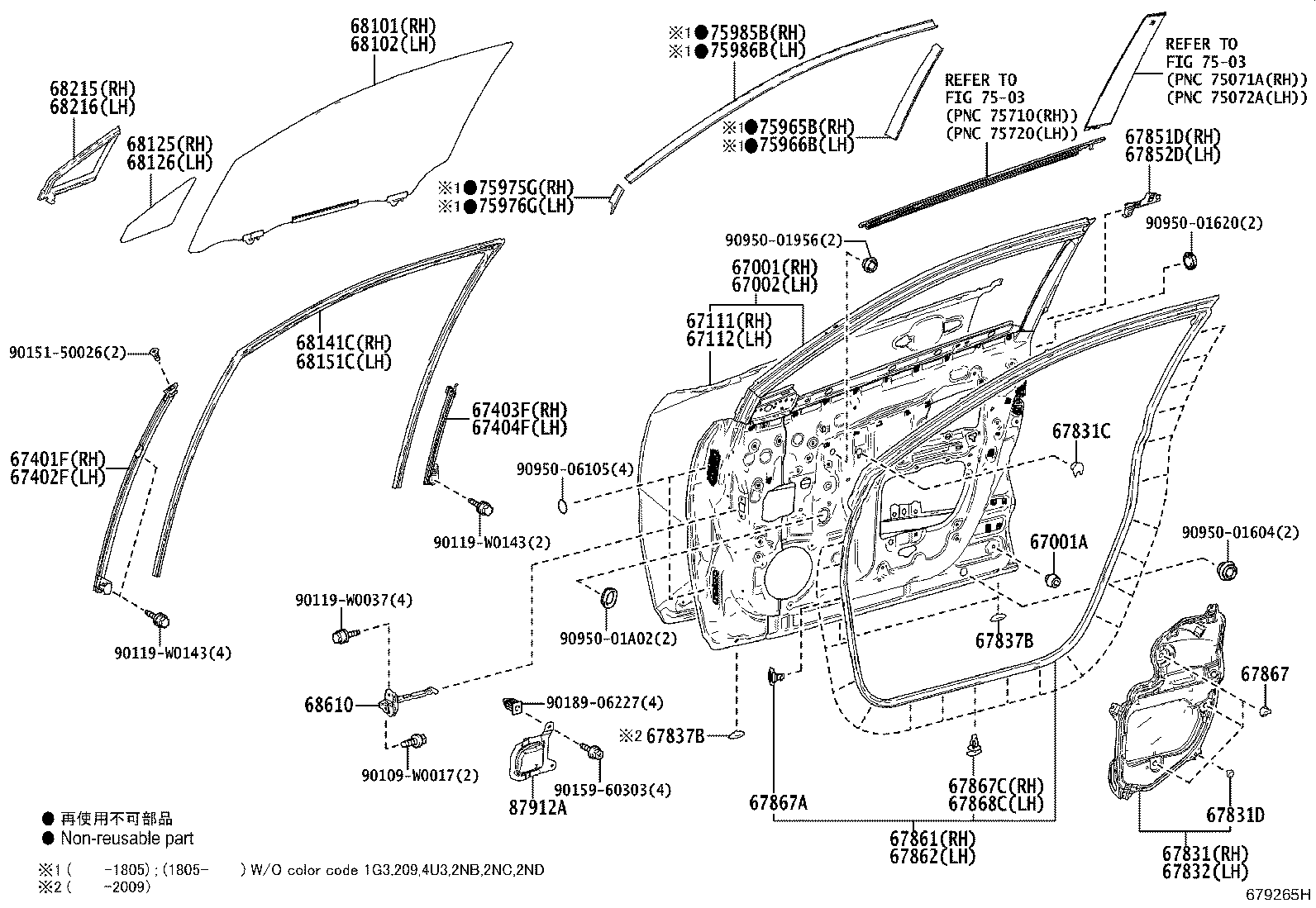

679265H · 39 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-F4010 Panel Sub-assy, Front Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
67001-F4010 Panel Sub-assy, Front Door, RH
2019-09 → —
NGX10,50,ZYX10 —
67001A — Cushion, Front Door Panel
90541-09124 Cushion, Front Door Panel
2016-10 → 2019-09 ended
NGX10,50 —
90541-09124 Cushion, Front Door Panel
2019-09 → —
NGX10,50,ZYX10 —
67002 — Panel Sub-assy, Front Door, LH
67002-F4010 Panel Sub-assy, Front Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
67002-F4010 Panel Sub-assy, Front Door, LH
2019-09 → —
NGX10,50,ZYX10 —
67111 — Panel, Front Door, Outer RH
67111-F4010 Panel, Front Door, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
67111-F4010 Panel, Front Door, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
67112 — Panel, Front Door, Outer LH
67112-F4010 Panel, Front Door, Outer LH
2016-10 → 2019-09 ended
NGX10,50 —
67112-F4010 Panel, Front Door, Outer LH
2019-09 → —
NGX10,50,ZYX10 —
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-10140 Frame Sub-assy, Front Door, Front Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
67401-10140 Frame Sub-assy, Front Door, Front Lower RH
2019-09 → —
NGX10,50,ZYX10 —
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-10130 Frame Sub-assy, Front Door, Front Lower LH
2016-10 → 2019-09 ended
NGX10,50 —
67402-10130 Frame Sub-assy, Front Door, Front Lower LH
2019-09 → —
NGX10,50,ZYX10 —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-F4010 Frame Sub-assy, Front Door, Rear Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
67403-F4010 Frame Sub-assy, Front Door, Rear Lower RH
2019-09 → —
NGX10,50,ZYX10 —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-F4010 Frame Sub-assy, Front Door, Rear Lower LH
2016-10 → 2019-09 ended
NGX10,50 —
67404-F4010 Frame Sub-assy, Front Door, Rear Lower LH
2019-09 → —
NGX10,50,ZYX10 —
67831 — Cover, Front Door Service Hole, RH
67831-F4010 Cover, Front Door Service Hole, RH
2016-10 → 2019-09 ended
NGX10,50 —
67831-F4010 Cover, Front Door Service Hole, RH
2019-09 → —
NGX10,50,ZYX10 —
67831C — Cover, Front Door Service Hole
67833-F4010 Cover, Front Door Service Hole
2016-10 → 2019-09 ended
NGX10,50 —
67833-F4010 Cover, Front Door Service Hole
2019-09 → —
NGX10,50,ZYX10 —
67831D — Clip(FOR FRONT DOOR SERVICE HOLE COVER)
90467-09206 Clip(FOR FRONT DOOR SERVICE HOLE COVER)
2016-10 → 2019-09 ended
NGX10,50 —
90467-09206 Clip(FOR FRONT DOOR SERVICE HOLE COVER)
2019-09 → —
NGX10,50,ZYX10 —
67832 — Cover, Front Door Service Hole, LH
67832-F4010 Cover, Front Door Service Hole, LH
2016-10 → 2019-09 ended
NGX10,50 —
67832-F4010 Cover, Front Door Service Hole, LH
2019-09 → —
NGX10,50,ZYX10 —
67837B — Seal, Front Door Dust Proof
67837-F4020 Seal, Front Door Dust Proof
2016-10 → 2019-09 ended
NGX10,50 —
67837-F4020 Seal, Front Door Dust Proof
2019-09 → 2020-09 ended
NGX10,50,ZYX10 —
67837-F4020 Seal, Front Door Dust Proof
2020-09 → —
NGX10,50,ZYX10 —
67851D — Seal, Front Door Rear Outside, RH
67851-F4010 Seal, Front Door Rear Outside, RH
2016-10 → 2019-09 ended
NGX10,50 —
67851-F4010 Seal, Front Door Rear Outside, RH
2019-09 → —
NGX10,50,ZYX10 —
67852D — Seal, Front Door Rear Outside, LH
67852-F4010 Seal, Front Door Rear Outside, LH
2016-10 → 2019-09 ended
NGX10,50 —
67852-F4010 Seal, Front Door Rear Outside, LH
2019-09 → —
NGX10,50,ZYX10 —
67861 — Weatherstrip, Front Door, RH
67861-F4010 Weatherstrip, Front Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
67861-F4010 Weatherstrip, Front Door, RH
2019-09 → —
NGX10,50,ZYX10 —
67862 — Weatherstrip, Front Door, LH
67862-F4010 Weatherstrip, Front Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
67862-F4010 Weatherstrip, Front Door, LH
2019-09 → —
NGX10,50,ZYX10 —
67867 — Clip, Door Weatherstrip
67869-F4010 Clip, Door Weatherstrip
2016-10 → 2019-09 ended
NGX10,50 —
67869-F4010 Clip, Door Weatherstrip
2019-09 → —
NGX10,50,ZYX10 —
67867A — Clip, Door Weatherstrip(FOR FRONT DOOR)
67867-52010 Clip, Door Weatherstrip(FOR FRONT DOOR)
2016-10 → 2019-09 ended
NGX10,50 —
67867-52010 Clip, Door Weatherstrip(FOR FRONT DOOR)
2019-09 → —
NGX10,50,ZYX10 —
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
2016-10 → 2019-09 ended
NGX10,50 —
67867-12150 Retainer, Front Door Weatherstrip, RH
2019-09 → —
NGX10,50,ZYX10 —
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
2016-10 → 2019-09 ended
NGX10,50 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2019-09 → —
NGX10,50,ZYX10 —
68101 — Glass Sub-assy, Front Door, RH
68101-F4010 Glass Sub-assy, Front Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
68101-F4010 Glass Sub-assy, Front Door, RH
2019-09 → —
NGX10,50,ZYX10 —
68102 — Glass Sub-assy, Front Door, LH
68102-F4010 Glass Sub-assy, Front Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
68102-F4010 Glass Sub-assy, Front Door, LH
2019-09 → —
NGX10,50,ZYX10 —
68125 — Glass, Front Door Fix Window, RH
68125-F4010 Glass, Front Door Fix Window, RH
2016-10 → 2019-09 ended
NGX10,50 —
68125-F4010 Glass, Front Door Fix Window, RH
2019-09 → —
NGX10,50,ZYX10 —
68126 — Glass, Front Door Fix Window, LH
68126-F4010 Glass, Front Door Fix Window, LH
2016-10 → 2019-09 ended
NGX10,50 —
68126-F4010 Glass, Front Door Fix Window, LH
2019-09 → —
NGX10,50,ZYX10 —
68141C — Run, Front Door Glass, RH
68141-F4010 Run, Front Door Glass, RH
2016-10 → 2019-09 ended
NGX10,50 —
68141-F4010 Run, Front Door Glass, RH
2019-09 → —
NGX10,50,ZYX10 —
68151C — Run, Front Door Glass, LH
68151-F4010 Run, Front Door Glass, LH
2016-10 → 2019-09 ended
NGX10,50 —
68151-F4010 Run, Front Door Glass, LH
2019-09 → —
NGX10,50,ZYX10 —
68215 — Weatherstrip, Front Door Fix Window, RH
68215-F4011 Weatherstrip, Front Door Fix Window, RH
2016-10 → 2019-09 ended
NGX10,50 —
68215-F4011 Weatherstrip, Front Door Fix Window, RH
2019-09 → 2022-04 ended
NGX10,50,ZYX10 —
68215-F4030 Weatherstrip, Front Door Fix Window, RH
2022-05 → —
NGX10,50,ZYX10 —
68216 — Weatherstrip, Front Door Fix Window, LH
68216-F4011 Weatherstrip, Front Door Fix Window, LH
2016-10 → 2019-09 ended
NGX10,50 —
68216-F4011 Weatherstrip, Front Door Fix Window, LH
2019-09 → 2022-04 ended
NGX10,50,ZYX10 —
68216-F4030 Weatherstrip, Front Door Fix Window, LH
2022-05 → —
NGX10,50,ZYX10 —
68610 — Check Assy, Front Door
68610-F4030 Check Assy, Front Door
2016-10 → 2019-09 ended
NGX10,50 —
68610-F4030 Check Assy, Front Door
2019-09 → —
NGX10,50,ZYX10 —
75965B — Stripe, Front Door NO.4 RH
75965-F4010 Stripe, Front Door NO.4 RH
2016-10 → 2018-05 ended
NGX10,50 —
75965-F4010 note Stripe, Front Door NO.4 RH
2018-05 → 2019-09 ended
NGX10,50 —
75965-F4010 note Stripe, Front Door NO.4 RH
2019-09 → —
NGX10,50,ZYX10 —
75966B — Stripe, Front Door NO.4 LH
75966-F4010 Stripe, Front Door NO.4 LH
2016-10 → 2018-05 ended
NGX10,50 —
75966-F4010 note Stripe, Front Door NO.4 LH
2018-05 → 2019-09 ended
NGX10,50 —
75966-F4010 note Stripe, Front Door NO.4 LH
2019-09 → —
NGX10,50,ZYX10 —
75975G — Stripe, Front Door, NO.2 RH
75975-F4010 Stripe, Front Door, NO.2 RH
2016-10 → 2018-05 ended
NGX10,50 —
75975-F4010 note Stripe, Front Door, NO.2 RH
2018-05 → 2019-09 ended
NGX10,50 —
75975-F4010 note Stripe, Front Door, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
75976G — Stripe, Front Door, NO.2 LH
75976-F4010 Stripe, Front Door, NO.2 LH
2016-10 → 2018-05 ended
NGX10,50 —
75976-F4010 note Stripe, Front Door, NO.2 LH
2018-05 → 2019-09 ended
NGX10,50 —
75976-F4010 note Stripe, Front Door, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
75985B — Stripe, Front Door, NO.3 RH
75985-F4010 Stripe, Front Door, NO.3 RH
2016-10 → 2018-05 ended
NGX10,50 —
75985-F4010 note Stripe, Front Door, NO.3 RH
2018-05 → 2019-09 ended
NGX10,50 —
75985-F4010 note Stripe, Front Door, NO.3 RH
2019-09 → —
NGX10,50,ZYX10 —
75986B — Stripe, Front Door, NO.3 LH
75986-F4010 Stripe, Front Door, NO.3 LH
2016-10 → 2018-05 ended
NGX10,50 —
75986-F4010 note Stripe, Front Door, NO.3 LH
2018-05 → 2019-09 ended
NGX10,50 —
75986-F4010 note Stripe, Front Door, NO.3 LH
2019-09 → —
NGX10,50,ZYX10 —
87912A — Protector, Outer Mirror
87912-F4010 note Protector, Outer Mirror
2016-10 → 2019-09 ended
NGX10,50 —
87912-F4020 note Protector, Outer Mirror
2016-10 → 2019-09 ended
NGX10,50 —
87912-F4010 note Protector, Outer Mirror
2019-09 → —
NGX10,50,ZYX10 —
87912-F4020 note Protector, Outer Mirror
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
