Exploded illustration 679267H 67841E — COVER, REAR DOOR SERVICE HOLE, RH (2 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (2 parts) 7503 — not listed in this catalogue 67003 — PANEL SUB-ASSY, REAR DOOR, RH (2 parts) 67003C — CUSHION, REAR DOOR PANEL (2 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (2 parts) 67113 — PANEL, REAR DOOR, OUTER RH (2 parts) 67114 — PANEL, REAR DOOR, OUTER LH (2 parts) 67407F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH (2 parts) 67408F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH (2 parts) 67837C — SEAL, REAR DOOR DUST PROOF (3 parts) 67837C — SEAL, REAR DOOR DUST PROOF (3 parts) 67845D — SEAL, REAR DOOR FRONT OUTSIDE, RH (2 parts) 67846A — SEAL, REAR DOOR FRONT OUTSIDE, LH (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (8 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (8 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (8 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (8 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (3 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (3 parts) 68630D — CHECK ASSY, REAR DOOR, RH (2 parts) 68640A — CHECK ASSY, REAR DOOR, LH (2 parts) 75921B — TAPE, BLACK OUT, NO.1 RH (3 parts) 75922L — TAPE, BLACK OUT, NO.1 LH (3 parts) 75923C — TAPE, BLACK OUT, NO.2 RH (3 parts) 75924C — TAPE, BLACK OUT, NO.2 LH (3 parts) 90109W0017 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0143 — not listed in this catalogue 9015150026 — not listed in this catalogue 9095001604 — not listed in this catalogue 9095001958 — not listed in this catalogue 9095006105 — not listed in this catalogue 9095006105 — not listed in this catalogue 7503 — not listed in this catalogue

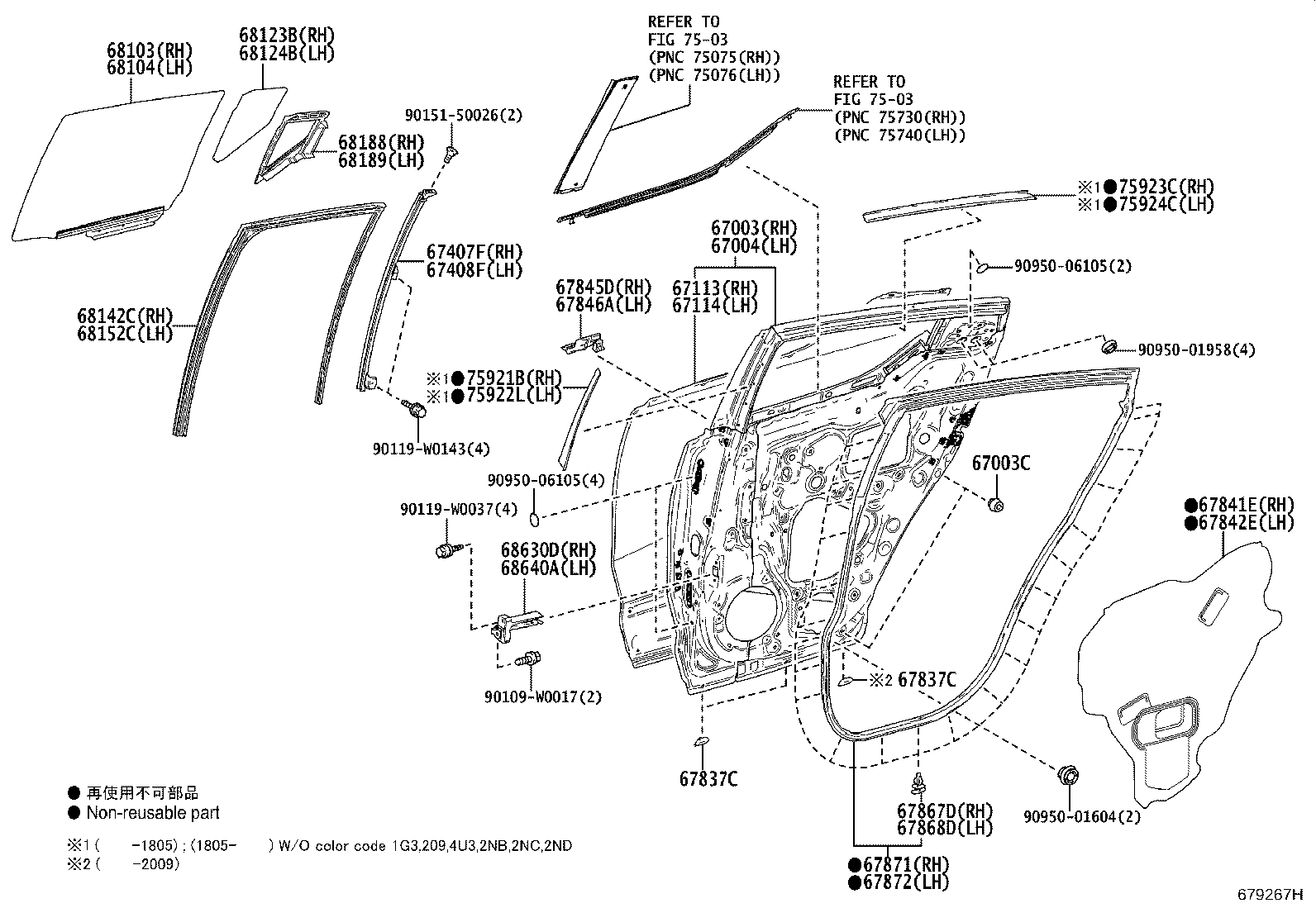

679267H · 31 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-F4010 Panel Sub-assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
67003-F4010 Panel Sub-assy, Rear Door, RH
2019-09 → —
NGX10,50,ZYX10 —
67003C — Cushion, Rear Door Panel
90541-09124 Cushion, Rear Door Panel
2016-10 → 2019-09 ended
NGX10,50 —
90541-09124 Cushion, Rear Door Panel
2019-09 → —
NGX10,50,ZYX10 —
67004 — Panel Sub-assy, Rear Door, LH
67004-F4010 Panel Sub-assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
67004-F4010 Panel Sub-assy, Rear Door, LH
2019-09 → —
NGX10,50,ZYX10 —
67113 — Panel, Rear Door, Outer RH
67113-F4010 Panel, Rear Door, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
67113-F4010 Panel, Rear Door, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
67114 — Panel, Rear Door, Outer LH
67114-F4010 Panel, Rear Door, Outer LH
2016-10 → 2019-09 ended
NGX10,50 —
67114-F4010 Panel, Rear Door, Outer LH
2019-09 → —
NGX10,50,ZYX10 —
67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH
67407-10080 Frame Sub-assy, Rear Door Window, Rear Lower RH
2016-10 → 2019-09 ended
NGX10,50 —
67407-10080 Frame Sub-assy, Rear Door Window, Rear Lower RH
2019-09 → —
NGX10,50,ZYX10 —
67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH
67408-10080 Frame Sub-assy, Rear Door Window, Rear Lower LH
2016-10 → 2019-09 ended
NGX10,50 —
67408-10080 Frame Sub-assy, Rear Door Window, Rear Lower LH
2019-09 → —
NGX10,50,ZYX10 —
67837C — Seal, Rear Door Dust Proof
67837-F4020 Seal, Rear Door Dust Proof
2016-10 → 2019-09 ended
NGX10,50 —
67837-F4020 Seal, Rear Door Dust Proof
2019-09 → 2020-09 ended
NGX10,50,ZYX10 —
67837-F4020 Seal, Rear Door Dust Proof
2020-09 → —
NGX10,50,ZYX10 —
67841E — Cover, Rear Door Service Hole, RH
67841-F4010 Cover, Rear Door Service Hole, RH
2016-10 → 2019-09 ended
NGX10,50 —
67841-F4010 Cover, Rear Door Service Hole, RH
2019-09 → —
NGX10,50,ZYX10 —
67842E — Cover, Rear Door Service Hole, LH
67842-F4010 Cover, Rear Door Service Hole, LH
2016-10 → 2019-09 ended
NGX10,50 —
67842-F4010 Cover, Rear Door Service Hole, LH
2019-09 → —
NGX10,50,ZYX10 —
67845D — Seal, Rear Door Front Outside, RH
67845-F4010 Seal, Rear Door Front Outside, RH
2016-10 → 2019-09 ended
NGX10,50 —
67845-F4010 Seal, Rear Door Front Outside, RH
2019-09 → —
NGX10,50,ZYX10 —
67846A — Seal, Rear Door Front Outside, LH
67846-F4010 Seal, Rear Door Front Outside, LH
2016-10 → 2019-09 ended
NGX10,50 —
67846-F4010 Seal, Rear Door Front Outside, LH
2019-09 → —
NGX10,50,ZYX10 —
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2016-10 → 2019-09 ended
NGX10,50 —
67867-12150 Retainer, Rear Door Weatherstrip, RH
2019-09 → —
NGX10,50,ZYX10 —
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2016-10 → 2019-09 ended
NGX10,50 —
67867-12150 Retainer, Rear Door Weatherstrip, LH
2019-09 → —
NGX10,50,ZYX10 —
67871 — Weatherstrip, Rear Door, RH
67871-F4010 Weatherstrip, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
67871-F4010 Weatherstrip, Rear Door, RH
2019-09 → —
NGX10,50,ZYX10 —
67872 — Weatherstrip, Rear Door, LH
67872-F4010 Weatherstrip, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
67872-F4010 Weatherstrip, Rear Door, LH
2019-09 → —
NGX10,50,ZYX10 —
68103 — Glass Sub-assy, Rear Door, RH
68103-F4010 Glass Sub-assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
68103-F4010 note Glass Sub-assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68103-F4020 Glass Sub-assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 E —
68103-F4020 note Glass Sub-assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 N —
68103-F4010 Glass Sub-assy, Rear Door, RH
2019-09 → —
ZYX10;NGX10,50 D,N —
68103-F4010 note Glass Sub-assy, Rear Door, RH
2019-09 → —
NGX10 RHD E —
68103-F4020 Glass Sub-assy, Rear Door, RH
2019-09 → —
NGX10,50 E —
68103-F4020 note Glass Sub-assy, Rear Door, RH
2019-09 → —
NGX10,50 N —
68104 — Glass Sub-assy, Rear Door, LH
68104-F4010 Glass Sub-assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
68104-F4010 note Glass Sub-assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68104-F4020 Glass Sub-assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 E —
68104-F4020 note Glass Sub-assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 N —
68104-F4010 Glass Sub-assy, Rear Door, LH
2019-09 → —
ZYX10;NGX10,50 D,N —
68104-F4010 note Glass Sub-assy, Rear Door, LH
2019-09 → —
NGX10 RHD E —
68104-F4020 Glass Sub-assy, Rear Door, LH
2019-09 → —
NGX10,50 E —
68104-F4020 note Glass Sub-assy, Rear Door, LH
2019-09 → —
NGX10,50 N —
68123B — Glass, Rear Door Quarter Window, RH
68123-F4010 Glass, Rear Door Quarter Window, RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
68123-F4010 note Glass, Rear Door Quarter Window, RH
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68123-F4020 Glass, Rear Door Quarter Window, RH
2016-10 → 2019-09 ended
NGX10,50 E —
68123-F4020 note Glass, Rear Door Quarter Window, RH
2016-10 → 2019-09 ended
NGX10,50 N —
68123-F4010 Glass, Rear Door Quarter Window, RH
2019-09 → —
ZYX10;NGX10,50 D,N —
68123-F4010 note Glass, Rear Door Quarter Window, RH
2019-09 → —
NGX10 RHD E —
68123-F4020 Glass, Rear Door Quarter Window, RH
2019-09 → —
NGX10,50 E —
68123-F4020 note Glass, Rear Door Quarter Window, RH
2019-09 → —
NGX10,50 N —
68124B — Glass, Rear Door Quarter Window, LH
68124-F4010 note Glass, Rear Door Quarter Window, LH
2016-10 → 2019-09 ended
NGX10,50 RHD E —
68124-F4010 Glass, Rear Door Quarter Window, LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
68124-F4020 Glass, Rear Door Quarter Window, LH
2016-10 → 2019-09 ended
NGX10,50 E —
68124-F4020 note Glass, Rear Door Quarter Window, LH
2016-10 → 2019-09 ended
NGX10,50 N —
68124-F4010 Glass, Rear Door Quarter Window, LH
2019-09 → —
ZYX10;NGX10,50 D,N —
68124-F4010 note Glass, Rear Door Quarter Window, LH
2019-09 → —
NGX10 RHD E —
68124-F4020 Glass, Rear Door Quarter Window, LH
2019-09 → —
NGX10,50 E —
68124-F4020 note Glass, Rear Door Quarter Window, LH
2019-09 → —
NGX10,50 N —
68142C — Run, Rear Door Glass, RH
68142-F4010 Run, Rear Door Glass, RH
2016-10 → 2019-09 ended
NGX10,50 —
68142-F4010 Run, Rear Door Glass, RH
2019-09 → —
NGX10,50,ZYX10 —
68152C — Run, Rear Door Glass, LH
68152-F4010 Run, Rear Door Glass, LH
2016-10 → 2019-09 ended
NGX10,50 —
68152-F4010 Run, Rear Door Glass, LH
2019-09 → —
NGX10,50,ZYX10 —
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-F4010 Weatherstrip, Rear Door Quarter Window, RH
2016-10 → 2019-09 ended
NGX10,50 —
68188-F4010 Weatherstrip, Rear Door Quarter Window, RH
2019-09 → 2022-04 ended
NGX10,50,ZYX10 —
68188-F4030 Weatherstrip, Rear Door Quarter Window, RH
2022-05 → —
NGX10,50,ZYX10 —
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-F4010 Weatherstrip, Rear Door Quarter Window, LH
2016-10 → 2019-09 ended
NGX10,50 —
68189-F4010 Weatherstrip, Rear Door Quarter Window, LH
2019-09 → 2022-04 ended
NGX10,50,ZYX10 —
68189-F4030 Weatherstrip, Rear Door Quarter Window, LH
2022-05 → —
NGX10,50,ZYX10 —
68630D — Check Assy, Rear Door, RH
68630-F4010 Check Assy, Rear Door, RH
2016-10 → 2019-09 ended
NGX10,50 —
68630-F4010 Check Assy, Rear Door, RH
2019-09 → —
NGX10,50,ZYX10 —
68640A — Check Assy, Rear Door, LH
68640-F4010 Check Assy, Rear Door, LH
2016-10 → 2019-09 ended
NGX10,50 —
68640-F4010 Check Assy, Rear Door, LH
2019-09 → —
NGX10,50,ZYX10 —
75921B — Tape, Black Out, NO.1 RH
75977-F4010 note Tape, Black Out, NO.1 RH
2018-05 → 2019-09 ended
NGX10,50 —
75977-F4010 Tape, Black Out, NO.1 RH
2016-10 → 2018-05 ended
NGX10,50 —
75977-F4010 note Tape, Black Out, NO.1 RH
2019-09 → —
NGX10,50,ZYX10 —
75922L — Tape, Black Out, NO.1 LH
75978-F4010 Tape, Black Out, NO.1 LH
2016-10 → 2018-05 ended
NGX10,50 —
75978-F4010 note Tape, Black Out, NO.1 LH
2018-05 → 2019-09 ended
NGX10,50 —
75978-F4010 note Tape, Black Out, NO.1 LH
2019-09 → —
NGX10,50,ZYX10 —
75923C — Tape, Black Out, NO.2 RH
75987-F4010 Tape, Black Out, NO.2 RH
2016-10 → 2018-05 ended
NGX10,50 —
75987-F4010 note Tape, Black Out, NO.2 RH
2018-05 → 2019-09 ended
NGX10,50 —
75987-F4010 note Tape, Black Out, NO.2 RH
2019-09 → —
NGX10,50,ZYX10 —
75924C — Tape, Black Out, NO.2 LH
75988-F4010 Tape, Black Out, NO.2 LH
2016-10 → 2018-05 ended
NGX10,50 —
75988-F4010 note Tape, Black Out, NO.2 LH
2018-05 → 2019-09 ended
NGX10,50 —
75988-F4010 note Tape, Black Out, NO.2 LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
