Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

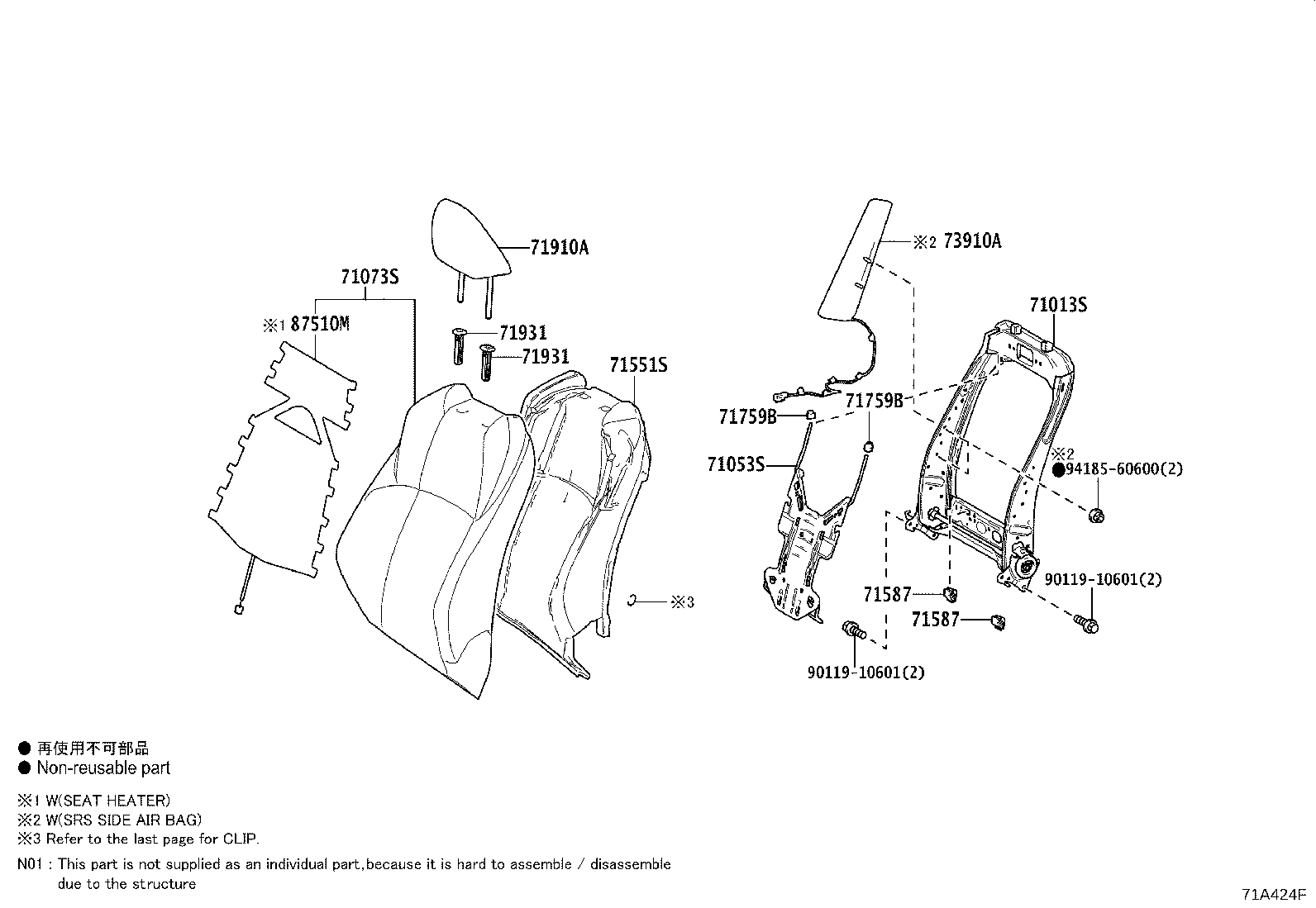

Exploded illustration 71A424F 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (3 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (31 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (3 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (10 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (11 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (2 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (3 parts)
71A424F · 13 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-F4010 Frame Sub-assy, Front Seatback, RH
2016-10 → 2019-09 ended
NGX10,50 —
71013-F4010 Frame Sub-assy, Front Seatback, RH
2019-09 → —
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E —
71013-F4070 Frame Sub-assy, Front Seatback, RH
2019-09 → —
NGX10 RHD E —
71053S — Spring Sub-assy, Front Seatback, RH
71053-F4010 Spring Sub-assy, Front Seatback, RH
2016-10 → 2019-09 ended
NGX10,50 D,N;NGX10,50 LHD E —
71053-F4010 Spring Sub-assy, Front Seatback, RH
2019-09 → —
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71073-F4010-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 RHD (D,N) —
71073-F4011-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71073-F4011-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71073-F4011-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 RHD (D,N) —
71073-F4011-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71073-F4011-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71073-F4020-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 D,N;NGX50 RHD N —
71073-F4021-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 D,N;NGX50 RHD N —
71073-F4030-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX50 LHD N —
71073-F4031-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX50 LHD N —
71073-F4050-E4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 E —
71073-F4051-E5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 E —
71073-F4060-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 E —
71073-F4061-C6 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 E —
71073-F4340-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 LHD 6F —
71073-F4340-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 LHD CVT N —
71073-F4341-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10 LHD 6F —
71073-F4341-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10 LHD CVT N —
71073-F4360-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 D,N —
71073-F4361-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10,50,ZYX10 D,N —
71073-F4440-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 LHD E —
71073-F4442-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → —
NGX10,50,ZYX10 LHD E —
71073-F4470-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 LHD E —
71073-F4470-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 RHD E —
71073-F4472-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → —
NGX10 RHD E —
71073-F4472-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-11 → —
NGX10,50,ZYX10 LHD E —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-F4010 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10,50 —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71551-F4010 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50,ZYX10 —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 LHD 6F —
71551-F4020 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 LHD CVT N —
71587 — Protector, Front Seatback Edge
71587-F4010 Protector, Front Seatback Edge
2016-10 → 2019-09 ended
NGX10,50 —
71587-F4010 Protector, Front Seatback Edge
2019-09 → —
NGX10,50,ZYX10 —
71759B — Hook, Front Seatback
71759-F4010 Hook, Front Seatback
2016-10 → 2019-09 ended
NGX10,50 —
71759-F4010 Hook, Front Seatback
2019-09 → —
NGX10,50,ZYX10 —
71910A — Headrest Assy, Front Seat
71910-F4010-C2 note Headrest Assy, Front Seat
2016-10 → 2019-09 ended
NGX10,50 D,N —
71910-F4030-C1 note Headrest Assy, Front Seat
2016-10 → 2018-05 ended
NGX10,50 E —
71910-F4030-E0 note Headrest Assy, Front Seat
2016-10 → 2018-05 ended
NGX10,50 E —
71910-F4031-C1 note Headrest Assy, Front Seat
2018-05 → 2019-09 ended
NGX10,50 E —
71910-F4031-E0 note Headrest Assy, Front Seat
2018-05 → 2019-09 ended
NGX10,50 E —
71910-F4120-B1 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50,ZYX10 D,N —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
ZYX10 E —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50 LHD E —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
NGX10 RHD E —
71910-F4150-E0 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50 LHD E —
71910-F4150-E0 note Headrest Assy, Front Seat
2019-09 → —
ZYX10 E —
71931 — Support, Front Seat Headrest
71930-F4010-C0 note Support, Front Seat Headrest
2016-10 → 2018-05 ended
NGX10,50 —
71930-F4010-C1 note Support, Front Seat Headrest
2018-05 → 2019-09 ended
NGX10,50 —
71931-F4010-C0 note Support, Front Seat Headrest
2016-10 → 2018-05 ended
NGX10,50 —
71931-F4010-C1 note Support, Front Seat Headrest
2018-05 → 2019-09 ended
NGX10,50 —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50 E —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
ZYX10 E —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50,ZYX10 D,N —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50,ZYX10 D,N —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
ZYX10 E —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50 E —
73910A — Airbag Assy, Front Seat, RH
73910-F4010 Airbag Assy, Front Seat, RH
2016-10 → 2019-09 ended
NGX10,50 —
73910-F4010 Airbag Assy, Front Seat, RH
2019-09 → 2022-07 ended
NGX10,50,ZYX10 —
73910-F4011 Airbag Assy, Front Seat, RH
2022-08 → —
NGX10,50,ZYX10 —
87510M — Heater Assy, Front Seatback, RH
87530-F4010 Heater Assy, Front Seatback, RH
2016-10 → 2018-05 ended
NGX10,50 E;NGX50 LHD N —
87530-F4030 Heater Assy, Front Seatback, RH
2018-05 → 2019-09 ended
NGX10,50 E;NGX50 LHD N —
87530-F4030 Heater Assy, Front Seatback, RH
2019-09 → —
NGX10,50,ZYX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
