Exploded illustration 71A426F 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (2 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (3 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (31 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (3 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (10 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (11 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (3 parts)

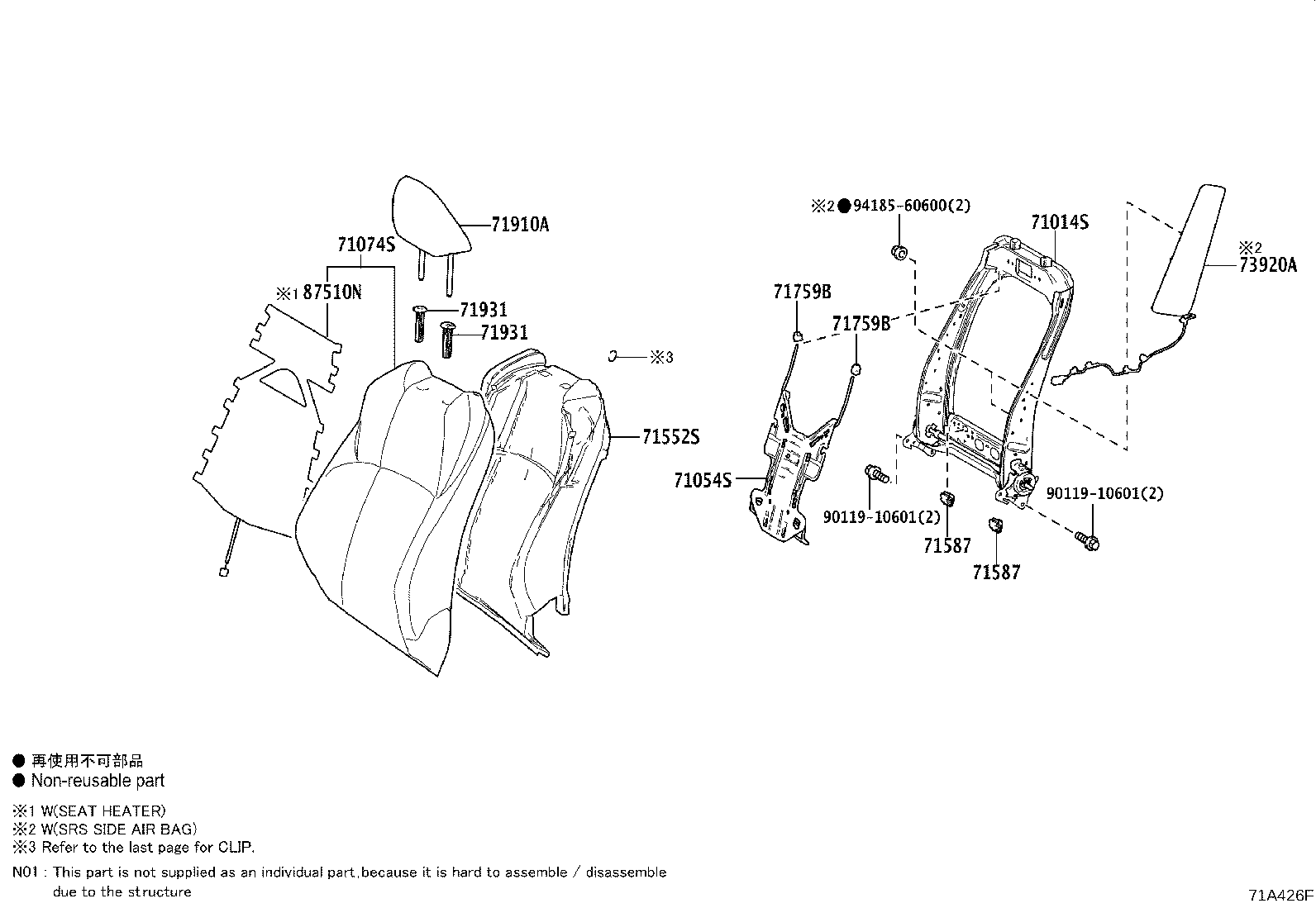

71A426F · 13 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-F4010 Frame Sub-assy, Front Seatback, LH
2016-10 → 2019-09 ended
NGX10,50 —
71014-F4010 Frame Sub-assy, Front Seatback, LH
2019-09 → —
NGX10,50,ZYX10 —
71014-F4080 note Frame Sub-assy, Front Seatback, LH
2019-09 → —
NGX10,50,ZYX10 LHD E —
71054S — Spring Sub-assy, Front Seatback, LH
71053-F4010 Spring Sub-assy, Front Seatback, LH
2016-10 → 2019-09 ended
NGX10,50 RHD;NGX10 LHD (D,N) —
71053-F4010 Spring Sub-assy, Front Seatback, LH
2019-09 → —
NGX10 RHD;NGX10,50,ZYX10 LHD N —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 RHD (D,N) —
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71074-F4010-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71074-F4011-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71074-F4011-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71074-F4011-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 RHD (D,N) —
71074-F4011-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71074-F4011-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71074-F4020-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 D,N;NGX50 RHD N —
71074-F4021-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 D,N;NGX50 RHD N —
71074-F4030-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX50 LHD N —
71074-F4031-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX50 LHD N —
71074-F4050-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 E —
71074-F4051-E5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 E —
71074-F4060-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 E —
71074-F4061-C6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 E —
71074-F4380-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 LHD 6F —
71074-F4380-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 LHD CVT N —
71074-F4381-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10 LHD 6F —
71074-F4381-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10 LHD CVT N —
71074-F4400-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 D,N —
71074-F4401-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → 2023-09 ended
NGX10,50,ZYX10 D,N —
71074-F4460-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 LHD E —
71074-F4462-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → —
NGX10,50,ZYX10 LHD E —
71074-F4490-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10 RHD E —
71074-F4490-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → 2022-11 ended
NGX10,50,ZYX10 LHD E —
71074-F4492-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → —
NGX10 RHD E —
71074-F4492-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-11 → —
NGX10,50,ZYX10 LHD E —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71552-F4010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10,50 —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 LHD 6F —
71551-F4020 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 LHD CVT N —
71552-F4010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50,ZYX10 —
71587 — Protector, Front Seatback Edge
71587-F4010 Protector, Front Seatback Edge
2016-10 → 2019-09 ended
NGX10,50 —
71587-F4010 Protector, Front Seatback Edge
2019-09 → —
NGX10,50,ZYX10 —
71759B — Hook, Front Seatback
71759-F4010 Hook, Front Seatback
2016-10 → 2019-09 ended
NGX10,50 —
71759-F4010 Hook, Front Seatback
2019-09 → —
NGX10,50,ZYX10 —
71910A — Headrest Assy, Front Seat
71910-F4010-C2 note Headrest Assy, Front Seat
2016-10 → 2019-09 ended
NGX10,50 D,N —
71910-F4030-C1 note Headrest Assy, Front Seat
2016-10 → 2018-05 ended
NGX10,50 E —
71910-F4030-E0 note Headrest Assy, Front Seat
2016-10 → 2018-05 ended
NGX10,50 E —
71910-F4031-C1 note Headrest Assy, Front Seat
2018-05 → 2019-09 ended
NGX10,50 E —
71910-F4031-E0 note Headrest Assy, Front Seat
2018-05 → 2019-09 ended
NGX10,50 E —
71910-F4120-B1 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50,ZYX10 D,N —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
ZYX10 E —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50 LHD E —
71910-F4150-C0 note Headrest Assy, Front Seat
2019-09 → —
NGX10 RHD E —
71910-F4150-E0 note Headrest Assy, Front Seat
2019-09 → —
NGX10,50 LHD E —
71910-F4150-E0 note Headrest Assy, Front Seat
2019-09 → —
ZYX10 E —
71931 — Support, Front Seat Headrest
71930-F4010-C0 note Support, Front Seat Headrest
2016-10 → 2018-05 ended
NGX10,50 —
71930-F4010-C1 note Support, Front Seat Headrest
2018-05 → 2019-09 ended
NGX10,50 —
71931-F4010-C0 note Support, Front Seat Headrest
2016-10 → 2018-05 ended
NGX10,50 —
71931-F4010-C1 note Support, Front Seat Headrest
2018-05 → 2019-09 ended
NGX10,50 —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50 E —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
ZYX10 E —
71930-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50,ZYX10 D,N —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50,ZYX10 D,N —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
ZYX10 E —
71931-F4010-C1 note Support, Front Seat Headrest
2019-09 → —
NGX10,50 E —
73920A — Airbag Assy, Front Seat, LH
73920-F4010 Airbag Assy, Front Seat, LH
2016-10 → 2019-09 ended
NGX10,50 —
73920-F4010 Airbag Assy, Front Seat, LH
2019-09 → 2022-07 ended
NGX10,50,ZYX10 —
73920-F4011 Airbag Assy, Front Seat, LH
2022-08 → —
NGX10,50,ZYX10 —
87510N — Heater Assy, Front Seatback, LH
87530-F4010 Heater Assy, Front Seatback, LH
2016-10 → 2018-05 ended
NGX10,50 E;NGX50 LHD N —
87530-F4030 Heater Assy, Front Seatback, LH
2018-05 → 2019-09 ended
NGX10,50 E;NGX50 LHD N —
87530-F4030 Heater Assy, Front Seatback, LH
2019-09 → —
NGX10,50,ZYX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
