Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

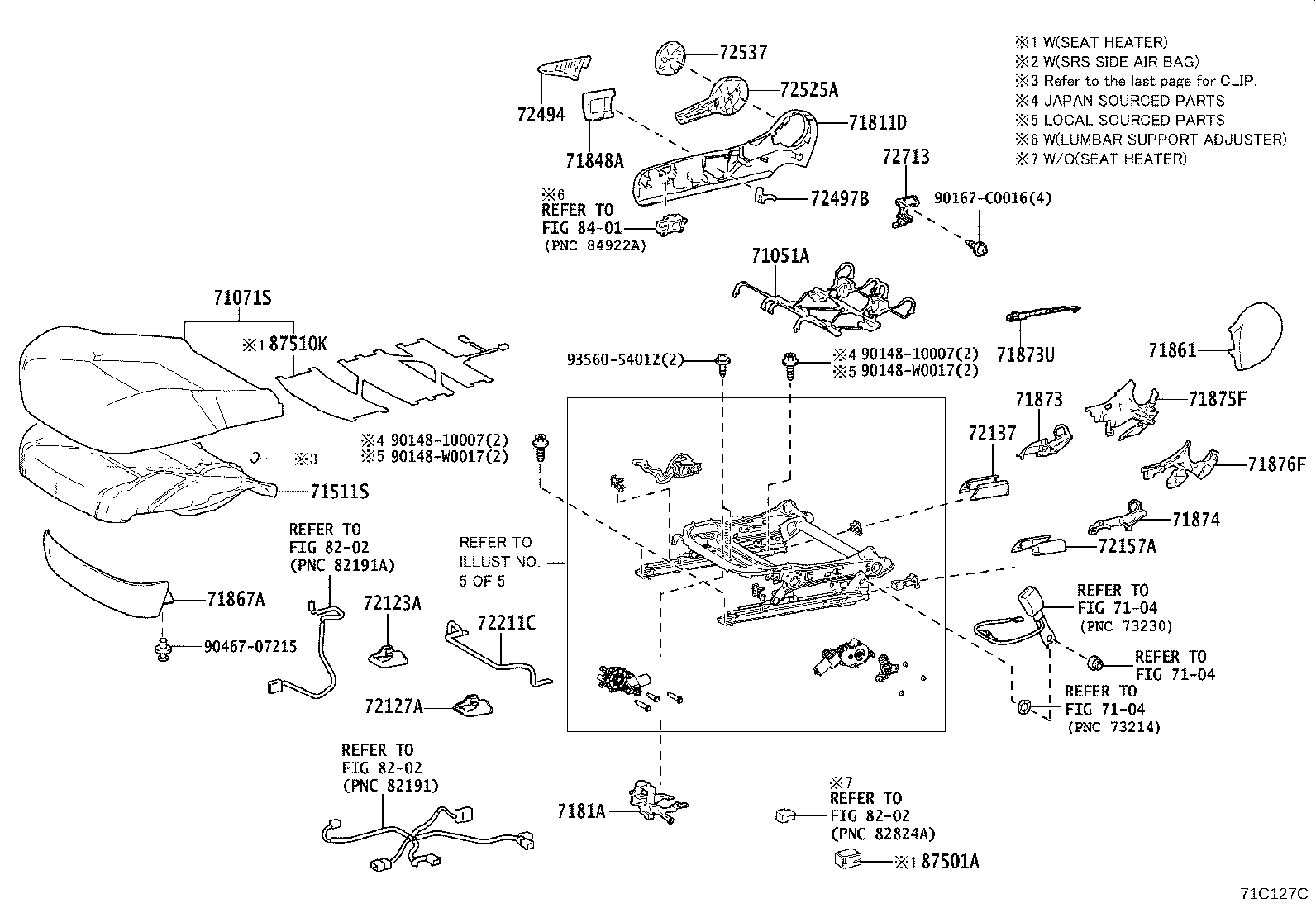

Exploded illustration 71C127C 9356054012 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 90148W0017 — not listed in this catalogue 90148W0017 — not listed in this catalogue 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (2 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (21 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (3 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (3 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (4 parts) 72494 — HANDLE, VERTICAL ADJUSTING, RH (4 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (5 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (24 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (6 parts) 72537 — COVER, RECLINING HINGE OUTER, RH (5 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (3 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (3 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (4 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (9 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (9 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (9 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (4 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 72137 — COVER, SEAT TRACK, OUTER RH (2 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (2 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (1 parts) 9046707215 — not listed in this catalogue 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 72713 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH (1 parts) 90167C0016 — not listed in this catalogue
71C127C · 25 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
131 parts on this figure
Part number Description Fitment Price
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-F4010 Spring Sub-assy, Front Seat Cushion, RH
2016-10 → 2018-12 ended
NGX10,50 —
71051-F4011 Spring Sub-assy, Front Seat Cushion, RH
2019-01 → 2019-09 ended
NGX10,50 —
71051-F4011 Spring Sub-assy, Front Seat Cushion, RH
2019-09 → —
NGX10,50,ZYX10 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-F4010-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71071-F4010-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71071-F4020-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX50 LHD N —
71071-F4021-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX50 LHD N —
71071-F4040-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 LHD E —
71071-F4041-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 LHD E —
71071-F4050-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 LHD E —
71071-F4051-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 LHD E —
71071-F4060-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 RHD (D,N) —
71071-F4060-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 RHD (D,N) —
71071-F4090-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 RHD E —
71071-F4091-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 RHD E —
71071-F4100-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2018-05 ended
NGX10,50 RHD E —
71071-F4101-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-09 ended
NGX10,50 RHD E —
71071-F4290-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50,ZYX10 LHD N —
71071-F4300-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
ZYX10 E —
71071-F4310-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
ZYX10 E —
71071-F4340-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 RHD E —
71071-F4360-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50 LHD E —
71071-F4370-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50 LHD E —
71071-F4390-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 RHD (D,N) —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71501-F4010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10,50 LHD —
71511-F4010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-10 → 2019-09 ended
NGX10,50 RHD —
71501-F4010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10,50,ZYX10 LHD —
71511-F4010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 RHD (D,N) —
71511-F4090 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-09 → —
NGX10 RHD E —
71811D — Shield, Front Seat Cushion, RH
71811-F4010-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10,50 RHD (D,N) —
71811-F4010-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10,50 RHD (D,N) —
71811-F4030-C1 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
71811-F4030-C2 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
71811-F4040-C1 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10,50 RHD E —
71811-F4040-C2 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10,50 RHD E —
71811-F4050-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 RHD (D,N) —
71811-F4050-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10 RHD (D,N) —
71811-F4060-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71811-F4060-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71811-F4060-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71811-F4060-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71811-F4060-C0 note Shield, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10 LHD (D,N) —
71811-F4010-C1 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10 RHD (D,N) —
71811-F4010-C1 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10,50 LHD E —
71811-F4030-C2 note Shield, Front Seat Cushion, RH
2019-09 → —
ZYX10 E —
71811-F4030-C2 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10,50,ZYX10 LHD N —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10 LHD 6F —
71811-F4060-C1 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10 LHD CVT N —
71811-F4120-C0 note Shield, Front Seat Cushion, RH
2019-09 → —
NGX10 RHD E —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-F4010 Holder, Front Seat Cushion Wire Harness, RH
2016-10 → 2019-09 ended
NGX10,50 —
7181A-F4010 Holder, Front Seat Cushion Wire Harness, RH
2019-09 → —
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E —
7181A-F4050 Holder, Front Seat Cushion Wire Harness, RH
2019-09 → —
NGX10 RHD E —
71848A — Cap, Seat Adjuster Cover, RH
71848-F4010-C1 note Cap, Seat Adjuster Cover, RH
2016-10 → 2018-05 ended
NGX10,50 RHD —
71848-F4010-C2 note Cap, Seat Adjuster Cover, RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
71848-F4010-C2 note Cap, Seat Adjuster Cover, RH
2019-09 → —
NGX10 RHD (D,N) —
71848-F4010-C2 note Cap, Seat Adjuster Cover, RH
2019-09 → —
NGX10,50 LHD E —
71861 — Shield, Front Seat Cushion, Inner RH
71861-F4010-C1 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2018-05 ended
NGX10,50 RHD —
71861-F4010-C2 note Shield, Front Seat Cushion, Inner RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
71861-F4030-C1 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2018-05 ended
NGX10,50 LHD —
71861-F4030-C2 note Shield, Front Seat Cushion, Inner RH
2018-05 → 2019-09 ended
NGX10,50 LHD —
71861-F4010-C2 note Shield, Front Seat Cushion, Inner RH
2019-09 → —
NGX10 RHD E —
71861-F4010-C2 note Shield, Front Seat Cushion, Inner RH
2019-09 → —
NGX10,50 LHD E —
71861-F4010-C2 note Shield, Front Seat Cushion, Inner RH
2019-09 → —
NGX10 RHD (D,N) —
71861-F4030-C2 note Shield, Front Seat Cushion, Inner RH
2019-09 → —
ZYX10 E —
71861-F4030-C2 note Shield, Front Seat Cushion, Inner RH
2019-09 → —
NGX10,50,ZYX10 LHD N —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-F4010-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2019-09 → —
NGX10 RHD E —
71873 — Shield, Front Seat Cushion, Lower RH
71873-F4010 Shield, Front Seat Cushion, Lower RH
2016-10 → 2019-09 ended
NGX10,50 RHD —
71873-F4010 Shield, Front Seat Cushion, Lower RH
2019-09 → —
NGX10 RHD;NGX10,50 LHD E —
71873U — Shield, Front Seat Cushion, Lower RH
71873-F4100 Shield, Front Seat Cushion, Lower RH
2019-09 → —
NGX10 RHD E —
71874 — Shield, Front Seat Cushion, Lower LH
71873-F4020 Shield, Front Seat Cushion, Lower LH
2016-10 → 2019-09 ended
NGX10,50 RHD —
71873-F4020 Shield, Front Seat Cushion, Lower LH
2019-09 → —
NGX10 RHD;NGX10,50 LHD E —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-F4010-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2016-10 → 2018-05 ended
NGX10,50 RHD —
71875-F4010-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-05 → 2019-09 ended
NGX10,50 RHD —
71875-F4030-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2016-10 → 2018-05 ended
NGX10,50 LHD —
71875-F4030-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-05 → 2019-09 ended
NGX10,50 LHD —
71875-F4010-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-09 → —
NGX10 RHD (D,N) —
71875-F4010-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-09 → —
NGX10,50 LHD E —
71875-F4010-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-09 → —
NGX10 RHD E —
71875-F4030-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-09 → —
NGX10,50,ZYX10 LHD N —
71875-F4030-C2 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-09 → —
ZYX10 E —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-F4020-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2016-10 → 2018-05 ended
NGX10,50 RHD —
71875-F4020-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-05 → 2019-09 ended
NGX10,50 RHD —
71875-F4040-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2016-10 → 2018-05 ended
NGX10,50 LHD —
71875-F4040-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-05 → 2019-09 ended
NGX10,50 LHD —
71875-F4020-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-09 → —
NGX10 RHD (D,N) —
71875-F4020-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-09 → —
NGX10,50 LHD E —
71875-F4020-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-09 → —
NGX10 RHD E —
71875-F4040-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-09 → —
ZYX10 E —
71875-F4040-C2 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-09 → —
NGX10,50,ZYX10 LHD N —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-F4010 Cover, Seat Track Bracket, Outer Front RH
2016-10 → 2019-09 ended
NGX10,50 —
72123-F4010 Cover, Seat Track Bracket, Outer Front RH
2019-09 → —
NGX10,50,ZYX10 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-F4010 Cover, Seat Track Bracket, Inner Front RH
2016-10 → 2019-09 ended
NGX10,50 —
72123-F4010 Cover, Seat Track Bracket, Inner Front RH
2019-09 → —
NGX10,50,ZYX10 —
72137 — Cover, Seat Track, Outer RH
72137-F4010 Cover, Seat Track, Outer RH
2016-10 → 2019-09 ended
NGX10,50 —
72137-F4010 Cover, Seat Track, Outer RH
2019-09 → —
NGX10,50,ZYX10 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-F4010 Cover, Seat Track Bracket, Inner RH
2016-10 → 2019-09 ended
NGX10,50 —
72157-F4010 Cover, Seat Track Bracket, Inner RH
2019-09 → —
NGX10,50,ZYX10 —
72211C — Handle, Seat Track Adjusting
72211-F4010 Handle, Seat Track Adjusting
2016-10 → 2019-09 ended
NGX10,50 —
72211-F4010 Handle, Seat Track Adjusting
2019-09 → —
NGX10 RHD E —
72211-F4010 note Handle, Seat Track Adjusting
2019-09 → —
NGX10,50,ZYX10 LHD E —
72211-F4010 Handle, Seat Track Adjusting
2019-09 → —
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E —
72494 — Handle, Vertical Adjusting, RH
72494-F4010-C1 note Handle, Vertical Adjusting, RH
2016-10 → 2018-05 ended
NGX10,50 RHD —
72494-F4010-C2 note Handle, Vertical Adjusting, RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
72494-K0010-C0 note Handle, Vertical Adjusting, RH
2019-09 → —
NGX10 RHD (D,N) —
72494-K0010-C0 note Handle, Vertical Adjusting, RH
2019-09 → —
NGX10,50 LHD E —
72497B — Cover, Vertical Adjuster Bracket, RH
72498-F4010-C0 note Cover, Vertical Adjuster Bracket, RH
2016-10 → 2018-05 ended
NGX10,50 RHD —
72498-F4010-C1 note Cover, Vertical Adjuster Bracket, RH
2018-05 → 2019-09 ended
NGX10,50 RHD —
72498-F4010-C1 note Cover, Vertical Adjuster Bracket, RH
2019-09 → —
NGX10 RHD (D,N) —
72498-F4010-C1 note Cover, Vertical Adjuster Bracket, RH
2019-09 → —
NGX10,50 LHD E —
72525A — Handle, Reclining Adjuster Release, RH
72525-F4010-C1 note Handle, Reclining Adjuster Release, RH
2016-10 → 2018-05 ended
NGX10,50 —
72525-F4010-C2 note Handle, Reclining Adjuster Release, RH
2018-05 → 2019-09 ended
NGX10,50 —
72525-F4010-C2 note Handle, Reclining Adjuster Release, RH
2019-09 → —
ZYX10 E —
72525-F4010-C2 note Handle, Reclining Adjuster Release, RH
2019-09 → —
NGX10,50,ZYX10 LHD N —
72525-K0010-C0 note Handle, Reclining Adjuster Release, RH
2019-09 → —
NGX10 RHD (D,N) —
72525-K0010-C0 note Handle, Reclining Adjuster Release, RH
2019-09 → —
NGX10,50 LHD E —
72537 — Cover, Reclining Hinge Outer, RH
72551-F4010-C1 note Cover, Reclining Hinge Outer, RH
2016-10 → 2018-05 ended
NGX10,50 —
72551-F4010-C2 note Cover, Reclining Hinge Outer, RH
2018-05 → 2019-09 ended
NGX10,50 —
72551-F4010-C2 note Cover, Reclining Hinge Outer, RH
2019-09 → —
NGX10,50 LHD E —
72551-F4010-C2 note Cover, Reclining Hinge Outer, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
72551-F4010-C2 note Cover, Reclining Hinge Outer, RH
2019-09 → —
ZYX10 E —
72713 — Bracket, Seat Adjuster Shield Clamp, RH
72713-F4010 Bracket, Seat Adjuster Shield Clamp, RH
2019-09 → —
NGX10 RHD E —
87501A — Control Sub-assy, Seat Heater, RH
85864-05020 Control Sub-assy, Seat Heater, RH
2018-05 → 2019-09 ended
NGX10,50 E;NGX50 LHD N —
87501-F4010 Control Sub-assy, Seat Heater, RH
2016-10 → 2018-05 ended
NGX10,50 E;NGX50 LHD N —
85864-05020 Control Sub-assy, Seat Heater, RH
2019-09 → —
NGX10,50,ZYX10 E —
87510K — Heater Assy, Front Seat Cushion, RH
87510-F4010 Heater Assy, Front Seat Cushion, RH
2016-10 → 2018-05 ended
NGX10,50 E;NGX50 LHD N —
87510-F4030 Heater Assy, Front Seat Cushion, RH
2018-05 → 2019-09 ended
NGX10,50 E;NGX50 LHD N —
87510-F4030 Heater Assy, Front Seat Cushion, RH
2019-09 → —
NGX10,50,ZYX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
