Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

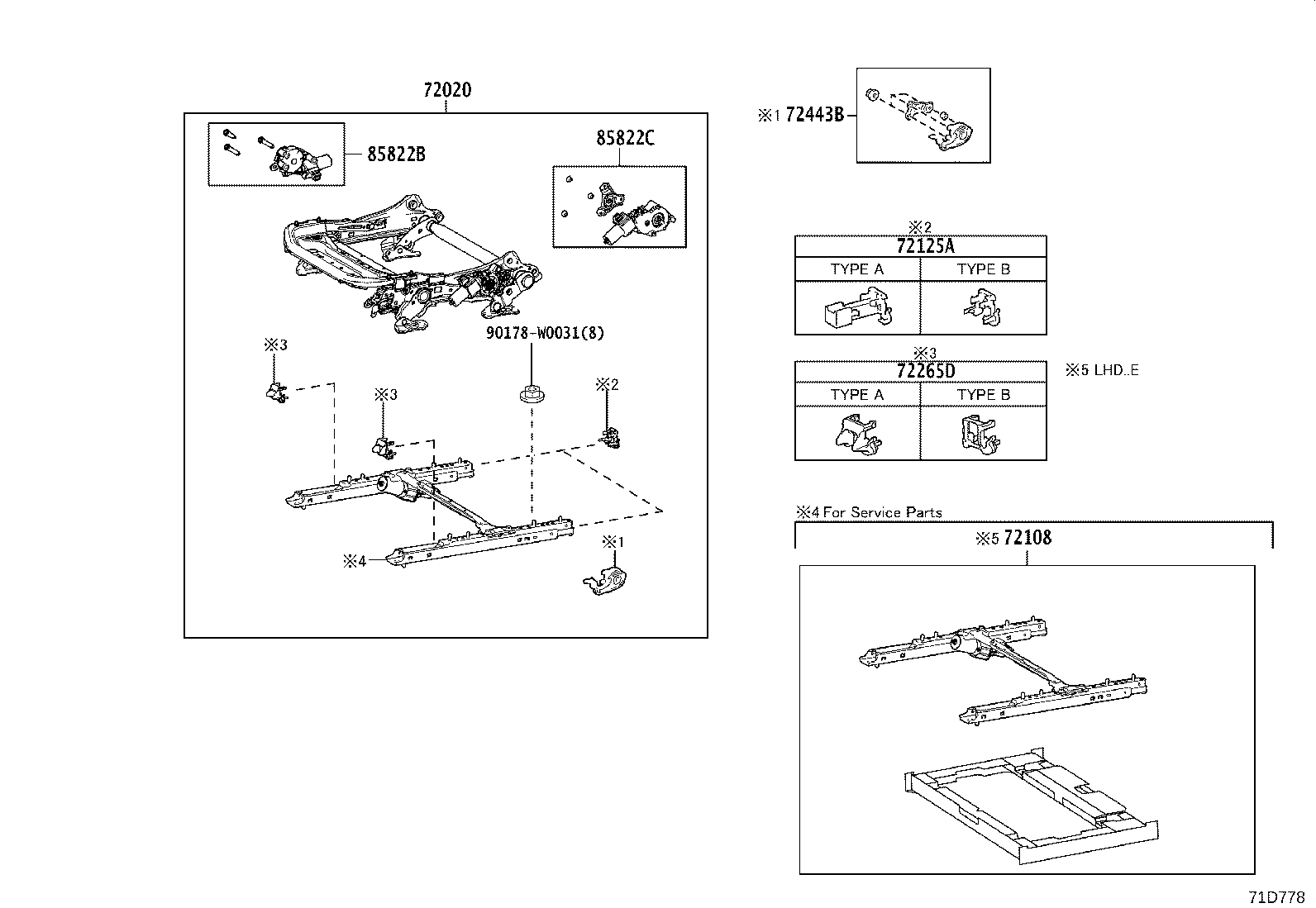

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72020 — Adjuster Assy, Front Seat, LH | ||||
| 72020-F4010 |
Adjuster Assy, Front Seat, LH
2016-10 → 2018-10
ended
|
NGX10,50 LHD | — | |
| 72020-F4011 |
Adjuster Assy, Front Seat, LH
2018-10 → 2019-07
ended
|
NGX10,50 LHD | — | |
| 72020-F4012 |
Adjuster Assy, Front Seat, LH
2019-08 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 72020-F4030 |
Adjuster Assy, Front Seat, LH
2016-10 → 2019-01
ended
|
NGX10,50 RHD | — | |
| 72020-F4031 |
Adjuster Assy, Front Seat, LH
2019-01 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 72020-F4012 |
Adjuster Assy, Front Seat, LH
2019-09 → —
|
NGX10 E;NGX50,ZYX10;NGX10 LHD N | — | |
| 72020-F4031 |
Adjuster Assy, Front Seat, LH
2019-09 → —
|
NGX10 RHD (D,N) | — | |
| 72020-F4110 note |
Adjuster Assy, Front Seat, LH
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72108 — Rail Sub-assy, Seat Track, Upper LH | ||||
| 72108-F4020 note |
Rail Sub-assy, Seat Track, Upper LH
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72125A — Cover, Seat Track, Upper Rear | ||||
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2016-10 → 2018-10
ended
|
NGX10;NGX50 N;NGX50 LHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2016-10 → 2018-11
ended
|
NGX50 RHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2018-10 → 2018-11
ended
|
NGX50 RHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2018-10 → 2019-09
ended
|
NGX10;NGX50 N;NGX50 LHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2018-11 → 2019-09
ended
|
NGX50 RHD E | — | |
| 72125-F4040 note |
Cover, Seat Track, Upper Rear
2016-10 → 2018-04
ended
|
NGX10;NGX50 N;NGX50 LHD E | — | |
| 72125-F4040 note |
Cover, Seat Track, Upper Rear
2016-10 → 2018-11
ended
|
NGX50 RHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72125-F4030 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10 RHD E | — | |
| 72125-F4040 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72125-F4040 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10 RHD E | — | |
| 72125-F4040 note |
Cover, Seat Track, Upper Rear
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72265D — Cover, Seat Track Upper Rail | ||||
| 72265-F4020 note |
Cover, Seat Track Upper Rail
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 72265-47020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10 RHD E | — | |
| 72265-47020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72265-47020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72265-F4020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10 RHD E | — | |
| 72265-F4020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10 D,N;NGX50,ZYX10;NGX10 LHD E | — | |
| 72265-F4020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72265-F4020 note |
Cover, Seat Track Upper Rail
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 72443B — Gear, Vertical Adjuster, LH | ||||
| 72443-F4020 |
Gear, Vertical Adjuster, LH
2016-10 → 2019-05
ended
|
NGX10,50 LHD | — | |
| 72443-F4021 |
Gear, Vertical Adjuster, LH
2019-06 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 72443-F4020 |
Gear, Vertical Adjuster, LH
2019-09 → —
|
NGX10,50 E | — | |
| 72443-F4021 |
Gear, Vertical Adjuster, LH
2019-09 → —
|
ZYX10;NGX10,50 LHD N | — | |
| 85822B — Motor Assy, Power Seat Tilt, LH | ||||
| 85801-47040 note |
Motor Assy, Power Seat Tilt, LH
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 85822C — Motor Assy, Power Seat Lifter, LH | ||||
| 85801-47030 note |
Motor Assy, Power Seat Lifter, LH
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
