Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

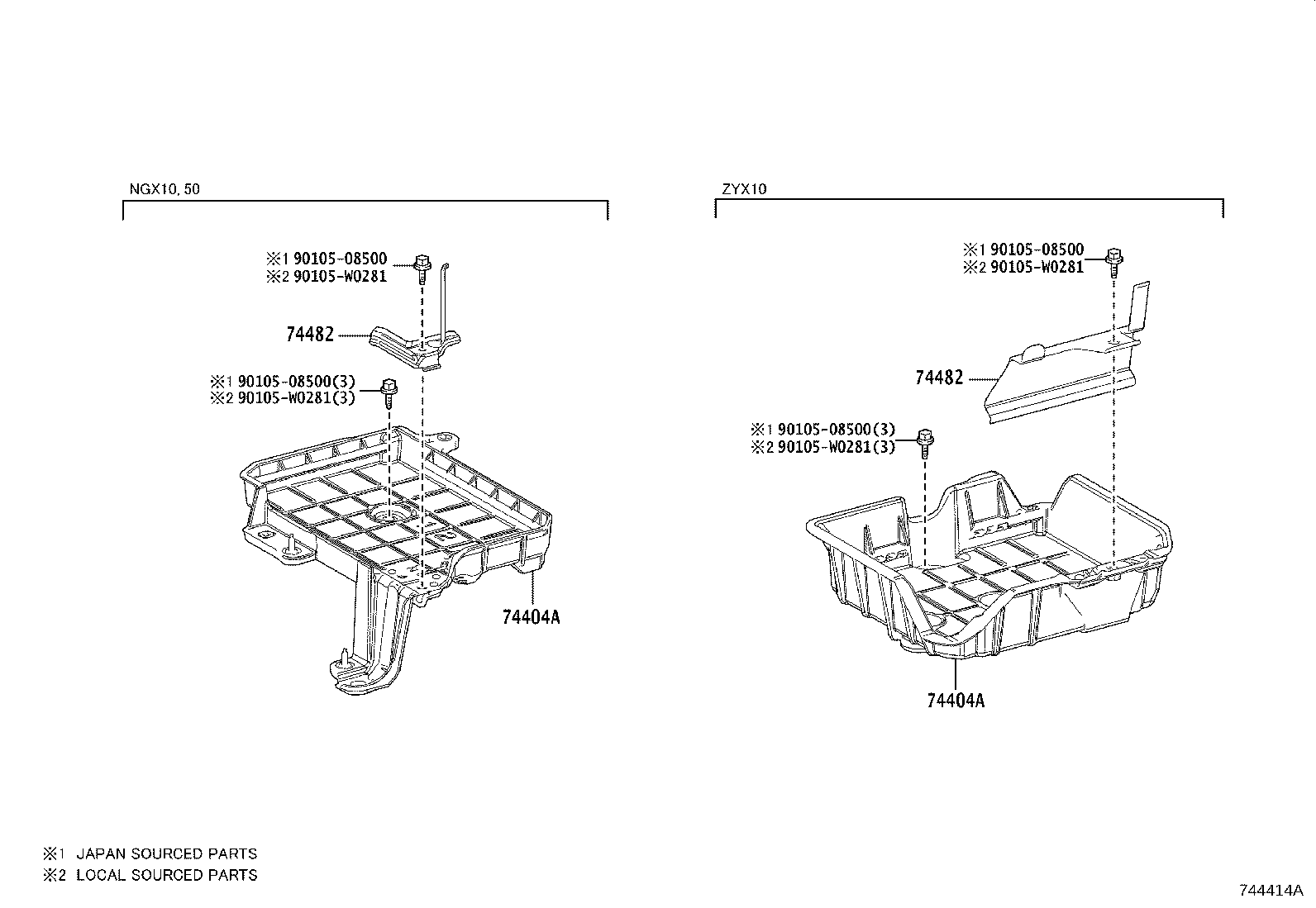

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-10210 |
Clamp Sub-assy, Battery
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 74404-02800 |
Clamp Sub-assy, Battery
2019-09 → —
|
ZYX10 | — | |
| 74404-02830 |
Clamp Sub-assy, Battery
2020-10 → —
|
NGX10,50 | — | |
| 74404-10210 |
Clamp Sub-assy, Battery
2019-09 → 2020-10
ended
|
NGX10,50 | — | |
| 74482 — Clamp, Battery, NO.2 | ||||
| 74405-F4010 |
Clamp, Battery, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 74405-02100 |
Clamp, Battery, NO.2
2020-10 → —
|
NGX10,50 | — | |
| 74405-F4010 |
Clamp, Battery, NO.2
2019-09 → 2020-10
ended
|
NGX10,50 | — | |
| 74482-F4010 |
Clamp, Battery, NO.2
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
