Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

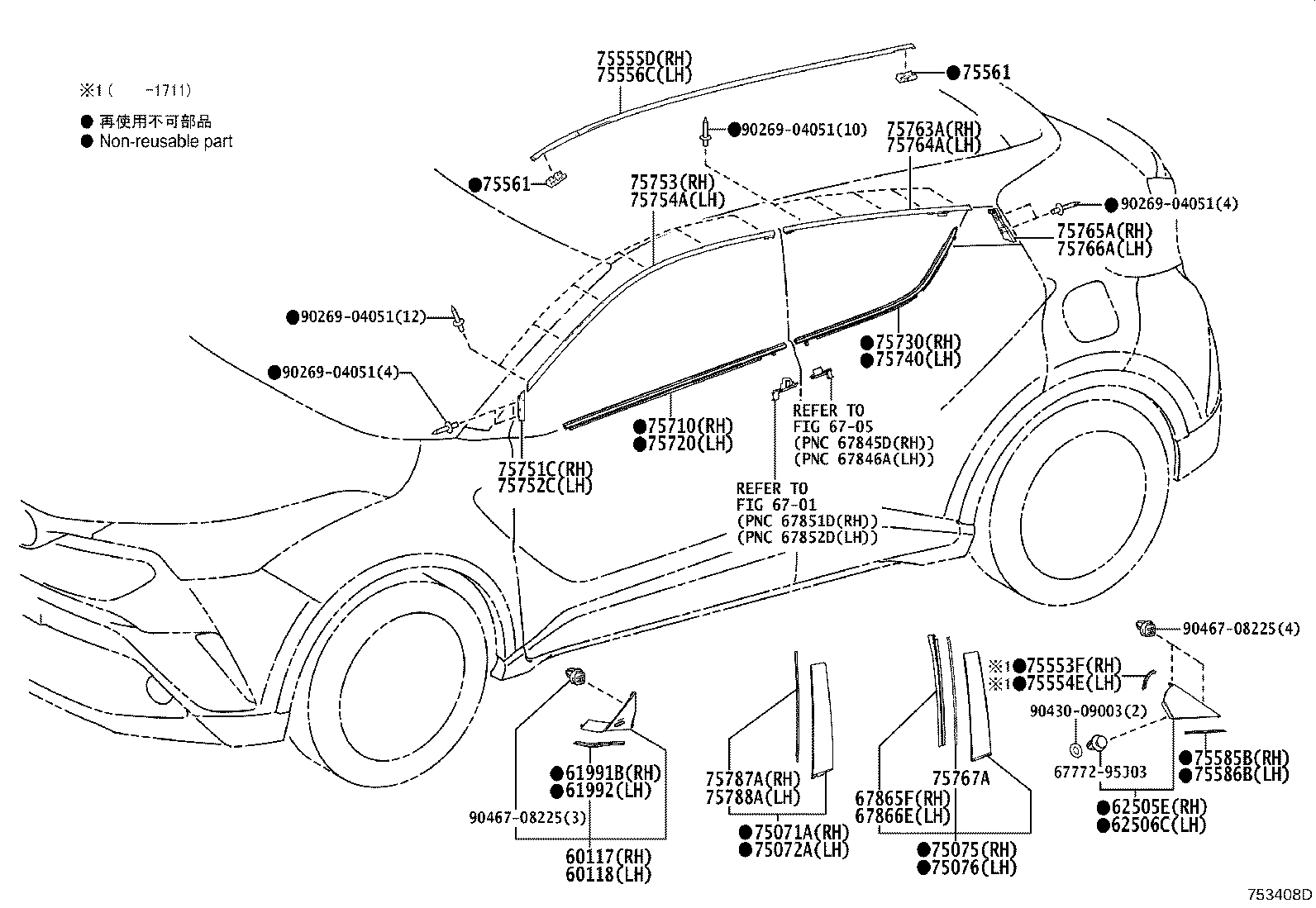

Exploded illustration 753408D 60117 — COVER SUB-ASSY, FRONT PILLAR, UPR RH (2 parts) 60118 — COVER SUB-ASSY, FRONT PILLAR, UPR LH (2 parts) 62505E — COVER SUB-ASSY, QUARTER PILLAR, RH (3 parts) 62506C — COVER SUB-ASSY, QUARTER PILLAR, LH (3 parts) 67865F — WEATHERSTRIP, CENTER PILLAR UPPER END, RH (2 parts) 67866E — WEATHERSTRIP, CENTER PILLAR UPPER END, LH (2 parts) 75555D — MOULDING, ROOF DRIP SIDE FINISH, CENTER RH (8 parts) 75556C — MOULDING, ROOF DRIP SIDE FINISH, CENTER LH (8 parts) 75561 — CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 (2 parts) 75585B — PROTECTOR, REAR PILLAR GARNISH, NO.1 (2 parts) 75586B — PROTECTOR, REAR PILLAR GARNISH, NO.2 (2 parts) 75767A — PAD, REAR DOOR MOULDING, NO.1 (2 parts) 6777295J03 — not listed in this catalogue 9043009003 — not listed in this catalogue 9046708225 — not listed in this catalogue 75553F — MOULDING, QUARTER GARNISH, RH (1 parts) 75554E — MOULDING, QUARTER GARNISH, LH (1 parts) 9046708225 — not listed in this catalogue 61991B — PROTECTOR, FRONT PILLAR COVER, RH (2 parts) 61992 — PROTECTOR, FRONT PILLAR COVER, LH (2 parts) 75753 — MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH (2 parts) 75754A — MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH (2 parts) 75763A — MOULDING, REAR DOOR WINDOW FRAME, UPPER RH (2 parts) 75764A — MOULDING, REAR DOOR WINDOW FRAME, UPPER LH (2 parts) 9026904051 — not listed in this catalogue 9026904051 — not listed in this catalogue 9026904051 — not listed in this catalogue 9026904051 — not listed in this catalogue 75765A — MOULDING, REAR DOOR WINDOW FRAME, REAR RH (2 parts) 75766A — MOULDING, REAR DOOR WINDOW FRAME, REAR LH (2 parts) 75751C — MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH (2 parts) 75752C — MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH (2 parts) 75710 — MOULDING ASSY, FRONT DOOR BELT, RH (4 parts) 75720 — MOULDING ASSY, FRONT DOOR BELT, LH (4 parts) 75730 — MOULDING ASSY, REAR DOOR BELT, RH (4 parts) 75740 — MOULDING ASSY, REAR DOOR BELT, LH (4 parts) 6705 — not listed in this catalogue 6701 — not listed in this catalogue 75787A — PAD, FRONT DOOR OUTSIDE MOULDING, RH (2 parts) 75788A — PAD, FRONT DOOR OUTSIDE MOULDING, LH (2 parts) 75071A — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH (5 parts) 75072A — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH (5 parts) 75075 — MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH (5 parts) 75076 — MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH (5 parts) 75561 — CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 (2 parts)
753408D · 35 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
60117 — Cover Sub-assy, Front Pillar, Upr RH
60117-F4010 Cover Sub-assy, Front Pillar, Upr RH
2016-10 → 2019-09 ended
NGX10,50 —
60117-F4010 Cover Sub-assy, Front Pillar, Upr RH
2019-09 → —
NGX10,50,ZYX10 —
60118 — Cover Sub-assy, Front Pillar, Upr LH
60118-F4010 Cover Sub-assy, Front Pillar, Upr LH
2016-10 → 2019-09 ended
NGX10,50 —
60118-F4010 Cover Sub-assy, Front Pillar, Upr LH
2019-09 → —
NGX10,50,ZYX10 —
61991B — Protector, Front Pillar Cover, RH
61991-F4010 Protector, Front Pillar Cover, RH
2016-10 → 2019-09 ended
NGX10,50 —
61991-F4010 Protector, Front Pillar Cover, RH
2019-09 → —
NGX10,50,ZYX10 —
61992 — Protector, Front Pillar Cover, LH
61992-F4010 Protector, Front Pillar Cover, LH
2016-10 → 2019-09 ended
NGX10,50 —
61992-F4010 Protector, Front Pillar Cover, LH
2019-09 → —
NGX10,50,ZYX10 —
62505E — Cover Sub-assy, Quarter Pillar, RH
62581-F4010 Cover Sub-assy, Quarter Pillar, RH
2016-10 → 2019-09 ended
NGX10,50 —
62581-F4010 Cover Sub-assy, Quarter Pillar, RH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 —
62581-F4011 Cover Sub-assy, Quarter Pillar, RH
2020-09 → —
NGX10,50,ZYX10 —
62506C — Cover Sub-assy, Quarter Pillar, LH
62582-F4010 Cover Sub-assy, Quarter Pillar, LH
2016-10 → 2019-09 ended
NGX10,50 —
62582-F4010 Cover Sub-assy, Quarter Pillar, LH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 —
62582-F4011 Cover Sub-assy, Quarter Pillar, LH
2020-09 → —
NGX10,50,ZYX10 —
67865F — Weatherstrip, Center Pillar Upper End, RH
67865-F4010 Weatherstrip, Center Pillar Upper End, RH
2016-10 → 2019-09 ended
NGX10,50 —
67865-F4010 Weatherstrip, Center Pillar Upper End, RH
2019-09 → —
NGX10,50,ZYX10 —
67866E — Weatherstrip, Center Pillar Upper End, LH
67866-F4010 Weatherstrip, Center Pillar Upper End, LH
2016-10 → 2019-09 ended
NGX10,50 —
67866-F4010 Weatherstrip, Center Pillar Upper End, LH
2019-09 → —
NGX10,50,ZYX10 —
75071A — Moulding Sub-assy, Front Door, Outside RH
75071-F4010 Moulding Sub-assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75071-F4020 Moulding Sub-assy, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
75071-F4010 Moulding Sub-assy, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 D,N —
75071-F4020 Moulding Sub-assy, Front Door, Outside RH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 E —
75071-F4021 Moulding Sub-assy, Front Door, Outside RH
2020-09 → —
NGX10,50,ZYX10 E —
75072A — Moulding Sub-assy, Front Door, Outside LH
75072-F4010 Moulding Sub-assy, Front Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75072-F4020 Moulding Sub-assy, Front Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 E —
75072-F4010 Moulding Sub-assy, Front Door, Outside LH
2019-09 → —
NGX10,50,ZYX10 D,N —
75072-F4020 Moulding Sub-assy, Front Door, Outside LH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 E —
75072-F4021 Moulding Sub-assy, Front Door, Outside LH
2020-09 → —
NGX10,50,ZYX10 E —
75075 — Moulding Sub-assy, Rear Door, Outside RH
75075-F4010 Moulding Sub-assy, Rear Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75075-F4020 Moulding Sub-assy, Rear Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 E —
75075-F4010 Moulding Sub-assy, Rear Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 D,N —
75075-F4020 Moulding Sub-assy, Rear Door, Outside RH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 E —
75075-F4021 Moulding Sub-assy, Rear Door, Outside RH
2020-09 → —
NGX10,50,ZYX10 E —
75076 — Moulding Sub-assy, Rear Door, Outside LH
75076-F4010 Moulding Sub-assy, Rear Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75076-F4020 Moulding Sub-assy, Rear Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 E —
75076-F4010 Moulding Sub-assy, Rear Door, Outside LH
2019-09 → —
NGX10,50,ZYX10 D,N —
75076-F4020 Moulding Sub-assy, Rear Door, Outside LH
2019-09 → 2020-08 ended
NGX10,50,ZYX10 E —
75076-F4021 Moulding Sub-assy, Rear Door, Outside LH
2020-09 → —
NGX10,50,ZYX10 E —
75553F — Moulding, Quarter Garnish, RH
75553-F4010 Moulding, Quarter Garnish, RH
2016-10 → 2017-11 ended
NGX10,50 —
75554E — Moulding, Quarter Garnish, LH
75554-F4010 Moulding, Quarter Garnish, LH
2016-10 → 2017-11 ended
NGX10,50 —
75555D — Moulding, Roof Drip Side Finish, Center RH
75555-10010-A1 note Moulding, Roof Drip Side Finish, Center RH
2016-10 → 2019-09 ended
NGX10,50 E —
75555-10010-C0 note Moulding, Roof Drip Side Finish, Center RH
2016-10 → 2019-09 ended
NGX10,50 E —
75555-F4010 Moulding, Roof Drip Side Finish, Center RH
2016-10 → 2019-09 ended
NGX10,50 —
75555-10010-B2 note Moulding, Roof Drip Side Finish, Center RH
2019-09 → 2022-01 ended
ZYX10;NGX10,50 E —
75555-10010-B3 note Moulding, Roof Drip Side Finish, Center RH
2022-01 → —
ZYX10;NGX10,50 E —
75555-10010-C0 note Moulding, Roof Drip Side Finish, Center RH
2019-09 → —
ZYX10;NGX10,50 E —
75555-F4010 Moulding, Roof Drip Side Finish, Center RH
2019-09 → 2023-10 ended
NGX10,50,ZYX10 —
75555-F4100 Moulding, Roof Drip Side Finish, Center RH
2023-11 → —
NGX10,50,ZYX10 —
75556C — Moulding, Roof Drip Side Finish, Center LH
75556-10010-A1 note Moulding, Roof Drip Side Finish, Center LH
2016-10 → 2019-09 ended
NGX10,50 E —
75556-10010-C0 note Moulding, Roof Drip Side Finish, Center LH
2016-10 → 2019-09 ended
NGX10,50 E —
75556-F4010 Moulding, Roof Drip Side Finish, Center LH
2016-10 → 2019-09 ended
NGX10,50 —
75556-10010-B2 note Moulding, Roof Drip Side Finish, Center LH
2019-09 → 2022-01 ended
ZYX10;NGX10,50 E —
75556-10010-B3 note Moulding, Roof Drip Side Finish, Center LH
2022-01 → —
ZYX10;NGX10,50 E —
75556-10010-C0 note Moulding, Roof Drip Side Finish, Center LH
2019-09 → —
ZYX10;NGX10,50 E —
75556-F4010 Moulding, Roof Drip Side Finish, Center LH
2019-09 → 2023-10 ended
NGX10,50,ZYX10 —
75556-F4100 Moulding, Roof Drip Side Finish, Center LH
2023-11 → —
NGX10,50,ZYX10 —
75561 — Clip, Roof Drip Side Finish Moulding, NO.1
75561-33030 Clip, Roof Drip Side Finish Moulding, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75561-33030 Clip, Roof Drip Side Finish Moulding, NO.1
2019-09 → —
NGX10,50,ZYX10 —
75585B — Protector, Rear Pillar Garnish, NO.1
75585-F4010 Protector, Rear Pillar Garnish, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75585-F4010 Protector, Rear Pillar Garnish, NO.1
2019-09 → —
NGX10,50,ZYX10 —
75586B — Protector, Rear Pillar Garnish, NO.2
75586-F4010 Protector, Rear Pillar Garnish, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
75586-F4010 Protector, Rear Pillar Garnish, NO.2
2019-09 → —
NGX10,50,ZYX10 —
75710 — Moulding Assy, Front Door Belt, RH
75710-10090 Moulding Assy, Front Door Belt, RH
2016-10 → 2019-09 ended
NGX10,50 E —
75710-F4010 Moulding Assy, Front Door Belt, RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75710-10090 Moulding Assy, Front Door Belt, RH
2019-09 → —
NGX10,50,ZYX10 E —
75710-F4010 Moulding Assy, Front Door Belt, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
75720 — Moulding Assy, Front Door Belt, LH
75720-10090 Moulding Assy, Front Door Belt, LH
2016-10 → 2019-09 ended
NGX10,50 E —
75720-F4010 Moulding Assy, Front Door Belt, LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75720-10090 Moulding Assy, Front Door Belt, LH
2019-09 → —
NGX10,50,ZYX10 E —
75720-F4010 Moulding Assy, Front Door Belt, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
75730 — Moulding Assy, Rear Door Belt, RH
75730-10030 Moulding Assy, Rear Door Belt, RH
2016-10 → 2019-09 ended
NGX10,50 E —
75730-F4010 Moulding Assy, Rear Door Belt, RH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75730-10030 Moulding Assy, Rear Door Belt, RH
2019-09 → —
NGX10,50,ZYX10 E —
75730-F4010 Moulding Assy, Rear Door Belt, RH
2019-09 → —
NGX10,50,ZYX10 D,N —
75740 — Moulding Assy, Rear Door Belt, LH
75740-10070 Moulding Assy, Rear Door Belt, LH
2016-10 → 2019-09 ended
NGX10,50 E —
75740-F4010 Moulding Assy, Rear Door Belt, LH
2016-10 → 2019-09 ended
NGX10,50 D,N —
75740-10070 Moulding Assy, Rear Door Belt, LH
2019-09 → —
NGX10,50,ZYX10 E —
75740-F4010 Moulding Assy, Rear Door Belt, LH
2019-09 → —
NGX10,50,ZYX10 D,N —
75751C — Moulding, Front Door Window Frame, Front RH
75751-F4010 Moulding, Front Door Window Frame, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
75751-F4010 Moulding, Front Door Window Frame, Front RH
2019-09 → —
NGX10,50,ZYX10 —
75752C — Moulding, Front Door Window Frame, Front LH
75752-F4010 Moulding, Front Door Window Frame, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
75752-F4010 Moulding, Front Door Window Frame, Front LH
2019-09 → —
NGX10,50,ZYX10 —
75753 — Moulding, Front Door Window Frame, Upper RH
75753-F4010 Moulding, Front Door Window Frame, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
75753-F4010 Moulding, Front Door Window Frame, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
75754A — Moulding, Front Door Window Frame, Upper LH
75754-F4010 Moulding, Front Door Window Frame, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
75754-F4010 Moulding, Front Door Window Frame, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
75763A — Moulding, Rear Door Window Frame, Upper RH
75763-F4010 Moulding, Rear Door Window Frame, Upper RH
2016-10 → 2019-09 ended
NGX10,50 —
75763-F4010 Moulding, Rear Door Window Frame, Upper RH
2019-09 → —
NGX10,50,ZYX10 —
75764A — Moulding, Rear Door Window Frame, Upper LH
75764-F4010 Moulding, Rear Door Window Frame, Upper LH
2016-10 → 2019-09 ended
NGX10,50 —
75764-F4010 Moulding, Rear Door Window Frame, Upper LH
2019-09 → —
NGX10,50,ZYX10 —
75765A — Moulding, Rear Door Window Frame, Rear RH
75765-F4010 Moulding, Rear Door Window Frame, Rear RH
2016-10 → 2019-09 ended
NGX10,50 —
75765-F4010 Moulding, Rear Door Window Frame, Rear RH
2019-09 → —
NGX10,50,ZYX10 —
75766A — Moulding, Rear Door Window Frame, Rear LH
75766-F4010 Moulding, Rear Door Window Frame, Rear LH
2016-10 → 2019-09 ended
NGX10,50 —
75766-F4010 Moulding, Rear Door Window Frame, Rear LH
2019-09 → —
NGX10,50,ZYX10 —
75767A — Pad, Rear Door Moulding, NO.1
75767-F4010 Pad, Rear Door Moulding, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75767-F4010 Pad, Rear Door Moulding, NO.1
2019-09 → —
NGX10,50,ZYX10 —
75787A — Pad, Front Door Outside Moulding, RH
75787-F4010 Pad, Front Door Outside Moulding, RH
2016-10 → 2019-09 ended
NGX10,50 —
75787-F4010 Pad, Front Door Outside Moulding, RH
2019-09 → —
NGX10,50,ZYX10 —
75788A — Pad, Front Door Outside Moulding, LH
75787-F4010 Pad, Front Door Outside Moulding, LH
2016-10 → 2019-09 ended
NGX10,50 —
75787-F4010 Pad, Front Door Outside Moulding, LH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
