Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

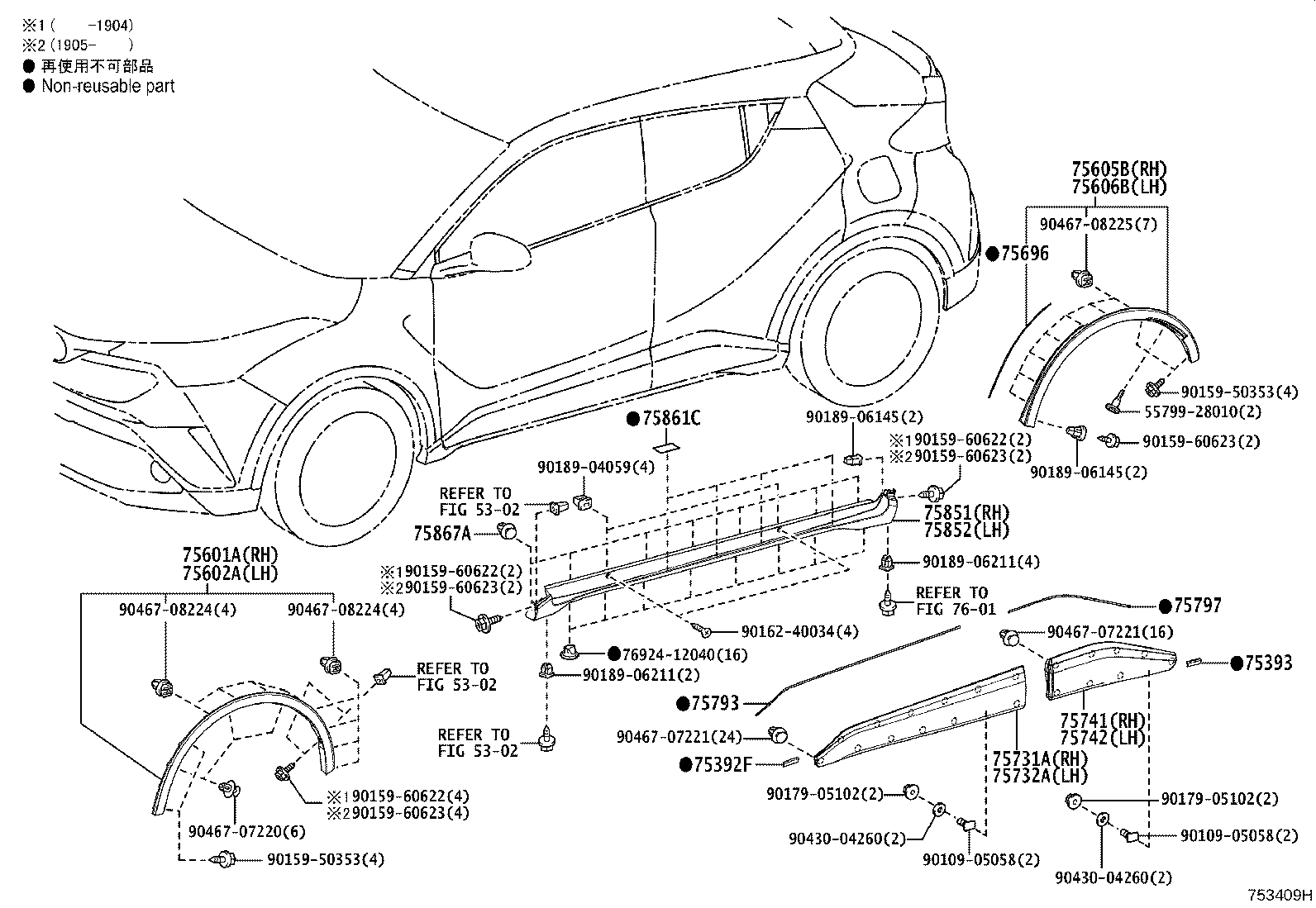

Exploded illustration 753409H 75392F — RETAINER, OUTSIDE MOULDING (3 parts) 75393 — RETAINER, OUTSIDE MOULDING, NO.2 (2 parts) 75696 — PAD, BODY OUTSIDE MOULDING, NO.1 (2 parts) 75731A — MOULDING, FRONT DOOR, OUTSIDE RH (2 parts) 75732A — MOULDING, FRONT DOOR, OUTSIDE LH (2 parts) 75793 — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (2 parts) 75797 — PAD, REAR DOOR OUTSIDE MOULDING, UPPER (2 parts) 75867A — CLIP, ROCKER PANEL MOULDING (3 parts) 5579928010 — not listed in this catalogue 7692412040 — not listed in this catalogue 9010905058 — not listed in this catalogue 9015950353 — not listed in this catalogue 9015950353 — not listed in this catalogue 9015960623 — not listed in this catalogue 9016240034 — not listed in this catalogue 9017905102 — not listed in this catalogue 9018904059 — not listed in this catalogue 9018906145 — not listed in this catalogue 9018906145 — not listed in this catalogue 9018906211 — not listed in this catalogue 9018906211 — not listed in this catalogue 9043004260 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707221 — not listed in this catalogue 9046708225 — not listed in this catalogue 9010905058 — not listed in this catalogue 9043004260 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046707221 — not listed in this catalogue 75851 — MOULDING, ROCKER PANEL, RH (2 parts) 75852 — MOULDING, ROCKER PANEL, LH (2 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (2 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (2 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (2 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (2 parts) 9046708224 — not listed in this catalogue 75742 — MOULDING, REAR DOOR, OUTSIDE LH (2 parts) 75741 — MOULDING, REAR DOOR, OUTSIDE RH (2 parts) 75861C — PAD, ROCKER PANEL MOULDING (2 parts) 9046708224 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 7601 — not listed in this catalogue 9015960622 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960622 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960622 — not listed in this catalogue 9015960623 — not listed in this catalogue
753409H · 17 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
75392F — Retainer, Outside Moulding
75392-F4010 Retainer, Outside Moulding
2016-10 → 2018-06 ended
NGX10,50 —
75395-F4010 Retainer, Outside Moulding
2018-07 → 2019-09 ended
NGX10,50 —
75395-F4010 Retainer, Outside Moulding
2019-09 → —
NGX10,50,ZYX10 —
75393 — Retainer, Outside Moulding, NO.2
75395-F4010 Retainer, Outside Moulding, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
75395-F4010 Retainer, Outside Moulding, NO.2
2019-09 → —
NGX10,50,ZYX10 —
75601A — Moulding Sub-assy, Front Fender, RH
75601-F4010 note Moulding Sub-assy, Front Fender, RH
2016-10 → 2019-09 ended
NGX10,50 —
75601-F4010 note Moulding Sub-assy, Front Fender, RH
2019-09 → —
NGX10,50,ZYX10 —
75602A — Moulding Sub-assy, Front Fender, LH
75602-F4010 note Moulding Sub-assy, Front Fender, LH
2016-10 → 2019-09 ended
NGX10,50 —
75602-F4010 note Moulding Sub-assy, Front Fender, LH
2019-09 → —
NGX10,50,ZYX10 —
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-F4010 note Moulding Sub-assy, Quarter Outside, RH
2016-10 → 2019-09 ended
NGX10,50 —
75605-F4010 note Moulding Sub-assy, Quarter Outside, RH
2019-09 → —
NGX10,50,ZYX10 —
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-F4010 note Moulding Sub-assy, Quarter Outside, LH
2016-10 → 2019-09 ended
NGX10,50 —
75606-F4010 note Moulding Sub-assy, Quarter Outside, LH
2019-09 → —
NGX10,50,ZYX10 —
75696 — Pad, Body Outside Moulding, NO.1
75696-F4010 Pad, Body Outside Moulding, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75696-F4010 Pad, Body Outside Moulding, NO.1
2019-09 → —
NGX10,50,ZYX10 —
75731A — Moulding, Front Door, Outside RH
75731-F4010 note Moulding, Front Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 —
75731-F4010 note Moulding, Front Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 —
75732A — Moulding, Front Door, Outside LH
75732-F4010 note Moulding, Front Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 —
75732-F4010 note Moulding, Front Door, Outside LH
2019-09 → —
NGX10,50,ZYX10 —
75741 — Moulding, Rear Door, Outside RH
75741-F4010 note Moulding, Rear Door, Outside RH
2016-10 → 2019-09 ended
NGX10,50 —
75741-F4010 note Moulding, Rear Door, Outside RH
2019-09 → —
NGX10,50,ZYX10 —
75742 — Moulding, Rear Door, Outside LH
75742-F4010 note Moulding, Rear Door, Outside LH
2016-10 → 2019-09 ended
NGX10,50 —
75742-F4010 note Moulding, Rear Door, Outside LH
2019-09 → —
NGX10,50,ZYX10 —
75793 — Pad, Front Door Outside Moulding, Upper
75793-F4010 Pad, Front Door Outside Moulding, Upper
2016-10 → 2019-09 ended
NGX10,50 —
75793-F4010 Pad, Front Door Outside Moulding, Upper
2019-09 → —
NGX10,50,ZYX10 —
75797 — Pad, Rear Door Outside Moulding, Upper
75797-F4010 Pad, Rear Door Outside Moulding, Upper
2016-10 → 2019-09 ended
NGX10,50 —
75797-F4010 Pad, Rear Door Outside Moulding, Upper
2019-09 → —
NGX10,50,ZYX10 —
75851 — Moulding, Rocker Panel, RH
75851-F4010 Moulding, Rocker Panel, RH
2016-10 → 2019-09 ended
NGX10,50 —
75851-F4010 Moulding, Rocker Panel, RH
2019-09 → —
NGX10,50,ZYX10 —
75852 — Moulding, Rocker Panel, LH
75852-F4010 Moulding, Rocker Panel, LH
2016-10 → 2019-09 ended
NGX10,50 —
75852-F4010 Moulding, Rocker Panel, LH
2019-09 → —
NGX10,50,ZYX10 —
75861C — Pad, Rocker Panel Moulding
75861-F4010 Pad, Rocker Panel Moulding
2016-10 → 2019-09 ended
NGX10,50 —
75861-F4010 Pad, Rocker Panel Moulding
2019-09 → —
NGX10,50,ZYX10 —
75867A — Clip, Rocker Panel Moulding
75867-68010 Clip, Rocker Panel Moulding
2016-10 → 2019-09 ended
NGX10,50 —
75867-30130 Clip, Rocker Panel Moulding
2020-10 → —
NGX10,50,ZYX10 —
75867-68010 Clip, Rocker Panel Moulding
2019-09 → 2020-09 ended
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
