Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

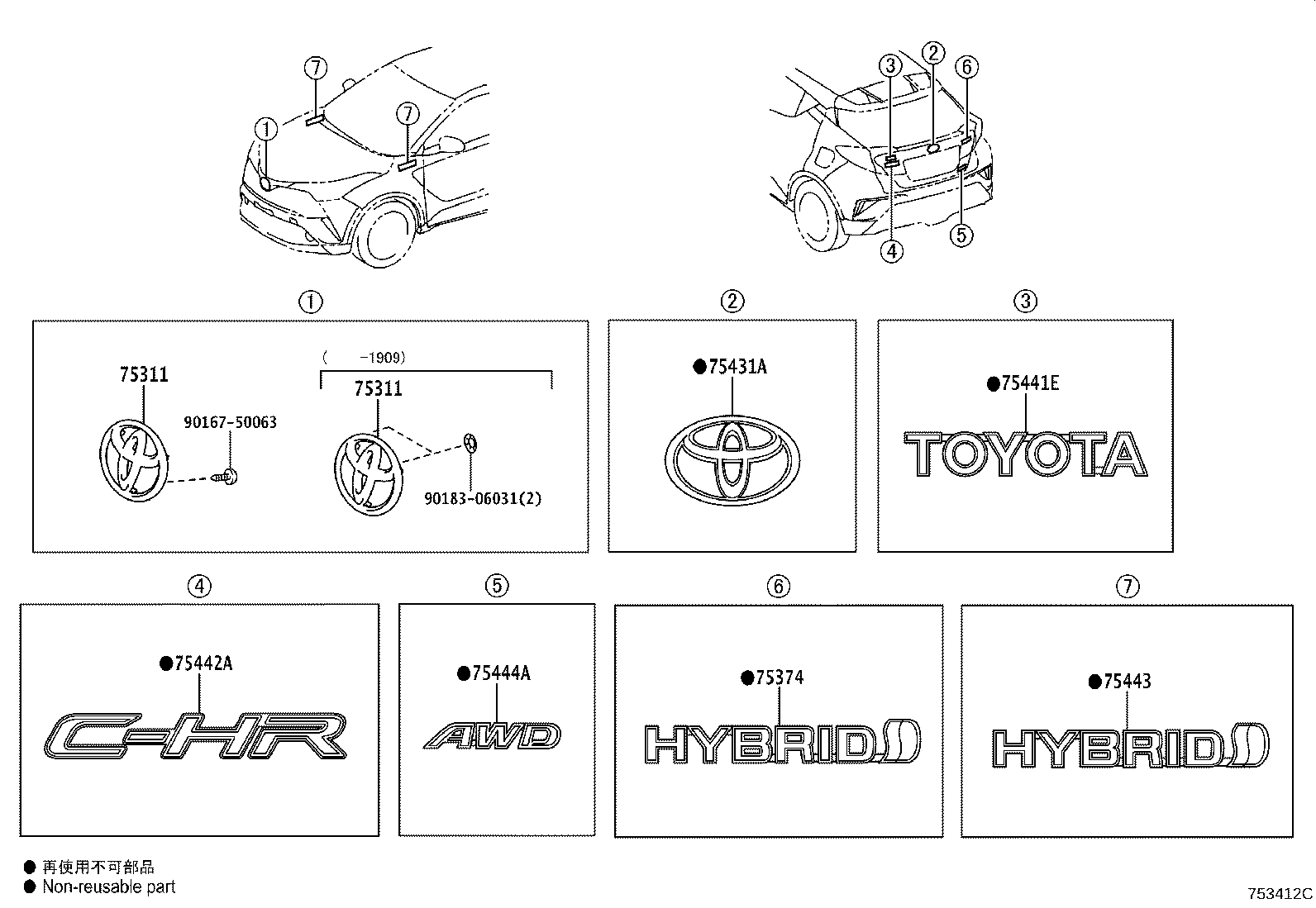

Exploded illustration 753412C 75431A — EMBLEM, BACK DOOR, NO.1 (4 parts) 75441E — PLATE, BACK DOOR NAME, NO.1 (5 parts) 75442A — PLATE, BACK DOOR NAME, NO.2 (3 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (3 parts) 9018306031 — not listed in this catalogue 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 9016750063 — not listed in this catalogue 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75374 — EMBLEM, SIDE PANEL (4 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (2 parts)
753412C · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75301-F4080 Emblem, Radiator Grille (OR FRONT PANEL)
2016-10 → 2019-09 ended
NGX10,50 —
75301-F4040 Emblem, Radiator Grille (OR FRONT PANEL)
2019-09 → —
NGX10,50 —
90975-02160 note Emblem, Radiator Grille (OR FRONT PANEL)
2019-09 → —
NGX10 RHD E —
90975-02161 Emblem, Radiator Grille (OR FRONT PANEL)
2019-09 → —
ZYX10 —
75374 — Emblem, Side Panel
75374-F4010 note Emblem, Side Panel
2019-09 → 2022-09 ended
ZYX10 —
75374-F4011 note Emblem, Side Panel
2022-09 → —
ZYX10 —
75374-F4020 note Emblem, Side Panel
2019-09 → 2022-09 ended
ZYX10 —
75374-F4021 note Emblem, Side Panel
2022-09 → —
ZYX10 —
75431A — Emblem, Back Door, NO.1
90975-W2006 Emblem, Back Door, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75403-F4010 Emblem, Back Door, NO.1
2019-09 → —
ZYX10 —
90975-W2006 Emblem, Back Door, NO.1
2019-09 → 2022-02 ended
NGX10,50 —
90975-W2011 Emblem, Back Door, NO.1
2022-02 → —
NGX10,50 —
75441E — Plate, Back Door Name, NO.1
75441-F4011 note Plate, Back Door Name, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
75441-F4011 note Plate, Back Door Name, NO.1
2019-09 → 2022-02 ended
NGX10,50 —
75441-F4011 note Plate, Back Door Name, NO.1
2019-09 → 2022-02 ended
ZYX10 —
75441-F4021 note Plate, Back Door Name, NO.1
2022-02 → —
NGX10,50 —
75441-F4021 note Plate, Back Door Name, NO.1
2022-02 → —
ZYX10 —
75442A — Plate, Back Door Name, NO.2
75442-F4011 note Plate, Back Door Name, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
75442-F4011 note Plate, Back Door Name, NO.2
2019-09 → 2022-02 ended
NGX10,50,ZYX10 —
75442-F4021 note Plate, Back Door Name, NO.2
2022-02 → —
NGX10,50,ZYX10 —
75443 — Plate, Back Door Name, NO.3
75443-F4021 note Plate, Back Door Name, NO.3
2019-09 → 2022-09 ended
ZYX10 —
75443-F4022 note Plate, Back Door Name, NO.3
2022-09 → —
ZYX10 —
75444A — Plate, Back Door Name, NO.4
75444-F4010 note Plate, Back Door Name, NO.4
2016-10 → 2019-09 ended
NGX50 —
75444-F4010 note Plate, Back Door Name, NO.4
2019-09 → 2022-02 ended
NGX50 —
75444-F4020 note Plate, Back Door Name, NO.4
2022-02 → —
NGX50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
