Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

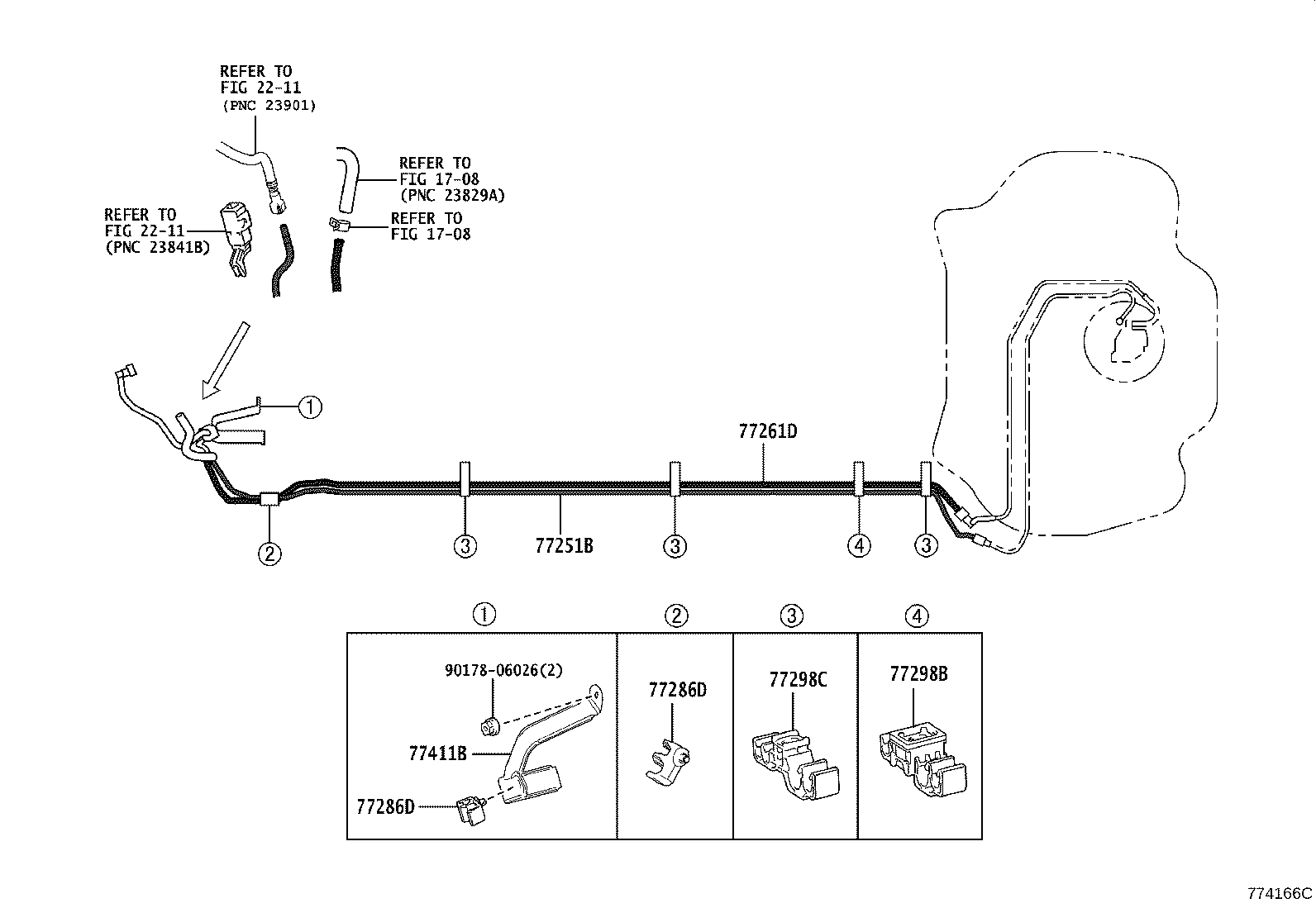

Exploded illustration 774166C 9017806026 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (3 parts) 77261D — TUBE, FUEL TANK TO CANISTER (3 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (2 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (2 parts) 77298B — CLAMP, FUEL TUBE, NO.4 (2 parts) 77298C — CLAMP, FUEL TUBE, NO.4 (3 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (5 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue
774166C · 7 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-F4021 Tube, Fuel Main
2016-10 → 2019-09 ended
NGX10,50 —
77251-F4011 Tube, Fuel Main
2019-09 → —
ZYX10 —
77251-F4021 Tube, Fuel Main
2019-09 → —
NGX10,50 —
77261D — Tube, Fuel Tank TO Canister
77261-F4021 Tube, Fuel Tank TO Canister
2016-10 → 2019-09 ended
NGX10,50 —
77261-F4021 Tube, Fuel Tank TO Canister
2019-09 → —
NGX10,50 —
77261-F4090 Tube, Fuel Tank TO Canister
2019-09 → —
ZYX10 —
77286D — Clamp, Fuel Tube, NO.2
77286-75010 Clamp, Fuel Tube, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
77286-75010 Clamp, Fuel Tube, NO.2
2019-09 → —
NGX10,50 —
77298B — Clamp, Fuel Tube, NO.4
77298-10080 Clamp, Fuel Tube, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
77298-10080 Clamp, Fuel Tube, NO.4
2019-09 → —
NGX10,50 —
77298C — Clamp, Fuel Tube, NO.4
77298-10070 Clamp, Fuel Tube, NO.4
2016-10 → 2019-09 ended
NGX10,50 —
77298-10050 Clamp, Fuel Tube, NO.4
2019-09 → —
ZYX10 —
77298-10070 Clamp, Fuel Tube, NO.4
2019-09 → —
NGX10,50 —
77411B — Support, Fuel Tube Grommet, NO.1
77411-F4030 Support, Fuel Tube Grommet, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
77411-F4040 Support, Fuel Tube Grommet, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
77411-F4020 Support, Fuel Tube Grommet, NO.1
2019-09 → —
ZYX10 —
77411-F4030 Support, Fuel Tube Grommet, NO.1
2019-09 → —
NGX10 RHD —
77411-F4040 Support, Fuel Tube Grommet, NO.1
2019-09 → —
NGX10,50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
