Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

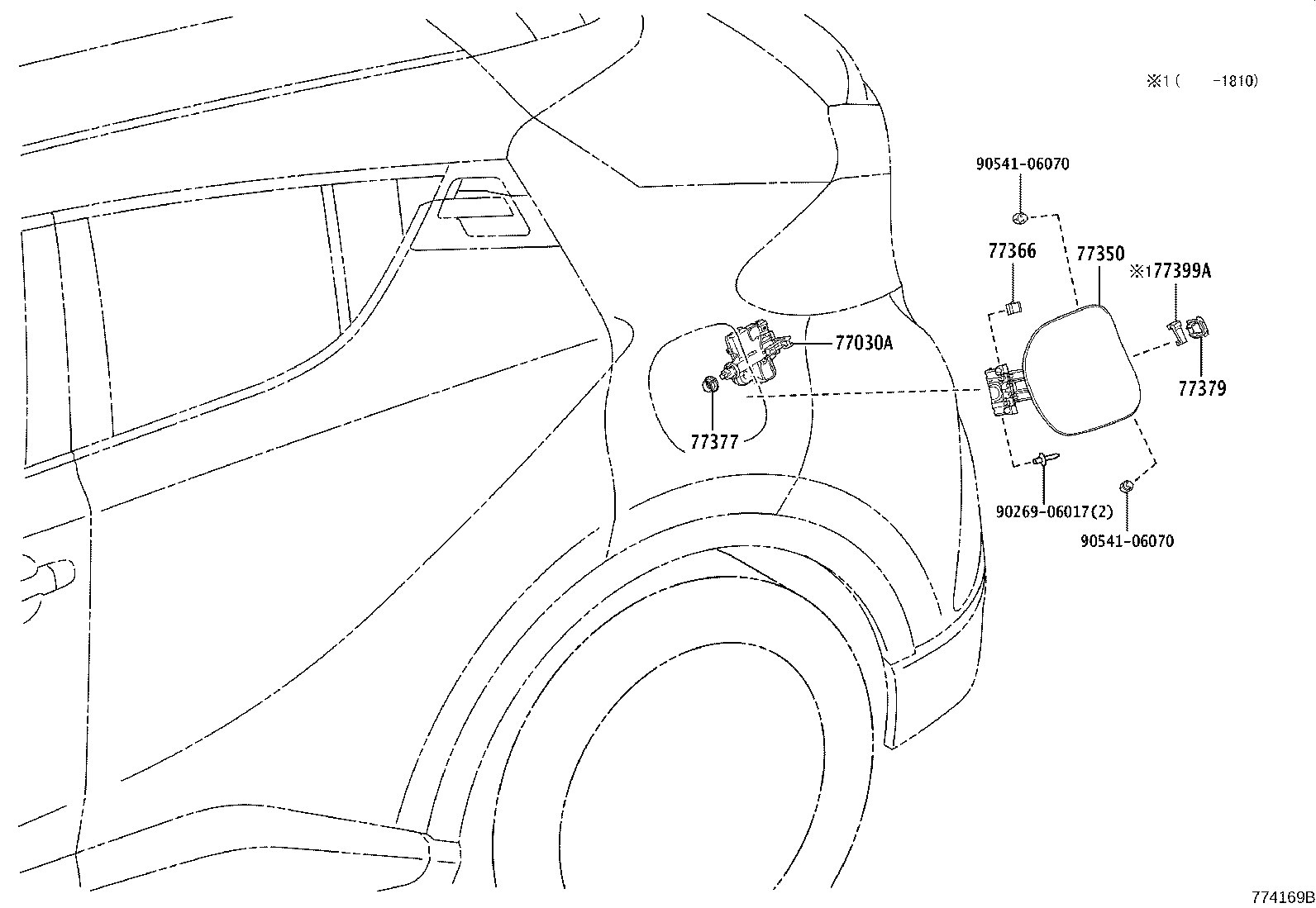

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77030A — Lock Assy, Fuel Lid W/Motor | ||||
| 77030-F4010 |
Lock Assy, Fuel Lid W/Motor
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77030-F4010 |
Lock Assy, Fuel Lid W/Motor
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-F4010 |
Lid Assy, Fuel Filler Opening
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77350-F4010 |
Lid Assy, Fuel Filler Opening
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-78010 |
Retainer, Fuel Filler Opening Lid Lock
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77377-78010 |
Retainer, Fuel Filler Opening Lid Lock
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77379 — Spacer, Fuel Inlet Box Cover, NO.2 | ||||
| 77379-10010 |
Spacer, Fuel Inlet Box Cover, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77379-10010 |
Spacer, Fuel Inlet Box Cover, NO.2
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77399A — Cover, Fuel Filler Opening Lid | ||||
| 77399-F4010 |
Cover, Fuel Filler Opening Lid
2016-10 → 2018-10
ended
|
NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
