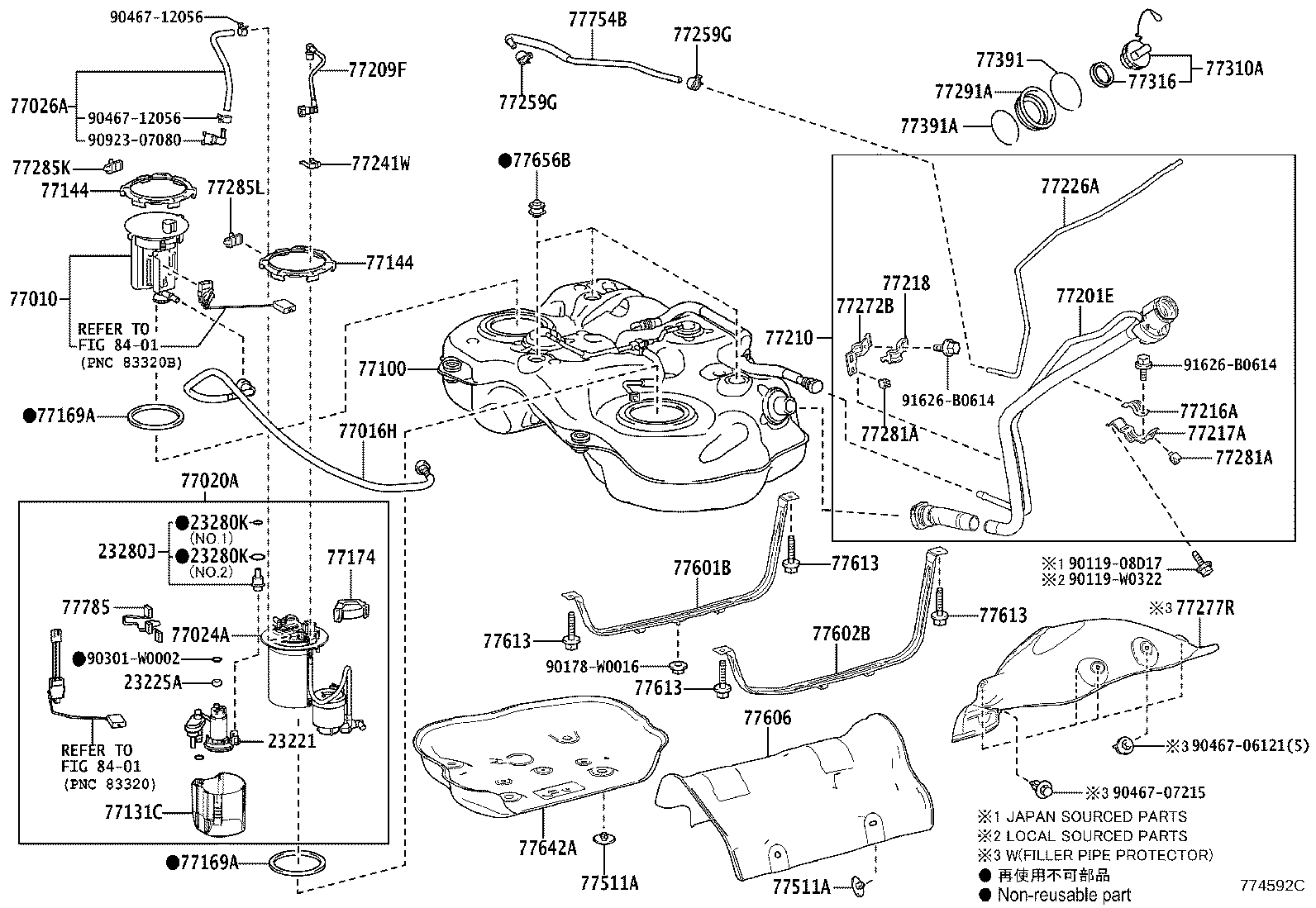

Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23221 — Pump, Fuel | ||||
| 23220-0Y090 |
Pump, Fuel
2016-10 → 2019-09
ended
|
8NRFTS NGX10 | — | |
| 23220-0Y100 |
Pump, Fuel
2016-10 → 2019-09
ended
|
8NRFTS NGX50 | — | |
| 23210-0T010 |
Pump, Fuel
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23220-0Y090 |
Pump, Fuel
2019-09 → —
|
8NRFTS NGX10 | — | |
| 23220-0Y100 |
Pump, Fuel
2019-09 → —
|
8NRFTS NGX50 | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-0T010 |
Spacer, Fuel Pump
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23225-0T010 |
Spacer, Fuel Pump
2019-09 → —
|
8NRFTS,2ZRFXE NGX10,50,ZYX10 | — | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-36020 |
Regulator Assy, Fuel Pressure
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2019-09 → —
|
2ZRFXE ZYX10 | — | |
| 23280-36020 |
Regulator Assy, Fuel Pressure
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2019-09 → —
|
8NRFTS,2ZRFXE NGX10,50,ZYX10 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2019-09 → —
|
8NRFTS,2ZRFXE NGX10,50,ZYX10 | — | |
| 77010 — Tube Assy, Fuel Tank Vent | ||||
| 77010-F4010 |
Tube Assy, Fuel Tank Vent
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77010-F4010 |
Tube Assy, Fuel Tank Vent
2019-09 → —
|
NGX50 | — | |
| 77016H — Tube Sub-assy, Fuel Return Vent | ||||
| 77016-F4010 |
Tube Sub-assy, Fuel Return Vent
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77016-F4010 |
Tube Sub-assy, Fuel Return Vent
2019-09 → —
|
NGX50 | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-F4020 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77020-F4050 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77020-02C21 |
Tube Assy, Fuel Suction W/Pump & Gage
2019-09 → —
|
ZYX10 | — | |
| 77020-F4020 |
Tube Assy, Fuel Suction W/Pump & Gage
2019-09 → —
|
NGX10 | — | |
| 77020-F4050 |
Tube Assy, Fuel Suction W/Pump & Gage
2019-09 → —
|
NGX50 | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-F4010 |
Plate Sub-assy, Fuel Suction
2016-10 → 2018-06
ended
|
NGX10 | — | |
| 77024-F4020 |
Plate Sub-assy, Fuel Suction
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77024-F4050 |
Plate Sub-assy, Fuel Suction
2018-07 → 2019-09
ended
|
NGX10 | — | |
| 77024-02570 |
Plate Sub-assy, Fuel Suction
2019-09 → —
|
ZYX10 | — | |
| 77024-F4020 |
Plate Sub-assy, Fuel Suction
2019-09 → —
|
NGX50 | — | |
| 77024-F4050 |
Plate Sub-assy, Fuel Suction
2019-09 → —
|
NGX10 | — | |
| 77026A — Tube Sub-assy, Fuel Evaporation, NO.1 | ||||
| 77026-F4010 |
Tube Sub-assy, Fuel Evaporation, NO.1
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77026-F4020 |
Tube Sub-assy, Fuel Evaporation, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77026-02150 |
Tube Sub-assy, Fuel Evaporation, NO.1
2019-09 → —
|
ZYX10 | — | |
| 77026-F4010 |
Tube Sub-assy, Fuel Evaporation, NO.1
2019-09 → —
|
NGX10 | — | |
| 77026-F4020 |
Tube Sub-assy, Fuel Evaporation, NO.1
2019-09 → —
|
NGX50 | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-F4020 |
Tank Assy, Fuel
2016-10 → 2018-05
ended
|
NGX10 | — | |
| 77001-F4040 |
Tank Assy, Fuel
2016-10 → 2018-05
ended
|
NGX50 | — | |
| 77001-F4090 |
Tank Assy, Fuel
2018-05 → 2018-07
ended
|
NGX10 | — | |
| 77001-F4091 |
Tank Assy, Fuel
2018-08 → 2019-09
ended
|
NGX10 | — | |
| 77001-F4110 |
Tank Assy, Fuel
2018-05 → 2019-09
ended
|
NGX50 | — | |
| 77001-F4091 |
Tank Assy, Fuel
2019-09 → 2023-06
ended
|
NGX10 | — | |
| 77001-F4092 |
Tank Assy, Fuel
2023-07 → —
|
NGX10 | — | |
| 77001-F4100 |
Tank Assy, Fuel
2019-09 → 2023-06
ended
|
ZYX10 | — | |
| 77001-F4101 |
Tank Assy, Fuel
2023-07 → —
|
ZYX10 | — | |
| 77001-F4110 |
Tank Assy, Fuel
2019-09 → —
|
NGX50 | — | |
| 77131C — Sub-tank, Fuel, NO.1 | ||||
| 77131-F4010 |
Sub-tank, Fuel, NO.1
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77131-F4020 |
Sub-tank, Fuel, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77103-02100 |
Sub-tank, Fuel, NO.1
2019-09 → 2020-12
ended
|
ZYX10 | — | |
| 77103-K0040 |
Sub-tank, Fuel, NO.1
2020-12 → —
|
ZYX10 | — | |
| 77131-F4010 |
Sub-tank, Fuel, NO.1
2019-09 → —
|
NGX10 | — | |
| 77131-F4020 |
Sub-tank, Fuel, NO.1
2019-09 → —
|
NGX50 | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-F4010 |
Retainer, Fuel Pump Gauge
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77144-F4010 |
Retainer, Fuel Pump Gauge
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77144-F4010 |
Retainer, Fuel Pump Gauge
2019-09 → —
|
NGX10,ZYX10 | — | |
| 77144-F4010 |
Retainer, Fuel Pump Gauge
2019-09 → —
|
NGX50 | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-F4010 |
Gasket, Fuel Suction Tube Set
2016-10 → 2018-05
ended
|
NGX10 | — | |
| 77169-F4010 |
Gasket, Fuel Suction Tube Set
2016-10 → 2018-05
ended
|
NGX50 | — | |
| 77169-F4050 |
Gasket, Fuel Suction Tube Set
2018-05 → 2019-09
ended
|
NGX10 | — | |
| 77169-F4050 |
Gasket, Fuel Suction Tube Set
2018-05 → 2019-09
ended
|
NGX50 | — | |
| 77169-F4050 |
Gasket, Fuel Suction Tube Set
2019-09 → —
|
NGX10,ZYX10 | — | |
| 77169-F4050 |
Gasket, Fuel Suction Tube Set
2019-09 → —
|
NGX50 | — | |
| 77174 — Support, Fuel Suction, NO.1 | ||||
| 77174-05010 |
Support, Fuel Suction, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77174-05010 |
Support, Fuel Suction, NO.1
2019-09 → —
|
NGX10,50 | — | |
| 77201E — Pipe Sub-assy, Fuel Tank Filler | ||||
| 77201-F4030 |
Pipe Sub-assy, Fuel Tank Filler
2016-10 → 2018-05
ended
|
NGX50 | — | |
| 77201-F4070 |
Pipe Sub-assy, Fuel Tank Filler
2018-05 → 2019-09
ended
|
NGX50 | — | |
| 77201-F4070 |
Pipe Sub-assy, Fuel Tank Filler
2019-09 → —
|
NGX50 N | — | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-F4020 |
Tube Sub-assy, Fuel Tank Main
2016-10 → 2018-05
ended
|
NGX10 | — | |
| 77209-F4040 |
Tube Sub-assy, Fuel Tank Main
2016-10 → 2018-05
ended
|
NGX50 | — | |
| 77209-F4110 |
Tube Sub-assy, Fuel Tank Main
2018-05 → 2019-09
ended
|
NGX10 | — | |
| 77209-F4130 |
Tube Sub-assy, Fuel Tank Main
2018-05 → 2019-09
ended
|
NGX50 | — | |
| 77209-02380 |
Tube Sub-assy, Fuel Tank Main
2019-09 → —
|
ZYX10 | — | |
| 77209-F4110 |
Tube Sub-assy, Fuel Tank Main
2019-09 → —
|
NGX10 | — | |
| 77209-F4130 |
Tube Sub-assy, Fuel Tank Main
2019-09 → —
|
NGX50 | — | |
| 77210 — Pipe Assy, Fuel Tank Filler | ||||
| 77210-F4020 |
Pipe Assy, Fuel Tank Filler
2016-10 → 2018-05
ended
|
NGX10 | — | |
| 77210-F4080 |
Pipe Assy, Fuel Tank Filler
2018-05 → 2019-03
ended
|
NGX10 | — | |
| 77210-F4090 |
Pipe Assy, Fuel Tank Filler
2018-05 → 2019-09
ended
|
NGX50 | — | |
| 77210-F4110 |
Pipe Assy, Fuel Tank Filler
2019-04 → 2019-09
ended
|
NGX10 | — | |
| 77210-F4081 |
Pipe Assy, Fuel Tank Filler
2019-09 → 2021-04
ended
|
NGX10,ZYX10 D,N | — | |
| 77210-F4090 |
Pipe Assy, Fuel Tank Filler
2019-09 → —
|
NGX50 | — | |
| 77210-F4110 |
Pipe Assy, Fuel Tank Filler
2021-04 → —
|
NGX10,ZYX10 D,N | — | |
| 77210-F4110 |
Pipe Assy, Fuel Tank Filler
2019-09 → —
|
NGX10,ZYX10 E | — | |
| 77216A — Support, Fuel Tank Filler Pipe, NO.1 | ||||
| 77216-F4010 |
Support, Fuel Tank Filler Pipe, NO.1
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77216-F4020 |
Support, Fuel Tank Filler Pipe, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77216-F4010 |
Support, Fuel Tank Filler Pipe, NO.1
2019-09 → —
|
NGX10,ZYX10 | — | |
| 77216-F4020 |
Support, Fuel Tank Filler Pipe, NO.1
2019-09 → —
|
NGX50 N | — | |
| 77217A — Support, Fuel Tank Filler Pipe, NO.2 | ||||
| 77217-F4020 |
Support, Fuel Tank Filler Pipe, NO.2
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77217-F4020 |
Support, Fuel Tank Filler Pipe, NO.2
2019-09 → —
|
NGX50 N | — | |
| 77218 — Plate, Fuel Inlet Pipe Set | ||||
| 77218-F4020 |
Plate, Fuel Inlet Pipe Set
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77218-F4020 |
Plate, Fuel Inlet Pipe Set
2019-09 → —
|
NGX50 N | — | |
| 77226A — Tube, Fuel Tank Breather, NO.6 | ||||
| 77226-F4020 |
Tube, Fuel Tank Breather, NO.6
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77226-F4040 |
Tube, Fuel Tank Breather, NO.6
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77226-F4020 |
Tube, Fuel Tank Breather, NO.6
2019-09 → —
|
NGX10,ZYX10 | — | |
| 77226-F4040 |
Tube, Fuel Tank Breather, NO.6
2019-09 → —
|
NGX50 N | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-32060 |
Clip, Tube Joint
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77241-32060 |
Clip, Tube Joint
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77259G — Clip, Fuel Hose | ||||
| 90466-W0006 |
Clip, Fuel Hose
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90466-W0006 |
Clip, Fuel Hose
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77272B — Support, Breather Tube, NO.1 | ||||
| 77272-F4020 |
Support, Breather Tube, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77272-F4020 |
Support, Breather Tube, NO.1
2019-09 → —
|
NGX50 N | — | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-F4010 |
Protector, Fuel Tank Filler Pipe
2016-10 → 2019-09
ended
|
NGX10,50 D,N | — | |
| 77277-F4010 |
Protector, Fuel Tank Filler Pipe
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 77281A — Clamp, Fuel Filler Pipe | ||||
| 77281-30110 |
Clamp, Fuel Filler Pipe
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77281-30110 |
Clamp, Fuel Filler Pipe
2019-09 → —
|
NGX50 N | — | |
| 77285K — Clamp, Fuel Tube, NO.1 | ||||
| 77285-10060 |
Clamp, Fuel Tube, NO.1
2016-10 → 2018-11
ended
|
NGX10 | — | |
| 77285-30350 |
Clamp, Fuel Tube, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77285-30350 |
Clamp, Fuel Tube, NO.1
2018-12 → 2019-09
ended
|
NGX10 | — | |
| 77285-30350 |
Clamp, Fuel Tube, NO.1
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77285L — Clamp, Fuel Tube, NO.1 | ||||
| 77285-10070 |
Clamp, Fuel Tube, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77285-10070 |
Clamp, Fuel Tube, NO.1
2019-09 → —
|
NGX50 | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-F4010 |
Shield, Fuel Tank Filler Pipe
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77291-F4010 |
Shield, Fuel Tank Filler Pipe
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-12020 |
Cap Assy, Fuel Tank
2016-10 → 2018-04
ended
|
NGX10,50 | — | |
| 77300-48020 |
Cap Assy, Fuel Tank
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 77300-48020 |
Cap Assy, Fuel Tank
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2016-10 → 2018-05
ended
|
NGX10,50 | — | |
| 77316-75020 |
Gasket, Fuel Tank Cap
2018-05 → 2019-09
ended
|
NGX10,50 | — | |
| 77316-75020 |
Gasket, Fuel Tank Cap
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-75010 |
Ring, Fuel Inlet Box
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77391-75010 |
Ring, Fuel Inlet Box
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 77511A — Bracket, Fuel Tank | ||||
| 77512-35140 |
Bracket, Fuel Tank
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77512-35140 |
Bracket, Fuel Tank
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77512-35140 |
Bracket, Fuel Tank
2019-09 → —
|
NGX10,ZYX10 | — | |
| 77512-35140 |
Bracket, Fuel Tank
2019-09 → —
|
NGX50 | — | |
| 77601B — Band Sub-assy, Fuel Tank, NO.1 RH | ||||
| 77601-F4010 |
Band Sub-assy, Fuel Tank, NO.1 RH
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77601-F4020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77601-F4010 |
Band Sub-assy, Fuel Tank, NO.1 RH
2019-09 → —
|
NGX10 | — | |
| 77601-F4020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2019-09 → —
|
NGX50 | — | |
| 77602B — Band Sub-assy, Fuel Tank, NO.1 LH | ||||
| 77602-F4010 |
Band Sub-assy, Fuel Tank, NO.1 LH
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77602-F4020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77602-F4010 |
Band Sub-assy, Fuel Tank, NO.1 LH
2019-09 → —
|
NGX10 | — | |
| 77602-F4020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2019-09 → —
|
NGX50 | — | |
| 77606 — Protector Sub-assy, Fuel Tank, NO.1 | ||||
| 77606-F4010 |
Protector Sub-assy, Fuel Tank, NO.1
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77606-F4020 |
Protector Sub-assy, Fuel Tank, NO.1
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77606-F4010 |
Protector Sub-assy, Fuel Tank, NO.1
2019-09 → —
|
NGX50 | — | |
| 77606-F4020 |
Protector Sub-assy, Fuel Tank, NO.1
2019-09 → —
|
NGX10 | — | |
| 77613 — Bolt, Fuel Tank Band Set | ||||
| 90119-10995 note |
Bolt, Fuel Tank Band Set
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90119-W0120 note |
Bolt, Fuel Tank Band Set
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90119-10995 note |
Bolt, Fuel Tank Band Set
2019-09 → —
|
NGX10,50 | — | |
| 90119-W0120 note |
Bolt, Fuel Tank Band Set
2019-09 → —
|
NGX10,50 | — | |
| 77642A — Protector, Fuel Tank, NO.2 | ||||
| 77642-F4010 |
Protector, Fuel Tank, NO.2
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77642-F4010 |
Protector, Fuel Tank, NO.2
2019-09 → —
|
NGX50 | — | |
| 77656B — Cushion, Fuel Tank, NO.6 | ||||
| 77656-30030 |
Cushion, Fuel Tank, NO.6
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77656-30030 |
Cushion, Fuel Tank, NO.6
2019-09 → —
|
NGX50 | — | |
| 77754B — Hose, Charcoal Canister Outlet | ||||
| 77754-F4010 |
Hose, Charcoal Canister Outlet
2016-10 → 2019-09
ended
|
NGX10 | — | |
| 77754-F4020 |
Hose, Charcoal Canister Outlet
2016-10 → 2019-09
ended
|
NGX50 | — | |
| 77754-02190 |
Hose, Charcoal Canister Outlet
2019-09 → —
|
ZYX10 | — | |
| 77754-F4010 |
Hose, Charcoal Canister Outlet
2019-09 → —
|
NGX10 | — | |
| 77754-F4020 |
Hose, Charcoal Canister Outlet
2019-09 → —
|
NGX50 | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-02081 note |
Harness, Fuel Pump
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77785-12010 note |
Harness, Fuel Pump
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77785-02081 note |
Harness, Fuel Pump
2019-09 → —
|
NGX10,50 | — | |
| 77785-02160 |
Harness, Fuel Pump
2019-09 → —
|
ZYX10 | — | |
| 77785-12010 note |
Harness, Fuel Pump
2019-09 → —
|
NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
