Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

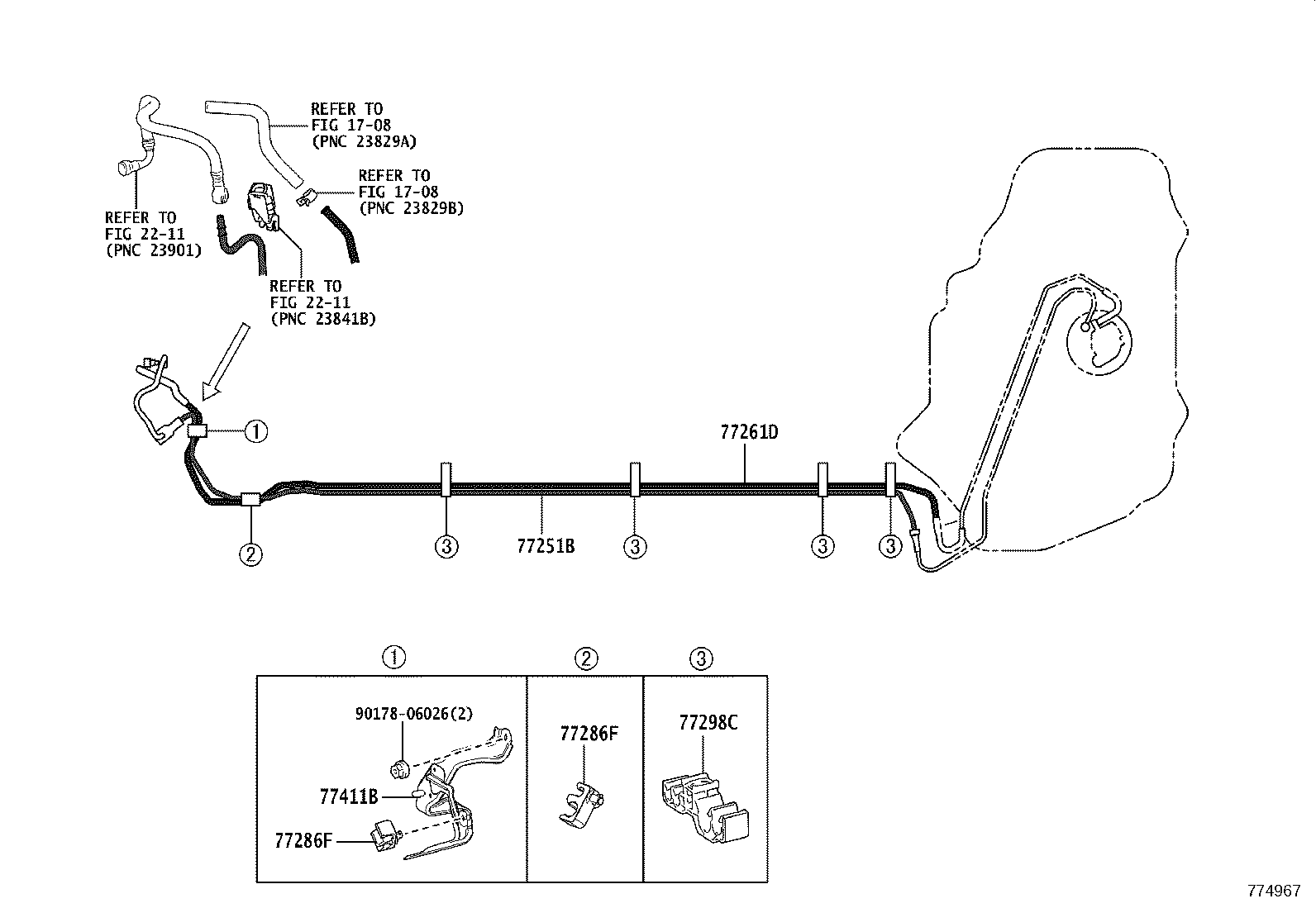

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-F4021 |
Tube, Fuel Main
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77251-F4011 |
Tube, Fuel Main
2019-09 → —
|
ZYX10 | — | |
| 77251-F4021 |
Tube, Fuel Main
2019-09 → —
|
NGX10,50 | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-F4021 |
Tube, Fuel Tank TO Canister
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77261-F4021 |
Tube, Fuel Tank TO Canister
2019-09 → —
|
NGX10,50 | — | |
| 77261-F4090 |
Tube, Fuel Tank TO Canister
2019-09 → —
|
ZYX10 | — | |
| 77286F — Clamp, Fuel Tube, NO.2 | ||||
| 77286-78040 |
Clamp, Fuel Tube, NO.2
2019-09 → —
|
ZYX10 | — | |
| 77298C — Clamp, Fuel Tube, NO.4 | ||||
| 77298-10070 |
Clamp, Fuel Tube, NO.4
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 77298-10050 |
Clamp, Fuel Tube, NO.4
2019-09 → —
|
ZYX10 | — | |
| 77298-10070 |
Clamp, Fuel Tube, NO.4
2019-09 → —
|
NGX10,50 | — | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77411-F4030 |
Support, Fuel Tube Grommet, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 77411-F4040 |
Support, Fuel Tube Grommet, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 77411-F4020 |
Support, Fuel Tube Grommet, NO.1
2019-09 → —
|
ZYX10 | — | |
| 77411-F4030 |
Support, Fuel Tube Grommet, NO.1
2019-09 → —
|
NGX10 RHD | — | |
| 77411-F4040 |
Support, Fuel Tube Grommet, NO.1
2019-09 → —
|
NGX10,50 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
