Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

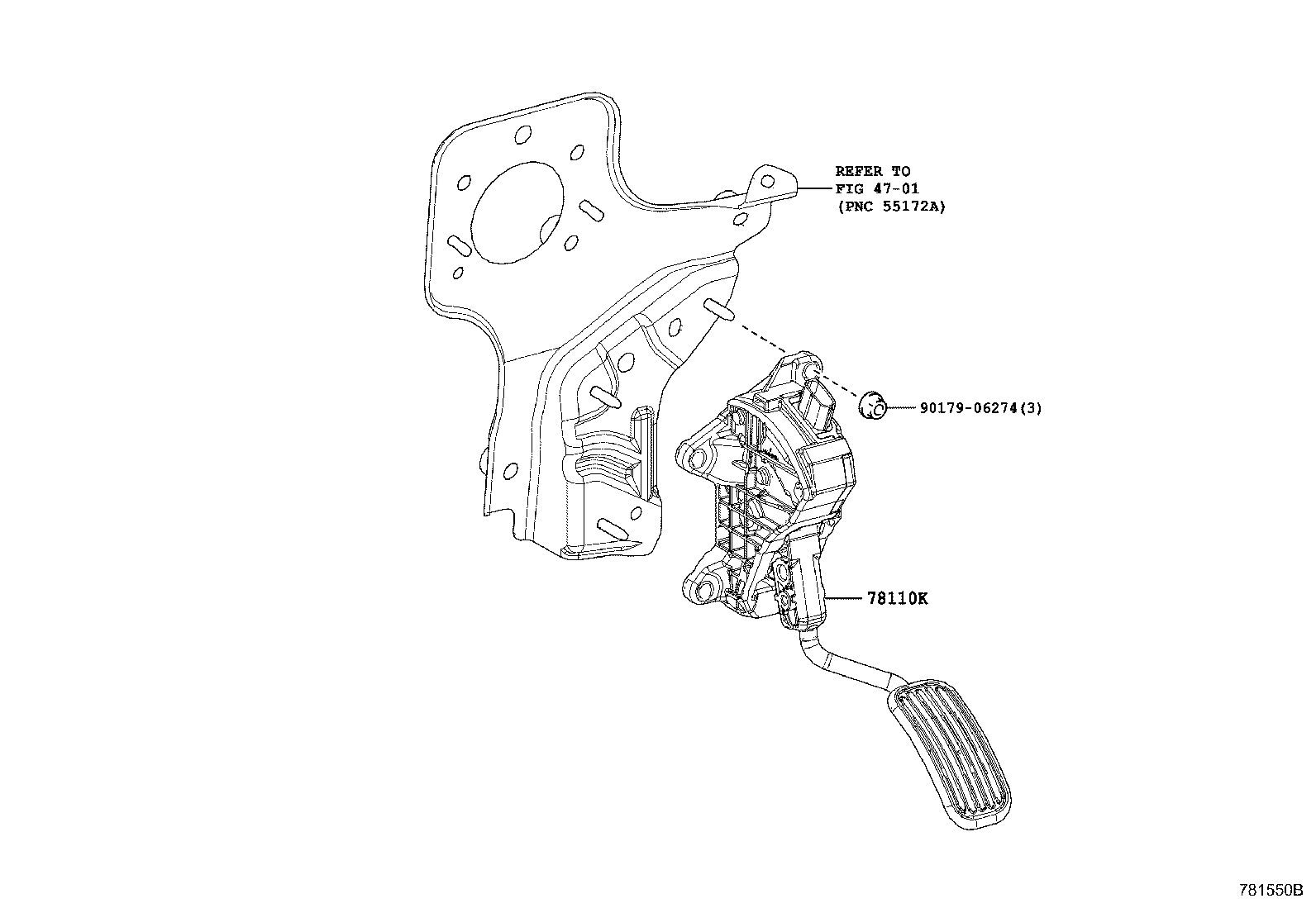

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-F4010 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2016-10 → 2018-08
ended
|
NGX10,50 LHD | — | |
| 78110-F4011 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2018-09 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 78110-F4030 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2016-10 → 2018-11
ended
|
NGX10,50 RHD | — | |
| 78110-F4031 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2018-12 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 78110-F4011 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2019-09 → 2019-10
ended
|
NGX10,50,ZYX10 LHD | — | |
| 78110-F4012 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2019-11 → —
|
NGX10,50,ZYX10 LHD | — | |
| 78110-F4031 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2019-09 → 2019-10
ended
|
NGX10 RHD | — | |
| 78110-F4032 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2019-11 → —
|
NGX10 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
