Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

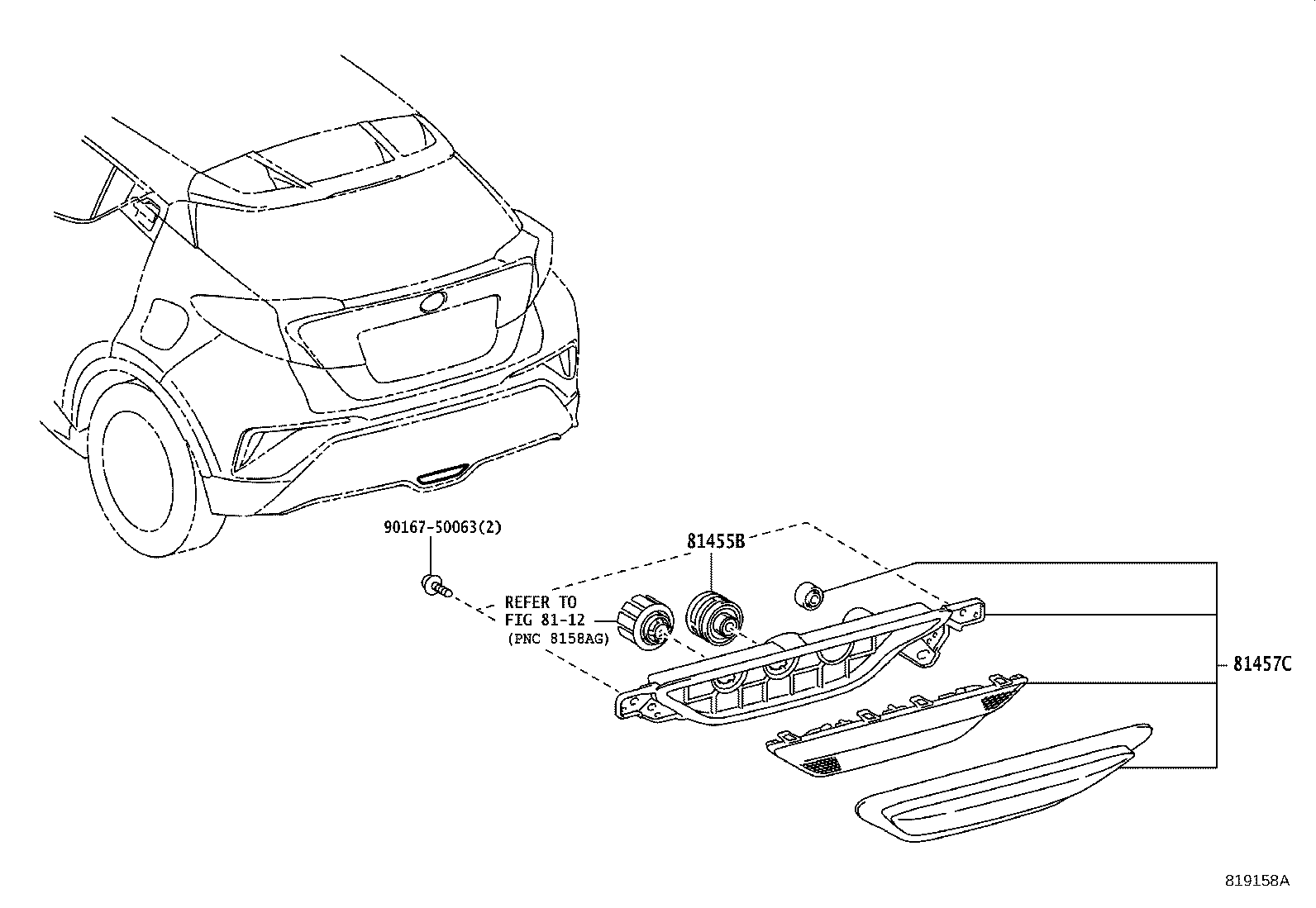

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81455B — Led, Rear Fog Lamp | ||||
| 81455-F4040 note |
Led, Rear Fog Lamp
2019-09 → 2023-09
ended
|
NGX10,50 E | — | |
| 81455-F4040 note |
Led, Rear Fog Lamp
2019-09 → 2023-09
ended
|
NGX10 RHD E | — | |
| 81457C — Lens & Body, Rear Fog Lamp | ||||
| 81457-F4050 note |
Lens & Body, Rear Fog Lamp
2019-09 → 2023-03
ended
|
NGX10,50 E | — | |
| 81457-F4050 note |
Lens & Body, Rear Fog Lamp
2019-09 → 2023-03
ended
|
NGX10 RHD E | — | |
| 81457-F4051 note |
Lens & Body, Rear Fog Lamp
2023-03 → 2023-09
ended
|
NGX10,50 E | — | |
| 81457-F4051 note |
Lens & Body, Rear Fog Lamp
2023-03 → 2023-09
ended
|
NGX10 RHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
