Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

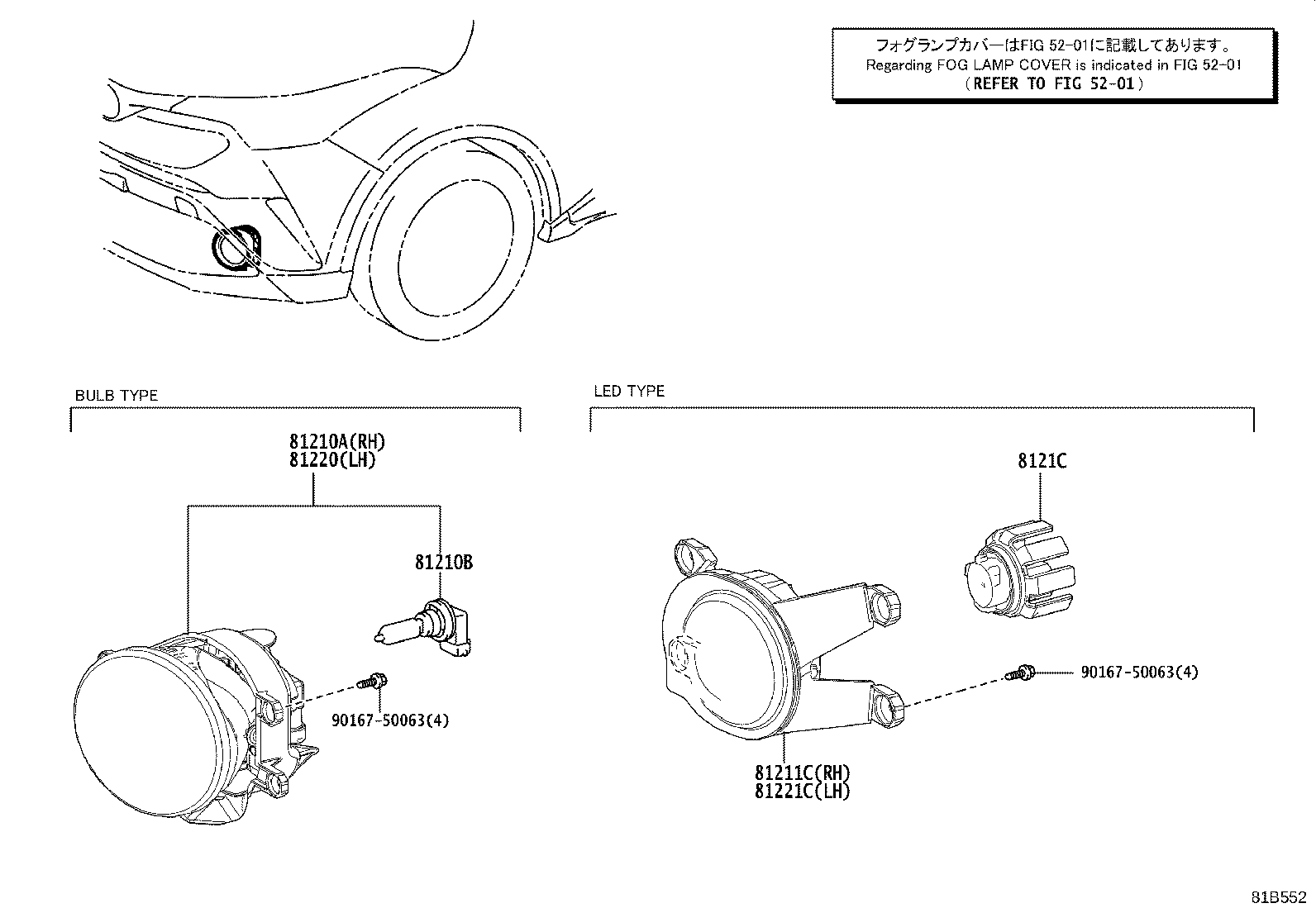

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210A — Lamp Assy, Fog, RH | ||||
| 81210-02110 |
Lamp Assy, Fog, RH
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 81210-48051 note |
Lamp Assy, Fog, RH
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 81210-02110 |
Lamp Assy, Fog, RH
2019-09 → —
|
NGX10,50 E,N | — | |
| 81210-02190 |
Lamp Assy, Fog, RH
2019-09 → 2022-12
ended
|
ZYX10 E | — | |
| 81210-02190 note |
Lamp Assy, Fog, RH
2019-09 → 2022-12
ended
|
NGX10,50 E | — | |
| 81210-02190 note |
Lamp Assy, Fog, RH
2019-09 → 2022-12
ended
|
NGX10 RHD E | — | |
| 81210B — Bulb, Fog Lamp | ||||
| 90981-WD016 note |
Bulb, Fog Lamp
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2019-09 → —
|
NGX10,50 E,N | — | |
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-02190 |
Lamp Unit, Fog Lamp, RH
2023-01 → —
|
ZYX10 E | — | |
| 81211-02190 note |
Lamp Unit, Fog Lamp, RH
2023-01 → —
|
NGX10,50 E | — | |
| 81211-02190 note |
Lamp Unit, Fog Lamp, RH
2023-01 → —
|
NGX10 RHD E | — | |
| 8121C — Led, Fog Lamp | ||||
| 8121C-02190 |
Led, Fog Lamp
2023-01 → —
|
ZYX10 E | — | |
| 8121C-02190 note |
Led, Fog Lamp
2023-01 → —
|
NGX10 RHD E | — | |
| 8121C-02190 note |
Led, Fog Lamp
2023-01 → —
|
NGX10,50 E | — | |
| 81220 — Lamp Assy, Fog, LH | ||||
| 81220-02110 |
Lamp Assy, Fog, LH
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 81220-48051 note |
Lamp Assy, Fog, LH
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 81220-02110 |
Lamp Assy, Fog, LH
2019-09 → —
|
NGX10,50 E,N | — | |
| 81220-02190 |
Lamp Assy, Fog, LH
2019-09 → 2022-12
ended
|
ZYX10 E | — | |
| 81220-02190 note |
Lamp Assy, Fog, LH
2019-09 → 2022-12
ended
|
NGX10,50 E | — | |
| 81220-02190 note |
Lamp Assy, Fog, LH
2019-09 → 2022-12
ended
|
NGX10 RHD E | — | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-02190 |
Lamp Unit, Fog Lamp, LH
2023-01 → —
|
ZYX10 E | — | |
| 81221-02190 note |
Lamp Unit, Fog Lamp, LH
2023-01 → —
|
NGX10,50 E | — | |
| 81221-02190 note |
Lamp Unit, Fog Lamp, LH
2023-01 → —
|
NGX10 RHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
