Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

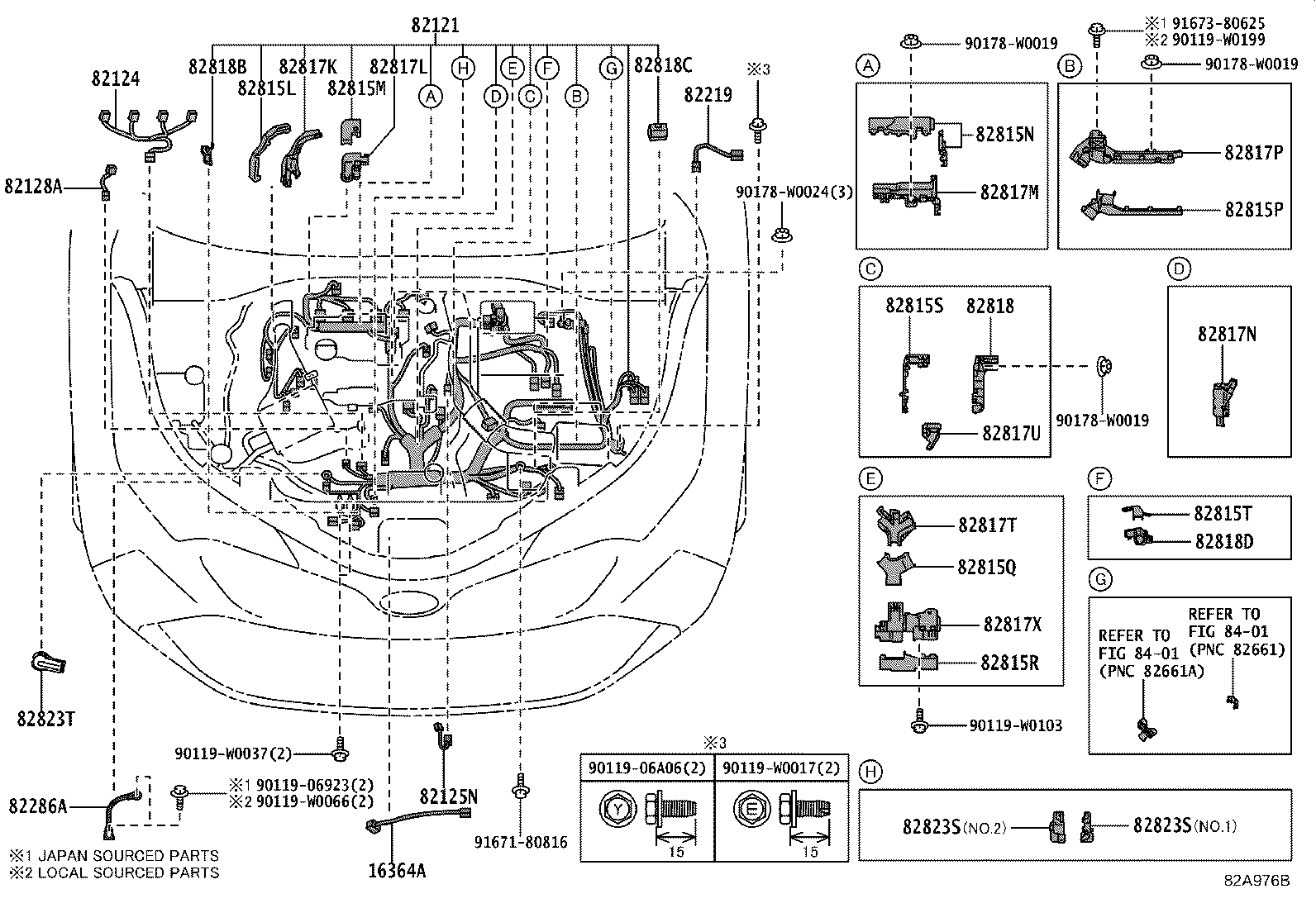

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16364A — Wire, Cooling Fan | ||||
| 16364-0Y010 |
Wire, Cooling Fan
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 16364-0Y010 |
Wire, Cooling Fan
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 82121 — Wire, Engine | ||||
| 82121-F4010 |
Wire, Engine
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 82121-F4030 |
Wire, Engine
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 82121-F4260 |
Wire, Engine
2019-09 → 2020-10
ended
|
NGX10,50 CVT | — | |
| 82121-F4270 |
Wire, Engine
2019-09 → 2020-10
ended
|
NGX10 6F | — | |
| 82121-F4290 |
Wire, Engine
2019-09 → 2020-10
ended
|
ZYX10 | — | |
| 82121-F4380 |
Wire, Engine
2020-10 → —
|
NGX10,50 CVT | — | |
| 82121-F4390 |
Wire, Engine
2020-10 → —
|
NGX10 6F | — | |
| 82121-F4420 |
Wire, Engine
2020-10 → —
|
ZYX10 | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-12170 |
Wire, Engine, NO.4
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82124-02090 note |
Wire, Engine, NO.4
2019-09 → —
|
ZYX10 | — | |
| 82124-12160 note |
Wire, Engine, NO.4
2019-09 → —
|
ZYX10 | — | |
| 82124-12170 |
Wire, Engine, NO.4
2019-09 → —
|
NGX10,50 | — | |
| 82125N — Wire, Engine, NO.5 | ||||
| 82125-12610 |
Wire, Engine, NO.5
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82125-12610 |
Wire, Engine, NO.5
2019-09 → —
|
NGX10,50 | — | |
| 82128A — Wire, Engine, NO.8 | ||||
| 82128-12010 |
Wire, Engine, NO.8
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82128-12010 |
Wire, Engine, NO.8
2019-09 → —
|
NGX10,50 | — | |
| 82219 — Wire, Thermo Sensor | ||||
| 82219-12130 |
Wire, Thermo Sensor
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82219-12130 |
Wire, Thermo Sensor
2019-09 → —
|
NGX10,50 | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-F4010 |
Wire, Earth, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82286-F4010 |
Wire, Earth, NO.2
2019-09 → —
|
NGX10,50 | — | |
| 82286-F4030 |
Wire, Earth, NO.2
2019-09 → —
|
ZYX10 | — | |
| 82815L — Cover, Wiring Harness Protector, NO.9 | ||||
| 82815-02700 |
Cover, Wiring Harness Protector, NO.9
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-02700 |
Cover, Wiring Harness Protector, NO.9
2019-09 → —
|
NGX10,50 | — | |
| 82815-47D80 |
Cover, Wiring Harness Protector, NO.9
2019-09 → —
|
ZYX10 | — | |
| 82815M — Cover, Wiring Harness Protector, NO.10 | ||||
| 82815-02710 |
Cover, Wiring Harness Protector, NO.10
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-02710 |
Cover, Wiring Harness Protector, NO.10
2019-09 → —
|
NGX10,50 | — | |
| 82815-47E00 |
Cover, Wiring Harness Protector, NO.10
2019-09 → —
|
ZYX10 | — | |
| 82815N — Cover, Wiring Harness Protector, NO.11 | ||||
| 82815-02720 |
Cover, Wiring Harness Protector, NO.11
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-02720 |
Cover, Wiring Harness Protector, NO.11
2019-09 → —
|
NGX10,50 | — | |
| 82815-47E10 |
Cover, Wiring Harness Protector, NO.11
2019-09 → —
|
ZYX10 | — | |
| 82815P — Cover, Wiring Harness Protector, NO.12 | ||||
| 82815-F4010 |
Cover, Wiring Harness Protector, NO.12
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-47E20 |
Cover, Wiring Harness Protector, NO.12
2019-09 → —
|
ZYX10 | — | |
| 82815-F4010 |
Cover, Wiring Harness Protector, NO.12
2019-09 → —
|
NGX10,50 | — | |
| 82815Q — Cover, Wiring Harness Protector, NO.13 | ||||
| 82815-F4100 |
Cover, Wiring Harness Protector, NO.13
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-47E30 |
Cover, Wiring Harness Protector, NO.13
2019-09 → —
|
ZYX10 | — | |
| 82815-F4100 |
Cover, Wiring Harness Protector, NO.13
2019-09 → —
|
NGX10,50 | — | |
| 82815R — Cover, Wiring Harness Protector, NO.14 | ||||
| 82815-F4110 |
Cover, Wiring Harness Protector, NO.14
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-47E40 |
Cover, Wiring Harness Protector, NO.14
2019-09 → —
|
ZYX10 | — | |
| 82815-F4110 |
Cover, Wiring Harness Protector, NO.14
2019-09 → —
|
NGX10,50 | — | |
| 82815S — Cover, Wiring Harness Protector, NO.15 | ||||
| 82815-F4120 |
Cover, Wiring Harness Protector, NO.15
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82815-F4050 |
Cover, Wiring Harness Protector, NO.15
2019-09 → —
|
ZYX10 | — | |
| 82815-F4120 |
Cover, Wiring Harness Protector, NO.15
2019-09 → —
|
NGX10,50 | — | |
| 82815T — Cover, Wiring Harness Protector, NO.16 | ||||
| 82815-F4090 |
Cover, Wiring Harness Protector, NO.16
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 82815-F4060 |
Cover, Wiring Harness Protector, NO.16
2019-09 → —
|
ZYX10 | — | |
| 82815-F4090 |
Cover, Wiring Harness Protector, NO.16
2019-09 → —
|
NGX10,50 CVT | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-02L30 |
Protector, Wiring Harness, NO.10
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-02L30 |
Protector, Wiring Harness, NO.10
2019-09 → —
|
NGX10,50 | — | |
| 82817-47P50 |
Protector, Wiring Harness, NO.10
2019-09 → —
|
ZYX10 | — | |
| 82817L — Protector, Wiring Harness, NO.11 | ||||
| 82817-02L40 |
Protector, Wiring Harness, NO.11
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-02L40 |
Protector, Wiring Harness, NO.11
2019-09 → —
|
NGX10,50 | — | |
| 82817-47P70 |
Protector, Wiring Harness, NO.11
2019-09 → —
|
ZYX10 | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-02L50 |
Protector, Wiring Harness, NO.12
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-02L50 |
Protector, Wiring Harness, NO.12
2019-09 → —
|
NGX10,50 | — | |
| 82817-47P80 |
Protector, Wiring Harness, NO.12
2019-09 → —
|
ZYX10 | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-02L60 |
Protector, Wiring Harness, NO.13
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-02L60 |
Protector, Wiring Harness, NO.13
2019-09 → —
|
NGX10,50 | — | |
| 82817-47P90 |
Protector, Wiring Harness, NO.13
2019-09 → —
|
ZYX10 | — | |
| 82817P — Protector, Wiring Harness, NO.14 | ||||
| 82817-F4010 |
Protector, Wiring Harness, NO.14
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-47Q00 |
Protector, Wiring Harness, NO.14
2019-09 → —
|
ZYX10 | — | |
| 82817-F4010 |
Protector, Wiring Harness, NO.14
2019-09 → —
|
NGX10,50 | — | |
| 82817T — Protector, Wiring Harness, NO.15 | ||||
| 82817-F4110 |
Protector, Wiring Harness, NO.15
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-47Q10 |
Protector, Wiring Harness, NO.15
2019-09 → —
|
ZYX10 | — | |
| 82817-F4110 |
Protector, Wiring Harness, NO.15
2019-09 → —
|
NGX10,50 | — | |
| 82817U — Protector, Wiring Harness, NO.16 | ||||
| 82817-F4120 |
Protector, Wiring Harness, NO.16
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-47S30 |
Protector, Wiring Harness, NO.16
2019-09 → —
|
ZYX10 | — | |
| 82817-F4120 |
Protector, Wiring Harness, NO.16
2019-09 → —
|
NGX10,50 | — | |
| 82817X — Protector, Wiring Harness, NO.17 | ||||
| 82817-F4130 |
Protector, Wiring Harness, NO.17
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-47S40 |
Protector, Wiring Harness, NO.17
2019-09 → —
|
ZYX10 | — | |
| 82817-F4130 |
Protector, Wiring Harness, NO.17
2019-09 → —
|
NGX10,50 | — | |
| 82818 — Protector, Wiring Harness, NO.2 | ||||
| 82817-F4140 |
Protector, Wiring Harness, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-F4060 |
Protector, Wiring Harness, NO.2
2019-09 → —
|
ZYX10 | — | |
| 82817-F4140 |
Protector, Wiring Harness, NO.2
2019-09 → —
|
NGX10,50 | — | |
| 82818B — Protector, Wiring Harness, NO.3 | ||||
| 82817-F4500 |
Protector, Wiring Harness, NO.3
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82817-F4070 |
Protector, Wiring Harness, NO.3
2019-09 → —
|
ZYX10 | — | |
| 82817-F4500 |
Protector, Wiring Harness, NO.3
2019-09 → —
|
NGX10,50 | — | |
| 82818C — Protector, Wiring Harness, NO.4 | ||||
| 82817-F4540 |
Protector, Wiring Harness, NO.4
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 82817-F4540 |
Protector, Wiring Harness, NO.4
2019-09 → —
|
NGX10 6F | — | |
| 82818D — Protector, Wiring Harness, NO.5 | ||||
| 82817-F4100 |
Protector, Wiring Harness, NO.5
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 82817-F4100 |
Protector, Wiring Harness, NO.5
2019-09 → —
|
NGX10,50 CVT | — | |
| 82823S — Cap, Starter Terminal | ||||
| 28192-47020 note |
Cap, Starter Terminal
2019-09 → —
|
NGX10,50 | — | |
| 28192-47030 note |
Cap, Starter Terminal
2019-09 → —
|
NGX10,50 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82823-22050 |
Cap, Alternator Terminal
2019-09 → —
|
NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
