Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

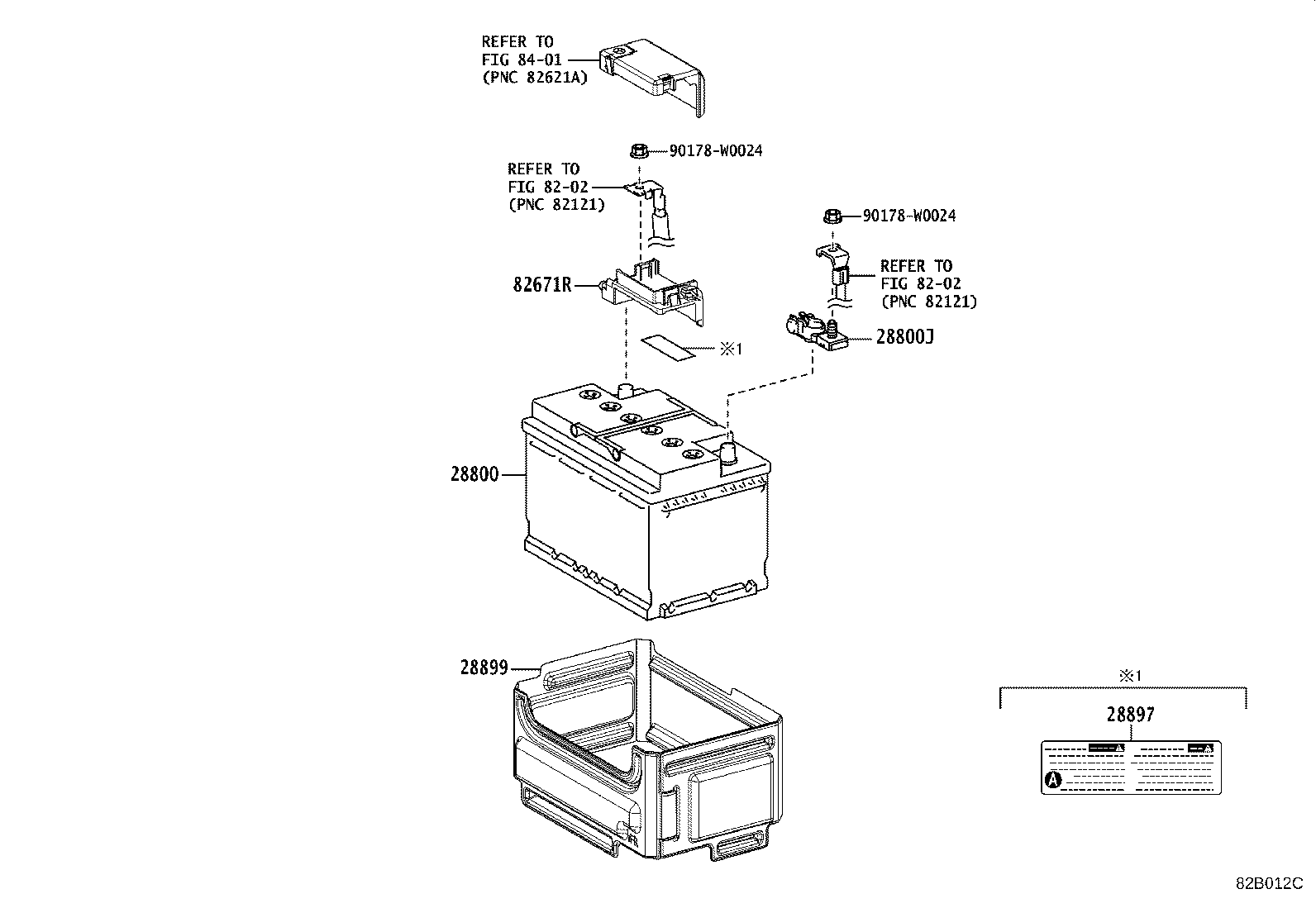

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-0Y170 note |
Battery
2016-10 → 2018-08
ended
|
8NRFTS NGX10,50 | — | |
| 28800-0Y171 note |
Battery
2018-09 → 2019-03
ended
|
8NRFTS NGX10,50 | — | |
| 28800-0Y172 note |
Battery
2019-04 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28800-0T222 note |
Battery
2019-09 → 2022-08
ended
|
2ZRFXE ZYX10 | — | |
| 28800-0T223 note |
Battery
2022-09 → —
|
2ZRFXE ZYX10 | — | |
| 28800-0T260 note |
Battery
2021-03 → 2022-08
ended
|
8NRFTS NGX50 | — | |
| 28800-0T261 note |
Battery
2022-09 → —
|
8NRFTS NGX50 | — | |
| 28800-0Y172 note |
Battery
2019-09 → 2022-08
ended
|
8NRFTS NGX10,50 | — | |
| 28800-0Y173 note |
Battery
2022-09 → —
|
8NRFTS NGX10,50 | — | |
| 28800-F2050 note |
Battery
2019-09 → 2020-10
ended
|
8NRFTS NGX50 | — | |
| 28800-F2051 note |
Battery
2020-11 → 2021-03
ended
|
8NRFTS NGX50 | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06070 |
Terminal, Battery Negative
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 90982-06070 |
Terminal, Battery Negative
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-36030 note |
Plate, Battery Caution
2019-09 → —
|
8NRFTS NGX50 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-0Y030 |
Insulator, Battery
2016-10 → 2019-09
ended
|
8NRFTS NGX10,50 | — | |
| 28899-0Y030 |
Insulator, Battery
2019-09 → —
|
8NRFTS NGX10,50 | — | |
| 82671R — Stopper, Battery Terminal | ||||
| 82651-F4010 |
Stopper, Battery Terminal
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82651-F4010 |
Stopper, Battery Terminal
2019-09 → —
|
NGX10,50 | — | |
| 82671-47040 |
Stopper, Battery Terminal
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
