Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

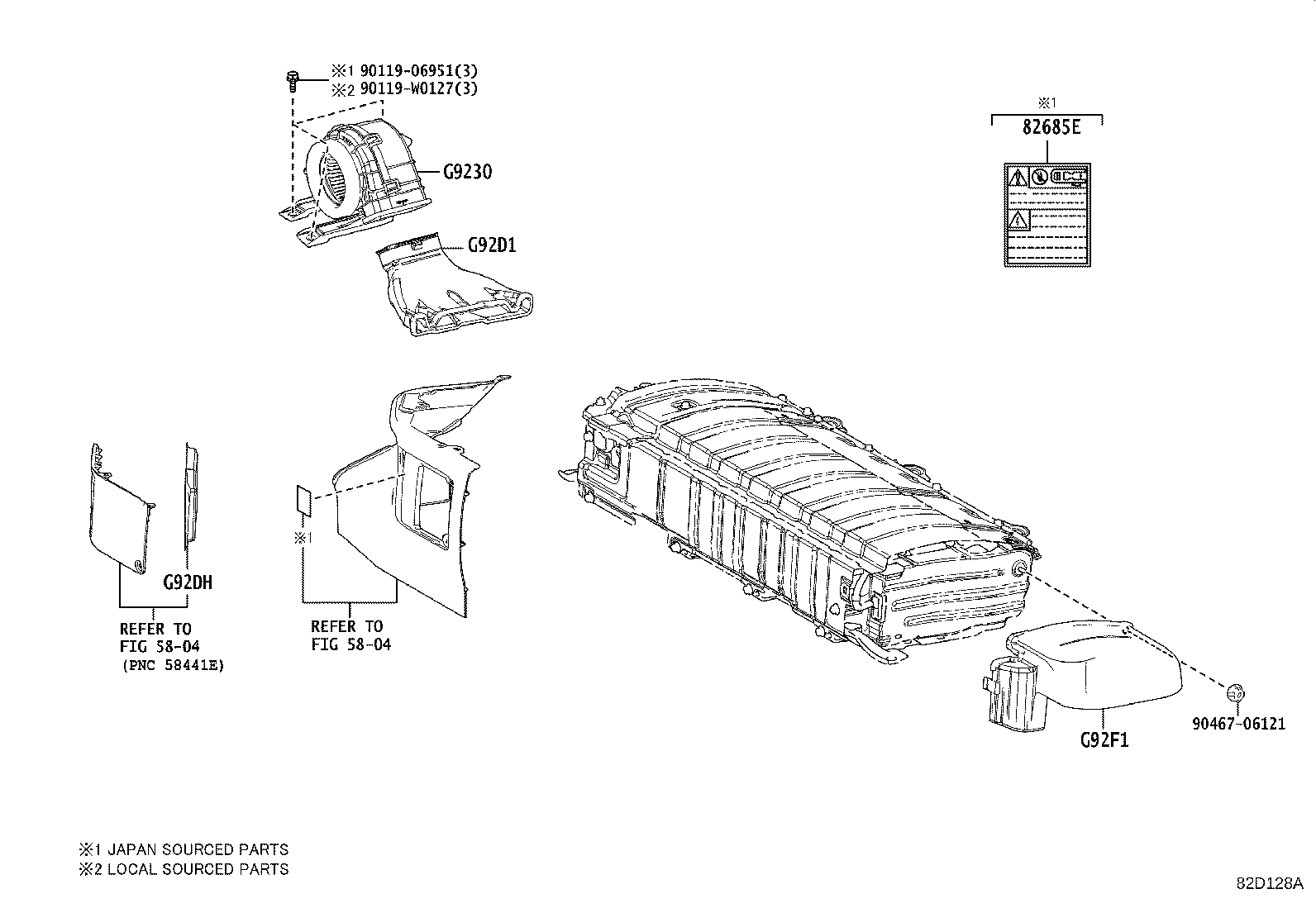

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-47110 |
Plate, Service Plug Caution
2019-09 → —
|
ZYX10 | — | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-02030 |
Blower Assy, Battery Cooling
2021-09 → 2021-11
ended
|
ZYX10 | — | |
| G9230-47080 |
Blower Assy, Battery Cooling
2019-09 → 2021-08
ended
|
ZYX10 | — | |
| G9230-47080 |
Blower Assy, Battery Cooling
2021-12 → —
|
ZYX10 | — | |
| G92D1 — Duct, Hybrid Battery Intake, NO.1 | ||||
| G92E1-47040 |
Duct, Hybrid Battery Intake, NO.1
2019-09 → —
|
ZYX10 | — | |
| G92DH — Filter, HV Battery Intake, NO.1 | ||||
| G92DH-47070 |
Filter, HV Battery Intake, NO.1
2019-09 → —
|
ZYX10 | — | |
| G92F1 — Duct, Hybrid Battery Exhaust, NO.1 | ||||
| G92F1-02030 note |
Duct, Hybrid Battery Exhaust, NO.1
2022-02 → —
|
ZYX10 | — | |
| G92F1-47050 |
Duct, Hybrid Battery Exhaust, NO.1
2019-09 → 2022-02
ended
|
ZYX10 | — | |
| G92F1-47050 note |
Duct, Hybrid Battery Exhaust, NO.1
2022-02 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
