Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

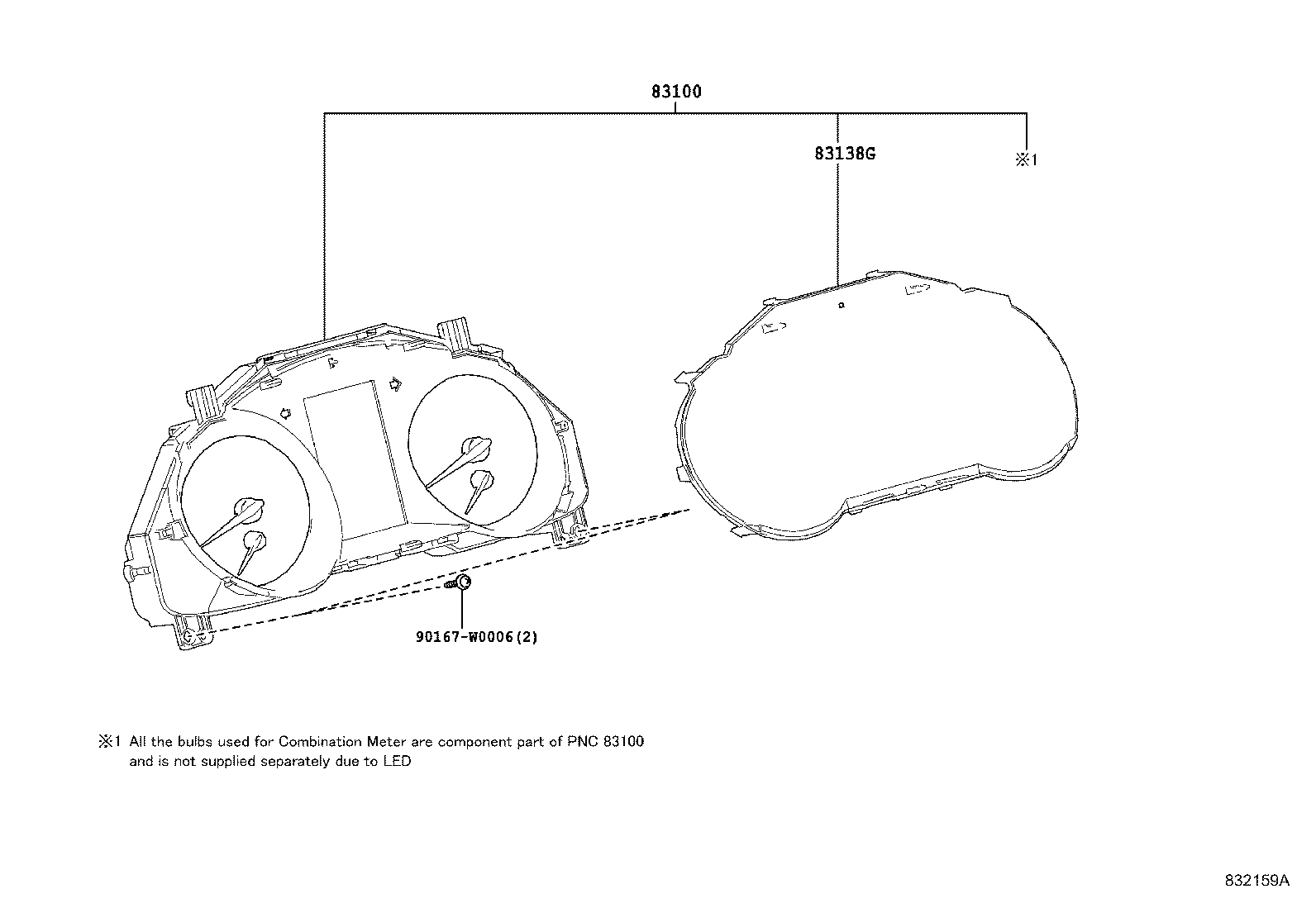

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-F4210 note |
Meter Assy, Combination
2016-10 → 2018-05
ended
|
NGX10,50 E | — | |
| 83800-F4211 note |
Meter Assy, Combination
2018-05 → 2018-09
ended
|
NGX10,50 E | — | |
| 83800-F4212 note |
Meter Assy, Combination
2018-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 83800-F4220 |
Meter Assy, Combination
2016-10 → 2018-05
ended
|
NGX10 D | — | |
| 83800-F4221 note |
Meter Assy, Combination
2018-05 → 2019-09
ended
|
NGX10 D | — | |
| 83800-F4320 |
Meter Assy, Combination
2016-10 → 2018-05
ended
|
NGX10,50 E,N | — | |
| 83800-F4321 note |
Meter Assy, Combination
2018-05 → 2018-09
ended
|
NGX10,50 E,N | — | |
| 83800-F4322 note |
Meter Assy, Combination
2018-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 83800-F4670 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
NGX10 RHD E | — | |
| 83800-F4670 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
NGX10,50 E | — | |
| 83800-F4680 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
NGX10,50 | — | |
| 83800-F4690 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
ZYX10 E | — | |
| 83800-F4700 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
ZYX10 N | — | |
| 83800-F4770 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
NGX50 E | — | |
| 83800-F4780 note |
Meter Assy, Combination
2019-09 → 2020-10
ended
|
NGX50 | — | |
| 83800-F4A80 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
NGX10 RHD E | — | |
| 83800-F4A80 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
NGX10,50 E | — | |
| 83800-F4A81 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
NGX10 RHD E | — | |
| 83800-F4A81 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
NGX10,50 E | — | |
| 83800-F4A82 note |
Meter Assy, Combination
2021-05 → —
|
NGX10,50 E | — | |
| 83800-F4A82 note |
Meter Assy, Combination
2021-05 → —
|
NGX10 RHD E | — | |
| 83800-F4A90 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
NGX10,50 | — | |
| 83800-F4A91 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
NGX10,50 | — | |
| 83800-F4A92 note |
Meter Assy, Combination
2021-05 → —
|
NGX10,50 | — | |
| 83800-F4B00 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
ZYX10 E | — | |
| 83800-F4B01 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
ZYX10 E | — | |
| 83800-F4B02 note |
Meter Assy, Combination
2021-05 → —
|
ZYX10 E | — | |
| 83800-F4B10 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
ZYX10 N | — | |
| 83800-F4B11 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
ZYX10 N | — | |
| 83800-F4B12 note |
Meter Assy, Combination
2021-05 → —
|
ZYX10 N | — | |
| 83800-F4B20 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
NGX50 E | — | |
| 83800-F4B21 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
NGX50 E | — | |
| 83800-F4B22 note |
Meter Assy, Combination
2021-05 → —
|
NGX50 E | — | |
| 83800-F4B30 note |
Meter Assy, Combination
2020-10 → 2020-11
ended
|
NGX50 | — | |
| 83800-F4B31 note |
Meter Assy, Combination
2020-12 → 2021-04
ended
|
NGX50 | — | |
| 83800-F4B32 note |
Meter Assy, Combination
2021-05 → —
|
NGX50 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-F4020 |
Glass, Combination Meter
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 83852-F4020 |
Glass, Combination Meter
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
