Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

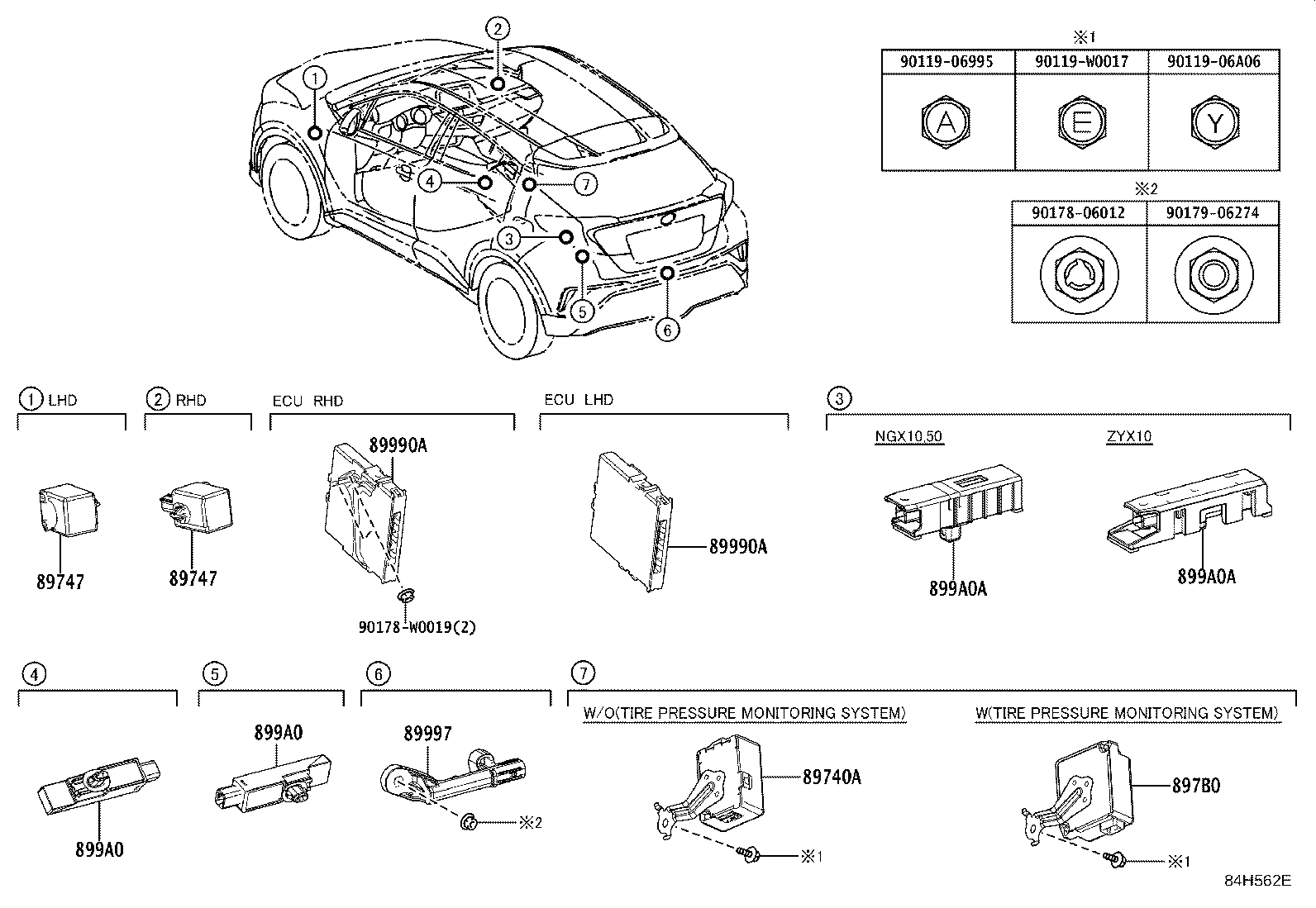

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89740A — Receiver Assy, Smart Door Control | ||||
| 89740-F4020 note |
Receiver Assy, Smart Door Control
2018-04 → 2018-05
ended
|
NGX10,50 LHD E | — | |
| 89740-F4020 |
Receiver Assy, Smart Door Control
2016-10 → 2018-04
ended
|
NGX10,50 E | — | |
| 89740-F4021 |
Receiver Assy, Smart Door Control
2018-05 → 2019-09
ended
|
NGX10,50 E | — | |
| 89740-F4021 |
Receiver Assy, Smart Door Control
2019-09 → —
|
NGX10,50 E | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-05010 |
Buzzer, Wireless Door Lock
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 89747-05010 |
Buzzer, Wireless Door Lock
2019-09 → —
|
ZYX10;NGX10,50 E | — | |
| 897B0 — Receiver Assy, Electrical Key & Tpms | ||||
| 897B0-F4050 note |
Receiver Assy, Electrical Key & Tpms
2016-10 → 2018-05
ended
|
NGX10 LHD 6F E | — | |
| 897B0-F4050 note |
Receiver Assy, Electrical Key & Tpms
2016-10 → 2019-09
ended
|
NGX10,50 LHD CVT E | — | |
| 897B0-F4020 |
Receiver Assy, Electrical Key & Tpms
2019-09 → 2021-12
ended
|
ZYX10 | — | |
| 897B0-F4021 |
Receiver Assy, Electrical Key & Tpms
2022-01 → —
|
ZYX10 | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-F4010 |
Computer Assy, Smart Key
2016-10 → 2018-04
ended
|
NGX10,50 LHD E | — | |
| 89990-F4011 |
Computer Assy, Smart Key
2018-05 → 2019-09
ended
|
NGX10,50 LHD E | — | |
| 89990-F4020 |
Computer Assy, Smart Key
2016-10 → 2018-04
ended
|
NGX10,50 RHD E | — | |
| 89990-F4021 |
Computer Assy, Smart Key
2018-05 → 2019-09
ended
|
NGX10,50 RHD E | — | |
| 89990-F4170 |
Computer Assy, Smart Key
2019-09 → —
|
NGX10,50 LHD E | — | |
| 89990-F4180 |
Computer Assy, Smart Key
2019-09 → —
|
NGX10 RHD E | — | |
| 89990-F4190 |
Computer Assy, Smart Key
2019-09 → 2021-12
ended
|
ZYX10 E | — | |
| 89990-F4191 |
Computer Assy, Smart Key
2022-01 → —
|
ZYX10 E | — | |
| 89990-F4210 |
Computer Assy, Smart Key
2019-09 → 2021-12
ended
|
ZYX10 N | — | |
| 89990-F4211 |
Computer Assy, Smart Key
2022-01 → —
|
ZYX10 N | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30100 |
Antenna, Electrical Key
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 89997-30100 |
Antenna, Electrical Key
2019-09 → —
|
NGX10,50,ZYX10 E | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-0F040 |
Antenna Assy, Indoor Electrical Key, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 899A0-0F040 |
Antenna Assy, Indoor Electrical Key, NO.1
2019-09 → —
|
ZYX10;NGX10,50 E | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-F4010 |
Antenna Assy, Indoor Electrical Key, NO.2
2016-10 → 2018-05
ended
|
NGX10,50 E | — | |
| 899A0-F4030 |
Antenna Assy, Indoor Electrical Key, NO.2
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
