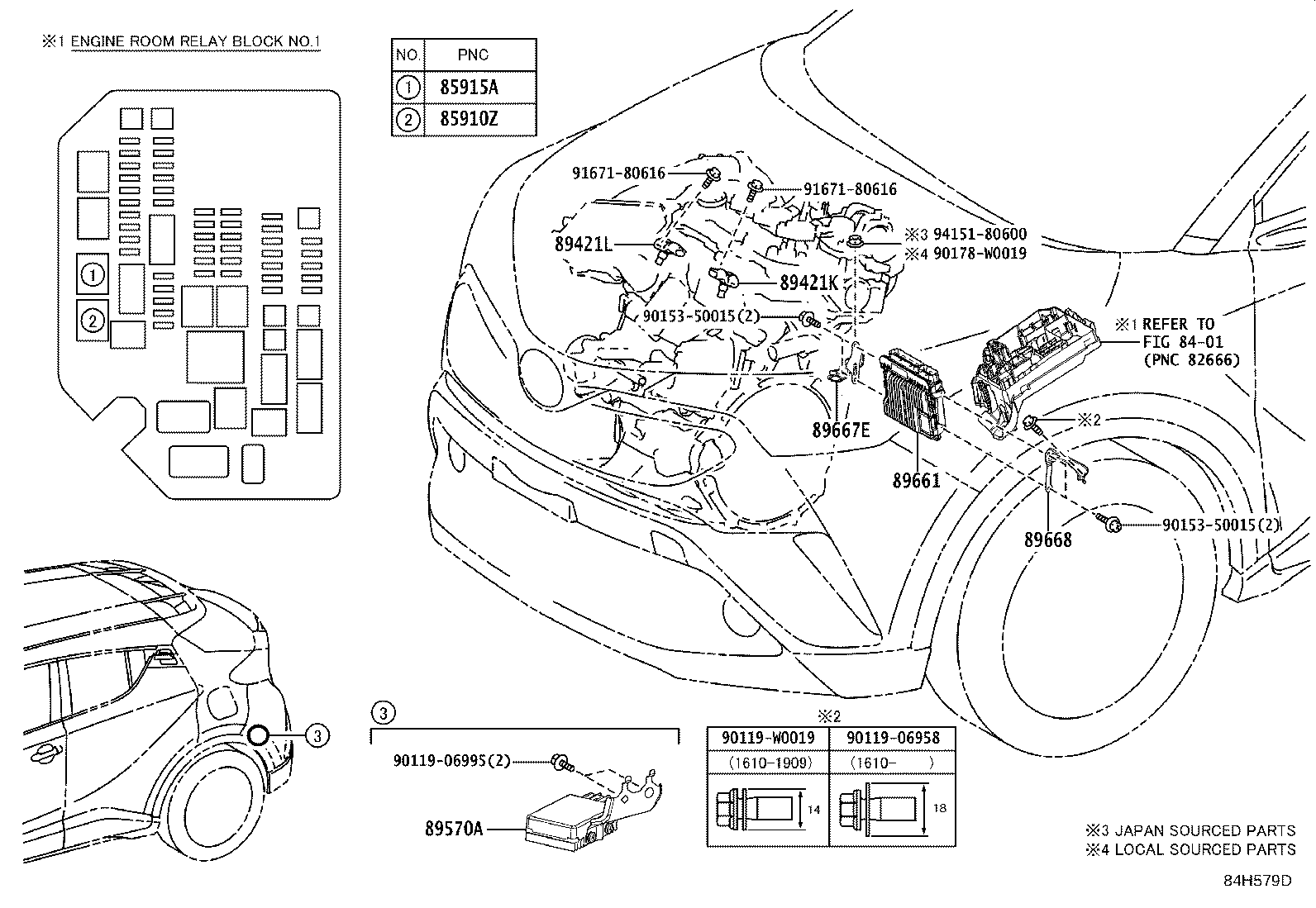

Exploded illustration 84H579D 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 89421L — SENSOR, TURBO PRESSURE, NO.2 (2 parts) 89570A — COMPUTER ASSY, FUEL PUMP CONTROL (2 parts) 89421K — SENSOR, TURBO PRESSURE, NO.1 (2 parts) 85910Z — RELAY, INJECTION (FOR EFI) (3 parts) 85915A — RELAY, MAIN (3 parts) 8401 — not listed in this catalogue 89661 — COMPUTER, ENGINE CONTROL (12 parts) 89668 — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (4 parts) 89667E — BRACKET, ENGINE CONTROL COMPUTER, NO.1 (3 parts) 90119W0019 — not listed in this catalogue 9015350015 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178W0019 — not listed in this catalogue 9015350015 — not listed in this catalogue 9011906995 — not listed in this catalogue 9011906958 — not listed in this catalogue
84H579D · 8 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
85910Z — Relay, Injection (FOR EFI)
90080-87021 Relay, Injection (FOR EFI)
2016-10 → 2019-09 ended
NGX10,50 —
90080-87021 Relay, Injection (FOR EFI)
2019-09 → 2021-05 ended
NGX10,50 —
90987-02027 Relay, Injection (FOR EFI)
2021-05 → —
NGX10,50 —
85915A — Relay, Main
90080-87021 Relay, Main
2016-10 → 2019-09 ended
NGX10,50 —
90080-87021 Relay, Main
2019-09 → 2021-05 ended
NGX10,50 —
90987-02027 Relay, Main
2021-05 → —
NGX10,50 —
89421K — Sensor, Turbo Pressure, NO.1
89421-78010 Sensor, Turbo Pressure, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
89421-78010 Sensor, Turbo Pressure, NO.1
2019-09 → —
NGX10,50 —
89421L — Sensor, Turbo Pressure, NO.2
89421-78010 Sensor, Turbo Pressure, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
89421-78010 Sensor, Turbo Pressure, NO.2
2019-09 → —
NGX10,50 —
89570A — Computer Assy, Fuel Pump Control
89570-10040 Computer Assy, Fuel Pump Control
2016-10 → 2019-09 ended
NGX10,50 —
89570-10040 Computer Assy, Fuel Pump Control
2019-09 → —
NGX10,50 —
89661 — Computer, Engine Control
89661-F4080 note Computer, Engine Control
2016-10 → 2018-05 ended
NGX10 LHD 6F —
89661-F4090 Computer, Engine Control
2016-10 → 2019-09 ended
NGX10 6F —
89661-F4110 note Computer, Engine Control
2016-10 → 2019-09 ended
NGX10 LHD CVT —
89661-F4120 Computer, Engine Control
2016-10 → 2019-09 ended
NGX10 CVT —
89661-F4140 note Computer, Engine Control
2016-10 → 2018-05 ended
NGX50 LHD N —
89661-F4140 note Computer, Engine Control
2016-10 → 2019-09 ended
NGX50 LHD E —
89661-F4150 Computer, Engine Control
2016-10 → 2019-09 ended
NGX50 —
89661-F4350 note Computer, Engine Control
2019-09 → —
ZYX10 —
89661-F4420 note Computer, Engine Control
2019-09 → —
NGX10 6F —
89661-F4450 note Computer, Engine Control
2019-09 → 2020-10 ended
NGX10 CVT —
89661-F4480 note Computer, Engine Control
2019-09 → —
NGX50 —
89661-F4580 note Computer, Engine Control
2020-10 → —
NGX10 CVT —
89667E — Bracket, Engine Control Computer, NO.1
89667-F4030 Bracket, Engine Control Computer, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
89667-02500 Bracket, Engine Control Computer, NO.1
2019-09 → —
ZYX10 —
89667-F4030 Bracket, Engine Control Computer, NO.1
2019-09 → —
NGX10,50 —
89668 — Bracket, Engine Control Computer, NO.2
89668-02500 Bracket, Engine Control Computer, NO.2
2018-05 → 2019-09 ended
NGX10,50 —
89668-F4030 Bracket, Engine Control Computer, NO.2
2016-10 → 2018-04 ended
NGX10,50 —
89668-02500 Bracket, Engine Control Computer, NO.2
2019-09 → —
NGX10,50 —
89668-F4020 Bracket, Engine Control Computer, NO.2
2019-09 → —
ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
