Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

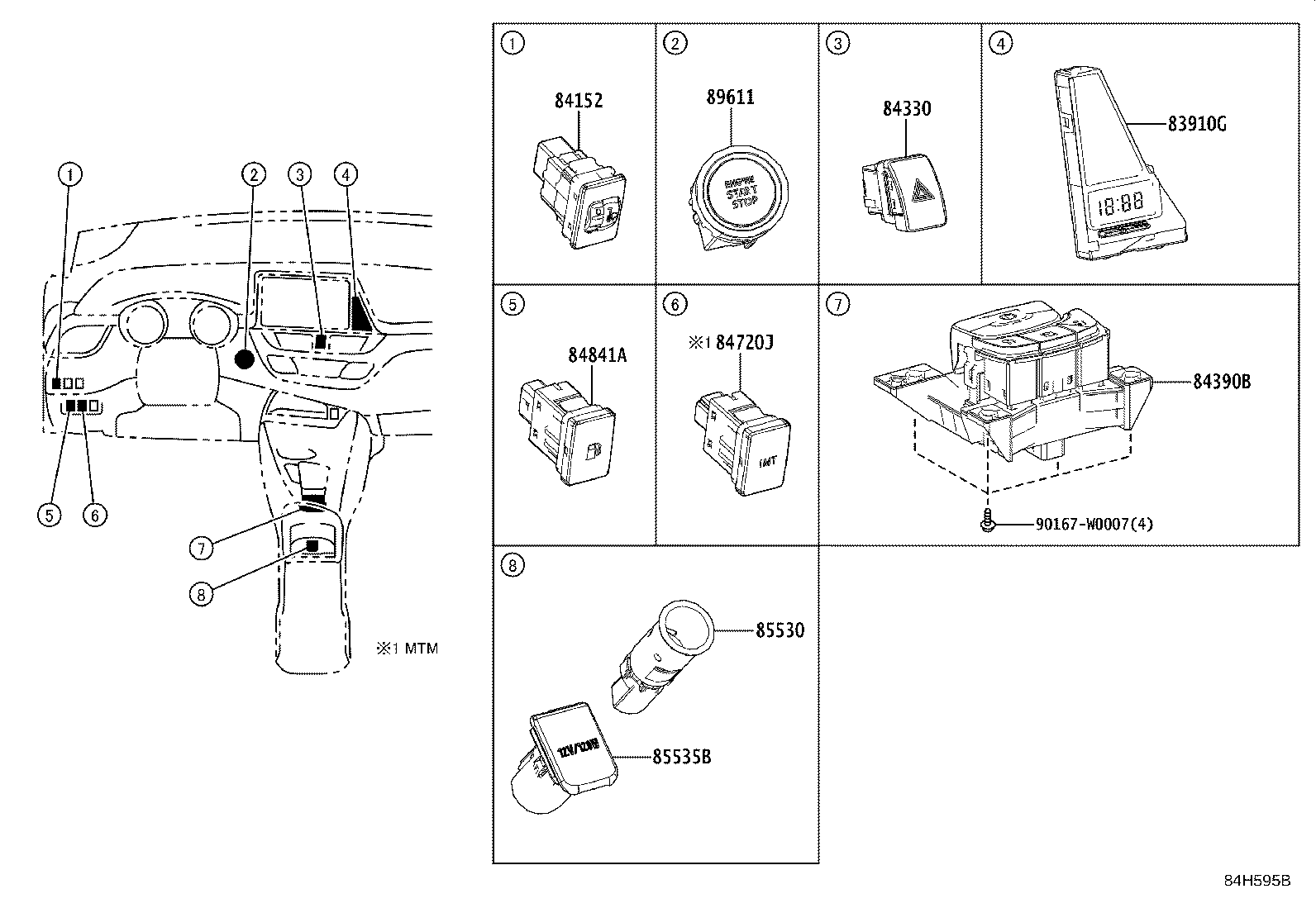

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83910G — Clock Assy | ||||
| 83910-F4010 |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 83910-F4020 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX50 LHD E;NGX10 LHD +1 | — | |
| 83910-F4020 note |
Clock Assy
2016-10 → 2018-05
ended
|
NGX50 LHD N;NGX10 LHD +1 | — | |
| 83910-F4040 note |
Clock Assy
2016-10 → 2018-05
ended
|
NGX10,50 LHD | — | |
| 83910-F4040 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 83910-F4040 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 83910-F4040 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 83910-F4040 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 83910-F4050 |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 83910-F4070 note |
Clock Assy
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 83910-F4020 |
Clock Assy
2019-09 → —
|
ZYX10 | — | |
| 83910-F4020 note |
Clock Assy
2020-10 → —
|
NGX10 LHD | — | |
| 83910-F4020 note |
Clock Assy
2020-10 → —
|
NGX10 LHD CVT N | — | |
| 83910-F4020 note |
Clock Assy
2020-10 → —
|
NGX50 | — | |
| 83910-F4040 note |
Clock Assy
2019-09 → 2020-10
ended
|
NGX10 LHD CVT N | — | |
| 83910-F4040 note |
Clock Assy
2019-09 → 2020-10
ended
|
NGX50 | — | |
| 83910-F4040 note |
Clock Assy
2019-09 → 2020-10
ended
|
NGX10 LHD | — | |
| 83910-F4200 note |
Clock Assy
2019-09 → —
|
ZYX10 | — | |
| 83910-F4200 |
Clock Assy
2020-10 → —
|
NGX10,50 LHD | — | |
| 83910-F4210 |
Clock Assy
2019-09 → 2020-10
ended
|
NGX10,50 LHD | — | |
| 83910-F4220 |
Clock Assy
2019-09 → —
|
NGX10 RHD | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-02080 |
Switch, Headlamp Leveling
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84152-02080 note |
Switch, Headlamp Leveling
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 84152-02080 |
Switch, Headlamp Leveling
2019-09 → —
|
NGX10,50 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-F4020 |
Switch Assy, Hazard Warning Signal
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84332-F4020 |
Switch Assy, Hazard Warning Signal
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 84390B — Switch Assy, Electric Parking Brake | ||||
| 84390-F4030 |
Switch Assy, Electric Parking Brake
2016-10 → 2018-04
ended
|
NGX10,50 LHD (D,N) | — | |
| 84390-F4031 |
Switch Assy, Electric Parking Brake
2018-05 → 2019-09
ended
|
NGX10,50 LHD (D,N) | — | |
| 84390-F4070 |
Switch Assy, Electric Parking Brake
2016-10 → 2018-04
ended
|
NGX10,50 RHD (D,N) | — | |
| 84390-F4071 |
Switch Assy, Electric Parking Brake
2018-05 → 2019-09
ended
|
NGX10,50 RHD (D,N) | — | |
| 84390-F4100 |
Switch Assy, Electric Parking Brake
2016-10 → 2018-05
ended
|
NGX10,50 LHD E | — | |
| 84390-F4101 |
Switch Assy, Electric Parking Brake
2018-05 → 2019-09
ended
|
NGX10,50 LHD E | — | |
| 84390-F4120 |
Switch Assy, Electric Parking Brake
2016-10 → 2018-05
ended
|
NGX10,50 RHD E | — | |
| 84390-F4121 |
Switch Assy, Electric Parking Brake
2018-05 → 2019-09
ended
|
NGX10,50 RHD E | — | |
| 84390-F4300 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10 LHD 6F | — | |
| 84390-F4310 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10,50 LHD CVT N | — | |
| 84390-F4320 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
ZYX10 N | — | |
| 84390-F4340 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10,50 LHD E | — | |
| 84390-F4350 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
ZYX10 E | — | |
| 84390-F4360 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10 RHD 6F | — | |
| 84390-F4370 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10 RHD CVT N | — | |
| 84390-F4440 |
Switch Assy, Electric Parking Brake
2019-09 → —
|
NGX10 RHD E | — | |
| 84720J — Switch Assy, Pattern Select | ||||
| 84721-F4010 |
Switch Assy, Pattern Select
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 84841A — Switch, Fuel Lid Opener | ||||
| 84841-F4010 |
Switch, Fuel Lid Opener
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 84841-F4020 |
Switch, Fuel Lid Opener
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 84841-F4010 |
Switch, Fuel Lid Opener
2019-09 → —
|
NGX10,50,ZYX10 LHD | — | |
| 84841-F4020 |
Switch, Fuel Lid Opener
2019-09 → —
|
NGX10 RHD | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-12090-C0 note |
Cover, Power Outlet Socket, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85535-12090-C0 note |
Cover, Power Outlet Socket, NO.1
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 89611 — Switch, Push Start | ||||
| 89611-02102 |
Switch, Push Start
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 89611-02102 |
Switch, Push Start
2019-09 → —
|
NGX10,50 E | — | |
| 89611-02112 |
Switch, Push Start
2019-09 → 2022-02
ended
|
ZYX10 | — | |
| 89611-02113 |
Switch, Push Start
2022-03 → 2023-09
ended
|
ZYX10 | — | |
| 89611-02114 |
Switch, Push Start
2023-10 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
