Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

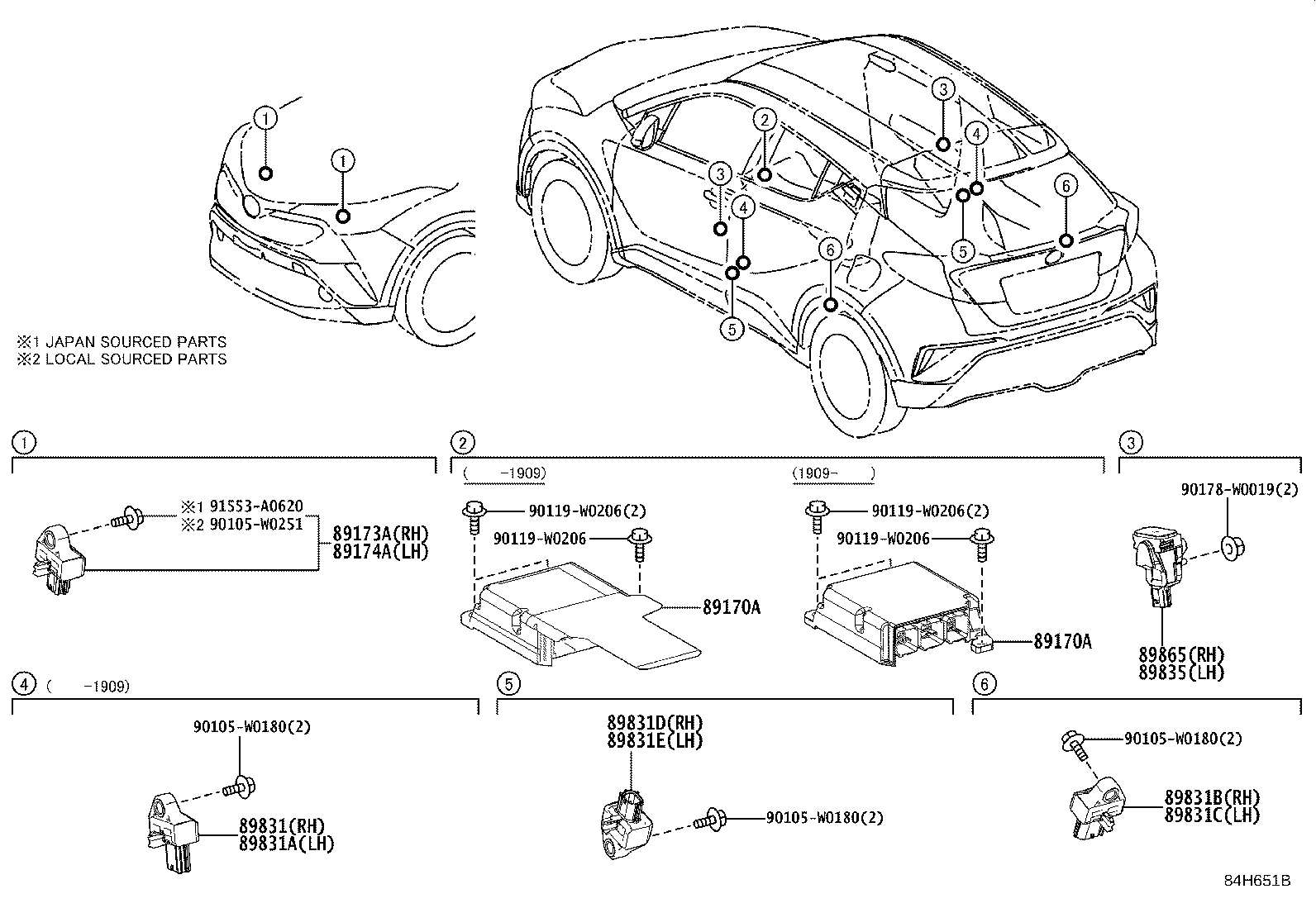

Exploded illustration 84H651B 89170A — COMPUTER ASSY, AIRBAG (25 parts) 89173A — SENSOR, AIRBAG, FRONT RH (2 parts) 89174A — SENSOR, AIRBAG, FRONT LH (2 parts) 89831B — SENSOR, SIDE AIRBAG, RH, NO.2 (10 parts) 89831C — SENSOR, SIDE AIRBAG, LH, NO.2 (10 parts) 89831D — SENSOR, FLOOR SIDE AIRBAG, RH (10 parts) 89831E — SENSOR, FLOOR SIDE AIRBAG, LH (10 parts) 89865 — SENSOR, DOOR SIDE AIRBAG, RH (10 parts) 89835 — SENSOR, DOOR SIDE AIRBAG, LH (10 parts) 89831 — SENSOR, SIDE AIRBAG, RH, NO.1 (7 parts) 89831A — SENSOR, SIDE AIRBAG, LH, NO.1 (7 parts) 91553A0620 — not listed in this catalogue 90119W0206 — not listed in this catalogue 90119W0206 — not listed in this catalogue 90105W0180 — not listed in this catalogue 90105W0180 — not listed in this catalogue 90105W0180 — not listed in this catalogue 90119W0206 — not listed in this catalogue 90119W0206 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90105W0251 — not listed in this catalogue 89170A — COMPUTER ASSY, AIRBAG (25 parts)
84H651B · 12 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
103 parts on this figure
Part number Description Fitment Price
89170A — Computer Assy, Airbag
89170-F4070 note Computer Assy, Airbag
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
89170-F4070 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89170-F4070 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89170-F4070 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89170-F4070 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89170-F4070 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89170-F4080 Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX10,50 —
89170-F4110 note Computer Assy, Airbag
2016-10 → 2018-05 ended
NGX50 LHD N;NGX10 LHD +1 —
89170-F4110 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 LHD E;NGX10 LHD +1 —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 RHD;NGX10 RHD E —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 LHD;NGX10 LHD E —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 LHD;NGX10 LHD E —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 LHD;NGX10 LHD E —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2019-09 ended
NGX50 LHD;NGX10 LHD E —
89170-F4120 note Computer Assy, Airbag
2016-10 → 2018-05 ended
NGX50 LHD;NGX10 LHD E —
89170-F4240 Computer Assy, Airbag
2019-09 → 2022-01 ended
NGX10 RHD —
89170-F4270 Computer Assy, Airbag
2019-09 → 2022-01 ended
NGX10,50 LHD —
89170-F4300 note Computer Assy, Airbag
2019-09 → 2022-01 ended
NGX10 LHD 6F —
89170-F4300 note Computer Assy, Airbag
2019-09 → 2022-01 ended
NGX10 LHD CVT N —
89170-F4370 Computer Assy, Airbag
2019-09 → 2022-01 ended
ZYX10 —
89170-F4580 Computer Assy, Airbag
2022-01 → —
NGX10 RHD —
89170-F4600 Computer Assy, Airbag
2022-01 → —
NGX10,50 LHD —
89170-F4630 note Computer Assy, Airbag
2022-01 → —
NGX10 LHD 6F —
89170-F4630 note Computer Assy, Airbag
2022-01 → —
NGX10 LHD CVT N —
89170-F4670 Computer Assy, Airbag
2022-01 → —
ZYX10 —
89173A — Sensor, Airbag, Front RH
89173-F9010 Sensor, Airbag, Front RH
2016-10 → 2019-09 ended
NGX10,50 —
89173-F9010 Sensor, Airbag, Front RH
2019-09 → —
NGX10,50,ZYX10 —
89174A — Sensor, Airbag, Front LH
89173-F9010 Sensor, Airbag, Front LH
2016-10 → 2019-09 ended
NGX10,50 —
89173-F9010 Sensor, Airbag, Front LH
2019-09 → —
NGX10,50,ZYX10 —
89831 — Sensor, Side Airbag, RH, NO.1
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
89831-F4010 note Sensor, Side Airbag, RH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831A — Sensor, Side Airbag, LH, NO.1
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4010 note Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4010 Sensor, Side Airbag, LH, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
89831B — Sensor, Side Airbag, RH, NO.2
89831-F4020 Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 Sensor, Side Airbag, RH, NO.2
2019-09 → 2022-01 ended
NGX10,50,ZYX10 —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2019-09 → 2020-12 ended
NGX10 LHD CVT N —
89831-F4020 note Sensor, Side Airbag, RH, NO.2
2019-09 → 2020-12 ended
NGX10 LHD 6F —
89831C — Sensor, Side Airbag, LH, NO.2
89831-F4020 Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2019-09 → 2020-12 ended
NGX10 LHD 6F —
89831-F4020 note Sensor, Side Airbag, LH, NO.2
2019-09 → 2020-12 ended
NGX10 LHD CVT N —
89831-F4020 Sensor, Side Airbag, LH, NO.2
2019-09 → 2022-01 ended
NGX10,50,ZYX10 —
89831D — Sensor, Floor Side Airbag, RH
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4030 Sensor, Floor Side Airbag, RH
2016-10 → 2019-09 ended
NGX10,50 —
89831-F4030 note Sensor, Floor Side Airbag, RH
2019-09 → 2023-10 ended
NGX10 LHD 6F —
89831-F4030 note Sensor, Floor Side Airbag, RH
2019-09 → 2023-10 ended
NGX10 LHD CVT N —
89831-F4030 Sensor, Floor Side Airbag, RH
2019-09 → —
NGX10,50,ZYX10 —
89831E — Sensor, Floor Side Airbag, LH
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
89831-F4030 Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10,50 —
89831-F4030 note Sensor, Floor Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
89831-F4030 note Sensor, Floor Side Airbag, LH
2019-09 → 2023-10 ended
NGX10 LHD 6F —
89831-F4030 note Sensor, Floor Side Airbag, LH
2019-09 → 2023-10 ended
NGX10 LHD CVT N —
89831-F4030 Sensor, Floor Side Airbag, LH
2019-09 → —
NGX10,50,ZYX10 —
89835 — Sensor, Door Side Airbag, LH
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
8983A-F4010 Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10,50 —
8983A-F4010 note Sensor, Door Side Airbag, LH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, LH
2019-09 → 2023-10 ended
NGX10 LHD 6F —
8983A-F4010 note Sensor, Door Side Airbag, LH
2019-09 → 2023-10 ended
NGX10 LHD CVT N —
8983A-F4010 Sensor, Door Side Airbag, LH
2019-09 → —
NGX10,50,ZYX10 —
89865 — Sensor, Door Side Airbag, RH
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 note Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
8983A-F4010 Sensor, Door Side Airbag, RH
2016-10 → 2019-09 ended
NGX10,50 —
8983A-F4010 note Sensor, Door Side Airbag, RH
2019-09 → 2023-10 ended
NGX10 LHD 6F —
8983A-F4010 note Sensor, Door Side Airbag, RH
2019-09 → 2023-10 ended
NGX10 LHD CVT N —
8983A-F4010 Sensor, Door Side Airbag, RH
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
