Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

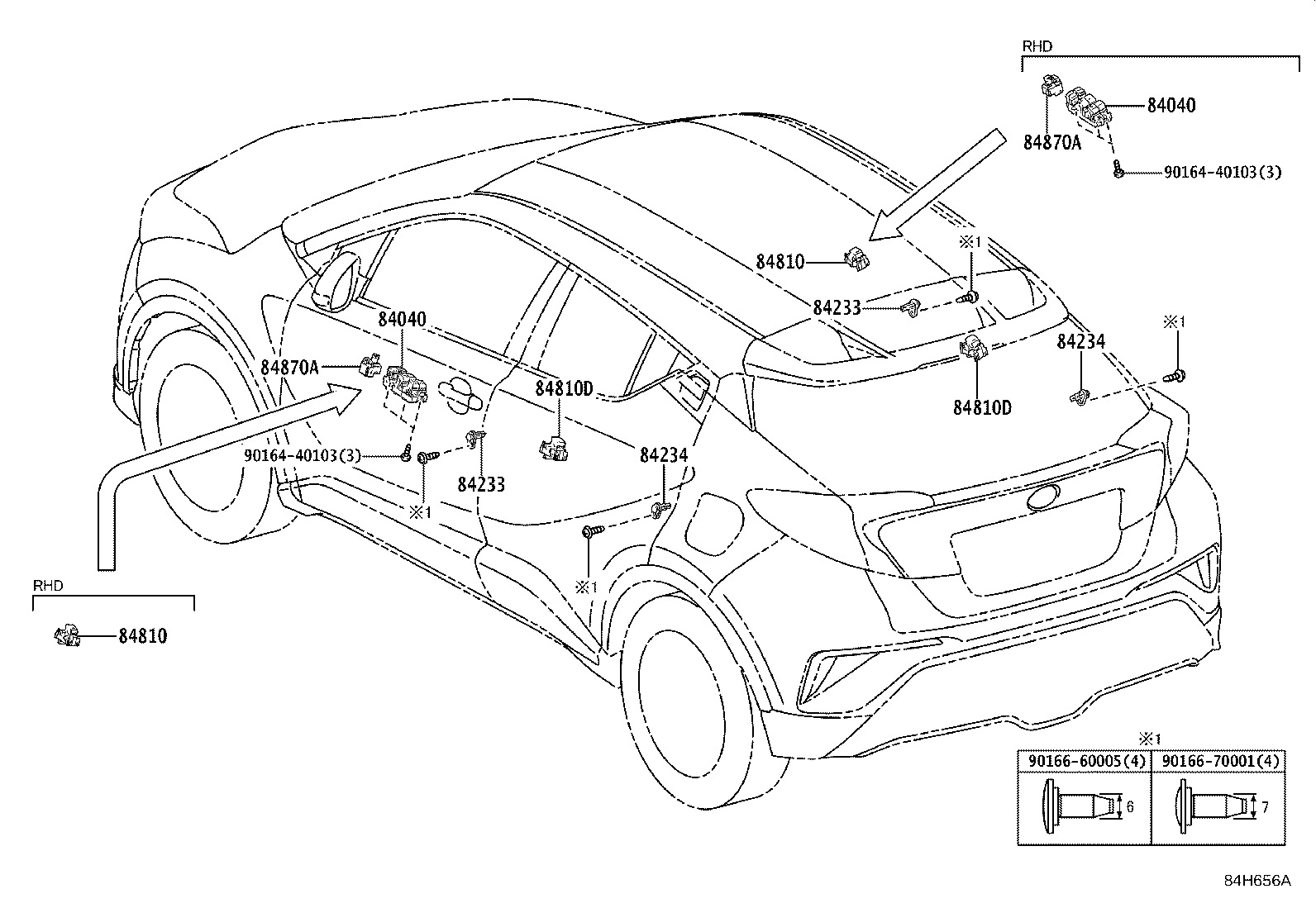

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84040 — Master Switch Assy,Multiplex Network | ||||
| 84040-F4020 |
Master Switch Assy,Multiplex Network
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 84040-F4030 |
Master Switch Assy,Multiplex Network
2016-10 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 84040-02150 |
Master Switch Assy,Multiplex Network
2019-09 → 2020-10
ended
|
NGX10,50,ZYX10 LHD N | — | |
| 84040-02160 |
Master Switch Assy,Multiplex Network
2019-09 → 2020-10
ended
|
NGX10,50,ZYX10 LHD E | — | |
| 84040-02260 |
Master Switch Assy,Multiplex Network
2019-09 → 2020-10
ended
|
NGX10 RHD (D,N) | — | |
| 84040-02270 |
Master Switch Assy,Multiplex Network
2019-09 → 2020-10
ended
|
NGX10 RHD E | — | |
| 84040-F4080 |
Master Switch Assy,Multiplex Network
2020-10 → 2022-01
ended
|
NGX10,50,ZYX10 LHD E | — | |
| 84040-F4090 |
Master Switch Assy,Multiplex Network
2020-10 → —
|
NGX10,50,ZYX10 LHD N | — | |
| 84040-F4090 |
Master Switch Assy,Multiplex Network
2022-01 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 84040-F4100 |
Master Switch Assy,Multiplex Network
2020-10 → 2022-01
ended
|
NGX10 RHD E | — | |
| 84040-F4110 |
Master Switch Assy,Multiplex Network
2020-10 → —
|
NGX10 RHD (D,N) | — | |
| 84040-F4110 |
Master Switch Assy,Multiplex Network
2022-01 → —
|
NGX10 RHD E | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-0D030 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84231-0D030 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-0D030 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84231-0D030 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-F4030 |
Switch Assy, Power Window Regulator
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84810-02240 |
Switch Assy, Power Window Regulator
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 84810-02240 |
Switch Assy, Power Window Regulator
2022-01 → —
|
NGX10,50,ZYX10 E | — | |
| 84810-02250 |
Switch Assy, Power Window Regulator
2019-09 → 2022-01
ended
|
NGX10,50,ZYX10 E | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-F4030 |
Switch Assy, Power Window Regulator, Rear
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 84810-02240 |
Switch Assy, Power Window Regulator, Rear
2019-09 → —
|
NGX10,50,ZYX10 D,N | — | |
| 84810-02240 |
Switch Assy, Power Window Regulator, Rear
2022-01 → —
|
NGX10,50,ZYX10 E | — | |
| 84810-02250 |
Switch Assy, Power Window Regulator, Rear
2019-09 → 2022-01
ended
|
NGX10,50,ZYX10 E | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84872-F4010 |
Switch Assy, Outer Mirror
2016-10 → 2019-09
ended
|
NGX10,50 LHD E | — | |
| 84872-F4010 note |
Switch Assy, Outer Mirror
2018-05 → 2019-09
ended
|
NGX10 LHD CVT N | — | |
| 84872-F4020 |
Switch Assy, Outer Mirror
2016-10 → 2019-09
ended
|
NGX10,50 LHD (D,N) | — | |
| 84872-F4030 |
Switch Assy, Outer Mirror
2016-10 → 2019-09
ended
|
NGX10,50 RHD E | — | |
| 84872-F4040 |
Switch Assy, Outer Mirror
2016-10 → 2019-09
ended
|
NGX10,50 RHD (D,N) | — | |
| 84872-F4010 |
Switch Assy, Outer Mirror
2019-09 → —
|
NGX10,50,ZYX10 LHD E | — | |
| 84872-F4020 |
Switch Assy, Outer Mirror
2019-09 → —
|
NGX10,50,ZYX10 LHD N | — | |
| 84872-F4030 |
Switch Assy, Outer Mirror
2019-09 → —
|
NGX10 RHD E | — | |
| 84872-F4040 |
Switch Assy, Outer Mirror
2019-09 → —
|
NGX10 RHD (D,N) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
