Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

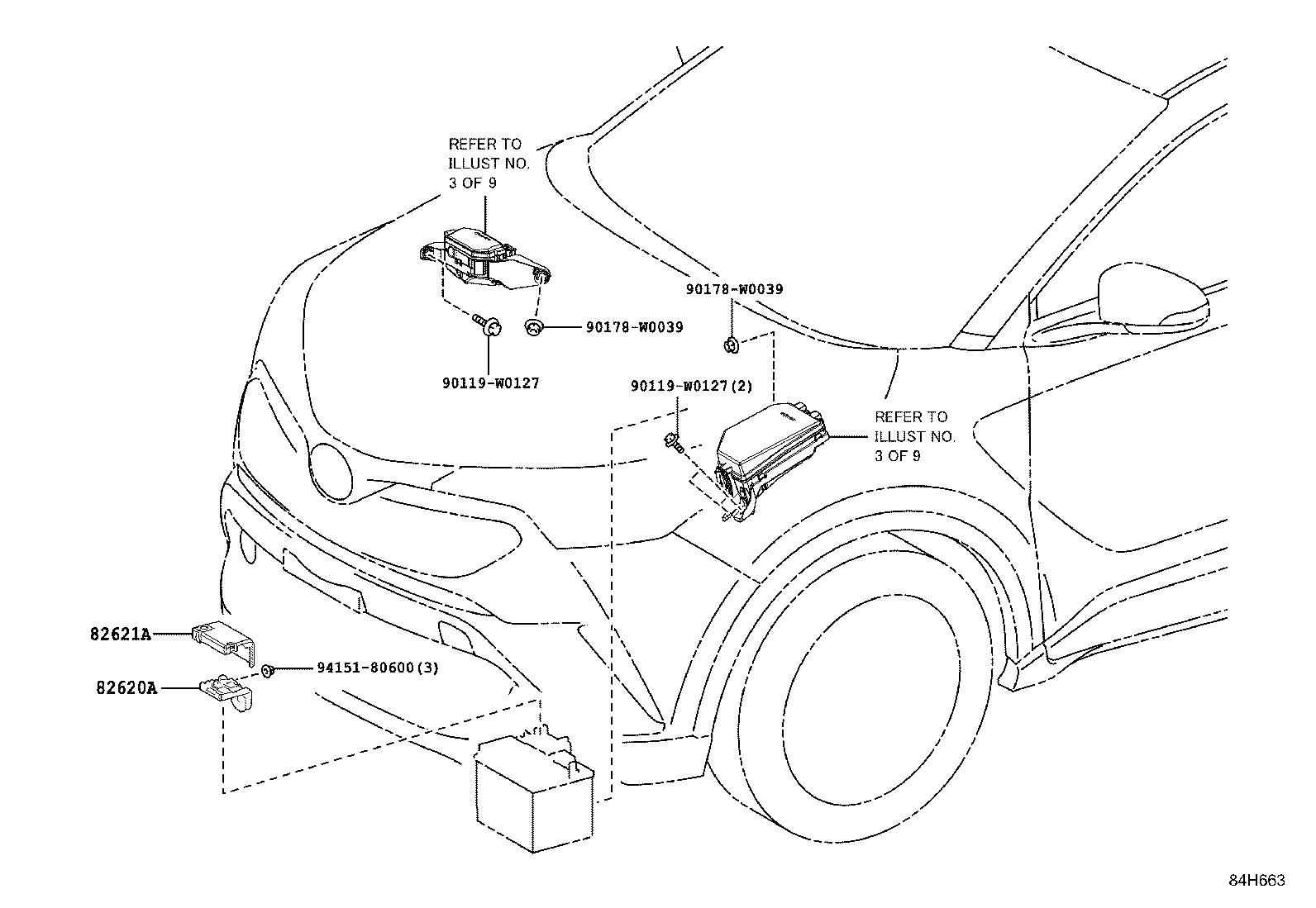

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82620A — Block Assy, Fusible Link | ||||
| 82620-F4010 |
Block Assy, Fusible Link
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82620-47090 |
Block Assy, Fusible Link
2019-09 → —
|
ZYX10 | — | |
| 82620-F4010 |
Block Assy, Fusible Link
2019-09 → —
|
NGX10,50 | — | |
| 82621A — Cover, Fusible Link | ||||
| 82621-F4010 |
Cover, Fusible Link
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 82621-F4010 |
Cover, Fusible Link
2019-09 → —
|
NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
