Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

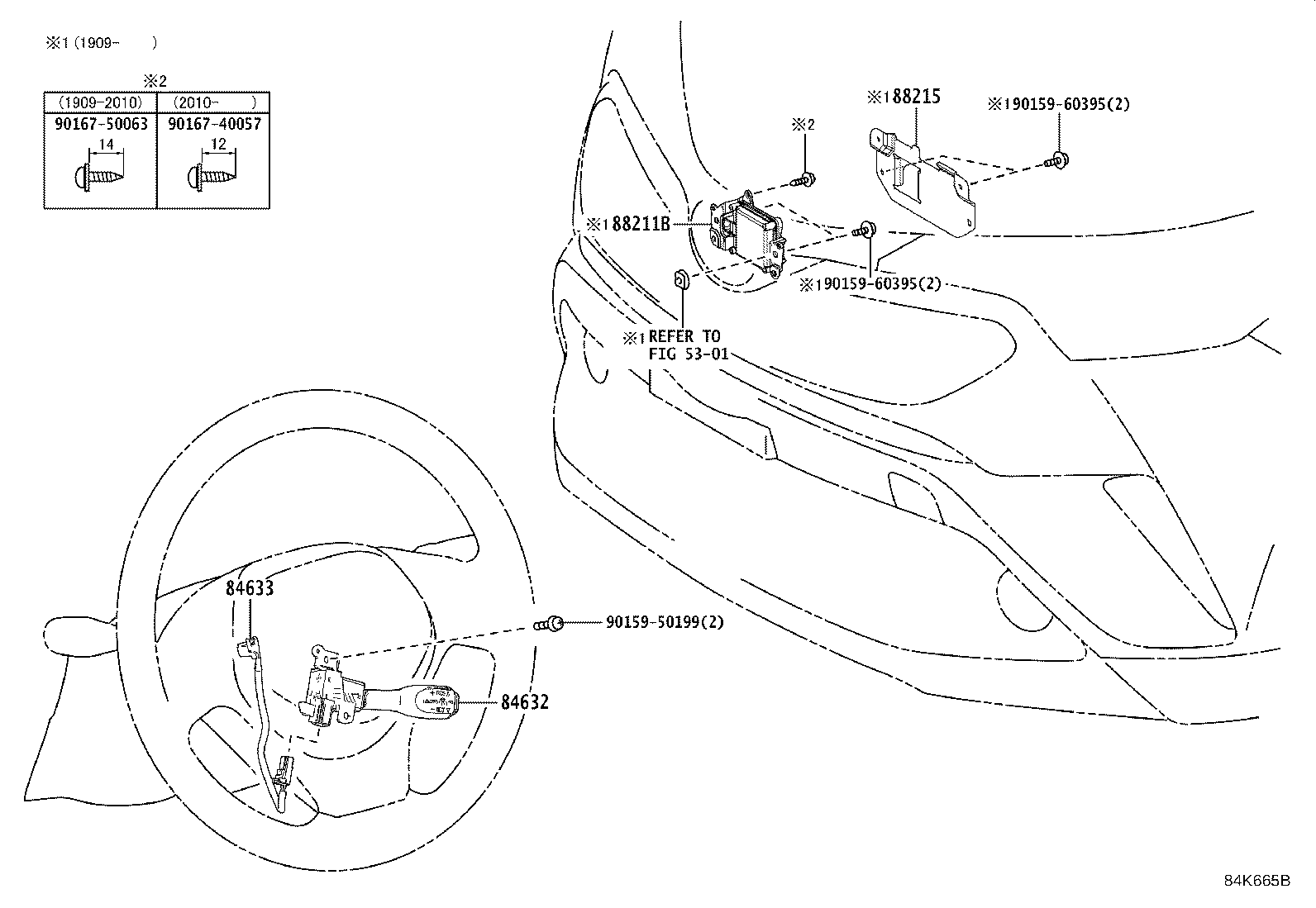

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84632 — Switch, Cruise Control Main | ||||
| 84632-0F010 |
Switch, Cruise Control Main
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 84632-0F010 note |
Switch, Cruise Control Main
2016-10 → 2019-09
ended
|
NGX10,50 D,N | — | |
| 84632-0F010 |
Switch, Cruise Control Main
2019-09 → —
|
ZYX10;NGX10,50 E | — | |
| 84632-0F010 note |
Switch, Cruise Control Main
2019-09 → —
|
NGX10,50 N | — | |
| 84632-47010 note |
Switch, Cruise Control Main
2019-09 → —
|
NGX10 RHD E | — | |
| 84633 — Wire, Cruise Control Switch | ||||
| 84633-F4010 |
Wire, Cruise Control Switch
2016-10 → 2019-09
ended
|
NGX10,50 E | — | |
| 84633-F4010 note |
Wire, Cruise Control Switch
2016-10 → 2019-09
ended
|
NGX10,50 D,N | — | |
| 84633-F4010 |
Wire, Cruise Control Switch
2019-09 → —
|
ZYX10;NGX10,50 E | — | |
| 84633-F4010 note |
Wire, Cruise Control Switch
2019-09 → —
|
NGX10,50 N | — | |
| 84633-F4020 note |
Wire, Cruise Control Switch
2019-09 → —
|
NGX10 RHD E | — | |
| 88211B — Sensor Assy, Millimeter Wave Radar | ||||
| 88210-F4050 note |
Sensor Assy, Millimeter Wave Radar
2019-09 → 2020-10
ended
|
NGX10 RHD E | — | |
| 88210-F4070 note |
Sensor Assy, Millimeter Wave Radar
2020-10 → —
|
NGX10 RHD E | — | |
| 88215 — Bracket, Millimeter Wave Radar Sensor, NO.1 | ||||
| 88215-F4010 note |
Bracket, Millimeter Wave Radar Sensor, NO.1
2019-09 → —
|
NGX10 RHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
