Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

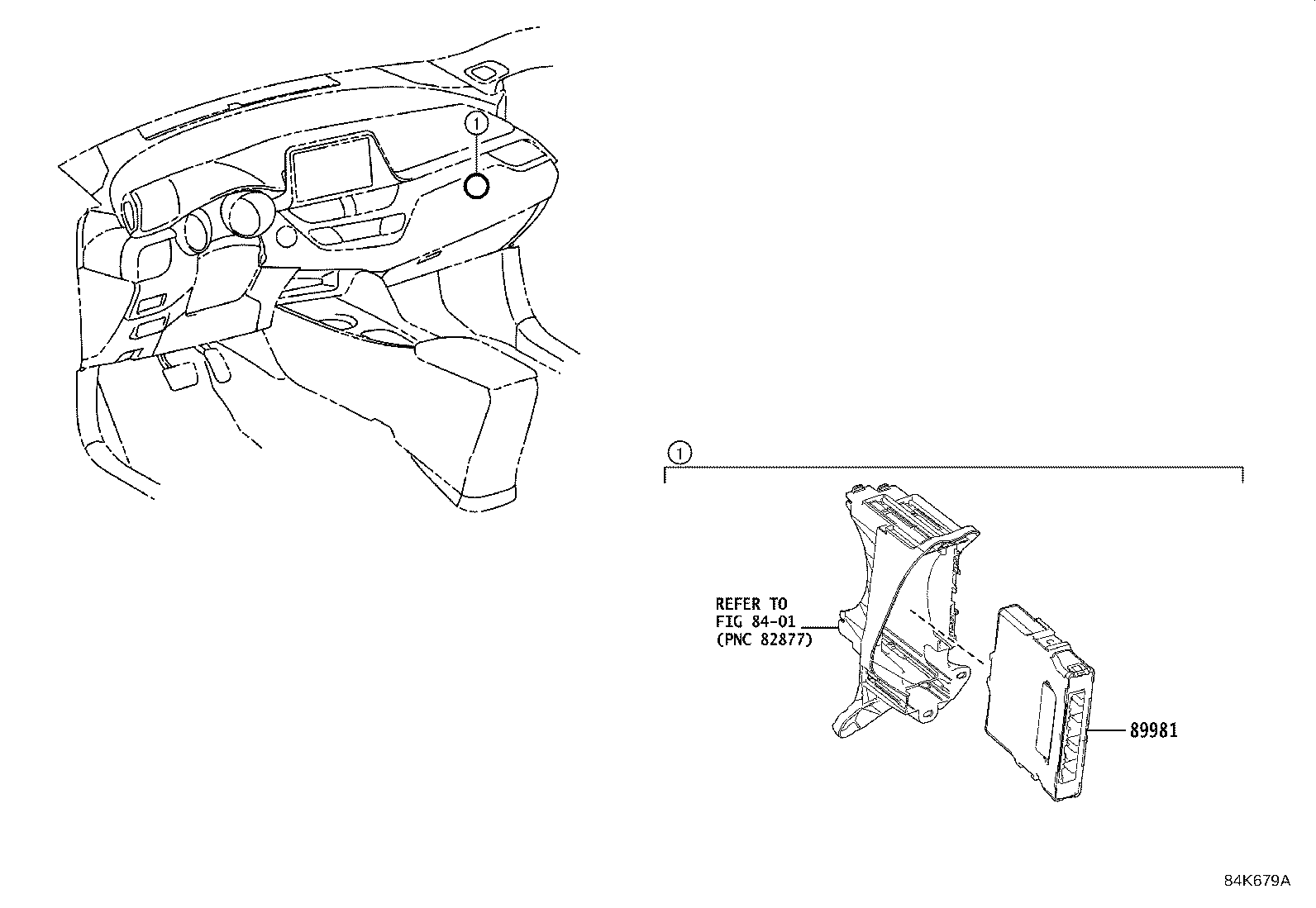

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89981 — Computer, Hybrid Vehicle Control | ||||
| 89981-F4060 |
Computer, Hybrid Vehicle Control
2019-09 → 2020-10
ended
|
ZYX10 | — | |
| 89981-F4090 |
Computer, Hybrid Vehicle Control
2020-10 → 2023-03
ended
|
ZYX10 | — | |
| 89981-F4210 |
Computer, Hybrid Vehicle Control
2023-03 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
