Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 84K767D 85912 — RELAY, DEFOGGER (3 parts) 85924C — RELAY, IGCT (1 parts) 16100P — RELAY, WATER PUMP (2 parts) 86530 — RELAY ASSY, HORN (3 parts) 85927B — RELAY, COOLING FAN, NO.3 (3 parts) 85927 — RELAY, COOLING FAN (3 parts) 28371 — RELAY, IGNITION, NO.1 (3 parts) 85927A — RELAY, COOLING FAN, NO.2 (3 parts) 82661A — COVER, RELAY BLOCK, NO.2 (3 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (3 parts) 82666 — HOLDER, CONNECTOR (3 parts) 82666H — HOLDER, CONNECTOR, NO.2 (3 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (7 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (5 parts) 82663 — COVER, RELAY BLOCK, LOWER (3 parts) 82660B — BLOCK ASSY, RELAY (3 parts) 82660C — BLOCK ASSY, RELAY (3 parts) 82660D — BLOCK ASSY, RELAY (3 parts) 82660E — BLOCK ASSY, RELAY (3 parts) 82661 — COVER, RELAY BLOCK, NO.1 (3 parts) 82210P — ENGINE ROOM FUSIBLE LINK (10 parts) 82600E — ENGINE ROOM FUSE (14 parts) 82641 — RELAY, INTEGRATION NO.1 (2 parts) 8404 — not listed in this catalogue 82616 — PULLER, FUSE (1 parts)

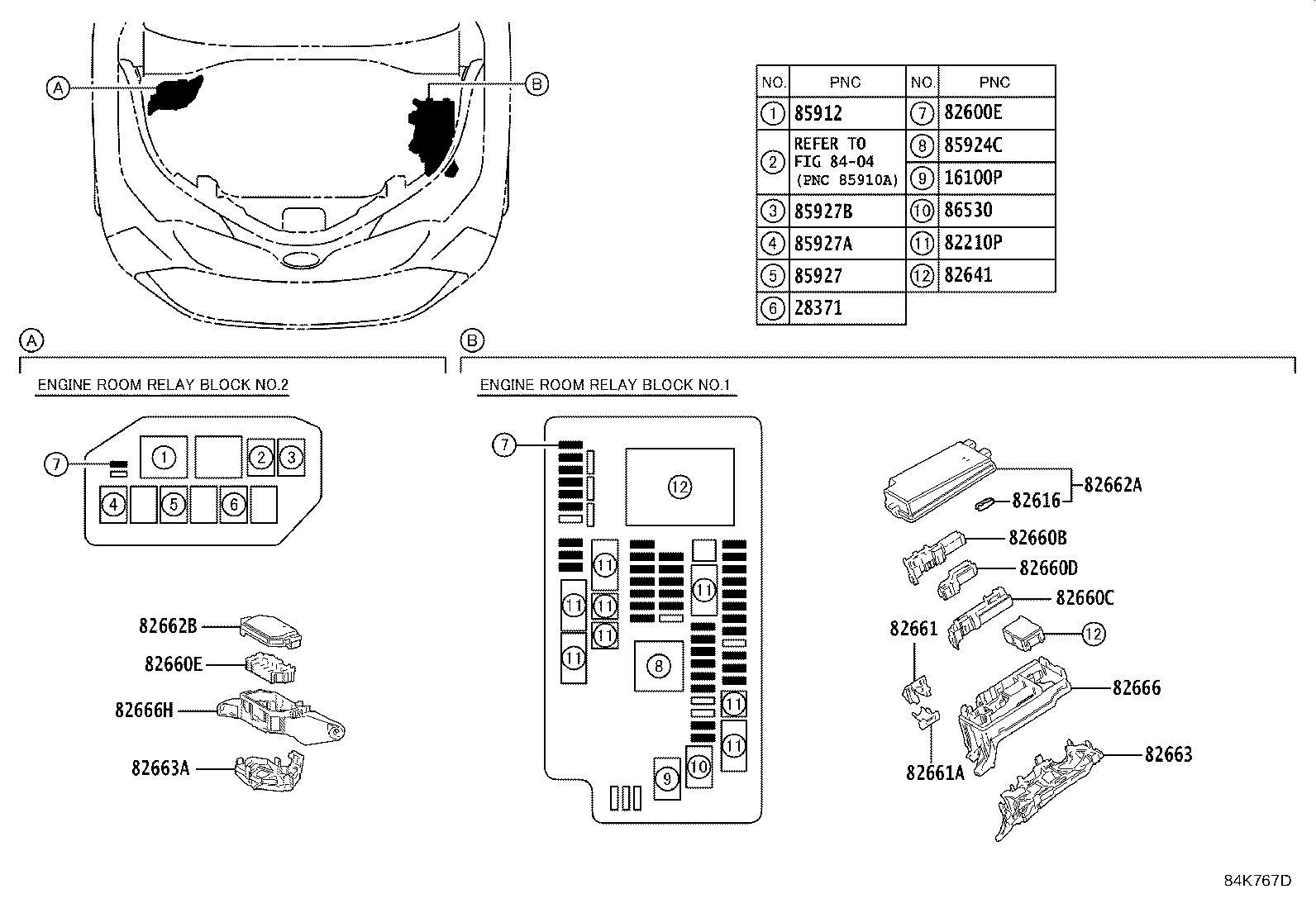

84K767D · 24 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
16100P — Relay, Water Pump
90080-87021 Relay, Water Pump
2019-09 → 2021-05 ended
2ZRFXE ZYX10 —
90987-02027 Relay, Water Pump
2021-05 → —
2ZRFXE ZYX10 —
28371 — Relay, Ignition, NO.1
90080-87021 Relay, Ignition, NO.1
2016-10 → 2019-09 ended
8NRFTS NGX10,50 E;8NRFTS NGX50 +2 —
90080-87021 Relay, Ignition, NO.1
2019-09 → 2021-07 ended
8NRFTS,2ZRFXE NGX10,50,ZYX10 E —
90987-02027 Relay, Ignition, NO.1
2021-07 → —
8NRFTS,2ZRFXE NGX10,50,ZYX10 E —
82210P — Engine Room Fusible Link
90982-08295 note Engine Room Fusible Link
2016-10 → 2019-09 ended
NGX10,50 —
90982-08296 note Engine Room Fusible Link
2016-10 → 2019-09 ended
NGX10,50 —
90982-08300 note Engine Room Fusible Link
2016-10 → 2019-09 ended
NGX10,50 —
90982-08305 note Engine Room Fusible Link
2016-10 → 2019-09 ended
NGX10,50 —
90982-08295 note Engine Room Fusible Link
2019-09 → —
NGX10,50,ZYX10 —
90982-08296 note Engine Room Fusible Link
2019-09 → —
NGX10,50,ZYX10 —
90982-08300 note Engine Room Fusible Link
2019-09 → —
NGX10,50,ZYX10 —
90982-08302 note Engine Room Fusible Link
2019-09 → —
ZYX10 —
90982-08305 note Engine Room Fusible Link
2019-09 → —
NGX10,50 —
90982-08308 note Engine Room Fusible Link
2019-09 → —
ZYX10 —
82600E — Engine Room Fuse
90982-09019 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09020 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09021 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09022 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09023 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09024 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09025 note Engine Room Fuse
2016-10 → 2019-09 ended
NGX10,50 —
90982-09019 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09020 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09021 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09022 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09023 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09024 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
90982-09025 note Engine Room Fuse
2019-09 → —
NGX10,50,ZYX10 —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2019-09 → —
NGX10,50,ZYX10 —
82641 — Relay, Integration NO.1
82641-47050 Relay, Integration NO.1
2016-10 → 2019-09 ended
NGX10,50 —
82641-47050 Relay, Integration NO.1
2019-09 → —
NGX10,50,ZYX10 —
82660B — Block Assy, Relay
82660-F4030 Block Assy, Relay
2016-10 → 2019-09 ended
NGX10,50 —
82660-47070 Block Assy, Relay
2019-09 → —
ZYX10 —
82660-F4030 Block Assy, Relay
2019-09 → —
NGX10,50 —
82660C — Block Assy, Relay
82660-F4010 Block Assy, Relay
2016-10 → 2019-09 ended
NGX10,50 —
82660-47080 Block Assy, Relay
2019-09 → —
ZYX10 —
82660-F4010 Block Assy, Relay
2019-09 → —
NGX10,50 —
82660D — Block Assy, Relay
82660-F4020 Block Assy, Relay
2016-10 → 2019-09 ended
NGX10,50 —
82660-47090 Block Assy, Relay
2019-09 → —
ZYX10 —
82660-F4020 Block Assy, Relay
2019-09 → —
NGX10,50 —
82660E — Block Assy, Relay
82660-F4060 Block Assy, Relay
2016-10 → 2019-09 ended
NGX10,50 —
82660-F4060 Block Assy, Relay
2019-09 → 2020-10 ended
NGX10 RHD 6F —
82660-F4060 Block Assy, Relay
2019-09 → —
NGX10 LHD 6F;NGX10,50,ZYX10 CVT —
82661 — Cover, Relay Block, NO.1
82661-F4020 Cover, Relay Block, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
82661-47020 Cover, Relay Block, NO.1
2019-09 → —
ZYX10 —
82661-F4020 Cover, Relay Block, NO.1
2019-09 → —
NGX10,50 —
82661A — Cover, Relay Block, NO.2
82661-F4010 Cover, Relay Block, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
82661-47030 Cover, Relay Block, NO.2
2019-09 → —
ZYX10 —
82661-F4010 Cover, Relay Block, NO.2
2019-09 → —
NGX10,50 —
82662A — Cover, Relay Block, Upper, NO.1
82662-F4010 Cover, Relay Block, Upper, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
82662-F4050 note Cover, Relay Block, Upper, NO.1
2016-10 → 2018-05 ended
NGX10,50 E —
82662-F4050 note Cover, Relay Block, Upper, NO.1
2018-05 → 2019-09 ended
NGX10,50 E —
82662-F4011 Cover, Relay Block, Upper, NO.1
2019-09 → —
NGX10,50 —
82662-F4022 Cover, Relay Block, Upper, NO.1
2019-09 → 2020-10 ended
ZYX10 N —
82662-F4022 Cover, Relay Block, Upper, NO.1
2020-10 → —
ZYX10 N —
82662-F4400 Cover, Relay Block, Upper, NO.1
2019-09 → —
ZYX10 E —
82662B — Cover, Relay Block, Upper, NO.2
82662-F4030 Cover, Relay Block, Upper, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
82662-F4030 Cover, Relay Block, Upper, NO.2
2019-09 → 2020-07 ended
NGX10 RHD 6F —
82662-F4030 Cover, Relay Block, Upper, NO.2
2019-09 → —
NGX10,50 CVT —
82662-F4030 Cover, Relay Block, Upper, NO.2
2019-09 → 2022-11 ended
NGX10 LHD 6F —
82662-F4270 Cover, Relay Block, Upper, NO.2
2019-09 → —
ZYX10 —
82663 — Cover, Relay Block, Lower
82663-F4010 Cover, Relay Block, Lower
2016-10 → 2019-09 ended
NGX10,50 —
82663-47070 Cover, Relay Block, Lower
2019-09 → —
ZYX10 —
82663-F4010 Cover, Relay Block, Lower
2019-09 → —
NGX10,50 —
82663A — Cover, Relay Block, Lower, NO.2
82663-F4020 Cover, Relay Block, Lower, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
82663-F4020 Cover, Relay Block, Lower, NO.2
2019-09 → 2020-10 ended
NGX10 RHD 6F —
82663-F4020 Cover, Relay Block, Lower, NO.2
2019-09 → —
NGX10 LHD 6F;NGX10,50,ZYX10 CVT —
82666 — Holder, Connector
82666-F4030 Holder, Connector
2016-10 → 2019-09 ended
NGX10,50 —
82666-47610 Holder, Connector
2019-09 → —
ZYX10 —
82666-F4030 Holder, Connector
2019-09 → —
NGX10,50 —
82666H — Holder, Connector, NO.2
82666-F4070 Holder, Connector, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
82666-F4070 Holder, Connector, NO.2
2019-09 → 2020-10 ended
NGX10 RHD 6F —
82666-F4070 Holder, Connector, NO.2
2019-09 → —
NGX10 LHD 6F;NGX10,50,ZYX10 CVT —
85912 — Relay, Defogger
90080-87031 Relay, Defogger
2016-10 → 2019-09 ended
NGX10,50 —
90080-87030 Relay, Defogger
2022-02 → —
NGX10,50,ZYX10 —
90080-87031 Relay, Defogger
2019-09 → 2022-01 ended
NGX10,50,ZYX10 —
85924C — Relay, Igct
90080-87030 Relay, Igct
2019-09 → —
ZYX10 —
85927 — Relay, Cooling Fan
90080-87021 note Relay, Cooling Fan
2019-09 → 2021-10 ended
ZYX10 —
90987-02027 note Relay, Cooling Fan
2019-09 → 2021-10 ended
ZYX10 —
90987-02027 Relay, Cooling Fan
2021-10 → —
ZYX10 —
85927A — Relay, Cooling Fan, NO.2
90080-87020 note Relay, Cooling Fan, NO.2
2019-09 → 2021-04 ended
ZYX10 —
90987-04004 note Relay, Cooling Fan, NO.2
2019-09 → 2021-04 ended
ZYX10 —
90987-04004 Relay, Cooling Fan, NO.2
2021-04 → —
ZYX10 —
85927B — Relay, Cooling Fan, NO.3
90080-87021 note Relay, Cooling Fan, NO.3
2019-09 → 2021-10 ended
ZYX10 —
90987-02027 note Relay, Cooling Fan, NO.3
2019-09 → 2021-10 ended
ZYX10 —
90987-02027 Relay, Cooling Fan, NO.3
2021-10 → —
ZYX10 —
86530 — Relay Assy, Horn
90080-87021 Relay Assy, Horn
2016-10 → 2019-09 ended
NGX10,50 —
90080-87021 Relay Assy, Horn
2019-09 → 2021-07 ended
NGX10,50,ZYX10 —
90987-02027 Relay Assy, Horn
2021-07 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
