Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

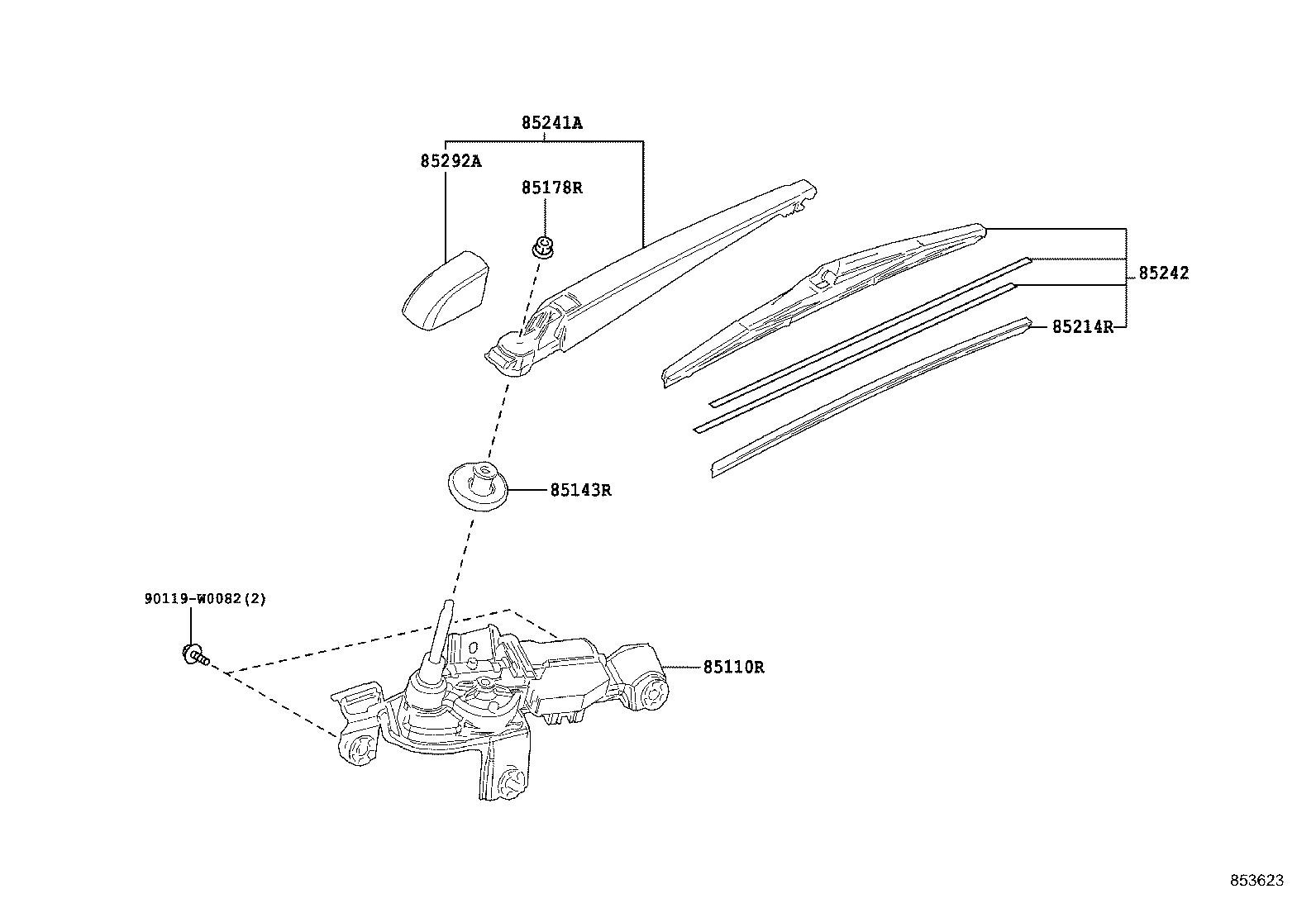

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-F4010 |
Motor Assy, Rear Wiper
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85130-F4010 |
Motor Assy, Rear Wiper
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-05060 |
Grommet, Rear Wiper Motor
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85143-05060 |
Grommet, Rear Wiper Motor
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85178R — Nut (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
Nut (FOR REAR WIPER ARM SETTING)
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 90179-06158 |
Nut (FOR REAR WIPER ARM SETTING)
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-F4030 |
Rubber, Rear Wiper
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85214-F4030 |
Rubber, Rear Wiper
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85241A — Arm, Rear Wiper | ||||
| 85241-F4010 |
Arm, Rear Wiper
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85241-F4010 |
Arm, Rear Wiper
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85242 — Blade, RR Wiper | ||||
| 85242-F4010 |
Blade, RR Wiper
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85242-F4010 |
Blade, RR Wiper
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 85292A — Cap, Rear Wiper Arm Head | ||||
| 85292-F4010 |
Cap, Rear Wiper Arm Head
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 85292-F4010 |
Cap, Rear Wiper Arm Head
2019-09 → —
|
NGX10,50,ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
