Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

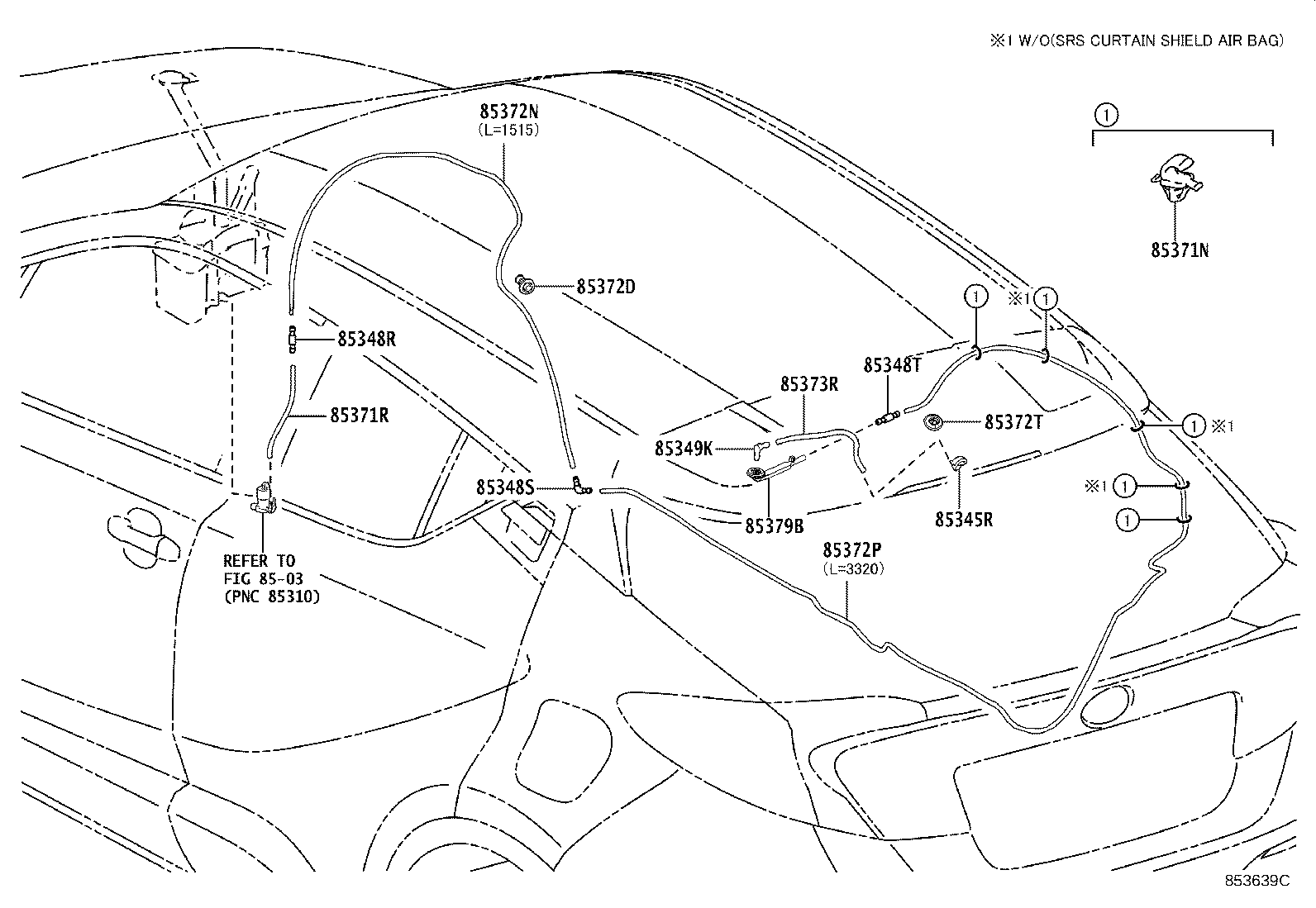

Exploded illustration 853639C 85371N — CLAMP, REAR WASHER HOSE (10 parts) 85379B — GROMMET, WASHER, A (2 parts) 85372T — GROMMET, WASHER (2 parts) 85345R — NOZZLE, REAR WASHER (2 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (2 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (2 parts) 85373R — HOSE, REAR WASHER (FROM JOINT TO NOZZLE) (10 parts) 8503 — not listed in this catalogue 85348R — JOINT, REAR WASHER HOSE, NO.1 (2 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (10 parts) 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (10 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (2 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 85372D — GROMMET, REAR WASHER HOSE (2 parts)
853639C · 13 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
85345R — Nozzle, Rear Washer
85391-10030 Nozzle, Rear Washer
2016-10 → 2019-09 ended
NGX10,50 —
85391-10030 Nozzle, Rear Washer
2019-09 → —
NGX10,50,ZYX10 —
85348R — Joint, Rear Washer Hose, NO.1
85357-0F020 Joint, Rear Washer Hose, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
85357-0F020 Joint, Rear Washer Hose, NO.1
2019-09 → —
NGX10,50,ZYX10 —
85348S — Joint, Rear Washer Elbow, NO.1
85375-0F030 Joint, Rear Washer Elbow, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
85375-0F030 Joint, Rear Washer Elbow, NO.1
2019-09 → —
NGX10,50,ZYX10 —
85348T — Joint, Rear Washer Hose, NO.2
85357-0F020 Joint, Rear Washer Hose, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
85357-0F020 Joint, Rear Washer Hose, NO.2
2019-09 → —
NGX10,50,ZYX10 —
85349K — Joint, Rear Washer Elbow, NO.2
85355-20200 Joint, Rear Washer Elbow, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
85355-20200 Joint, Rear Washer Elbow, NO.2
2019-09 → —
NGX10,50,ZYX10 —
85371N — Clamp, Rear Washer Hose
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
85371-12040 Clamp, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10,50 —
85371-12040 note Clamp, Rear Washer Hose
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
85371-12040 Clamp, Rear Washer Hose
2019-09 → —
NGX10,50,ZYX10 —
85371-12040 note Clamp, Rear Washer Hose
2019-09 → —
NGX10 LHD 6F —
85371-12040 note Clamp, Rear Washer Hose
2019-09 → —
NGX10 LHD CVT N —
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
90069-46076 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2016-10 → 2019-09 ended
NGX10,50 —
90069-46076 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2019-09 → —
NGX10,50,ZYX10 —
85372D — Grommet, Rear Washer Hose
85379-0F030 Grommet, Rear Washer Hose
2016-10 → 2019-09 ended
NGX10,50 —
85379-0F030 Grommet, Rear Washer Hose
2019-09 → —
NGX10,50,ZYX10 —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10,50 —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2019-09 → —
NGX10,50,ZYX10 —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2019-09 → —
NGX10 LHD 6F —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2019-09 → —
NGX10 LHD CVT N —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10,50 —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2019-09 → —
NGX10 LHD 6F —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2019-09 → —
NGX10 LHD CVT N —
90069-16010 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2019-09 → —
NGX10,50,ZYX10 —
85372T — Grommet, Washer
85373-0D010 Grommet, Washer
2016-10 → 2019-09 ended
NGX10,50 —
85373-0D010 Grommet, Washer
2019-09 → —
NGX10,50,ZYX10 —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2018-05 ended
NGX10 LHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10,50 —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10 RHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10 LHD (D,N) —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2019-09 → —
NGX10,50,ZYX10 —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2019-09 → —
NGX10 LHD 6F —
90099-33299 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2019-09 → —
NGX10 LHD CVT N —
85379B — Grommet, Washer, A
85373-0D022 Grommet, Washer, A
2016-10 → 2019-09 ended
NGX10,50 —
85373-0D022 Grommet, Washer, A
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
