Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

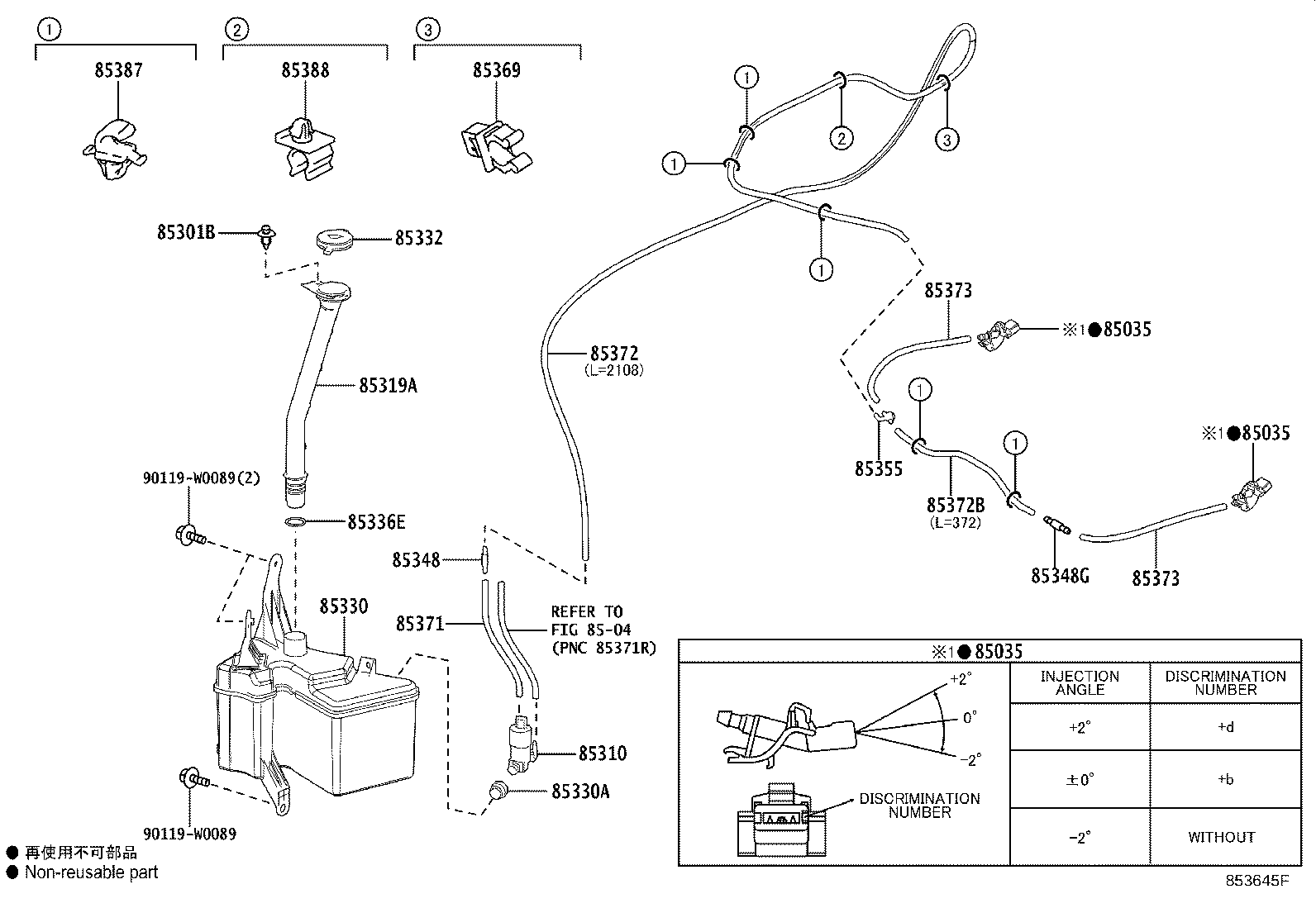

Exploded illustration 853645F 8504 — not listed in this catalogue 85035 — NOZZLE SUB-ASSY, WASHER (6 parts) 85035 — NOZZLE SUB-ASSY, WASHER (6 parts) 85035 — NOZZLE SUB-ASSY, WASHER (6 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85348G — JOINT, WINDSHIELD WASHER HOSE, NO.2 (2 parts) 85369 — CLAMP (2 parts) 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (2 parts) 85387 — CLAMP NO.1 (FOR WINDSEIELD WASHER) (2 parts) 85388 — CLAMP NO.2 (FOR WINDSEIELD WASHER) (2 parts) 90119W0089 — not listed in this catalogue 90119W0089 — not listed in this catalogue 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (2 parts) 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (2 parts) 85355 — VALVE, WINDSHIELD WASHER HOSE (2 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (3 parts) 85319A — HOSE, INLET (2 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (2 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (2 parts) 85332 — CAP, WINDSHIELD WASHER JAR (2 parts) 85301B — CLIP, WASHER (3 parts) 85336E — PACKING, WINDSHIELD WASHER INLET HOSE (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts)
853645F · 21 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
85035 — Nozzle Sub-assy, Washer
85381-30220 note Nozzle Sub-assy, Washer
2016-10 → 2019-09 ended
NGX10,50 —
85381-30230 note Nozzle Sub-assy, Washer
2016-10 → 2019-09 ended
NGX10,50 —
85381-30240 note Nozzle Sub-assy, Washer
2016-10 → 2019-09 ended
NGX10,50 —
85381-30220 note Nozzle Sub-assy, Washer
2019-09 → —
NGX10,50,ZYX10 —
85381-30230 note Nozzle Sub-assy, Washer
2019-09 → —
NGX10,50,ZYX10 —
85381-30240 note Nozzle Sub-assy, Washer
2019-09 → —
NGX10,50,ZYX10 —
85301B — Clip, Washer
90467-07076-C0 note Clip, Washer
2016-10 → 2017-03 ended
NGX10,50 —
90467-07076-C7 note Clip, Washer
2017-03 → 2019-09 ended
NGX10,50 —
90467-07076-C7 note Clip, Washer
2019-09 → —
NGX10,50,ZYX10 —
85310 — Motor And Pump Assy, Windshield Washer
85330-F4010 Motor And Pump Assy, Windshield Washer
2016-10 → 2017-01 ended
NGX10,50 —
85330-F4011 Motor And Pump Assy, Windshield Washer
2017-02 → 2019-09 ended
NGX10,50 —
85330-F4011 Motor And Pump Assy, Windshield Washer
2019-09 → —
NGX10,50,ZYX10 —
85319A — Hose, Inlet
85319-F4040 Hose, Inlet
2016-10 → 2019-09 ended
NGX10,50 —
85319-F4040 Hose, Inlet
2019-09 → —
NGX10,50,ZYX10 —
85330 — Jar Assy, Windshield Washer
85315-F4040 Jar Assy, Windshield Washer
2016-10 → 2019-09 ended
NGX10,50 —
85315-F4040 Jar Assy, Windshield Washer
2019-09 → —
NGX10,50,ZYX10 —
85330A — Bush, Windshield Washer Jar
90069-50009 Bush, Windshield Washer Jar
2016-10 → 2019-09 ended
NGX10,50 —
90069-50009 Bush, Windshield Washer Jar
2019-09 → —
NGX10,50,ZYX10 —
85332 — Cap, Windshield Washer Jar
85316-F4090 Cap, Windshield Washer Jar
2016-10 → 2019-09 ended
NGX10,50 —
85316-F4090 Cap, Windshield Washer Jar
2019-09 → —
NGX10,50,ZYX10 —
85336E — Packing, Windshield Washer Inlet Hose
90069-38045 Packing, Windshield Washer Inlet Hose
2016-10 → 2019-09 ended
NGX10,50 —
90069-38045 Packing, Windshield Washer Inlet Hose
2019-09 → —
NGX10,50,ZYX10 —
85348 — Joint, Windshield Washer Hose, NO.1
85357-0F020 Joint, Windshield Washer Hose, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
85357-0F020 Joint, Windshield Washer Hose, NO.1
2019-09 → —
NGX10,50,ZYX10 —
85348G — Joint, Windshield Washer Hose, NO.2
85357-0F020 Joint, Windshield Washer Hose, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
85357-0F020 Joint, Windshield Washer Hose, NO.2
2019-09 → —
NGX10,50,ZYX10 —
85355 — Valve, Windshield Washer Hose
85376-0F040 Valve, Windshield Washer Hose
2016-10 → 2019-09 ended
NGX10,50 —
85376-0F040 Valve, Windshield Washer Hose
2019-09 → —
NGX10,50,ZYX10 —
85369 — Clamp
85371-52110 Clamp
2016-10 → 2019-09 ended
NGX10,50 —
85371-52110 Clamp
2019-09 → —
NGX10,50,ZYX10 —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90069-46076 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2016-10 → 2019-09 ended
NGX10,50 —
90069-46076 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2019-09 → —
NGX10,50,ZYX10 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90069-16010 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2016-10 → 2019-09 ended
NGX10,50 —
90069-16010 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2019-09 → —
NGX10,50,ZYX10 —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
90069-16009 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2016-10 → 2019-09 ended
NGX10,50 —
90069-16009 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2019-09 → —
NGX10,50,ZYX10 —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2016-10 → 2019-09 ended
NGX10,50 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2019-09 → —
NGX10,50,ZYX10 —
85387 — Clamp NO.1 (FOR WINDSEIELD WASHER)
85371-12040 Clamp NO.1 (FOR WINDSEIELD WASHER)
2016-10 → 2019-09 ended
NGX10,50 —
85371-12040 Clamp NO.1 (FOR WINDSEIELD WASHER)
2019-09 → —
NGX10,50,ZYX10 —
85388 — Clamp NO.2 (FOR WINDSEIELD WASHER)
85371-32020 Clamp NO.2 (FOR WINDSEIELD WASHER)
2016-10 → 2019-09 ended
NGX10,50 —
85371-32020 Clamp NO.2 (FOR WINDSEIELD WASHER)
2019-09 → —
NGX10,50,ZYX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
