Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

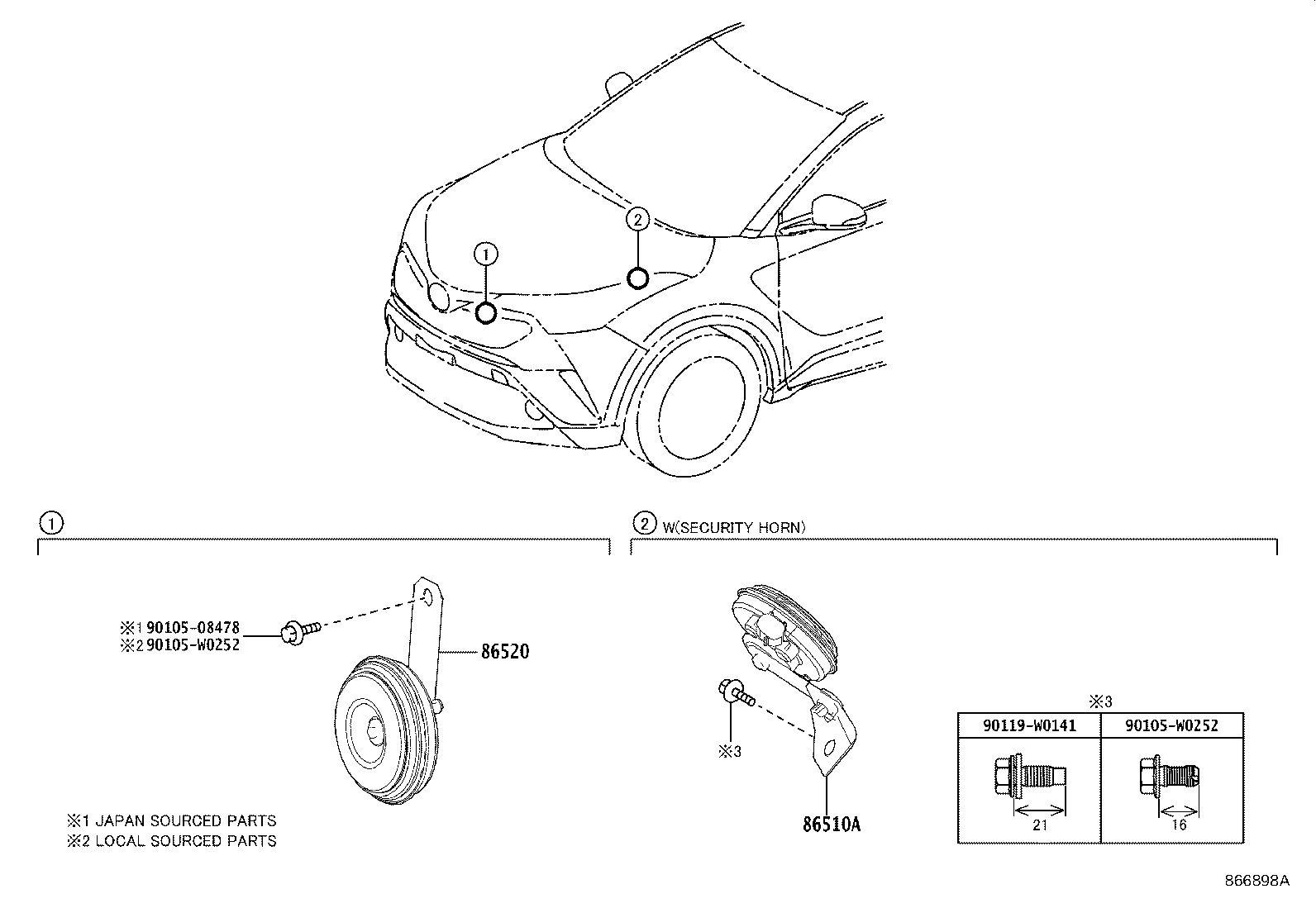

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510A — Horn Assy, Security | ||||
| 86560-10010 note |
Horn Assy, Security
2018-05 → 2019-09
ended
|
NGX10,50 RHD | — | |
| 86560-10010 note |
Horn Assy, Security
2019-09 → —
|
NGX10 RHD | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-02140 |
Horn Assy, Low Pitched
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 86520-12710 note |
Horn Assy, Low Pitched
2016-10 → 2019-09
ended
|
NGX10,50 LHD | — | |
| 86520-02140 |
Horn Assy, Low Pitched
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 86520-12710 note |
Horn Assy, Low Pitched
2019-09 → —
|
NGX50 E;NGX10 LHD CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
