Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

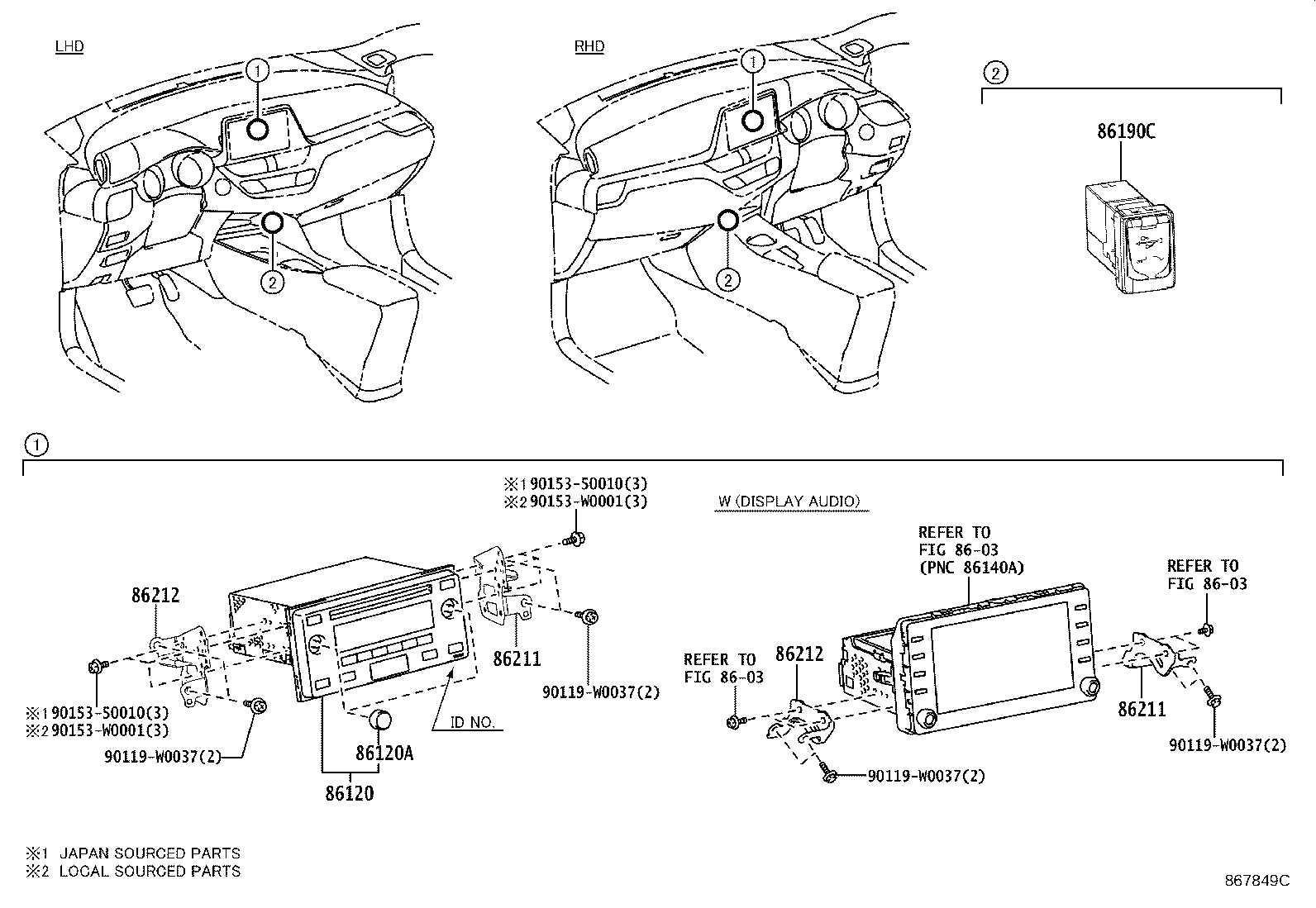

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-F4020 note |
Receiver Assy, Radio
2016-10 → 2018-05
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4020 note |
Receiver Assy, Radio
2016-10 → 2019-09
ended
|
NGX10,50 RHD (E,N) | — | |
| 86120-F4020 note |
Receiver Assy, Radio
2016-10 → 2019-09
ended
|
NGX10,50 RHD (E,N) | — | |
| 86120-F4020 note |
Receiver Assy, Radio
2018-05 → 2019-09
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4030 note |
Receiver Assy, Radio
2016-10 → 2018-05
ended
|
NGX10,50 RHD (E,N) | — | |
| 86120-F4030 note |
Receiver Assy, Radio
2018-05 → 2019-09
ended
|
NGX10,50 RHD (E,N) | — | |
| 86120-F4040 note |
Receiver Assy, Radio
2016-10 → 2017-10
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4040 note |
Receiver Assy, Radio
2016-10 → 2017-10
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4041 note |
Receiver Assy, Radio
2017-11 → 2019-09
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4041 note |
Receiver Assy, Radio
2017-11 → 2019-09
ended
|
NGX10,50 LHD (E,N) | — | |
| 86120-F4041 note |
Receiver Assy, Radio
2019-09 → —
|
NGX50 | — | |
| 86120-F4041 note |
Receiver Assy, Radio
2019-09 → —
|
NGX10 LHD | — | |
| 86120A — Knob, Radio Receiver Switch | ||||
| 90010-23051 |
Knob, Radio Receiver Switch
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 90010-23051 note |
Knob, Radio Receiver Switch
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 90010-23051 note |
Knob, Radio Receiver Switch
2019-09 → —
|
NGX50 | — | |
| 90010-23051 note |
Knob, Radio Receiver Switch
2019-09 → —
|
NGX10 LHD | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-F4040 note |
Adapter Assy, Stereo Jack, NO.1
2019-09 → 2020-09
ended
|
ZYX10 | — | |
| 86190-F4040 note |
Adapter Assy, Stereo Jack, NO.1
2019-09 → 2020-09
ended
|
NGX10 LHD | — | |
| 86190-F4040 note |
Adapter Assy, Stereo Jack, NO.1
2019-09 → 2020-09
ended
|
NGX50 | — | |
| 86190-F4040 |
Adapter Assy, Stereo Jack, NO.1
2019-09 → 2020-09
ended
|
NGX10,50 | — | |
| 86190-F4040 note |
Adapter Assy, Stereo Jack, NO.1
2019-09 → 2020-09
ended
|
NGX10 LHD CVT N | — | |
| 86190-F4041 note |
Adapter Assy, Stereo Jack, NO.1
2020-10 → 2023-10
ended
|
NGX50 | — | |
| 86190-F4041 note |
Adapter Assy, Stereo Jack, NO.1
2020-10 → 2023-10
ended
|
NGX10 LHD CVT N | — | |
| 86190-F4041 note |
Adapter Assy, Stereo Jack, NO.1
2020-10 → 2023-10
ended
|
NGX10 LHD | — | |
| 86190-F4041 |
Adapter Assy, Stereo Jack, NO.1
2020-10 → —
|
NGX10,50 | — | |
| 86190-F4041 note |
Adapter Assy, Stereo Jack, NO.1
2020-10 → —
|
ZYX10 | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-F4010 |
Bracket, Radio, NO.1
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 86211-F4010 note |
Bracket, Radio, NO.1
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 86211-F4010 note |
Bracket, Radio, NO.1
2019-09 → —
|
NGX10 LHD | — | |
| 86211-F4010 note |
Bracket, Radio, NO.1
2019-09 → —
|
NGX50 | — | |
| 86211-F4010 |
Bracket, Radio, NO.1
2019-09 → —
|
ZYX10 | — | |
| 86211-F4090 |
Bracket, Radio, NO.1
2019-09 → —
|
NGX10,50 | — | |
| 86211-F4090 note |
Bracket, Radio, NO.1
2019-09 → —
|
ZYX10 | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-F4010 |
Bracket, Radio, NO.2
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 86212-F4010 |
Bracket, Radio, NO.2
2019-09 → —
|
ZYX10 | — | |
| 86212-F4010 note |
Bracket, Radio, NO.2
2019-09 → —
|
NGX50 | — | |
| 86212-F4010 note |
Bracket, Radio, NO.2
2019-09 → —
|
NGX10 LHD CVT N | — | |
| 86212-F4010 note |
Bracket, Radio, NO.2
2019-09 → —
|
NGX10 LHD | — | |
| 86212-F4090 |
Bracket, Radio, NO.2
2019-09 → —
|
NGX10,50 | — | |
| 86212-F4090 note |
Bracket, Radio, NO.2
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
