Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

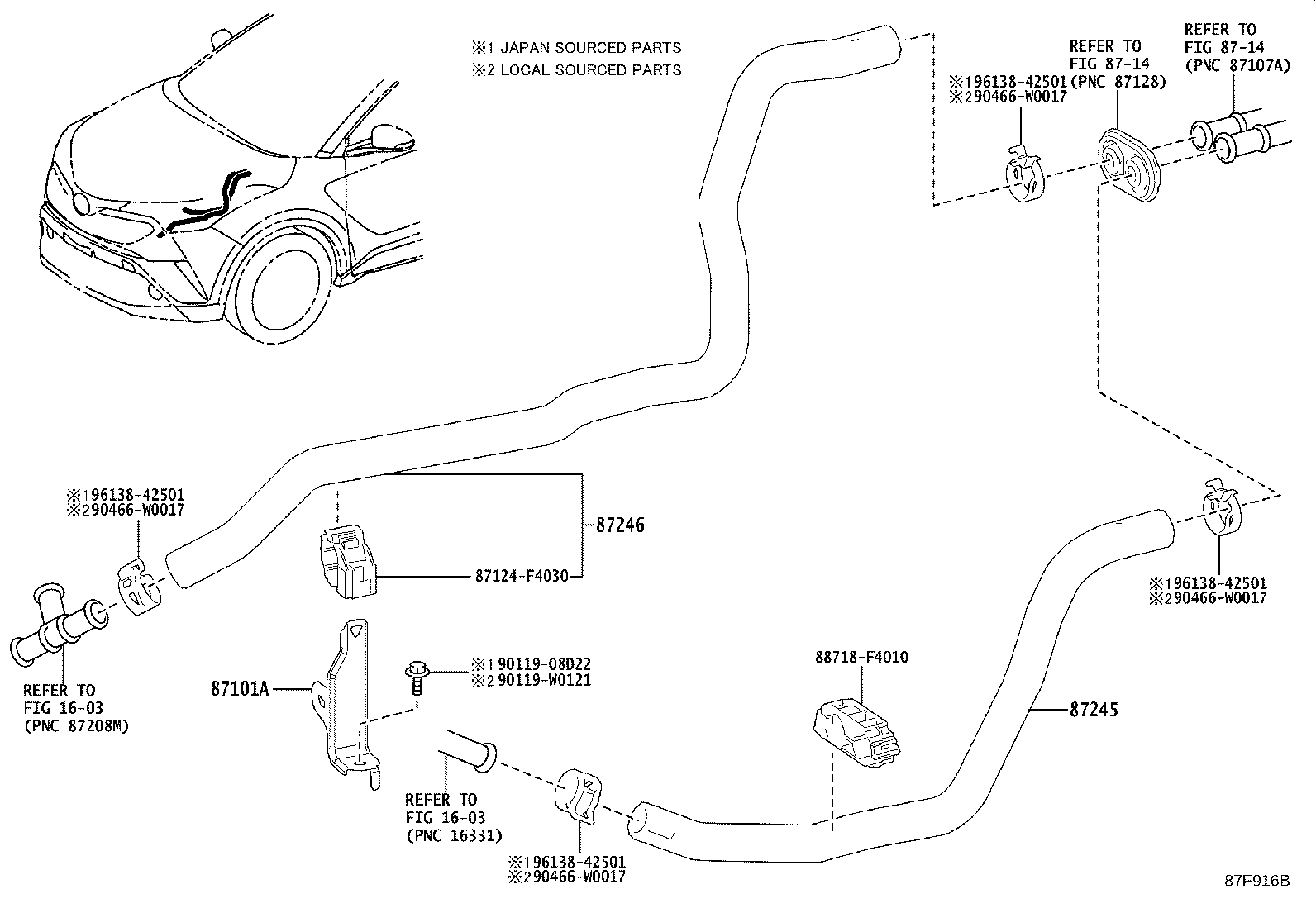

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87101A — Bracket Sub-assy, Heater NO.1 | ||||
| 87101-12150 |
Bracket Sub-assy, Heater NO.1
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 87121-F4010 |
Bracket Sub-assy, Heater NO.1
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 87101-12150 |
Bracket Sub-assy, Heater NO.1
2019-09 → —
|
NGX10,50 CVT | — | |
| 87121-F4010 |
Bracket Sub-assy, Heater NO.1
2019-09 → —
|
NGX10 6F | — | |
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-F4020 |
Hose, Heater Water, Inlet
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 87245-F4020 |
Hose, Heater Water, Inlet
2019-09 → —
|
NGX10,50 | — | |
| 87245-F4030 |
Hose, Heater Water, Inlet
2019-09 → —
|
ZYX10 | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87209-F4020 |
Hose, Heater Water, Outlet
2016-10 → 2019-09
ended
|
NGX10 6F | — | |
| 87209-F4030 |
Hose, Heater Water, Outlet
2016-10 → 2019-09
ended
|
NGX10,50 CVT | — | |
| 87209-F4020 |
Hose, Heater Water, Outlet
2019-09 → —
|
NGX10 6F | — | |
| 87209-F4030 |
Hose, Heater Water, Outlet
2019-09 → —
|
NGX10,50 CVT | — | |
| 87245-F4040 |
Hose, Heater Water, Outlet
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
